eL Xr seats in Ed xr6



Page 1 of 1 [ 8 posts ]


 Post subject: eL Xr seats in Ed xr6
Posted: Mon Feb 16, 2009 9:26 pm
Fordmods Newbie
Offline

Age: 38

Posts: 2

Joined: 29th Jun 2006

Location: goldcoast
QLD, Australia

Yeah ive heard it's a pain in the a** to put these in.Are the rails able to be changed over or modified to fit?Or should i give up and clean up the old seats and sell off the el seats.



_________________

Modified Fords dont pull as much a** as i originaly thought must be me

Top
 Profile


 Post subject: Re: eL Xr seats in Ed xr6
Posted: Sat Feb 28, 2009 4:37 pm
Smokin em up
Offline
User avatar

Age: 54

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

They are a pain in the a** to modify but it can be done. I got around it by removing rear inside bracket from orig seat secure it to el seat(using high tensile bolts and re weld). Bolt down 2 rear brackets first and then front inside bracket(near console) and you will notice the front outside bracket near door wont match original hole on the floor pan so i drilled a hole in line with the bracket threw the floor and used a high tensile nut and bolt to secure it to the floor.
There are other ways ive seen this mod been done but ive found this to be the easiest and cheapest way of doing it. Now i just got to figure out how to line the EL back seat with the mounts/catch as the catch is about an inch to high.



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: eL Xr seats in Ed xr6
Posted: Sat Feb 28, 2009 11:46 pm
Getting Side Ways
Offline
User avatar

Posts: 636

Joined: 21st Nov 2008

Location: Melbourne
VIC, Australia

easpak91 wrote:
They are a pain in the a** to modify but it can be done. I got around it by removing rear inside bracket from orig seat secure it to el seat(using high tensile bolts and re weld). Bolt down 2 rear brackets first and then front inside bracket(near console) and you will notice the front outside bracket near door wont match original hole on the floor pan so i drilled a hole in line with the bracket threw the floor and used a high tensile nut and bolt to secure it to the floor.
There are other ways ive seen this mod been done but ive found this to be the easiest and cheapest way of doing it. Now i just got to figure out how to line the EL back seat with the mounts/catch as the catch is about an inch to high.


do you have any pics of how it looks mate?
cheers
Top
 Profile


 Post subject: Re: eL Xr seats in Ed xr6
Posted: Sun Mar 01, 2009 12:02 am
Smokin em up
Offline
User avatar

Age: 54

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

Will try 2 take some pics 2murra if time permits.



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: eL Xr seats in Ed xr6
Posted: Sun Mar 01, 2009 12:56 pm
Smokin em up
Offline
User avatar

Age: 54

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

Here is pretty much the process with pics as promised
Attachment:

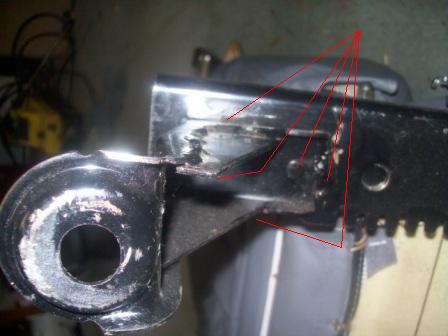

File comment: Grind of welds and each bracket pin(2) of EA rail
EA bracket.JPG
EA bracket.JPG [ 33.5 KiB | Viewed 192 times ]
Attachment:

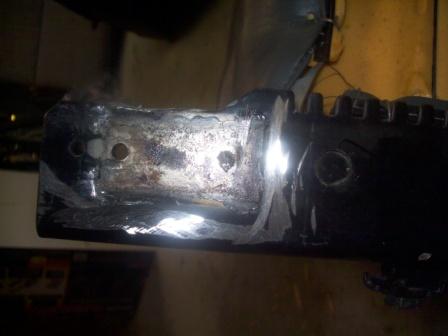

File comment: EA rail with bracket removed, you may need a centre punch to pop out the bracket pins once grounded
EA bracket removed.JPG
EA bracket removed.JPG [ 27.45 KiB | Viewed 234 times ]
Attachment:

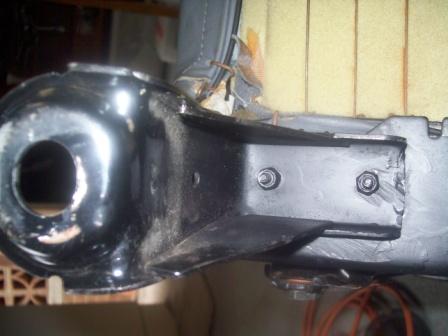

File comment: Use 2 high tensile bolts to secure your EA bracket to EL/EF rail
EA to EL bolt.JPG
EA to EL bolt.JPG [ 32.78 KiB | Viewed 193 times ]
Attachment:

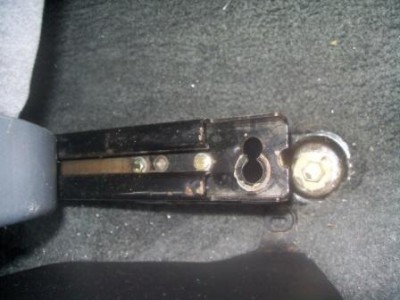

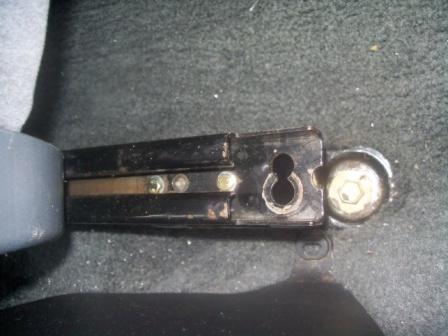

File comment: Bolt down the 2 rear brackets to floor then the bracket that is on the console side
EL seat installed.JPG
EL seat installed.JPG [ 35.71 KiB | Viewed 205 times ]
Attachment:

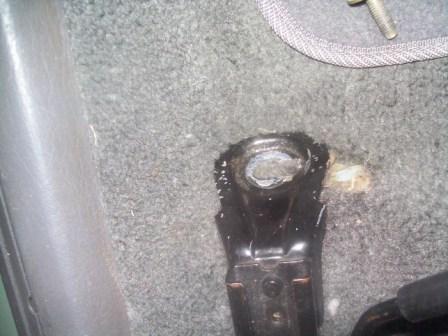

File comment: You will notice that the bracket on the door side does not line up, drill hole through the floor in line with the hole in the bracket and use a high tensile bolt to secure.
El outside bracket.JPG
El outside bracket.JPG [ 37.02 KiB | Viewed 209 times ]



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: eL Xr seats in Ed xr6
Posted: Sun Mar 01, 2009 12:57 pm
Smokin em up
Offline
User avatar

Age: 54

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

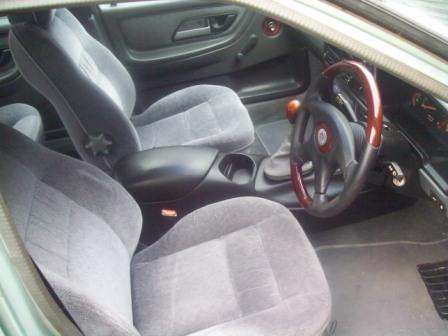

And there you have it EL seats (mind you this was using NL ghia seats but same process) into EA,EB and ED





Attachments:
EL seats installed.JPG
EL seats installed.JPG [ 33.83 KiB | Viewed 216 times ]



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: eL Xr seats in Ed xr6
Posted: Mon Mar 02, 2009 12:17 am
Getting Side Ways
Offline
User avatar

Posts: 636

Joined: 21st Nov 2008

Location: Melbourne
VIC, Australia

easpak91 wrote:
Here is pretty much the process with pics as promised
Attachment:
EA bracket.JPG
Attachment:
EA bracket removed.JPG
Attachment:
EA to EL bolt.JPG
Attachment:
EL seat installed.JPG
Attachment:
El outside bracket.JPG


that looks quite simple
cheers for that info mate
Top
 Profile


 Post subject: Re: eL Xr seats in Ed xr6
Posted: Mon Mar 02, 2009 7:46 pm
Smokin em up
Offline
User avatar

Age: 54

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

It is pretty simple and str8 forward i didnt go into to much detail with the process but if you get stuck just post ya question in this post and ill help you out
