BenJ wrote:
Well done Frankieh!!!

Don't you love that sense of achievement when it all works like it should?

Cheers
BenJ



Yup... love the feeling...

I'll tell you one thing.. changing the colour of LCD displays is much much harder than in the EA-ED clusters.... I spent hours unsoldering the LCD display in the climate control to remove the orange backplate...

was worth it though... looks great blue..
Top
 Profile


 Post subject: Re: Building upon my EL Fairmont... new dash going in.,
Posted: Tue Jan 12, 2010 12:37 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

frankieh wrote:
Sorted the steering out too... had the top uni joint upside down... was slightly bigger at the wrong end.. not that easy to notice but a pain to sort out... all good now too...
Image heheheheeh... :lol: ...
While the dash was apart, I've converted most of the LCD displays and general lights to blue LED's... the trip computer came out perfectly, but the climate control LED's were just not bright enough... I've ordered a small LED panel with like 36 LED's on it that will go in there and take over lighting duties..... will see how that comes out. I'll take some photos of the dash LED's when I get a moment.. it looks cool...
ImageYeahp. I found the same. My climate control has two extra light attachments in the back (10mm drill and T10 plugs with 4 prong LED's in them) and it's still a bit "iffy", so I put bright white 4 LED in one of the three sockets - sweet, kind of. Looks like the original "ALIEN" target device at dusk with the climate control set to "off..."... ...
nice to know all my wiring is in as new condition now... This coming weekend I hope to install that really cool 5km range car alarm with the LCD display on the remote and also my bluetooth rear vision mirror.
Image And in the coming weekend you'll be producing the complete step by step on how to install said alarm?... You know we want one... You know there will be people asking you about this... You know I'm a persistent pain in the back... ...
Top
 Profile


 Post subject: Re: Building upon my EL Fairmont... new dash going in.,
Posted: Tue Jan 12, 2010 12:42 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Not funny about the steering box... they guy that had the car before me got it the wrong way around.. god knows how much fiddling he had to do to stop it hitting.... all I did is undo the top two bolts and dropped the column and it was knocking from then on... was looking at the schematic in my gregories when I noticed that the ends looked abit different.. decided to see if the real one had the same diff and it did.. then noticed it was in backwards.. swapped it over and all was good... like I said.. amazing that he managed to stop it knocking when it was in backwards as there much less room to work with that way.

As for the alarm... 95 percent of it is dead normal alarm fitting..... only bit I'm not currently sure of is if I can find negative triggers for the CDL up and down or if I need to fit a second door motor..

I'll write it up when it's done.

cheers

Frank
Top
 Profile


 Post subject: Re: Building upon my EL Fairmont... new dash going in.,
Posted: Tue Jan 12, 2010 1:02 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Sorry matey - Didn't mean to be rude when having a laugh at the uni joint upside down... I've had to drop that bit quite a number of times and have forgotten to do it up properly once... Drove for a few thousand K's and then went "OMG" and pulled over and dove into the back of the car for a 10mm spanner whilst the missus was asking "WTF".

With parts like that I've learnt to loosen, move and replace. IE - Not remove entirely.

Am still working on the "loosen, move, replace and re-tighten."
Top
 Profile


 Post subject: Re: Building upon my EL Fairmont... new dash going in.,
Posted: Tue Jan 12, 2010 1:18 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

no sweat dude.. I wasnt upset.. :-)
Top
 Profile


 Post subject: Re: Building upon my EL Fairmont... new dash going in.,
Posted: Tue Jan 12, 2010 11:42 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

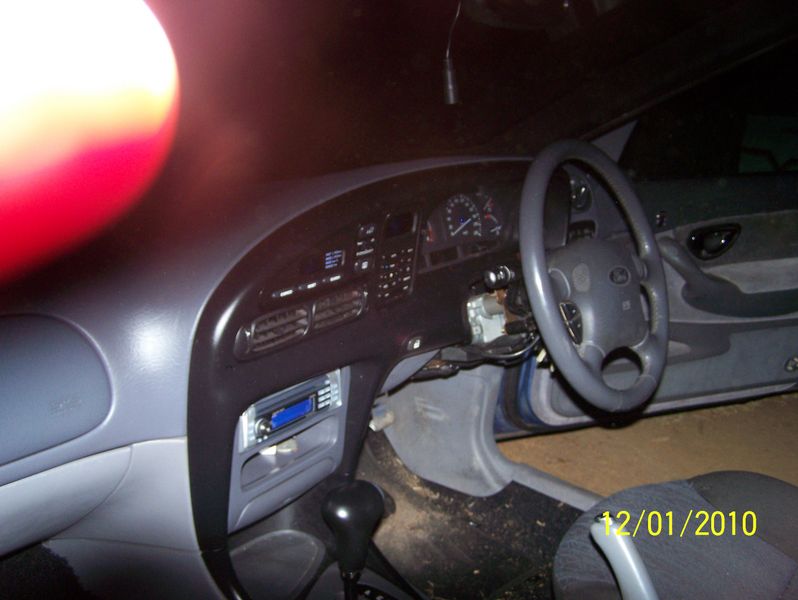

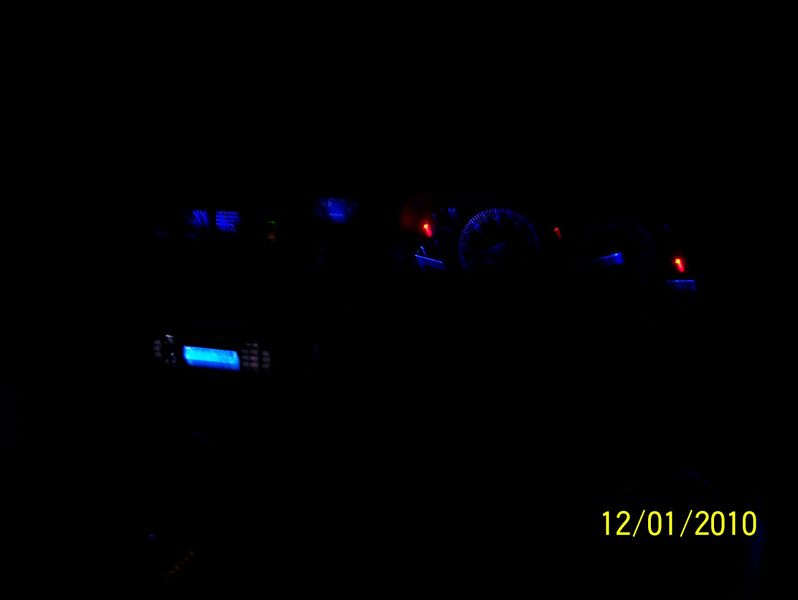

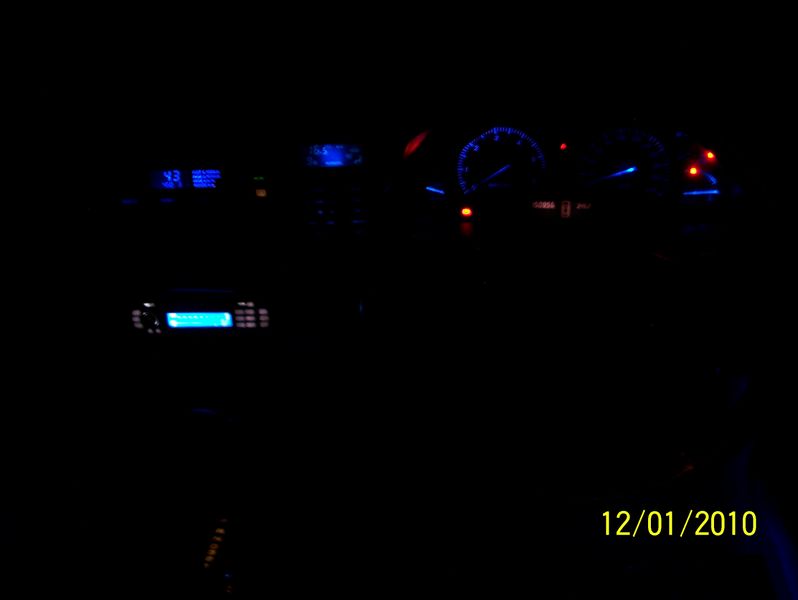

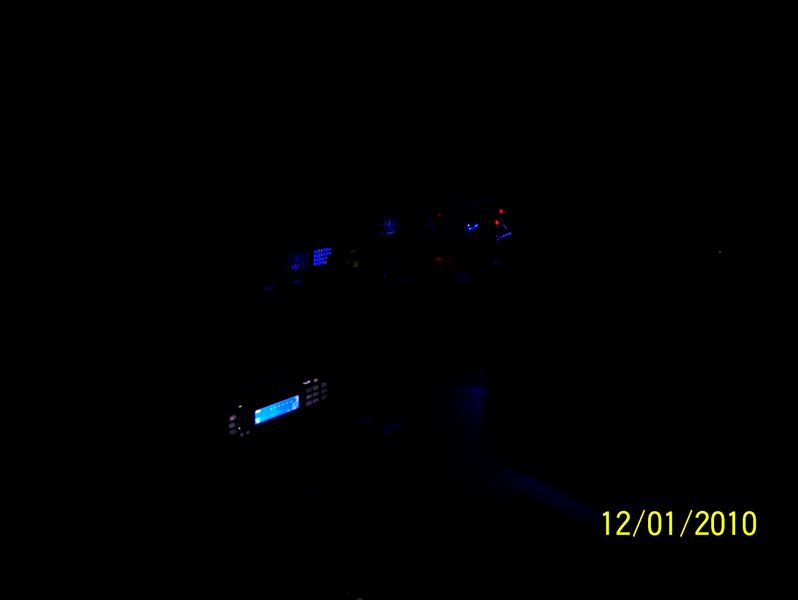

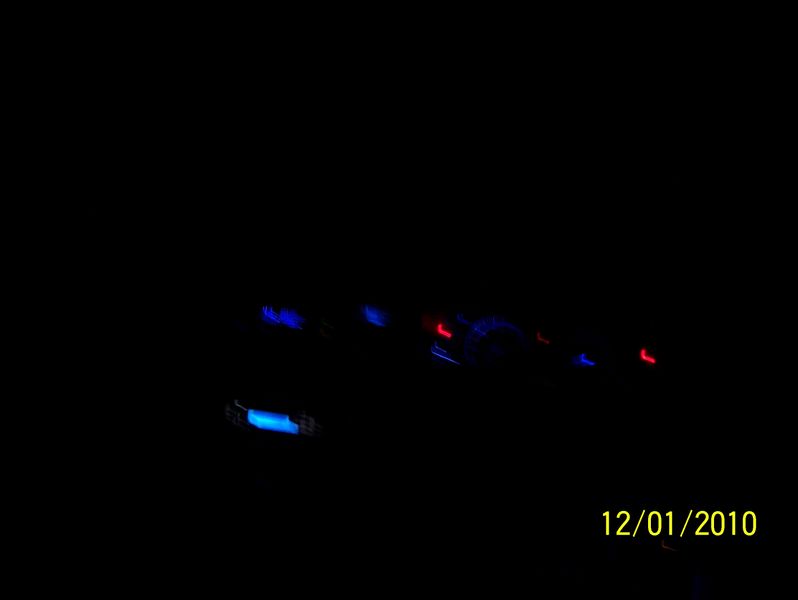

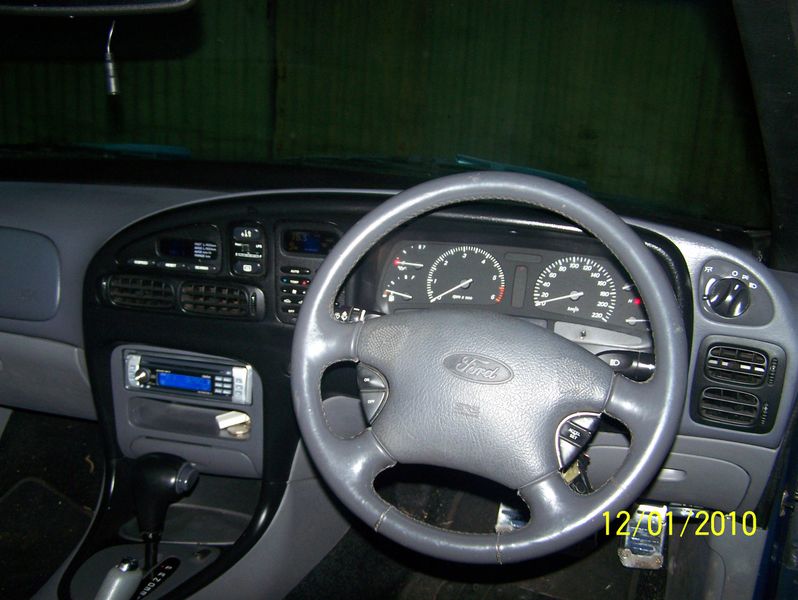

Some pickies of the new dash.
