BA Falcon I6 FG Manifold Conversion



Page 2 of 2 [ 24 posts ] Go to page Previous  1, 2


 Post subject: Re: BA Falcon I6 FG Manifold Conversion
Posted: Wed Oct 31, 2018 7:18 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 880

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys, so to finish off-I started reconnecting all the lower plugs-starting with the crank,oil pressure,knock sensors and then fitting the AC bracket on/torque then the AC pump and reconnect AC plugs.Then it's time to do all the injectors,coils,cam sensors etc....
with the cam or VCT plugs (which I can only assume the Tabs are brocken as every single one "IS" on every single loom in the country) all I do is push the connectors on put some sort of wedge behind it so it cannot move and put a dab of Ultra Blue where the broken Tab should be/once dry they will not come off unless you want them to,you should be able to work the rest out-but feel free to ask any questions,ohh the lift bracket I haven't done yet cause the bolt is spanner breaking tight but see pic FG lift bracket Barra ute,will add anything else I can think of later.

Anyway hope this helps someone.
Cheers Johnny.





Attachments:
File comment: Finishing off shot.
IMG_20181031_59621.jpg [ 71.94 KiB | Viewed 596 times ]

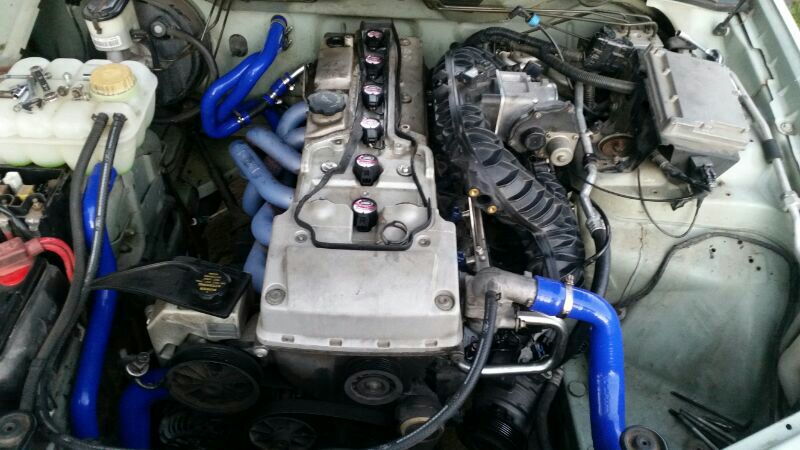

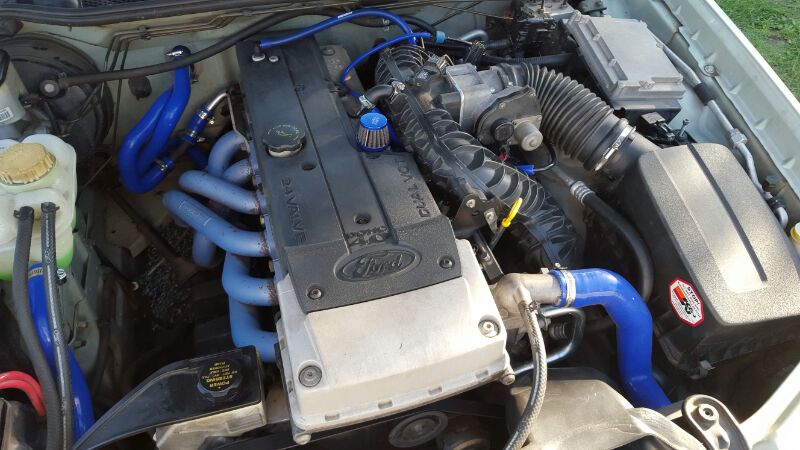

File comment: Bay shot
IMG_20181031_28962.jpg [ 74.73 KiB | Viewed 531 times ]

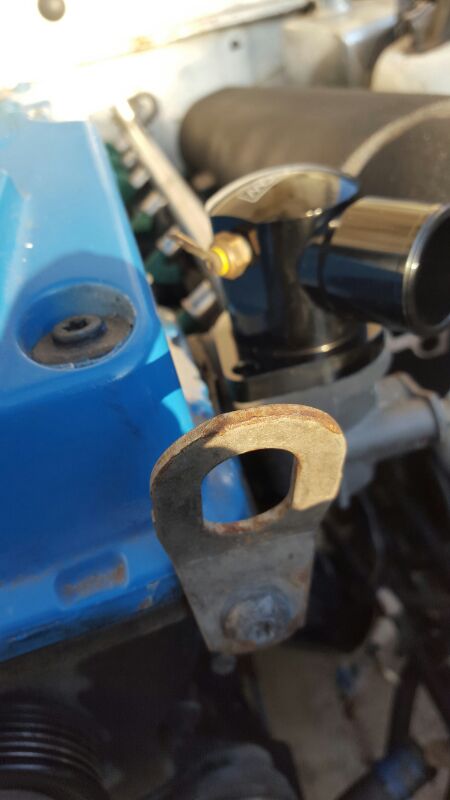

File comment: FG lift bracket on the XG ute.
IMG_20181031_229.jpg [ 36.2 KiB | Viewed 500 times ]



_________________

XG DOHC-BARRA 182/Turbo kit/20% Underdrive and BA 4-SPEED + Tiptronic shifter

https://youtube.com/channel/UCaRUQ10of3FlOuSpvfapOtA

Top
 Profile


 Post subject: Re: BA Falcon I6 FG Manifold Conversion
Posted: Thu Nov 01, 2018 7:46 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 880

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys, quick video of the BA running with the FG manifold,sorry about the rattling noise when I get out-have a brocken exhaust bolt.
https://youtu.be/ZaVr1uFpvgw

Anyway cheers guys,let me know if you have any questions-happy to answer.
Cheers Johnny.



_________________

XG DOHC-BARRA 182/Turbo kit/20% Underdrive and BA 4-SPEED + Tiptronic shifter

https://youtube.com/channel/UCaRUQ10of3FlOuSpvfapOtA

Top
 Profile


 Post subject: Re: BA Falcon I6 FG Manifold Conversion
Posted: Thu Nov 01, 2018 10:26 pm
Getting Side Ways
Offline

Age: 71

Posts: 3574

Joined: 11th Jan 2009

Location: Smithfield
NSW, Australia

johnnyeHCF wrote:
Hey Papa Smurf,I think I am going with XR springs and shocks too as I have BA-XR wheels now,roads are too s**t to go lower,I just had to do brakes-didn't think of going bigger though (maybe one day) did front slotted rotors/bendix pads,rear generic pads and all new braided brake hoses,would love to see whats involved in the brake upgrade though,thanks again for your comments mate.
Cheers Johnny.


I have done the change twice and it was relatively easy. Once on my AUIII and on my mate's FG MKII.
The fronts just require new Discs (of course) and a new Outrigger for the calipers which can be had from Ebay for about $150.00 a pair ( I was lucky to get mine for $115.00 pr).

The Rears may require a little bit of work around on the backing shield but, not hard to do and the Calipers for the rear are used on a Territory and can be gotten from Ebay also for about $75.00 each. Pretty easy to do.
Top
 Profile


 Post subject: Re: BA Falcon I6 FG Manifold Conversion
Posted: Wed Jan 02, 2019 9:21 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 880

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys,hope you all had a good xmas and great new year, just wanted to let you know I'm getting stuff sorted for tuning this to really get the full potential from the mods,hows this-dad asks "Is there anything you want for Christmas?),my answer was a joke/as I didn't want him to get me anything "A set of spark plugs" so my dad thinking/pay the joke back and actually buys me a set of Bosch double platinum spark plugs for Christmas which was awesome-and yes got him a present too!
So will be using the Bosch plugs and a new set of Machter Coils before I put the wideband sensor in and set up HP tuner for data logging and I'll update you guys later(may take a while as I'm only just learning how to tune)-may be able to get a dyno figure later too.

Cheers Johnny.





Attachments:

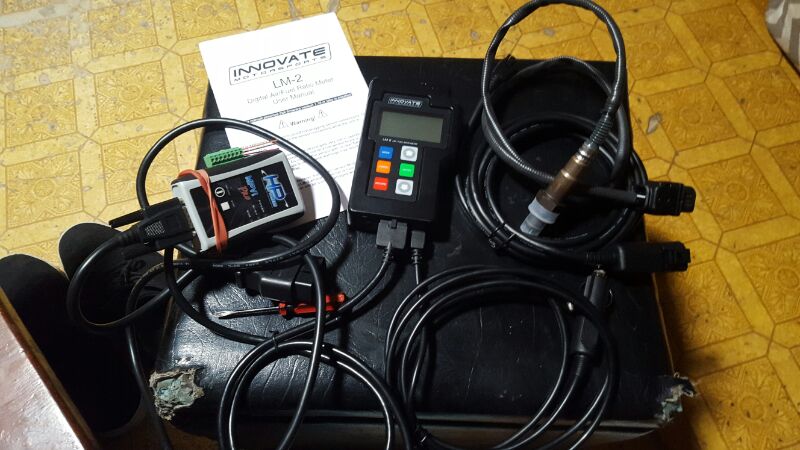

File comment: LM-2 and analog output to HP tuner MPVI pro + bosch wideband sensor.
IMG_20190102_39992.jpg [ 72.15 KiB | Viewed 457 times ]

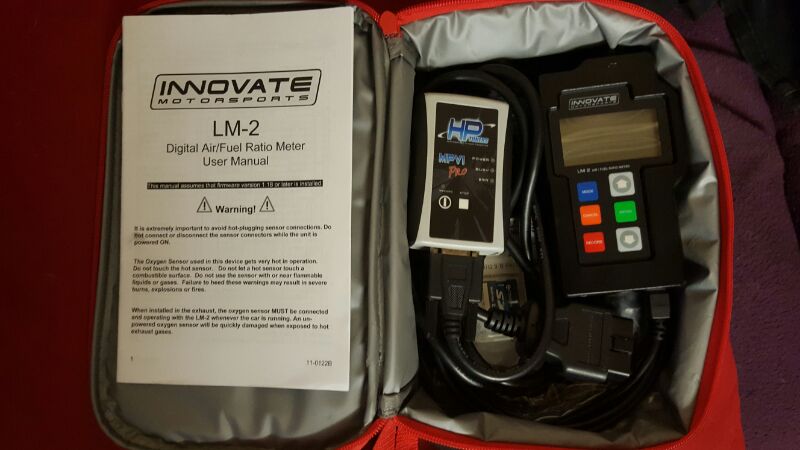

File comment: Inside the Ford Wars/LM-2 & MPVI pro etc...
IMG_20190102_6478.jpg [ 50.41 KiB | Viewed 493 times ]

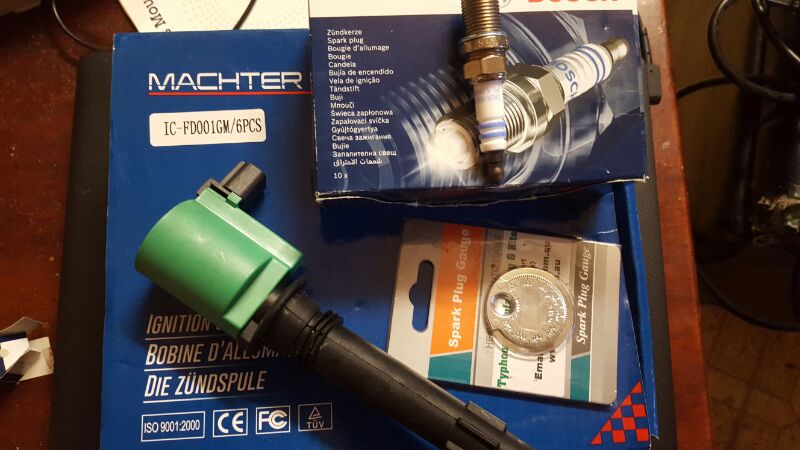

File comment: Bosch plugs Machter coils.
IMG_20190102_53809.jpg [ 62.83 KiB | Viewed 459 times ]
File comment: From Ford Wars 2019 post.
IMG_20190102_52900.jpg [ 54.09 KiB | Viewed 397 times ]



_________________

XG DOHC-BARRA 182/Turbo kit/20% Underdrive and BA 4-SPEED + Tiptronic shifter

https://youtube.com/channel/UCaRUQ10of3FlOuSpvfapOtA

Top
 Profile


 Post subject: Re: BA Falcon I6 FG Manifold Conversion
Posted: Tue Jan 08, 2019 10:51 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 880

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys, so I've fitted the wideband sensor-but I'm using the after cat 3:00 position in the hi flow venom cat/may scew readings slightly but being a hi flow It's not actually that much,calibrated the 02 bosch sensor in free to air before fitting and it's working really well,but haven't tried to set up HP Tuner as day Temps are between 35°/40° which is a bit bloody much so will wait till it's cooler,meanwhile the LM-2 has to be on and running/very bad for a wideband sensor to be in the exhaust system and not connected and heating,so have noticed it has gone as rich as 10 and as lean as 20 whilst driving.





Attachments:

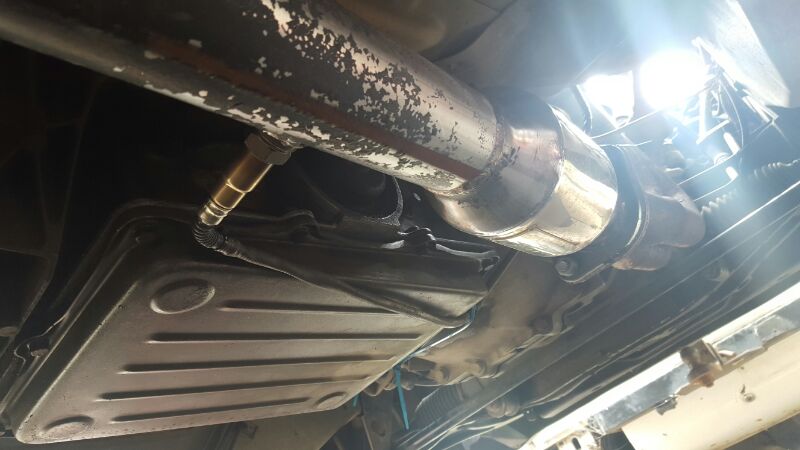

File comment: Wideband sensor in Venom cat 3:00,may look taught but it has some play for movement.
IMG_20190108_20524.jpg [ 51.1 KiB | Viewed 492 times ]

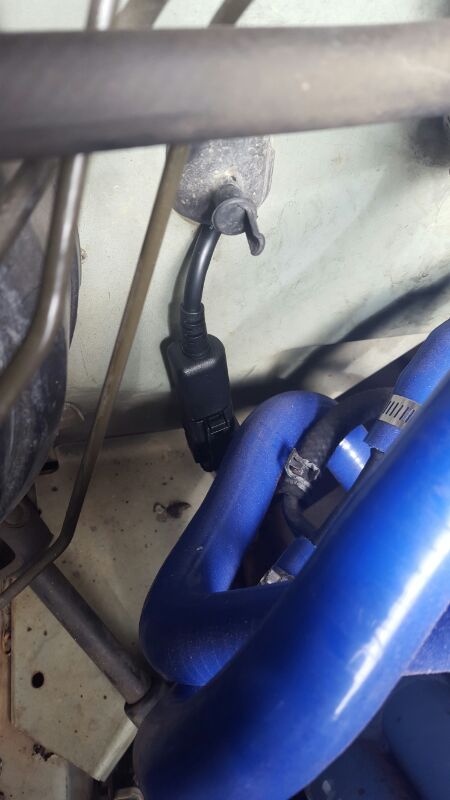

File comment: Wideband enters the cab through here.
IMG_20190108_9171.jpg [ 42.7 KiB | Viewed 385 times ]

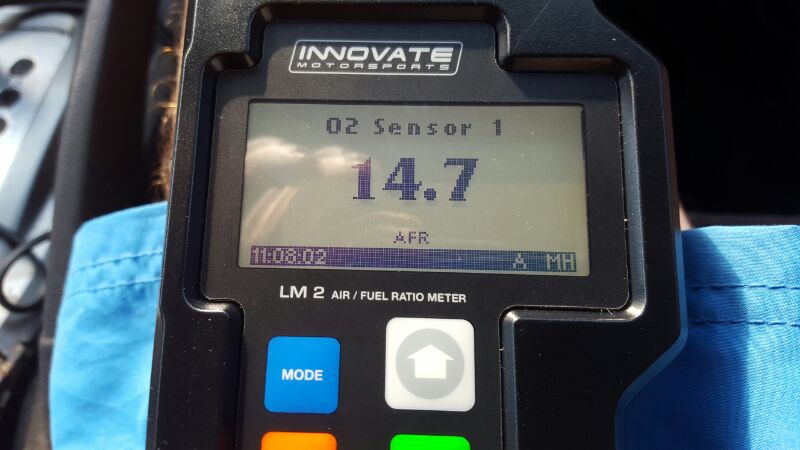

File comment: AFR Is good at 14.7 at idle,but richer on start=normal.
IMG_20190108_5671.jpg [ 49.69 KiB | Viewed 418 times ]



_________________

XG DOHC-BARRA 182/Turbo kit/20% Underdrive and BA 4-SPEED + Tiptronic shifter

https://youtube.com/channel/UCaRUQ10of3FlOuSpvfapOtA

Top
 Profile


 Post subject: Re: BA Falcon I6 FG Manifold Conversion
Posted: Wed Feb 06, 2019 6:48 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 880

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys,just wanted to ask if anyone knows the difference between the BA/BF Inlet Manifold Control Solenoid is-it changes at 3800 RPM to short path ,trying to find out what RPM the FG's change at?
Have a feeling they may change earlier .

Cheers Johnny.



_________________

XG DOHC-BARRA 182/Turbo kit/20% Underdrive and BA 4-SPEED + Tiptronic shifter

https://youtube.com/channel/UCaRUQ10of3FlOuSpvfapOtA

Top
 Profile


 Post subject: Re: BA Falcon I6 FG Manifold Conversion
Posted: Tue Mar 26, 2019 8:24 am
Stock as a Rock
Offline
User avatar

Age: 33

Posts: 146

Joined: 30th Jul 2012

Gallery: 1 images

Ride: 91 EB S Pack

Location: The Mallee
VIC, Australia

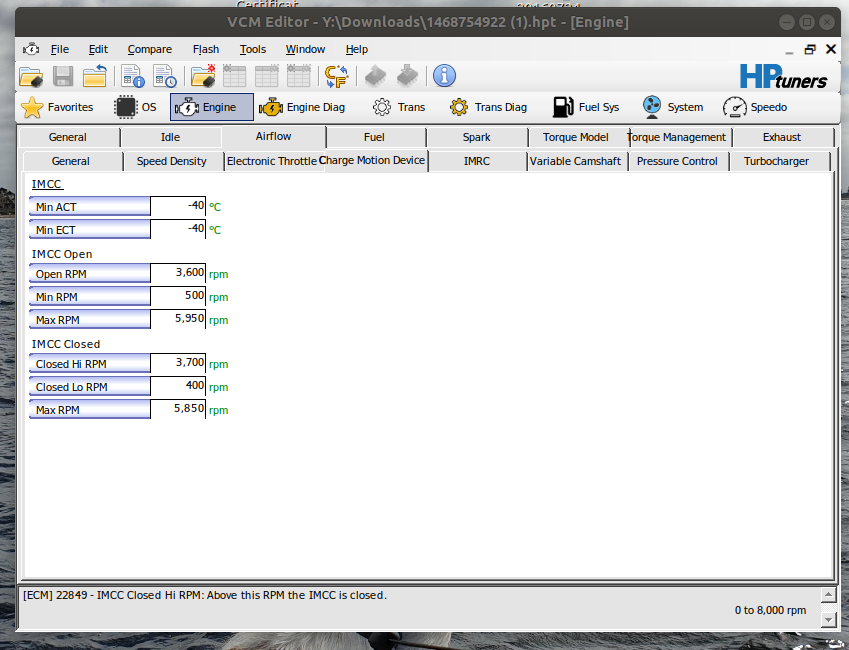

This is what VCMEdit has to say about the FG falcon Intake Manifold Charge Controller

I thought it was linear with throttle position, not sure why. Maybe because when i put an FG engine into a BA it created this really aggressive powerband at 3800rpm





Attachments:
2010FGFalconIMRC.png [ 151.77 KiB | Viewed 461 times ]



_________________

I've never liked Trees since, not one.
~ Vanessa Ives

Top
 Profile


 Post subject: Re: BA Falcon I6 FG Manifold Conversion
Posted: Sat Mar 12, 2022 5:21 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 880

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Just a quick video of the process of this.

https://youtu.be/paTHqILrBDw

Check out my other videos



_________________

XG DOHC-BARRA 182/Turbo kit/20% Underdrive and BA 4-SPEED + Tiptronic shifter

https://youtube.com/channel/UCaRUQ10of3FlOuSpvfapOtA

Top
 Profile


 Post subject: Re: BA Falcon I6 FG Manifold Conversion
Posted: Sat Apr 23, 2022 1:31 am
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 880

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Did this back in 2018 and it's still going strong with 0% manifold leaks link to it still revving below.

https://youtu.be/R1vQ-U9w6Nk



_________________

XG DOHC-BARRA 182/Turbo kit/20% Underdrive and BA 4-SPEED + Tiptronic shifter

https://youtube.com/channel/UCaRUQ10of3FlOuSpvfapOtA

Top
