 Post subject: au engine into xe
Posted: Thu Nov 17, 2011 10:45 pm
Parts Gopher
Offline

Age: 41

Posts: 58

Joined: 10th Feb 2009

Ride: ford fairmont xf

Location: caboolture
QLD, Australia

hay was looking at doing this conversion just woundering what ill have to look out for. thanks
Top
 Profile


 Post subject: Re: au engine into xe
Posted: Thu Nov 17, 2011 10:50 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Would be easier to use a EA - ED multi point engine, if you fit it using XH ute bits, it should be straight forward. Go check out the engine bay on a XH ute, that will give you an idea of what needs to be done.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: au engine into xe
Posted: Thu Nov 17, 2011 11:03 pm
Technical Contributor
Offline
User avatar

Age: 45

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

ToranaGuy wrote:
Would be easier to use a EA - ED multi point engine, if you fit it using XH ute bits, it should be straight forward. Go check out the engine bay on a XH ute, that will give you an idea of what needs to be done.

Cheers

ToranaGuy



Don't look at an XH ute.

You need to aquire parts from an XG ute.

Main items are:
Sway bar (need).
Lower engine mounts (need).
Power steering box (unless you want to get a pipe made from metric to imperial).
Log style manifold.
XG Fuel tank and lines, only if its going in a ute otherwise EFI from a 4.1 sedan.

You will Hit the sway bar with the sump, so you'll need to have that cut and shut, or use an EB-EL engine pan.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: au engine into xe
Posted: Thu Nov 17, 2011 11:18 pm
Technical Contributor
Offline
User avatar

Age: 45

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

I did the conversion a little over a year ago, everything clears using the serpentine setup.

you'll need to gut an XG for all the tiny bits like hoses and retaining brackets etc for the recovery tank.

It is far easier to grab the entire enginebay and dash loom also.

The Sump Just clears a EB-EL style sump using the correct sway bar. the AU sump will hit.

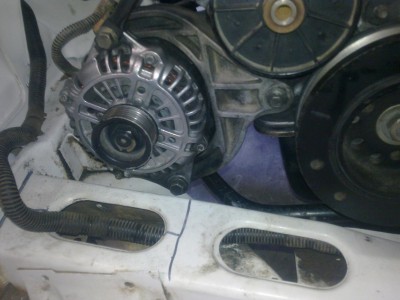

Attachment:
Image0216s.JPG [ 162.73 KiB | Viewed 320 times ]

Attachment:
Image0218s.JPG [ 153.85 KiB | Viewed 328 times ]

Attachment:
File comment: This is how much I had to cut off the sump for it to fit even a basic EF. the XG will be closer.
AU Sump3.JPG
AU Sump3.JPG [ 87.68 KiB | Viewed 311 times ]

Attachment:
File comment: XG Top
XE/XF Bottom

IMG_1017s.JPG [ 114.72 KiB | Viewed 308 times ]



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: au engine into xe
Posted: Fri Nov 18, 2011 12:07 am
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

To use an AU engine (coil pack & BB manifold), won't the XH loom & ecu be required? Or would you suggest convert it to a dizzy setup, use a mpfi log manifold like a xg & use XG loom & ecu? XG mounts would be the ones to use....

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: au engine into xe
Posted: Fri Nov 18, 2011 7:13 am
Technical Contributor
Offline
User avatar

Age: 45

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Wouldn't even bother using coil packs to be honest.

The first challenge is getting the motor seated in the first place.



The best bet is using the XG loom, with Dissy and use an EL ECU to obtain the thermo fan outputs and the BBM trigger.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: au engine into xe
Posted: Fri Nov 18, 2011 7:07 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Krytox wrote:
Wouldn't even bother using coil packs to be honest.

The first challenge is getting the motor seated in the first place.



The best bet is using the XG loom, with Dissy and use an EL ECU to obtain the thermo fan outputs and the BBM trigger.


Fair enough. Some love them & some hate them. Personally I am indifferent to them.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: au engine into xe
Posted: Fri Nov 18, 2011 11:48 pm
Parts Gopher
Offline

Age: 41

Posts: 58

Joined: 10th Feb 2009

Ride: ford fairmont xf

Location: caboolture
QLD, Australia

im actuly thinking of putting one into my patrol to. will i have to use the au dash cluster & fit into where the gq cluster is or can i use the stock gq patrol dash.
