need XF taillight measurements



Page 1 of 1 [ 4 posts ]


 Post subject: need XF taillight measurements
Posted: Wed Dec 16, 2009 1:52 pm
Oompa Loompa
Offline

Age: 35

Posts: 43

Joined: 24th Jul 2007

Ride: XF Panelvan

Location: Perth
WA, Australia

I'm after the measurements of the coloured sections in the XF taillights:
the hight of the red section that lights up when you brake
the hight of the grey section between the red sections that dont light up.

Since I've been after the measurements all the XF falcons around my area have seemed to disappear haha. millimeters would be good, thanx



_________________

Double legger stock EF fairmont. 15.46 1/4 mile

Top
 Profile


 Post subject: Re: need XF taillight measurements
Posted: Fri Dec 18, 2009 11:17 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Your not making a lot of sense????.... :? ......what are you trying to do????



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: need XF taillight measurements
Posted: Mon Dec 21, 2009 10:40 am
Oompa Loompa
Offline

Age: 35

Posts: 43

Joined: 24th Jul 2007

Ride: XF Panelvan

Location: Perth
WA, Australia

haha i want to paint the tail lights on my van so they look similar to the sedan tail lights.



_________________

Double legger stock EF fairmont. 15.46 1/4 mile

Top
 Profile


 Post subject: Re: need XF taillight measurements
Posted: Tue Dec 22, 2009 9:27 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

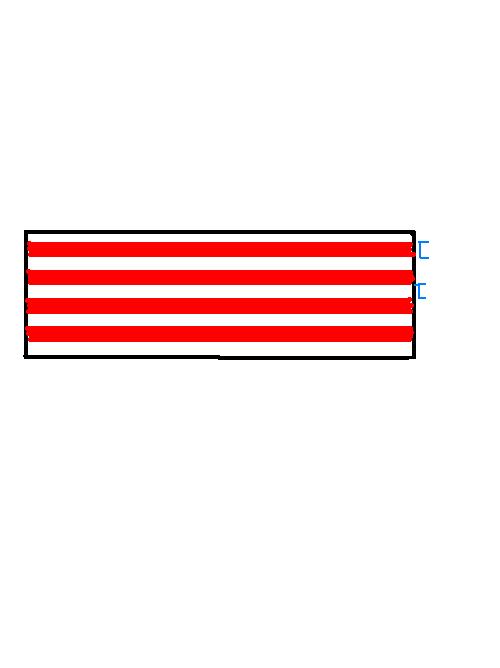

ok, the dodgy pic is an XF brake light :lol:

the blue lines on the right is what i measured

the red lights have a width of 20mm
the gap between the red lights has a width of 1.6/1.7mm

is that what ya after mate?





Attachments:
xf taillight.JPG
xf taillight.JPG [ 17.78 KiB | Viewed 214 times ]
