XF Fairmont Ghia Seat wiring diagram



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: XF Fairmont Ghia Seat wiring diagram
Posted: Sat Oct 29, 2005 4:33 pm
Parts Gopher
Offline

Age: 75

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Fitting a pair of electric seats bases from an XF Fairmont Ghia to my XF S Pack Wagon.

I need the function for the 6 wires. That is without doing damage and without pulling apart, has anyone a reference for the colour code for the wires attached to the three seat motors or point me to that info. (6 wires)

Thanks

XF Steve



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Sat Oct 29, 2005 4:42 pm
Tyre Shredder
Offline

Age: 38

Posts: 384

Joined: 26th Jun 2005

Ride: 1984 FD LTD

Location: Mackay
QLD, Australia

i didnt know that XF Ghia's came out with electric seats?

*takes notes for a future mod to the ZL*



_________________

Member Of "Team LWB"
FD: My Current Project

http://img.photobucket.com/albums/v146/ ... age029.jpg

ZL: A Work In Progress - that went to the tip!

http://img.photobucket.com/albums/v146/ ... maller.jpg

Top
 Profile


Posted: Sat Oct 29, 2005 5:07 pm
Parts Gopher
Offline

Age: 75

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

i didnt know that XF Ghia's came out with electric seats?


Thats what the writing said on them - got them on e-bay - they fit perfectly in the floor mounts and the seats fit on the base --""who knows"" 8-)



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Sat Oct 29, 2005 7:56 pm
Getting Side Ways
Offline

Age: 42

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

they were standard on FE LTD's, optional on fairlanes, and afaik, optional on Fairmont Ghia's if you knew what to ask for



_________________

Banned

Top
 Profile


Posted: Sat Oct 29, 2005 8:09 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 866

Joined: 8th Nov 2004

Gallery: 2 images

Ride: XD 351, FG Ute

Location: Darwin
NT, Australia

you should only need two wire if you have both switches and seats and that is pos+ abd neg- everything else just plugs in if you xf is a fairmontghia (has fairlane dash) it will already have this plug to so you wont need to wire anything up



_________________

WINNER:
Best modified car 1980 - 1989 Shannons show and shine 2006
Best XD-XH Darwin All Ford Day 2011

There is no substitute for cubic inches :twisted:

Top
 Profile


Posted: Sat Oct 29, 2005 9:58 pm
Parts Gopher
Offline

Age: 75

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Thanks guys,

I only got the two seat bases. Got a set of momentary on - centre off - momentary on three position rocker switches and have made up a switch plate in place of the centre console ask tray. Had to take the console out anyway (see previous gear stick thread) and with a bit of trial and error all is now working. The seat bases work a treat.

XF Steve



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Mon Oct 31, 2005 10:45 am
Parts Gopher
Offline

Age: 75

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

By the way.


I am driving the seats via the now very redundant cigarette lighter circuit. As the switches are on the console, it was only a matter of cutting the wires to the cigarette lighter and connecting to the seat supply input.

Have only the three rocker switches mounted on the consol with a change over switch. Therefore you cannot drive both seats at the same time. Handy for moving the passenger seat forward from the drivers seat for the back seat passenger.

XFSteve



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Mon Oct 31, 2005 11:17 pm
Tyre Shredder
Offline

Age: 38

Posts: 384

Joined: 26th Jun 2005

Ride: 1984 FD LTD

Location: Mackay
QLD, Australia

just as a by the way kinda thing;
where are the controls for the `lekki seats normally mounted?



_________________

Member Of "Team LWB"
FD: My Current Project

http://img.photobucket.com/albums/v146/ ... age029.jpg

ZL: A Work In Progress - that went to the tip!

http://img.photobucket.com/albums/v146/ ... maller.jpg

Top
 Profile


Posted: Mon Oct 31, 2005 11:26 pm
Getting Side Ways
Offline

Age: 42

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

zk wrote:
just as a by the way kinda thing;
where are the controls for the `lekki seats normally mounted?
you know the coin tray between the ashtray and the console tub? for electric seat equipped cars, thats where the controls are mounted



_________________

Banned

Top
 Profile


Posted: Mon Oct 31, 2005 11:31 pm
Tyre Shredder
Offline

Age: 38

Posts: 384

Joined: 26th Jun 2005

Ride: 1984 FD LTD

Location: Mackay
QLD, Australia

cool - i might have to chase down a set of these seats for my ZL and wire it all up to look smick and tidy n the like :)

hey XF_steve, can you post pics? im interested in this now



_________________

Member Of "Team LWB"
FD: My Current Project

http://img.photobucket.com/albums/v146/ ... age029.jpg

ZL: A Work In Progress - that went to the tip!

http://img.photobucket.com/albums/v146/ ... maller.jpg

Top
 Profile


Posted: Tue Nov 01, 2005 10:01 am
Parts Gopher
Offline

Age: 75

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Hi all,

I will post some pictures when all is finished. I sacrificed the ashtray and left in the coin tray. I have decided to take out the passenger side electric base - its a waste in there 8-) and put back the original. With a bit of cutting and welding I am going to make it into a drivers side unit and fit it to my XD Sedan, after the XF is back on the road..........

XFSteve



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Tue Nov 01, 2005 11:18 am
Parts Gopher
Offline

Age: 75

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Hi all,

Found the camera. Here is the XF in progress and the console.

XFSteve





Attachments:

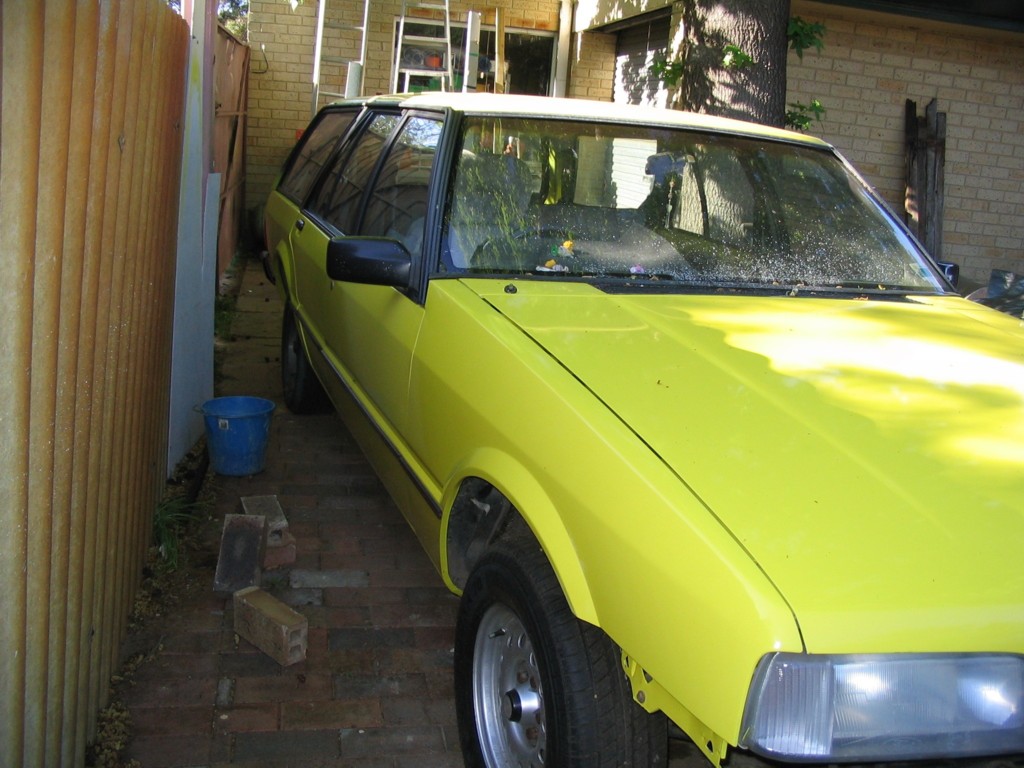

XF_in_progress_2..jpg [ 176.75 KiB | Viewed 269 times ]

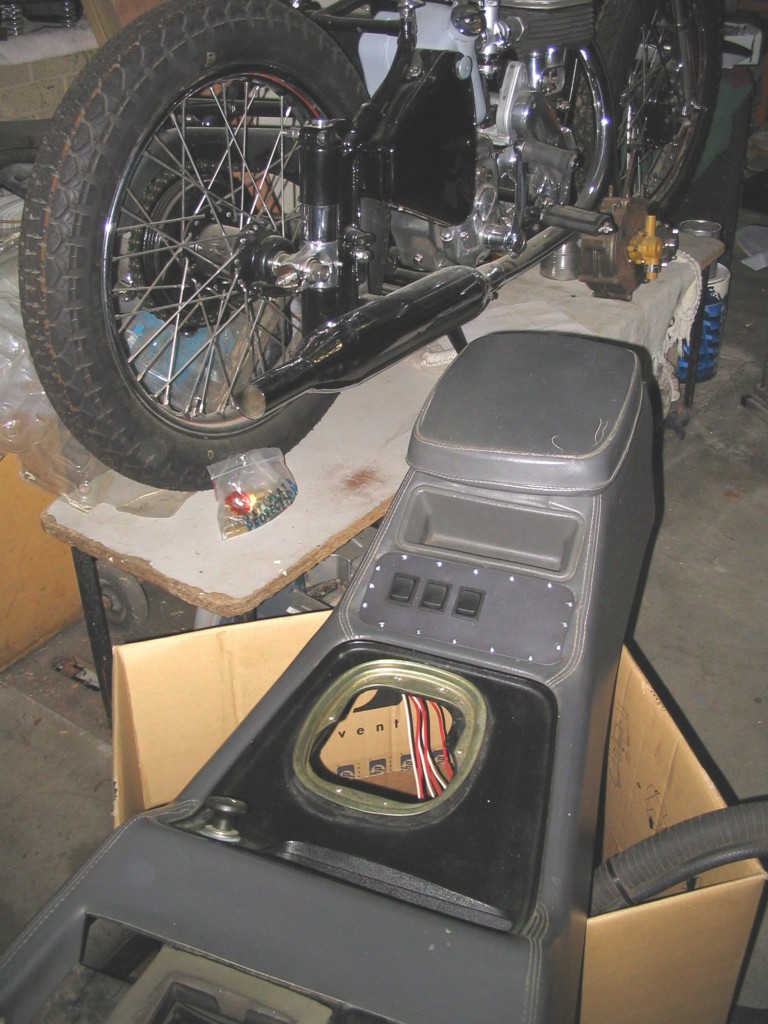

XF_Consol.jpg [ 188.99 KiB | Viewed 241 times ]

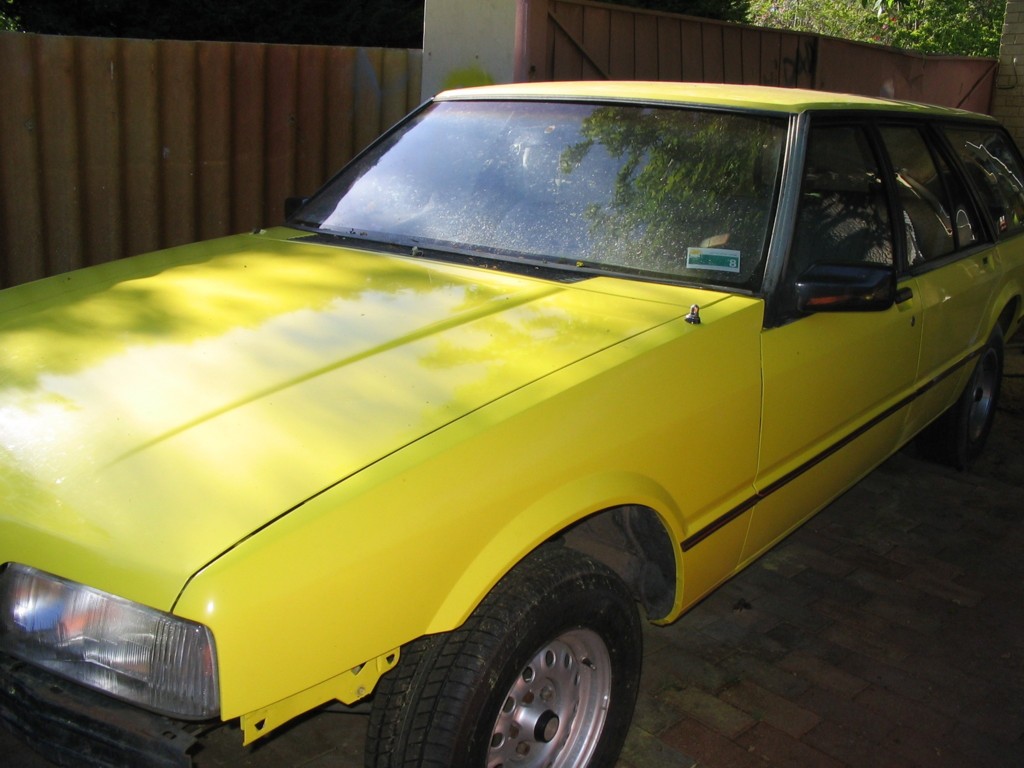

XF_in_progress.jpg [ 147.81 KiB | Viewed 249 times ]



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Tue Nov 01, 2005 7:33 pm
Stock as a Rock
Offline
User avatar

Posts: 122

Joined: 25th Apr 2005

Gallery: 9 images

Ride: EL Fairmont Ghia

Location: Gold Coast
QLD, Australia

Hey XFSteve check you PM's :D



_________________

Knower of ALL......Master of NOTHING !!!

Top
 Profile


Posted: Sat Nov 05, 2005 8:37 pm
Parts Gopher
Offline

Age: 75

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Thanks for all the help.

If you are considering fitting the power seat bases to an XF (probably XE XD) ther are two things to consider.

1. The seat will be 42mm higher.
2. You will need to drill an extra mounting hole in the floor pan. It is the front outside hole and it will be inline with that hole 28mm further inboard.

The seat fits directly onto the power base once the complete runner system is removed.

With the seat mounted as at 2 above the seat is comfortably "square" to the driving position.

I also fitted a Momo steering wheel because of the extra seat height and my unyouthly unfit figure 8-)

Cheers

XFSteve



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Sun Nov 06, 2005 12:18 am
Getting Side Ways
Offline

Age: 42

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

42mm increase in height? s**t, anyone 6' plus wouldnt want an XF with power seats AND a sunroof!



_________________

Banned

Top
 Profile
