 Post subject: $5 CODE READER
Posted: Tue Jan 19, 2010 10:28 pm
Fordmods Newbie
Offline

Posts: 19

Joined: 25th May 2006

Location: wollongong
NSW, Australia

HI
I'm not much of a sparky but I couldn't believe how easy this was to make.
$5 in parts from Jcar and 10min later one code reader.
scanned the codes in Koeo and koer mode turns out I had a few problems that I was unaware of
all fixed bar one well worth it.

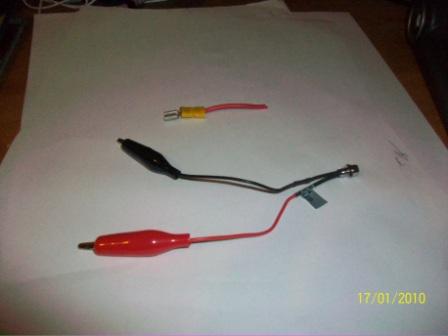

12v led light
2 x clips
1 x spade connector





Attachments:
Eng Code reader.jpg
Eng Code reader.jpg [ 26.3 KiB | Viewed 333 times ]
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Tue Jan 19, 2010 10:58 pm
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

Yes it's not very hard to make. Good on u for making it urself.



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Wed Jan 20, 2010 9:42 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

how does it work?



_________________


Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Wed Jan 20, 2010 9:51 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

gogetta wrote:
how does it work?

when you put the car in diagnostic mode the ecu puts out voltage pulses which will make the led flash..you connect it to the diag port..(cant remember what pins) and you count the flashes between each pause and you end up with a list of times flashed.
eg 1 flash, pause, 1 flash, pause, 1 flash= code 111 ..
eg 7 flashes, pause, 2 flashes, pause, 6 flashes= code 726
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Wed Jan 20, 2010 10:00 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

the croc clips look too big to get into the plug and the spade terminal connects to nothing...



_________________


Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Wed Jan 20, 2010 10:00 pm
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

gogetta wrote:
how does it work?


What, by all people you didn't knew?



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Wed Jan 20, 2010 10:04 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

gogetta wrote:
the croc clips look too big to get into the plug and the spade terminal connects to nothing...


yea by looking at the one in the pics it dont look like its going to work???
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Wed Jan 20, 2010 11:02 pm
Fordmods Newbie
Offline

Posts: 19

Joined: 25th May 2006

Location: wollongong
NSW, Australia

Hi
The spade connector gos over the top and bottom left hand pins and the black croc clip gos on the 5th top pin from the left and the red one gos on the bottom right pin turn key to the on pos and start counting the flashes.
The croc clips sit on the pins pretty good you need to get the small ones.
I have attached the instructions I used.





Attachments:
To extract codes.doc [28.5 KiB]
Downloaded 973 times
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Sun Jan 24, 2010 1:21 am
Getting Side Ways
Offline
User avatar

Posts: 633

Joined: 21st Nov 2008

Location: Melbourne
VIC, Australia

got something like this for EB series 1?
cheers
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Mon Jan 25, 2010 8:39 pm
Fordmods Newbie
Offline

Posts: 19

Joined: 25th May 2006

Location: wollongong
NSW, Australia

Sorry not to sure on the EB's But the the problems that I had where TPI out of cal IAT not working and in koer mode I had a bad connection on the water temp sensor which was causing a fault code.
The car was running rich it seems to of settled down now.I am still having trouble with the AU IAT sensor does any one now how to test it I Have the specs for the EL one but I can't get a reading from the AU IAT.
I have attached the docs that I used to test these Sensors.
Thanks





Attachments:
Air Charge Temperature.doc [97 KiB]
Downloaded 400 times
Throttle Position Sensor.doc [71.5 KiB]
Downloaded 439 times
Engine Coolant Temperature Sensor.doc [100.5 KiB]
Downloaded 406 times
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Thu May 20, 2010 10:35 pm
Stock as a Rock
Offline

Age: 46

Posts: 104

Joined: 9th Jul 2009

Ride: 1995 XG ute

Location: gold coast
QLD, Australia

sorry i'm a bit of a dunce but can someone describe exactly how to make this and how to use it...?
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Thu May 20, 2010 11:30 pm
Stock as a Rock
Offline

Age: 46

Posts: 104

Joined: 9th Jul 2009

Ride: 1995 XG ute

Location: gold coast
QLD, Australia

hey would one of those sparkies screwdriver-type testing lights work????
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Wed Dec 01, 2010 7:29 pm
Fordmods Newbie
Offline

Age: 34

Posts: 6

Joined: 18th Nov 2010

Location: melb
VIC, Australia

984.OEL wrote:
hey would one of those sparkies screwdriver-type testing lights work????



yes of course it will :D
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Thu Jan 06, 2011 2:12 pm
Stock as a Rock
Offline

Age: 76

Posts: 107

Joined: 2nd Feb 2010

Ride: Ford LTD DA 1989

Location: Sydney
NSW, Australia

Couldn't be any easier and cheaper. It really works.

Thanks for the tip.
Top
 Profile


 Post subject: Re: $5 CODE READER
Posted: Thu Jan 06, 2011 2:49 pm
Getting Side Ways
Offline

Age: 26

Posts: 1109

Joined: 4th Sep 2009

Ride: 92 EB s

Location: DORRIGO
NSW, Australia

Kniver.
Its a test light.....
