Hi All,

Got permission off the mods to start a possible group buy for my own made TFI Simulators...

The reason its in here and not the for sale forums is for the purpose of people being able to reply rather than PM...

Now these work in the following way...

Physically:
It plugs inline with the TFI module on the dizzy and provides LED indication for PIP, SPOUT, Power, Crank, & Coil - as well as a resistive bulb load for Coil -

Features:
It has the ability to simulate the PIP so that ignition problems can be found in seconds rather than continually swapping parts out looking for an answer...

Which Models?
Will obviously work with all dizzy models with TFI... So XF - EA - EB - ED - EL 6cyl with a TFI dizzy... 5.0L Windsors with a TFI...

Reason To Own One:
Not suited to everyone no doubt... But those with one of Murray's DCR testers understand the value of being able to test your car for problems on your own accord... This will diagnose ignition components for faults, unfortunately the EEC cannot provide information on the failed part and hence a DCR will not be able to tell you which component failed... This is the sort of thing that you hope you never need, but may be a life saver one day, same as owning one of those DCR's...

How You Use It:
You attempt to start your car one morning and it winds but wont start, you pop a plug out and you have no spark... Its one of three components PIP, TFI or Coil...

1) You turn the key off, plug this inline with the TFI
2) Plug your spark plug, or test plug into the coil lead (engine will not be being cranked so coil lead is easier to get spark out of rather than trying to line dizzy up with no 1 cyl)...
3) You turn the car on and you should see the power light come on the tester and the other indicators will being to work as they are triggered...
4) You hit the Simulate switch... This replicates the PIP signal and makes the computer think the hall effect is working... You will hear injectors pulse and the computer attempts to make the spark also...
5) This is identifying the problem:

a) No spark on cranking, then spark present with TFI-SIM plugged in and Simulate pressed > PIP module is dead, the TFI-SIM is sending a PIP Signal and spark as has come back so internal module has failed...
b) As above but no spark is still present, either TFI or Coil is dead... Proceed to crank engine with TFI-SIM still inline (slower PIP pulse than Simulate Switch), if the resistive bulb for Coil - pulses then this indicates TFI is healthy as it is sending a ground pulse to the Coil to trigger spark... > Coil is therefore dead, split and/or tracking

6) Other problems that can be indentified

a) Upon cranking if Crank LED does not illuminate there is a fault in the supply to this pin...
b) With key on Power does not illuminate, again wiring issue as power is not getting to the TFI module...
c) With module installed in series, engine can be started as normal and the LED's show Coil - pulsing, and PIP & SPOUT signals active, all indicated buy pulsing lights...

7) You can confidently replace the faulty part without stabbing in the dark at the issue...

Other Recommendations:
Only that instead of testing with your spark plugs, the unit is coupled with a high energy test plug, these units have huge gaps and make sure the coil is generating enough voltage to jump the larger gap, basically to avoid the fact that coil is halfway between being dead and healthy...

Inspiration:
My old man works for Ford and there is a test tool they make for this... I have used it a couple of times, once on my brothers car to identify a dead coil, and sure as hell, took it off and it was split open... So I wanted to duplicate the tester to have one in my boot "just in case"... And so the work began... So I have modified the circuit to take the resistive bulb the Ford one didn't have... I eliminate the unnecessary test points and reproduced a more practical model...

These can be purchased from Ford, if your a dealer... For upwards of $200... And I wasn't going to be doing this...

Cost...

Most important factor I do suppose...

Pricing is 200 dollars a unit... Postage & High Energy Test plug will be included in this price also...

Time:

Everything that requires making, I do myself here... From etching the circuit boards to making looms and drilling cases... Now etching board can take hours, esp in cold weather... But works out much cheaper and paying someone else to do them... So construction of a unit would take anywhere up to a day or more each with etch time and making the loom up and sorts... So total construction for these may be a while...

Prior to starting I will need to make some jigs and sorts to be able to mini-mass produce these so there will be some initial delay too... But like everything once set up I will be on a roll...

Whats In The Box?
You'll get the tester with attached patch loom... And a laminated piece of mostly like A5 paper with user instructions on it... And 1 High Energy test plug too...

Conditions:

I want to make no more or no less than 10 in my first batch... I hope I can get that much interest... With 10, components and that come in at a bulk buy discount so price is lowered slightly... I will need a list with people willing to pay $170 per unit... So a list of 1 - 10 will be started and people can specify whether they would be interested in receiving a high energy test plug with it or not too...

Other points are that the images bellow show pretty much what you can be expecting to receive... I am yet to get a cassette for the dymo so it is not labelled at present... These will not be quite as flash as Murray's DCR units, I only have the facility to use a dymo to label them and don't know where to look to get adhesive, hard, plastic type labels Murray uses... But this is my first attempt at this sort of thing and I believe what I have in mind will be adequate... But and attached photo will be added once I get the cartridge and do the labels up...

Pictures:

Original Concept:

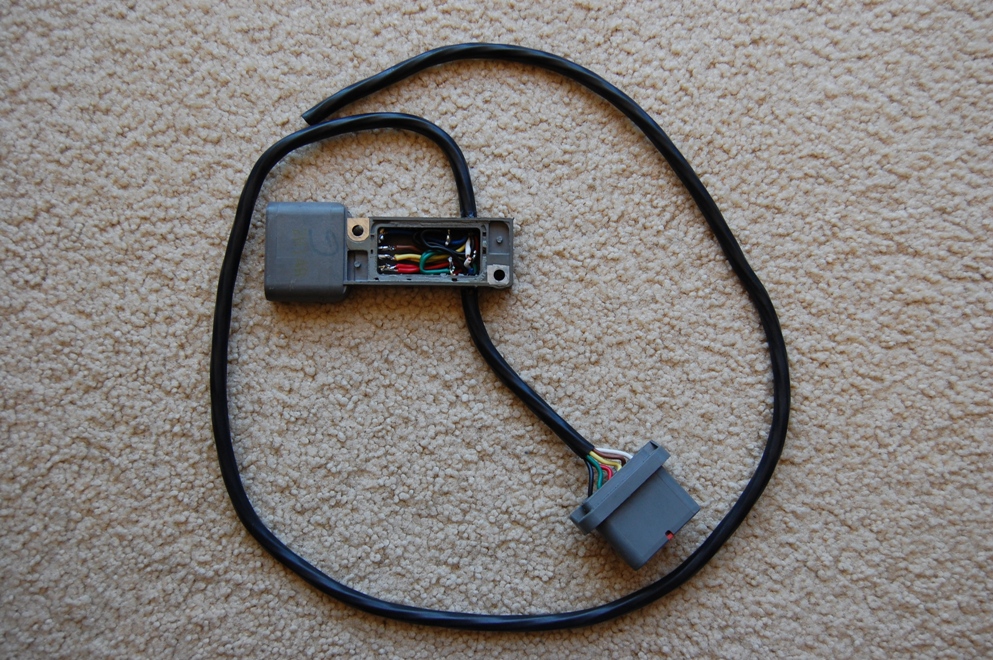

Revised Loom:


Book:


Other Info:

Can those with any large lots of around 11 or 12 or thereabouts TFI modules contact me with a proposed price so I can sort of finalise a price for my units...

List:

    1) SexyR6 -
      Paid
        Shipped
          Received
    2) ToranaGuy -
      Paid
        Shipped
          Received
    3) Hans Hartman -
      Paid
        Shipped
          Received
    4) Kevman -
      Paid
        Shipped
          Received
    5) Outback Blue -
      Paid
        Shipped
          Received
    6) EVL098 -
      Paid
        Shipped
          Received
    7) Jaysway -
    8) Snort Performance -
    9)
    10)

I'll keep this list up to date as time goes on...

That it for now... so any remarks or criticism you have, feel free to pass it on and ask if I've left out info your chasing...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Last edited by TimmyA on Sun Mar 27, 2011 8:47 pm, edited 37 times in total.

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Thu Sep 16, 2010 9:35 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

List:

1) EVL098 Yes Ill take a plug. I should be able to hook you up with a TFI module for it to cover mine.
2)
3)
4)
5)
6)
7)
8)
9)
10)



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Thu Sep 16, 2010 10:23 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

List:

1) EVL098 Yes Ill take a plug. I should be able to hook you up with a TFI module for it to cover mine.
2)EDXR6-Poly with plug, Ill take one damn never know when you;ll need it... :D
3)
4)
5)
6)
7)
8)
9)
10)



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Last edited by EDXR6-Poly on Thu Sep 16, 2010 10:30 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Thu Sep 16, 2010 10:24 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

preference on test plug mate?



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Thu Sep 16, 2010 10:34 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Hell yeah, I'm very interested if the price is in the ball park of $100 to $150. I can probably supply at least one TFI plugs & a TFI's to gut to build mine with, maybe a few more if it would be able to reduce the price to me a bit....

Is this only for 6cyl?

List:

1) EVL098 Yes Ill take a plug. I should be able to hook you up with a TFI module for it to cover mine.
2)EDXR6-Poly Ill take one damn never know when you;ll need it... :D
3)ToranaGuy - yes with a plug
4)
5)
6)
7)
8)
9)
10)

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Thu Sep 16, 2010 10:43 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Hi there...

Is the TFi module on a the 6cyl and 8 cyl the same? I imagine it works with both... Will find out off the old man though... It works on my 6 cyl but don't have an 8 to try on...

Yeah If you can supply a number of TFI's what ever we work out for a price comes off your tester... I'd like to do it in as few purchases as possible... Means less post... Jaysway says he has a few and will hopefully get back to me a number of them...

Only chasing actual TFI modules... Not the plug... I will buy brand new plugs as they are as cheap, if not cheaper than buying second hand...

If you can PM me with an exact qty you can supply then we can work out price and shipping and what not... Again how much your comes out to can't be determined until I get an average price for the TFI's and divide it over everyones unit... If I can get 3 or 4 people who can supply a total of 12 TFI's and agree on the same price each then that makes setting the final price easier...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Thu Sep 16, 2010 10:57 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Ok, that's cool man. I will go digging in the shed, won't know exact numbers until the end of the w/e, I know i have 3 or 4 dizzies that are useless to me, so I will probably be able to supply 3 TFI's, maybe a couple more.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Thu Sep 16, 2010 11:04 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

that would be awesome... I'll keep an eye out for a message from you then...

I do suppose at the end of the day that if everyone supplies a TFI module for their tester than everyone gets a slightly reduced price...

Its whatever works best... If some people don't mind paying more than others if saves them organising a TFI to get to me... Then fine by me... I don't know how to work this TFI thing so this is why I'm putting feelers out there...

I do think at the end of the day I'd like to keep it as separate transactions though... I will pay people for their TFI's and that everyone pays the same amount but I can keep track of peoples money easier and keep records of received funds and that... This is what works best in my mind... And I think I would like to do it that way... Once people say they want x amount for y amount of TFI's I can get and average, get a final price... People pay me... I buy TFi's off the few people with them... I build and post out...

Yeah I think that works the least messiest...

Will become clearer once I know how many people I'm dealing with...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Fri Sep 17, 2010 10:58 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

As far as the old man is aware these should work on the 5.0L Windsors... As long as they have a TFI (not sure which models as I'm unfamiliar with the V8 families)... Unfortunately I don't know anyone here who owns one to be able to test the theory though...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Fri Sep 17, 2010 11:02 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

timmytimtim wrote:
As far as the old man is aware these should work on the 5.0L Windsors... As long as they have a TFI (not sure which models as I'm unfamiliar with the V8 families)... Unfortunately I don't know anyone here who owns one to be able to test the theory though...

Cheers,
Tim


I have 2 5lt EB falcon's. :-) IIRC all 5lt's before the AU run a dizzy & coil setup. AU went to coil packs.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Fri Sep 17, 2010 11:08 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

All the dizzy's had a TFI strapped to the side?

See apparently XF's had three types of electronic dizzy's (testing the old man's memory)... This will only test one type of XF, obviously the only one with a TFI...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Sat Sep 18, 2010 12:31 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

timmytimtim wrote:
All the dizzy's had a TFI strapped to the side?

See apparently XF's had three types of electronic dizzy's (testing the old man's memory)... This will only test one type of XF, obviously the only one with a TFI...

Cheers,
Tim


Both mine do, and I am fairly sure up to the EL did in the v8's.

With the Xf, i know of 2 types of dizzy. The carby electric one, and the EFI with a TFI module. IIRC ford stopped using points when the XD started, but I might be wrong on that, and the 3.3 engine might have still had points in the dizzy.

Cheers

ToranaGuy

Edit: Some pics.
Attachment:

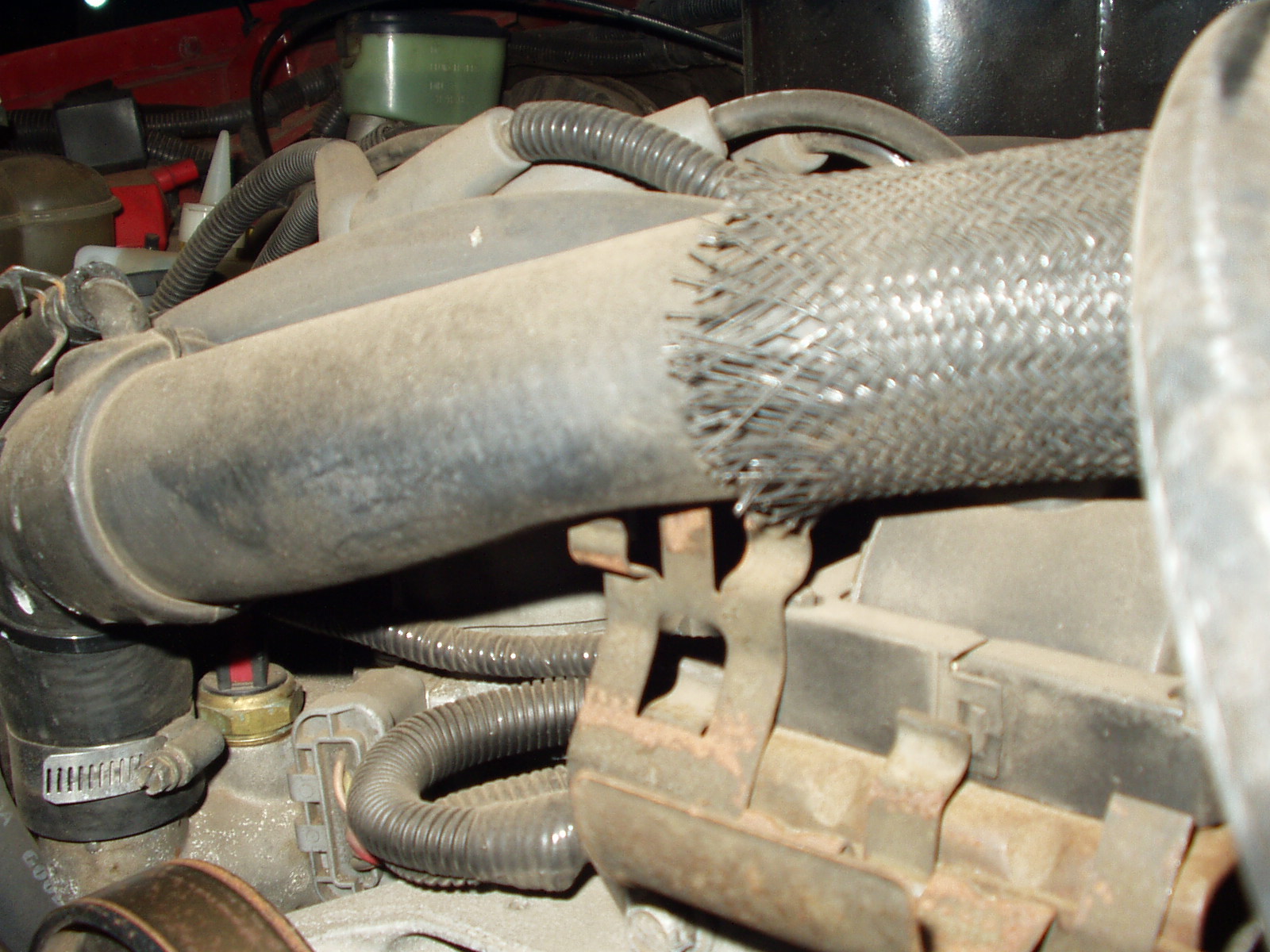

File comment: V8 dizzy. Eb S2 Xr8.
P1010001.JPG [ 424.7 KiB | Viewed 78 times ]

Attachment:

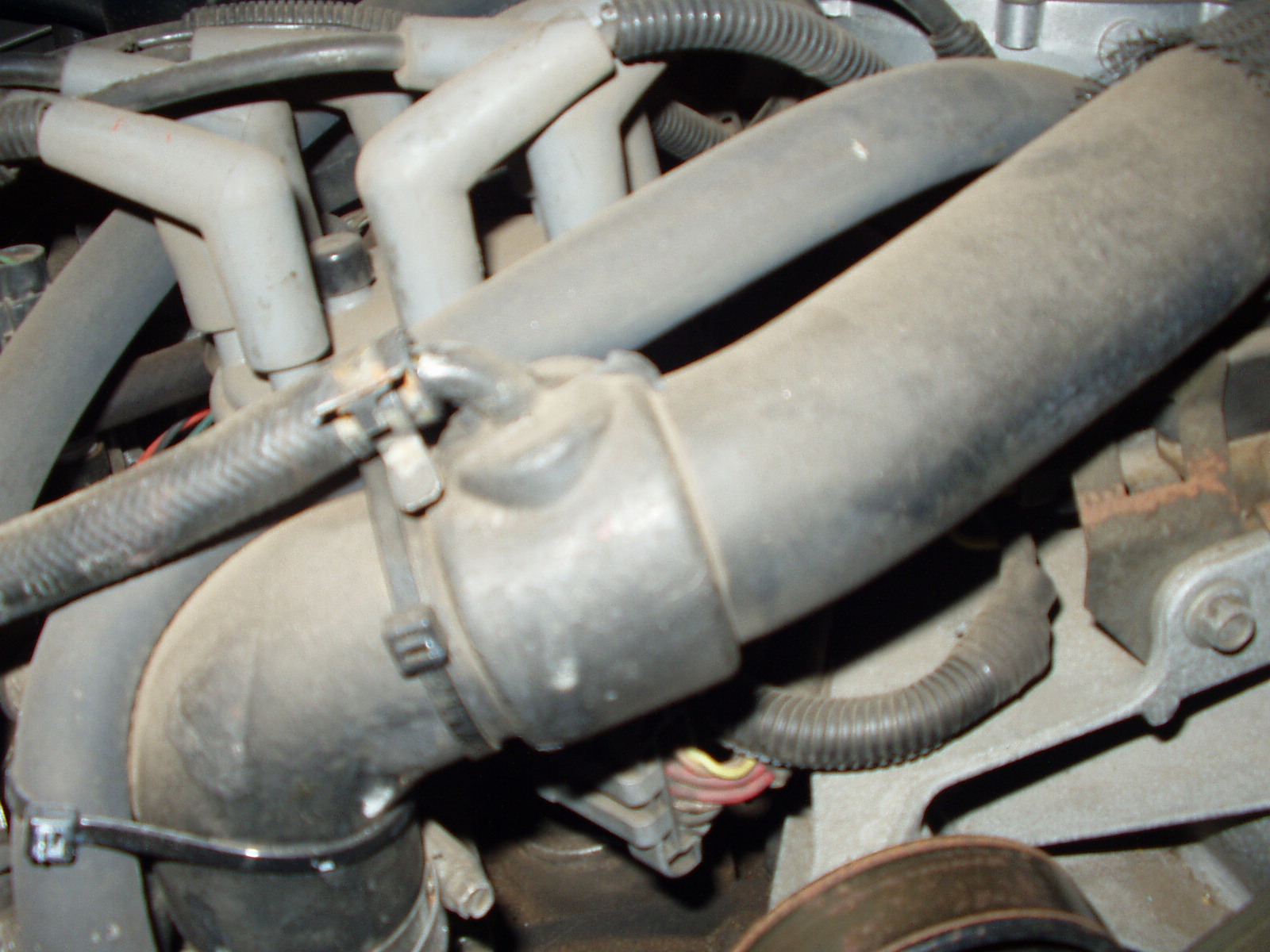

File comment: Eb s2 Xr8
P1010002.JPG [ 415.92 KiB | Viewed 91 times ]



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Sat Sep 18, 2010 9:36 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

yeah well it should work on those mate... I may check with george and see whether the TFI's were the same part number or not because that would easily confirm it...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Sat Sep 18, 2010 11:46 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Was hoping for more interest than 3 people... I'll leave the list open for a couple of weeks... and see what happens... Got a price on test plugs finally... So just working out the TFI modules... and should be able to come up with an all up price... At this stage I'm think will definitely be close to $150 a unit for the those following...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: TFI-SIM ... Ford PIP,TFI & Coil Tester
Posted: Sun Sep 19, 2010 11:28 pm
Smokin em up
Offline

Posts: 258

Joined: 30th Dec 2007

Location: cairns
QLD, Australia

Well I suppose I need one for work so put me down for one and I'll see if any of the other guys would be interested as well.Thanks Kevman.
Top
 Profile

Display posts from previous:
Sort by
 Page 1 of 8  [ 115 posts ]  Go to page 1, 2, 3, 4, 5 ... 8  Next

Who is online

Users browsing this forum: No registered users and 8 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Tue Dec 12, 2017 11:32 pm All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
