 Post subject: Wolf V4 ECU - Needed EECV PINOUT
Posted: Thu Feb 28, 2008 12:41 am
Stock as a Rock
Offline

Age: 28

Posts: 176

Joined: 26th Oct 2006

Ride: EF 95' Fairmont

Location: Perth
WA, Australia

Hi Everyone,

I need help with a Wolf 3D V4 ECU.. i am looking for the EECV Pinout Diagram so i can give to my sparky mate so he can read up on wiring needed and install it... any help would be greatly appreciated thanks.... i did buy the ECU second hand from a mate and i got the pinout but have lost it so need another copy

Cheer's Craig
Top
 Profile


Posted: Thu Feb 28, 2008 8:36 pm
Getting Side Ways
Offline

Posts: 539

Joined: 30th Nov 2004

Location: Melbourne
VIC, Australia

Top
 Profile


Posted: Thu Feb 28, 2008 9:27 pm
Stock as a Rock
Offline

Age: 28

Posts: 176

Joined: 26th Oct 2006

Ride: EF 95' Fairmont

Location: Perth
WA, Australia

... Not what i need mate, i use to have a peice of paper with EECV pinouts and what to connect to what wolf Wire as in look at diargram and it's all done and shows u exactly how to wire up a wolf to EECV
Top
 Profile


Posted: Fri Feb 29, 2008 7:45 am
Getting Side Ways
Offline

Age: 32

Posts: 1112

Joined: 18th Jan 2005

Location: MAFFRA
VIC, Australia

i could never find oneand without its pretty tricky,because wolf call some things different to what ford do in their manuals,it gets confusing,but its doable,i work next to some auto electricians and asked them for some help with a few things and they didnt know



_________________

97 el xr6,5 speed short shifter,sequential scoop,no arial,freshly resprayed,low on 17's,3 inch zorst,stainless hi flo cat,snort stage 3 stainless manifold,garrett t04e,front mount cooler,wolf 3d ecu,seimens 760cc injectors,walbro fuel pump

Top
 Profile


Posted: Sun Mar 02, 2008 7:33 am
Stock as a Rock
Offline

Posts: 119

Joined: 4th Jun 2006

Gallery: 5 images

Location: Palmerston North
Oustide Australia

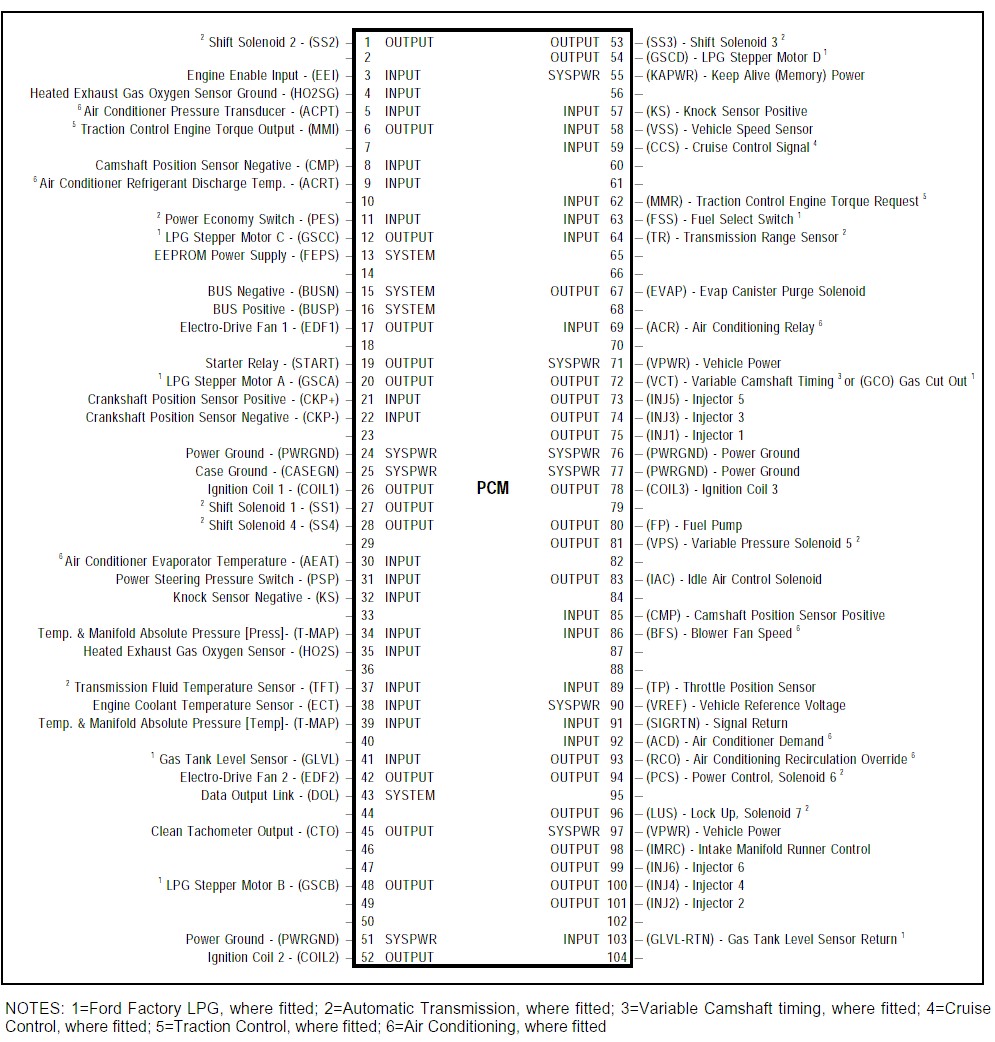

This is the list I used to wire my car up..think it was AU. Will get you started anyway. This is the 6 cyl version (mine's an 8)





Attachments:
AUPCM6.jpg [ 295.65 KiB | Viewed 476 times ]
Top
 Profile


Posted: Sun Mar 02, 2008 9:08 am
Oompa Loompa
Offline
User avatar

Age: 36

Posts: 37

Joined: 19th Nov 2005

Ride: AIT Turbo EA S

Location: Brisbane
QLD, Australia

Here is the list that I compiled for a MegaSquirt install on an EA. This is just the EEC-IV side of things.


Top
 Profile


Posted: Sun Mar 02, 2008 9:42 am
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

Top
 Profile


Posted: Sun Mar 02, 2008 1:36 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

I've got it all in my max ellerys manual. Are you going coil packs still?



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


Posted: Sun Mar 02, 2008 7:09 pm
Stock as a Rock
Offline

Age: 28

Posts: 176

Joined: 26th Oct 2006

Ride: EF 95' Fairmont

Location: Perth
WA, Australia

It's okay now i have got a copy comming so end thread ) Cheer's people
Top
 Profile


Posted: Sun Mar 02, 2008 7:58 pm
Getting Side Ways
Offline

Posts: 539

Joined: 30th Nov 2004

Location: Melbourne
VIC, Australia

Post a copy of it in this thread...
Top
 Profile


Posted: Sun Mar 02, 2008 9:32 pm
Getting Side Ways
Offline

Age: 29

Posts: 638

Joined: 16th Feb 2005

Ride: EA Turbo

Location: Melbourne
VIC, Australia

Yeah chuck it up it'll help others too!



_________________

1988 EA S-Pack|MPI|LSD|AIT turbo manifold|Garrett GT3540|3" Exhaust turbo back|Resprayed|microtech LT8s|60lb Injectors|Bosch 044 with surge tank|3000 RPM stall|Ported AU head|Wade turbo cam|Crow double valve springs|1.3mm MLS headgasket|C4 conversion|Built bottom end|10.6@125MPHi

Top
 Profile


Posted: Mon Mar 03, 2008 12:10 am
Stock as a Rock
Offline

Age: 28

Posts: 176

Joined: 26th Oct 2006

Ride: EF 95' Fairmont

Location: Perth
WA, Australia

Once i get it will do :) ive got a ferw version comming in would like to see if they are all the same then ill post it up :D
Top
 Profile


Posted: Wed Mar 05, 2008 9:09 pm
Stock as a Rock
Offline
User avatar

Posts: 197

Joined: 24th Nov 2006

Gallery: 1 images

Ride: vs cluby,elxr6t

Location: Frankganistan
VIC, Australia

are you having any troubles with your wolf install as mines being a b**ch.
I'd love to see this wiring diagram posted up!
