6 bolt clutch into 3bolt



Page 1 of 1 [ 11 posts ]


 Post subject: 6 bolt clutch into 3bolt
Posted: Fri Dec 09, 2011 9:53 pm
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Hey everyone,
I have a eb series 1 5 speed, anyway clutch has been dodgy for years and I got a new clutch kit of a fella who had got to put it in his car years ago.
Anywhoo it's time to replace my clutch, bust open the box and realize it's the 6 bolt one for 4.0 liter.
Is it possible to fit the 6 bolt to the 3 bolt flywheel.
Thanks
Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Fri Dec 09, 2011 10:21 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Yes - by drilling the flywheel for 6 bolts.
Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Fri Dec 09, 2011 10:23 pm
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Thanks for youre help, be it blunt.
Better off Getting the 6 bolt flywheel?
Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Fri Dec 09, 2011 11:59 pm
Getting Side Ways
Offline
User avatar

Age: 53

Posts: 1072

Joined: 6th Jul 2006

Gallery: 13 images

Ride: BA Falcon

Power: 106 rwkw

Location: Craigmore
SA, Australia

ummm only use 3 bolts......

It held the first one on right???
or get a 6 bolt flywheel.......



_________________

2003 BA Falcon Egas Taxi Pack - XR Replica
Tpak MKII Build Thread

1984 ZL Fairlane
The Project

Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Sat Dec 10, 2011 12:08 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

AU99 wrote:
ummm only use 3 bolts......

It held the first one on right???
or get a 6 bolt flywheel.......


ummm no,
the 3 bolt clutch is 240mm and the 6 bolt is 254mm so none of the holes line up between the 2...

so either get the ea/eb1 3 bolt cluch or get a eb2-au 6 bolt flywheel..
Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Sat Dec 10, 2011 12:20 am
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

If you need a 6 bolt fly wheel let me know i have one i can send you for a reasonable price. I would advise a machine or a serious rub down with scotch brite are a minimum, has Mild surface rust from sitting.

dave



_________________


I have a car.

Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Sat Dec 10, 2011 12:25 am
Getting Side Ways
Offline
User avatar

Age: 53

Posts: 1072

Joined: 6th Jul 2006

Gallery: 13 images

Ride: BA Falcon

Power: 106 rwkw

Location: Craigmore
SA, Australia

TROYMAN wrote:
AU99 wrote:
ummm only use 3 bolts......

It held the first one on right???
or get a 6 bolt flywheel.......


ummm no,
the 3 bolt clutch is 240mm and the 6 bolt is 254mm so none of the holes line up between the 2...

so either get the ea/eb1 3 bolt cluch or get a eb2-au 6 bolt flywheel..


Learn something new everyday....

Thats what happens when you are use to playing with Automatic Falcons.... All the ring gears are the same XD-AU



_________________

2003 BA Falcon Egas Taxi Pack - XR Replica
Tpak MKII Build Thread

1984 ZL Fairlane
The Project

Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Sat Dec 10, 2011 8:51 am
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Pm d you Dave.
Didn't think it was possible to just hook it up
Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Sat Dec 10, 2011 8:47 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

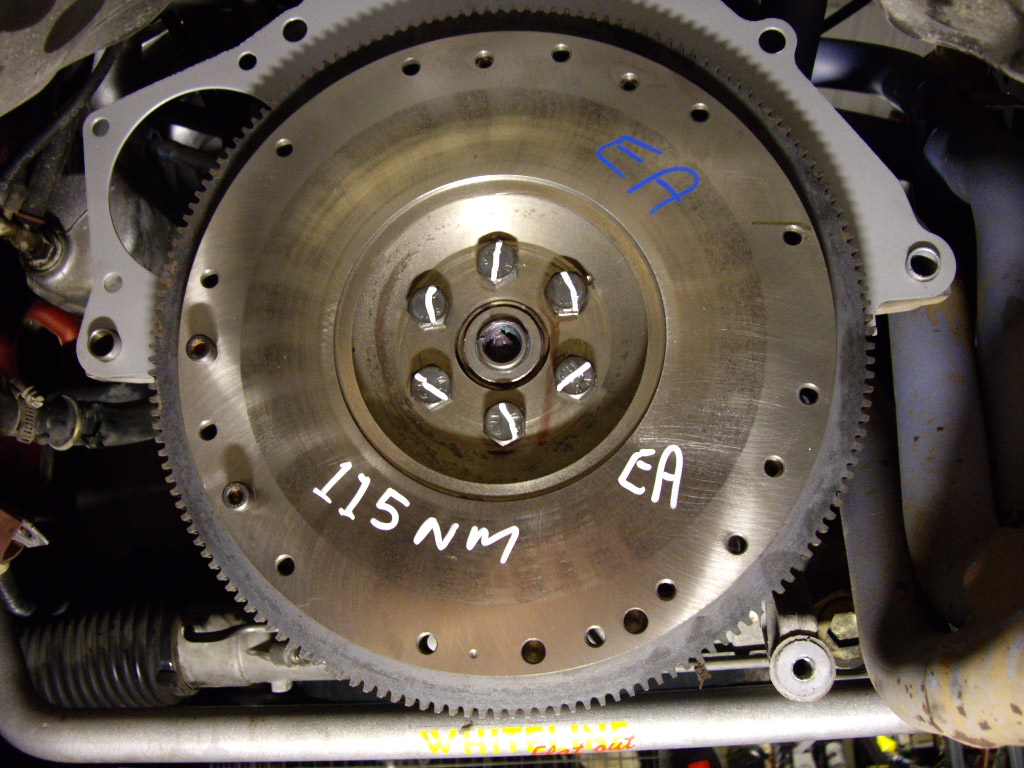

I have drilled & tapped the EA 3 bolt flywheel to take 3 more bolts on an EA clutch......so, I have a 3 bolt EA clutch with 6 bolts holding it on......and have no probs with it what so ever.
Here's some food for thought.....EA has 3 bolts to attach the pressure plate, so it has to be a fairly ridgid cover to hold it all together with just 3 bolts, so 3 more bolts can only make it better....yes?





Attachments:
IMGP3542.JPG [ 416.19 KiB | Viewed 31 times ]
IMGP3545.JPG [ 378.74 KiB | Viewed 29 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Sat Dec 10, 2011 9:51 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

cjh wrote:
Here's some food for thought.....EA has 3 bolts to attach the pressure plate, so it has to be a fairly ridgid cover to hold it all together with just 3 bolts, so 3 more bolts can only make it better....yes?
True, but wouldn't you go for the later pressure plate/clutchplate for the increased surface area ???



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: 6 bolt clutch into 3bolt
Posted: Sun Dec 11, 2011 3:31 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

I would have gone to 6 bolt clutch and decent aftermarket light weight flywheel.
They don't cost much these days and you can get them to suit the 6 cylinder pressure plates.
When I did mine I had to use a V8 flywheel and clutch and stuff around with the cable adjustment and a shorter clevis to attach the cable, to get it to work with good pedal height.
