ive had one machined out to 69mm but thats the max it could be taken to.. otherwise the butterfly intrudes into the isc air passage..

it made a slight difference after 4500rpm like has been mentioned..
but i had an issue with the tps being out of range as the butterfly shaft was now in a different position on closed throttle, compared to the std one..
but this can be overcome by elongating or making the screw holes in the tps larger to gain adjustment..

i never did a before and after dyno thou!
Top
 Profile


Posted: Fri Nov 14, 2008 3:18 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

I replicated the exact same shape of the std butterfly(elipse) but scaled it up, so the size of the butterfly is 68.0 x almost 69mm, its been CNC machined so its within 0.05 of a mm, it sits pretty much in the same position... and gave me no throttle speed problems



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile


Posted: Fri Nov 14, 2008 3:29 pm
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

On your first dyno run did it only get revved to 4900 or is that where it stopped making power?
Im just wondering if the motor was pulling the same max rpm on the dyno as the day it had the bored out t/b dyno run.



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
 Profile


Posted: Fri Nov 14, 2008 3:56 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

4900 is where the curve peaked not where the run finished, when power decreases by 10% after peaking the dyno automatically ends the run. which is what happened. (approx 5400 rpm)

on the second run, the car actually hit rev cut which ended the run (5750 rpm)



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile


Posted: Fri Nov 14, 2008 4:32 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

ohhh... this sounds like a mod my supercharged EL motor would benefit from....
Top
 Profile


Posted: Fri Nov 14, 2008 4:33 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

definately with the s/c!



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile


Posted: Fri Nov 14, 2008 6:49 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 607

Joined: 15th Dec 2004

Gallery: 23 images

Ride: GLXR 6

Location: Perth
WA, Australia

im in for a group buy for sure! Very good price indeed.



_________________


Top
 Profile


Posted: Fri Nov 14, 2008 8:08 pm
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

FAST-XR wrote:
4900 is where the curve peaked not where the run finished, when power decreases by 10% after peaking the dyno automatically ends the run. which is what happened. (approx 5400 rpm)

on the second run, the car actually hit rev cut which ended the run (5750 rpm)

Yeah cool, never knew thats how it worked but it makes sense now.
Looks to be a worthwhile mod :D



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
 Profile


Posted: Wed Dec 10, 2008 11:09 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

ok ive sourced the brass sheet for the butterfly material, and will be machined sometime soon, price will be $180 (exchange)

what you will get:
- a throttle body which has been bored out to 68mm
- a thinned shaft (top half removed)
- 2 new dome head screws to suit the new thickness
- a brand new butterfly with a sharpened leading edge.

ill have the first complete units ready for sale after christmas

ill start a new for sale thread when the 1st one is ready...


thanks

vince



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile


Posted: Wed Dec 10, 2008 11:13 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

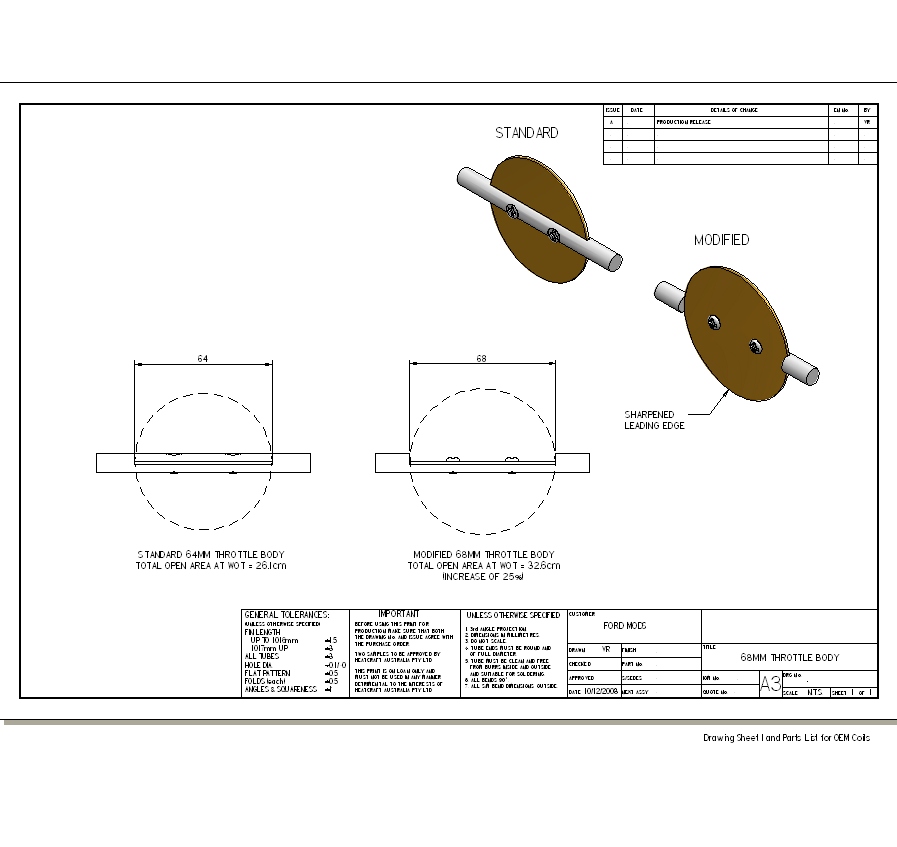

and here is the drawing
