AU 2 Head Gasket Does Not fit EF! Urgent Help



Page 1 of 2 [ 23 posts ] Go to page 1, 2  Next


 Post subject: AU 2 Head Gasket Does Not fit EF! Urgent Help
Posted: Tue Jul 05, 2005 5:49 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

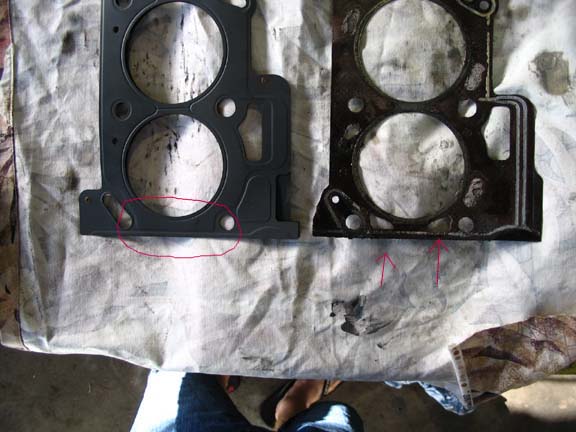

an AU2 headgasket does not fit an EF put them side by side and they are different the au2 is missing water jackets. what do i do? Every one recomended a AU2 gasket. do i just put a genuine EF Head gasket on it and scrap the idea of a metal head gasket.





Attachments:
Head Gasket2.jpg
Head Gasket2.jpg [ 40.69 KiB | Viewed 50 times ]



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


Posted: Tue Jul 05, 2005 6:07 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

No big deal.. just whack it on. Everyone else does :)



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Tue Jul 05, 2005 6:25 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

Waggin wrote:
No big deal.. just whack it on. Everyone else does :)


wont blocking water jackets cause some serious damage?

can anyone confirm this?



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


Posted: Tue Jul 05, 2005 6:28 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

My car still works.. as does everyone elses.

It only covers 4 of them from memory, theres still enough flow from the other water jacket openings.



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Tue Jul 05, 2005 6:59 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Far out, how gay!

What about the ACL metal gaskets, they got the right holes for EA-EL?



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Tue Jul 05, 2005 7:03 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 1040

Joined: 5th Nov 2004

Gallery: 5 images

Ride: EA Fairmont Ghia

Location: Melbourne
VIC, Australia

Drill some 13mm holes in the right spot



_________________

Full working BA Shifter now upgraded to BF Shifter.
BA headlight inserts in my EA headlights.

Top
 Profile


Posted: Tue Jul 05, 2005 7:41 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Or some 1/8 holes ....



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Tue Jul 05, 2005 7:48 pm
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

are the existing AU2 water jackets sealed with something? if not, it may be possible to just carefully drill the relevant areas out

hmm..... i should've hit the submit button before i went out instead of straight after returning.....



_________________

Banned

Top
 Profile


Posted: Tue Jul 05, 2005 8:20 pm
Stock as a Rock
Offline

Posts: 100

Joined: 9th Mar 2005

Ride: EB

Location: dandenong melbourne
VIC, Australia

i put one on {eb2}last weekend the old and new gaskets were the same that ef one looks different.
Top
 Profile


Posted: Tue Jul 05, 2005 8:24 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

so you guys recomend to run the AU gasket even know it will block 2 water jackets, maybe just drill them?

no one has ever had a problem doing this?



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


Posted: Tue Jul 05, 2005 8:37 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

voids wrote:
Waggin wrote:
No big deal.. just whack it on. Everyone else does :)


wont blocking water jackets cause some serious damage?

can anyone confirm this?



they are blocked of for a reason.

it promotes water flow to the back of the engine..(the hottest part) to help keep the engine a uniform temp. it's a very common thing to see in gaskets.

you'll find that the AU block and heads have the same water jacket as the ef.

a possibly reason might be to try and fix the problems witht he pre AU engine blowing gaskest. they seem to mostly blow at the rear of the engine. ford may have done this to help cool that part of the engine better



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Tue Jul 05, 2005 9:09 pm
Parts Gopher
Offline

Age: 40

Posts: 75

Joined: 11th Nov 2004

Ride: EL Futura

Location: Melbourne
VIC, Australia

This is from the ACL website:
http://www.acl.com.au/web/acl00056.nsf/ ... enDocument

Q4. Is it okay for some waterway galleries to be missing in the new head gasket?

Answer
It is not uncommon for engine manufacturers, as well as gasket manufacturers to change the position of waterways in the head gasket.

Most waterway differences on the cylinder head gasket are generally around the front of the engine.

The waterways at the front of the cylinder head gasket are often restricted or removed to reduce coolant circulation at the front of the engine. This increases coolant flow at the rear of the engine (which is generally hotter than the front) and enhances the cooling efficiency of the engine.

Some examples of cylinder head gaskets with restricted or blocked waterway are as follows:

Make Model Cylinder Head Gasket
Reference Number
Nissan Pulsar E13, E15 BK440MT/EZ
Ford Escort 1.3, 1.6L AH750MT/EZ
Toyota Landcruiser 2F, 3F BC260MT/EZ
Ford Falcon EA, EB, ED, EF BR520MT/EZ
Top
 Profile


Posted: Tue Jul 05, 2005 9:09 pm
Fordmods Newbie
Offline

Posts: 6

Joined: 15th Jun 2005

Ride: au 2 forte

Location: newcastle
NSW, Australia

just asking , why r u putting an au gasket on an ef



_________________

out to the air port

Top
 Profile


Posted: Tue Jul 05, 2005 9:16 pm
Getting Side Ways
Offline

Age: 33

Posts: 1494

Joined: 1st Dec 2004

Gallery: 2 images

Ride: BA MkII XT Wagon

Location: Maitland
NSW, Australia

cause they are better, made of metal



_________________


Top
 Profile


Posted: Wed Jul 06, 2005 4:56 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

problem sorted, a standard ef gasket from ford has thoes 2 water jackets blocked as well. so obviously this must have been a problem with the older ef headgaskets.

thanks guys
