i thought the cam went through 3 stages..

starts off retarded then advances then goes retarded again....or something like that



_________________


Top
 Profile


Posted: Sat Jan 05, 2008 11:23 am
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

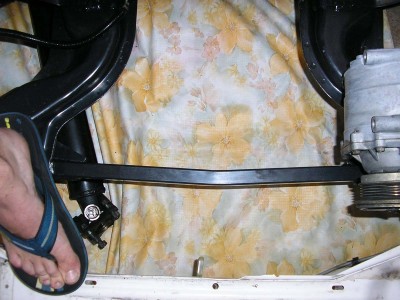

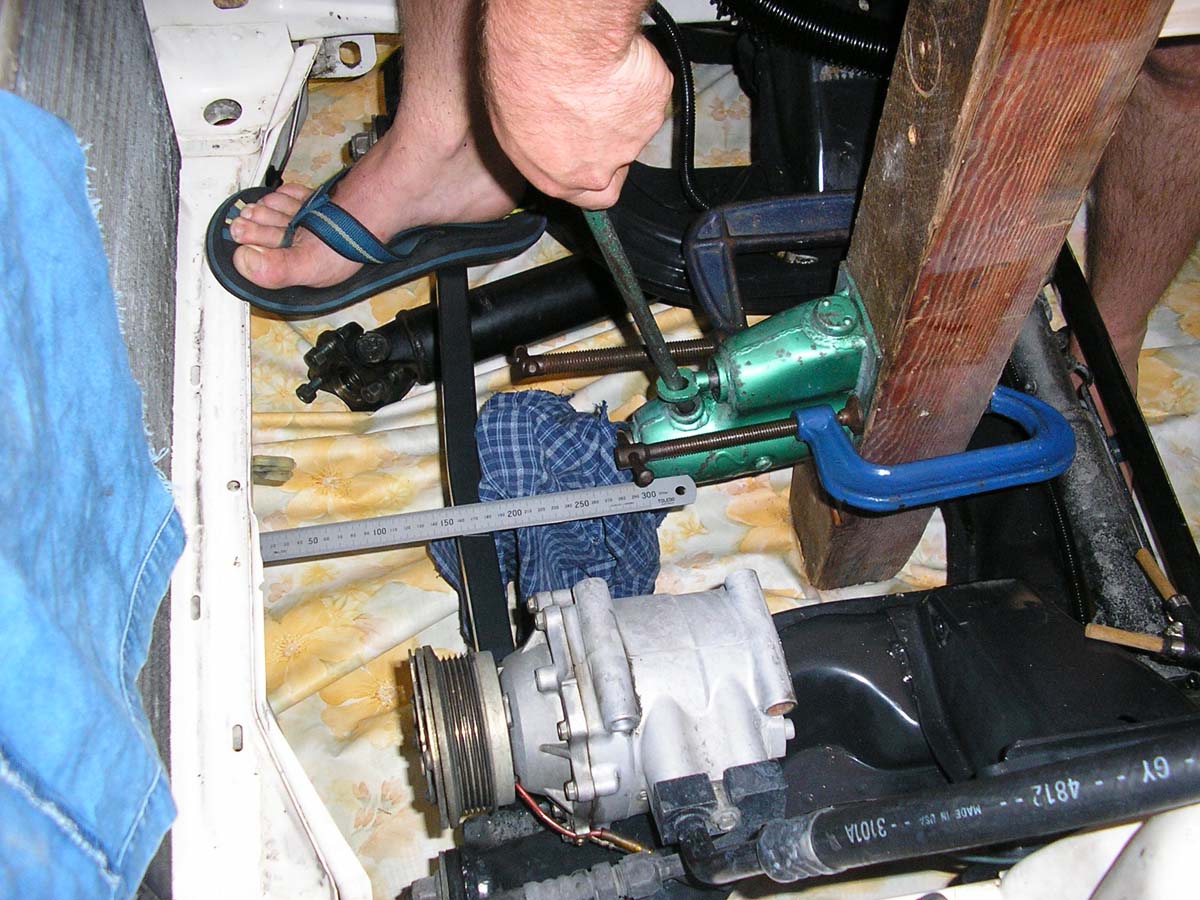

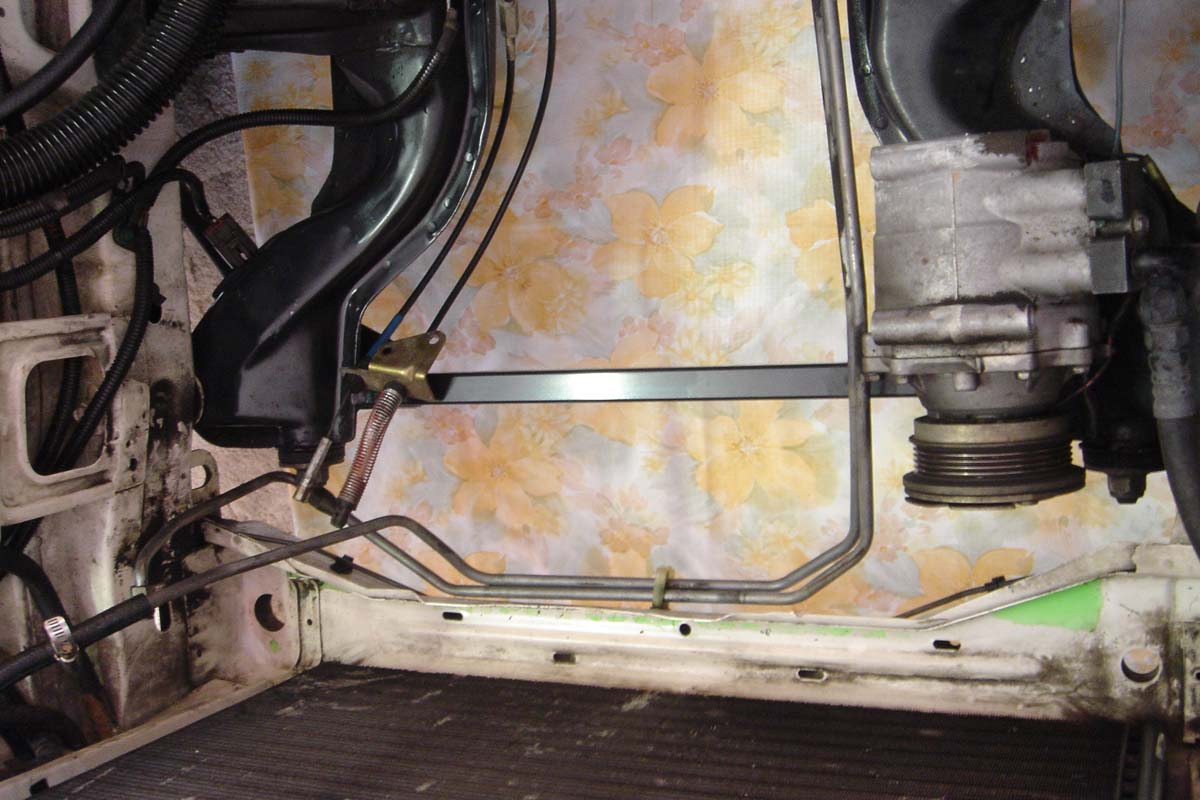

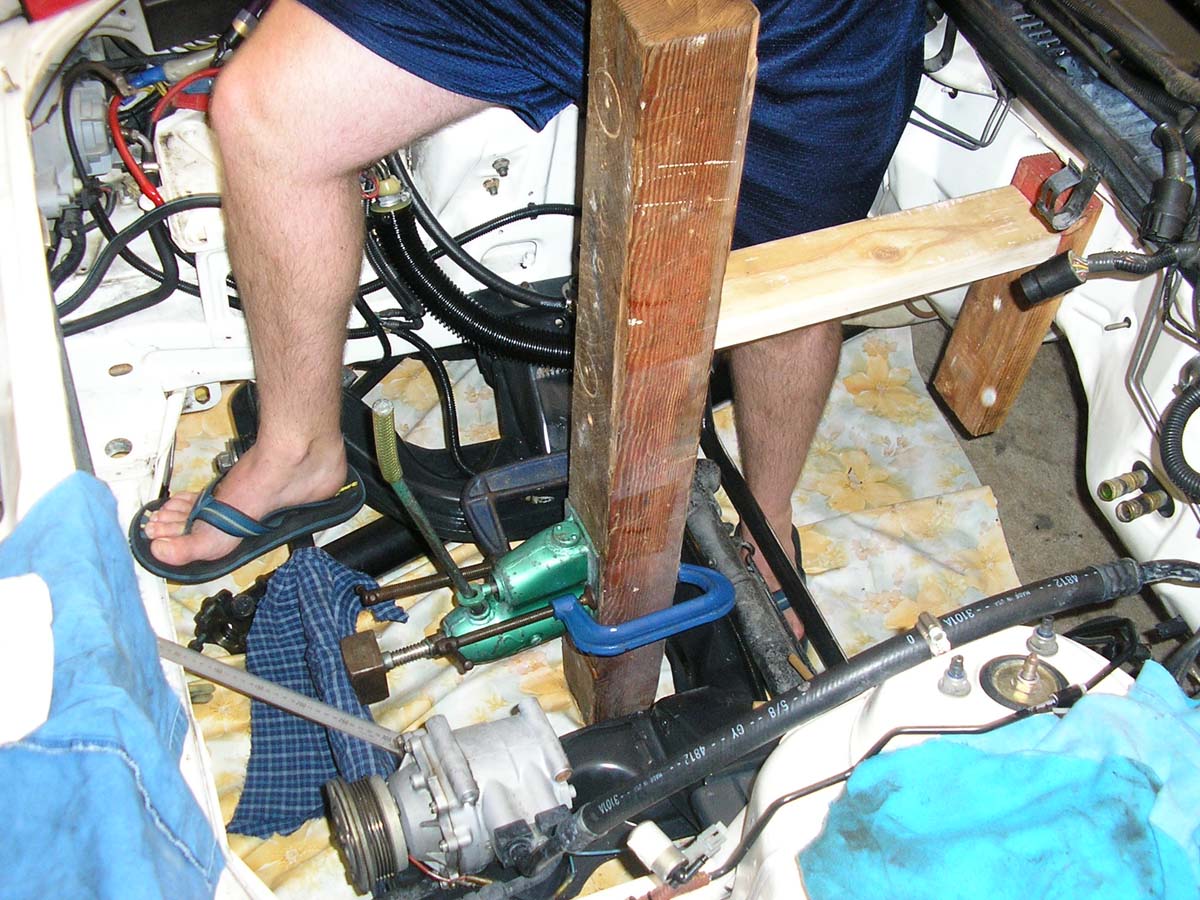

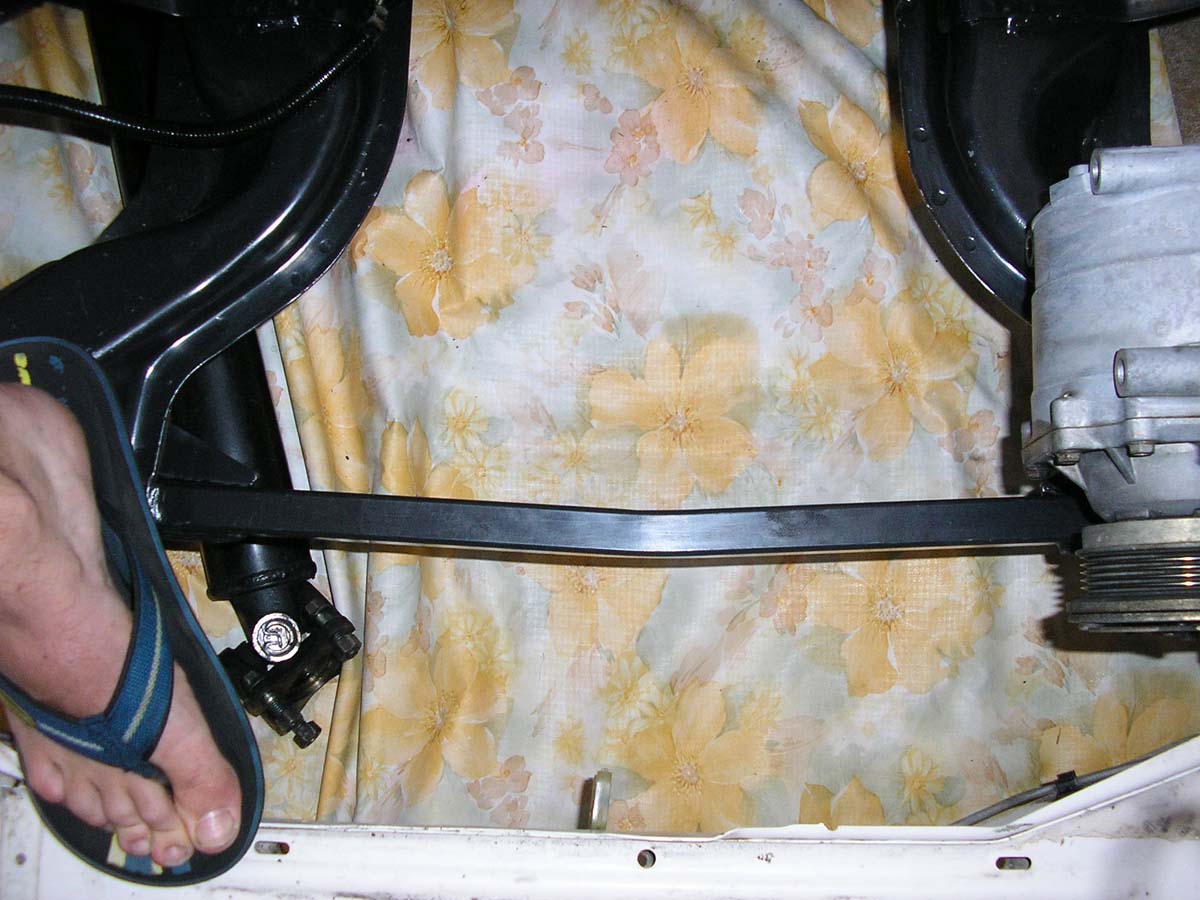

Hydraulic Jack





Attachments:
1.jpg [ 143.63 KiB | Viewed 67 times ]
2.jpg [ 193.65 KiB | Viewed 59 times ]
3.jpg [ 231.03 KiB | Viewed 53 times ]
4.jpg [ 209.48 KiB | Viewed 52 times ]
5.jpg [ 161.77 KiB | Viewed 47 times ]



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Sat Jan 05, 2008 11:44 am
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

love the Korean saftey shoes..

is that all the bend that is required in the sub frame? what you have done here is a much easier option compared to the sump mods that others have done.

I would take the advise from twason and install a microswitch inline with the BBM as well.

Does the VCT switch that same time as the BBM? I was not aware.



_________________


I have a car.

Top
 Profile


Posted: Sat Jan 05, 2008 2:58 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

dc_todd wrote:
love the Korean saftey shoes..


Does the VCT switch that same time as the BBM? I was not aware.


I have those type of safety boots as well, cummfy as...

The VCT is designed to operate in the 1800 to 3500 rpm band so I am lead to believe, unless you want to add in a couple of RPM switches then I don't think there is a lot you can do apart from add in the AU VCT ECU.
I am very happy the way it works for me just hanging of the BBM.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Jan 06, 2008 8:01 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

Hi Guys, Im going to get EL or AU1 ECU and wiring loom coz AU2 ECU are pain for EB2 have to bypass smartlock!

Thinking get T5 manual!
4 spd Auto loss 35kw at the rear wheel!

I will have to make Trigger for VCT switch between 1800rpm - 3500rpm (thanks twason)

LOL saftey shoes yeah eye nose! :?



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Mon Jan 07, 2008 12:24 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

twason wrote:
67RCE wrote:
Frank has an AU1 XR6HP, it is twason who is putting the VCT AU motor into his EF
Yep , in and done. I would steer clear of the AU ECU in anything other than AU or EF unless you are doing a complete rewire. If I were you I would be going to the EL ecu and using the BBM output to drive the VCT. I cheated and installed a microswitch on the BBM to trigger the VCT.



Hi Twason, Can you please give me some info what i have to change wiring!

I got EL ECU (no wiring still looking at wreck). Do i have to rewiring under the EB dash etc?

thanks



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Mon Jan 07, 2008 1:18 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

PM troyman he would be able to help you or look up his doco on AU motor into an EA with EL ECU in the technical documents section. As far as I know its almost plug and play, just need to add in wires for BBM , knock sensor and fans (you have smartlock?).



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon Jan 07, 2008 1:33 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

Yes i got smartlock!



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Mon Jan 07, 2008 5:36 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

Im bit confuse and where is the BBM? i already start working on wiring engines using EB wiring loom.



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Mon Jan 07, 2008 8:13 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

BroadBandManifold this is the intake manifold that has dual runners in EF I6's an on (Turbo excluded), the short runner path gets blocked at low RPM to give increased torque. At higher RPM (>3800) the short runner path is opened. The butterflies are closed by a Vaccum accutator to allow the long runners only.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon Jan 07, 2008 8:28 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

Yes i get it, but i could'nt find where the BBM switch is. it is on the manifold?



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Mon Jan 07, 2008 8:30 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Sorry, too many beers today, there is no switch I put one on.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon Jan 07, 2008 8:31 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hi
you can just add the required wires to the ecu plug and keep the eb loom

this will help you get the bbm and knock sensor working with the el ecu.
http://www.fordmods.com/forums/documents.php?doc=85
Top
 Profile


Posted: Mon Jan 07, 2008 10:48 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

lol, ok so what does the switch look like?

got picture could be great!



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Mon Jan 07, 2008 10:51 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

After adding the bbm switch you will need to connect the green wire to pin 15 and the red wire is to be connected to 12v ignition. (I spliced the red wire into pin 57). (12v)
