Would there be a significant weight difference between the EF I6 and the BA engine?



_________________


Top
 Profile


Posted: Tue Feb 05, 2008 1:37 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

I'd say there would be a difference, but it would be minimal. The BA engine uses a cast alloy sump plus there is alot more material in the head. The blocks are virtually the same apart from a few minor changes.
Top
 Profile


Posted: Tue Feb 05, 2008 1:56 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Would a B series V8 bonnet bulge help the engine clearance, or is it too far forward?



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Tue Feb 05, 2008 3:41 pm
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

jason161 wrote:
i am planning to use the stock PCM as it's already got the harness wired up to the sensors, injectors, ignition etc. unless there's a better alternative i'm not aware of?


You're on the money here buuut.. have u taken into consideration the fact that the BA has smartshield which involves most of the electronics from the key to the PCM?

the bem talks to the key
the pcm talks to the bem..

i think u might have underestimated here..
Top
 Profile


Posted: Sat Feb 09, 2008 10:44 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

twason wrote:
This one is mine for an AU motor. I got away with only a cm clearance between the sump and Kframe without cutting the sump.


Twason, how similar are the fronts of your AU sump compared to a BA sump?
Top
 Profile


Posted: Sat Feb 09, 2008 10:56 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

fordman351 wrote:
twason wrote:
This one is mine for an AU motor. I got away with only a cm clearance between the sump and Kframe without cutting the sump.


Twason, how similar are the fronts of your AU sump compared to a BA sump?
From that picture it looks identical. I do have some pictures of the AU somewhere I can dig up and also some on the Kframe Mod..



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Bonnet so close yet so far
Posted: Sat Feb 09, 2008 5:01 pm
Fordmods Newbie
Offline

Age: 41

Posts: 4

Joined: 3rd Feb 2008

Ride: xr6

Location: auckland
New Zealand

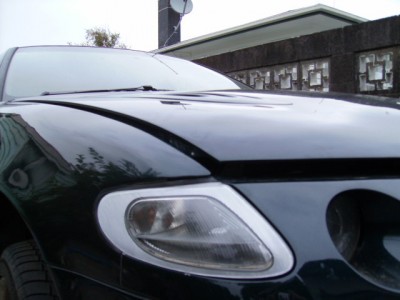

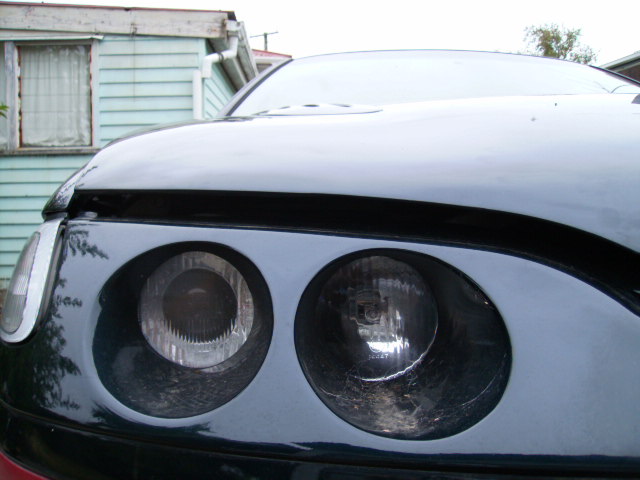

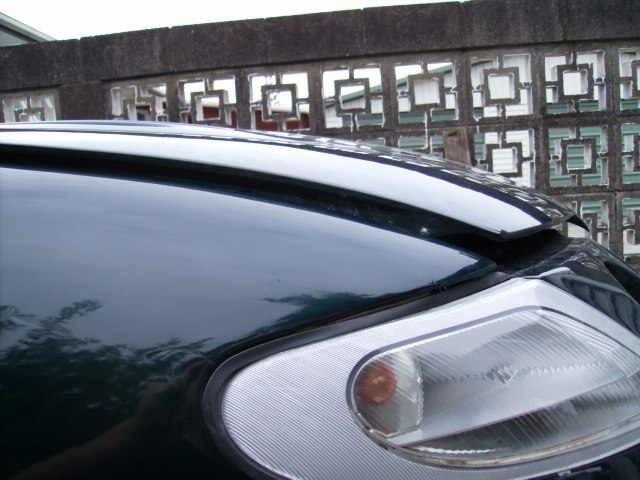

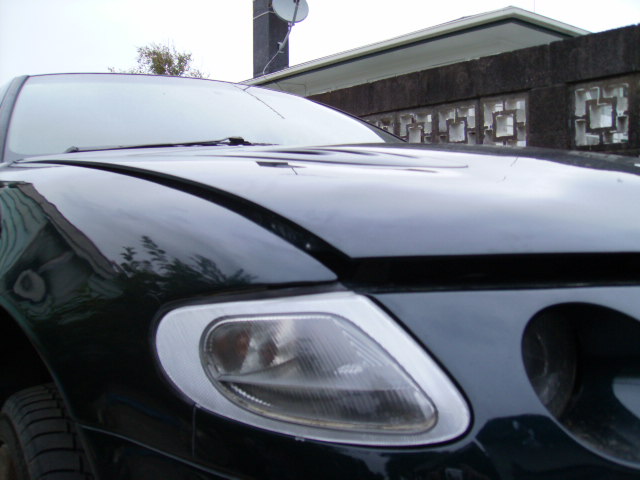

for anyone interested heres the EF bonnet not quite able to contain the BA by about 15-20mm





Attachments:
009.JPG [ 93.38 KiB | Viewed 40 times ]
008.JPG [ 90.28 KiB | Viewed 32 times ]
007.JPG [ 117.46 KiB | Viewed 33 times ]
Top
 Profile


Posted: Sat Feb 09, 2008 5:25 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Isn't that why you modified the K frame so you could lower the motor? If that is not enough then weld some spacer plates where the K Frame mounts to the body and chop the springs a bit.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Feb 10, 2008 1:26 am
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

just remember, if its 15-20mm off closing, you will want more than that when the engine torques over



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Sun Feb 10, 2008 2:10 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

twason wrote:
Isn't that why you modified the K frame so you could lower the motor? If that is not enough then weld some spacer plates where the K Frame mounts to the body and chop the springs a bit.


you'd probably have to lower the gearbox down as well, which is a pain in the a**.

I would rather modiy the bonnet to suit.

Maybe even the rockercover if I was game...



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Mon Feb 11, 2008 4:06 pm
Fordmods Newbie
Offline

Age: 41

Posts: 4

Joined: 3rd Feb 2008

Ride: xr6

Location: auckland
New Zealand

You're on the money here buuut.. have u taken into consideration the fact that the BA has smartshield which involves most of the electronics from the key to the PCM?


yes i was aware of this little problem, i called Torque Performance here in Auckland, they will use a Flash Tuner & deactivate this feature, i'm going to get this company to wire it all up & tune it as these guys are the best in the country for getting these engines up & running
Top
 Profile


Posted: Mon Feb 11, 2008 4:30 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

twason wrote:
fordman351 wrote:
twason wrote:
This one is mine for an AU motor. I got away with only a cm clearance between the sump and Kframe without cutting the sump.


Twason, how similar are the fronts of your AU sump compared to a BA sump?
From that picture it looks identical. I do have some pictures of the AU somewhere I can dig up and also some on the Kframe Mod..


Hey man, if you could get those pictures of your crossmember modification that would be sensational!

If i cut out the section of the bonnet subframe that sits above the rocker cover i wonder if the bonnet will clear my engine? Being a Fairmont it has the raised section on the bonnet compared to the flatter EF / XR bonnet...
Top
 Profile


Posted: Wed Feb 13, 2008 9:40 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Here you go, sorry about the delay.
The Kframe has a section removed, inverted and angle iron added to the back.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Thu Feb 14, 2008 12:35 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

Wow! That looks almost EXACTLY the way i cut mine! The BA sump looks very similar to the AU one apart from a few minor differences.
Top
 Profile


Posted: Thu Feb 14, 2008 12:54 am
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

jason161 wrote:
You're on the money here buuut.. have u taken into consideration the fact that the BA has smartshield which involves most of the electronics from the key to the PCM?


yes i was aware of this little problem, i called Torque Performance here in Auckland, they will use a Flash Tuner & deactivate this feature , i'm going to get this company to wire it all up & tune it as these guys are the best in the country for getting these engines up & running


I wonder if anyone in aus can do this???? that is deactivate smartsheild on the ecu

this is one of the best threads EVER on this forum.....keep the pics coming!!

well done jason161 u are one of the few that actually get on with it and dont just talk about it....

thanks for sharing your insights
