 Post subject: Catch Can
Posted: Thu Aug 18, 2005 8:41 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

hey,

I just got my self a nice lil catch can, cheep ;)

What is the best way to connect it up?
a "T" piece between the breather at the back of the rocker cover and the breather in the middle of the rocker cover(PCV)...
OR

leave the breather at the back or the rocker cover ( it isnt joined to anything atm, just have a lil mini pod filter thang) and just run the can to the PCV and the other end to the intake mani...?


and also, shold i connect the other end(out) the the intake mani, or just put that lil filter thing on it?

thanks.



_________________


Top
 Profile


Posted: Thu Aug 18, 2005 11:39 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

oi, answer me

*twidles thumbs



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 1:12 am
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

its illegal to have the crankcase vented to the atmosphere on cars built after the early 70's.....have it venting back into the inlet manifold if you wanna keep the emissions guys happy



_________________

Banned

Top
 Profile


Posted: Fri Aug 19, 2005 1:23 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

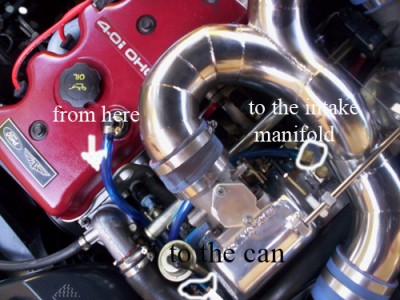

so should i plumb the vac line (from the back of the rocker cover) and the PCV into the tank, then back into the intake mani?

I had a search on other car forums and it seem the way to do it/....i think



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 2:09 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

SVO XR6 wrote:
so should i plumb the vac line (from the back of the rocker cover) and the PCV into the tank, then back into the intake mani?


Yes thats the way it is normally run, line goes from the PCV valve to the catch can and then to the inlet manifold. Also make sure the catch can has internal baffles, a lot of the cheap ones are just pretty looking aluminium cans which have no real function.
Top
 Profile


Posted: Fri Aug 19, 2005 2:40 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

and the vac line too?

yeh, its a greddy can minus the sticka ;)



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 12:10 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

i think ive figured it out...


plumb the vac line (from the back of the cover and the pcv) together, then to the catch can.
Coming out of the catch can ill just put on a lil pod filter thing to stop or reduce the mess. Then just plug up the intake mani where the vac lines were from.

Does this sound ok?

My idear is to keep the s**t gasses outta the intake. But do these vac lines reallly need vaccume?


Coz EPA can lick my bum, the can is the last of my worries



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 2:29 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Hmmm... the purpose of the can is to seperate oil from the s**t being sucked through the PCV system.

The can should be inline with the system.

i.e.

PCV valve------catch can-------- manifold.


The gasses wont hurt your engine... the oil is what clogs s**t up... which is where the can comes into it...

If you dont have the system rigged up to the manifold... it will just be a vent... i doubt the can would even do anything...



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Aug 19, 2005 2:31 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Oh... if you're running boost the other line needs to vent to the inlet plumbing for the huffer....



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Aug 19, 2005 5:54 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

ahh, cool man

thanks a heap



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 6:55 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

oil vapour reduces the octane level of the fuel mixture and will cause detonation :)



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Fri Aug 19, 2005 10:18 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

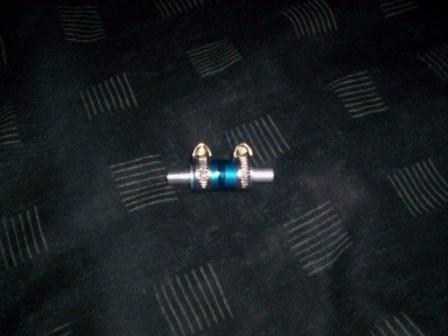

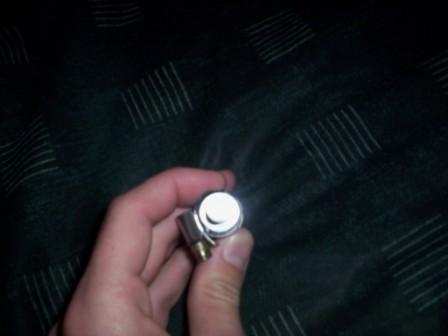

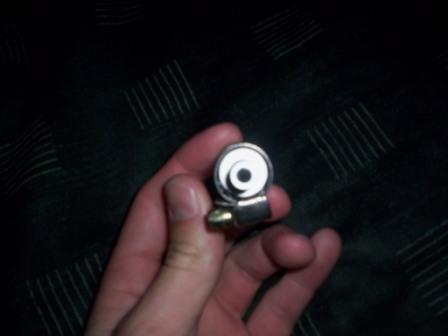

this cam in the package too

its just a bit of hose, but with what liioks like adaptors for a smaller hose...
but only one end has a hole in it, kinda weird...WTF?!?!?

ive seen these in most of the catch can kits, but what do they do?

PS: cheers waggin, should be interesting to try out.





Attachments:
100_0281.JPG [ 12.79 KiB | Viewed 35 times ]
100_0280.JPG [ 12.11 KiB | Viewed 26 times ]
100_0279.JPG [ 15.86 KiB | Viewed 27 times ]



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 11:10 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Its a one way valve...It's the oil that causes detonation..If there is that much blo by to stuff up tune or engine runing? It needs a freshen up...New rings etc...
Under boost the PCV doesn't work.BUT you still need some crancase ventilation so Vent from valve cover via oil seperator then to inlet of turbo / blower...The PCV can be hooked up as well through seperator...Unless there IS a one way valve as in PCV, there shouldn't be any crankcase vents connected to inlet or any part that can take boost...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Sat Aug 20, 2005 5:06 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

one way valve ay..., but ther is a way in, but no way out???



_________________


Top
 Profile


Posted: Sat Aug 20, 2005 6:16 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

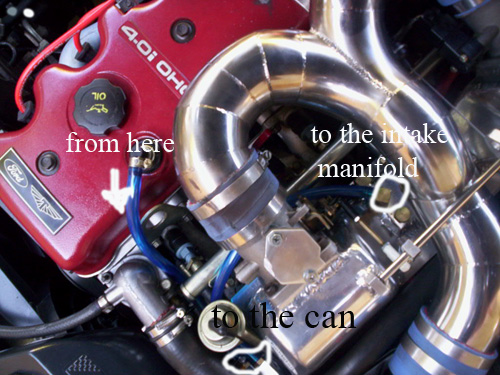

its in !

i didnt use that "one way valve"... I dunnno wtf that was for so i left it :)





Attachments:
can copy.jpg
can copy.jpg [ 145.49 KiB | Viewed 102 times ]
