 Post subject: Re: complete el conversion into eb falcon
Posted: Tue Nov 01, 2011 7:39 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

hey guys been a bit slack lately although i have done some stuff. i went to harveys wreckers in somerville best wreckers ever btw unless you want high series stuff i stripped and el falcon interior and got the guys do cut the floor out so i returned home and unpicked the console mount out of the center of it, cut the console mounts from the eb and welded in the el piece, have finished all the doors bar one also changed the front two glass because mine were scratched and have too dark tint, cut the el loom and eb loom at the r/h back door and joind them with plugs from supercheap took a bit of time to work out how to do it i have a lot of notes if anyone is trying to do the same thing. started throwing the loom and and put the heater box back in.
heres some pics





Attachments:

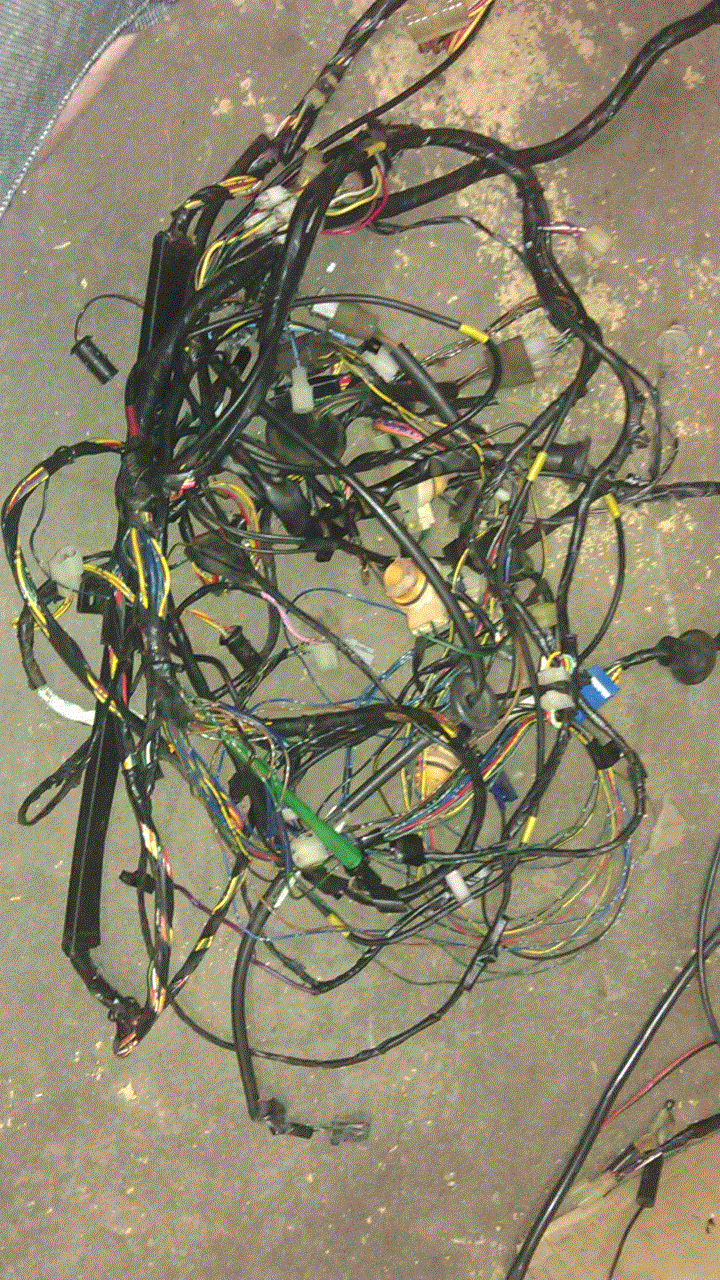

loom pile.gif
loom pile.gif [ 420.85 KiB | Viewed 35 times ]

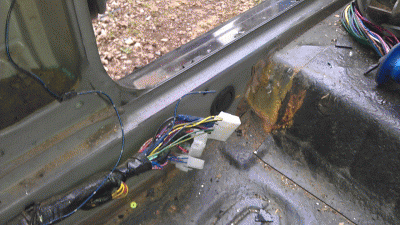

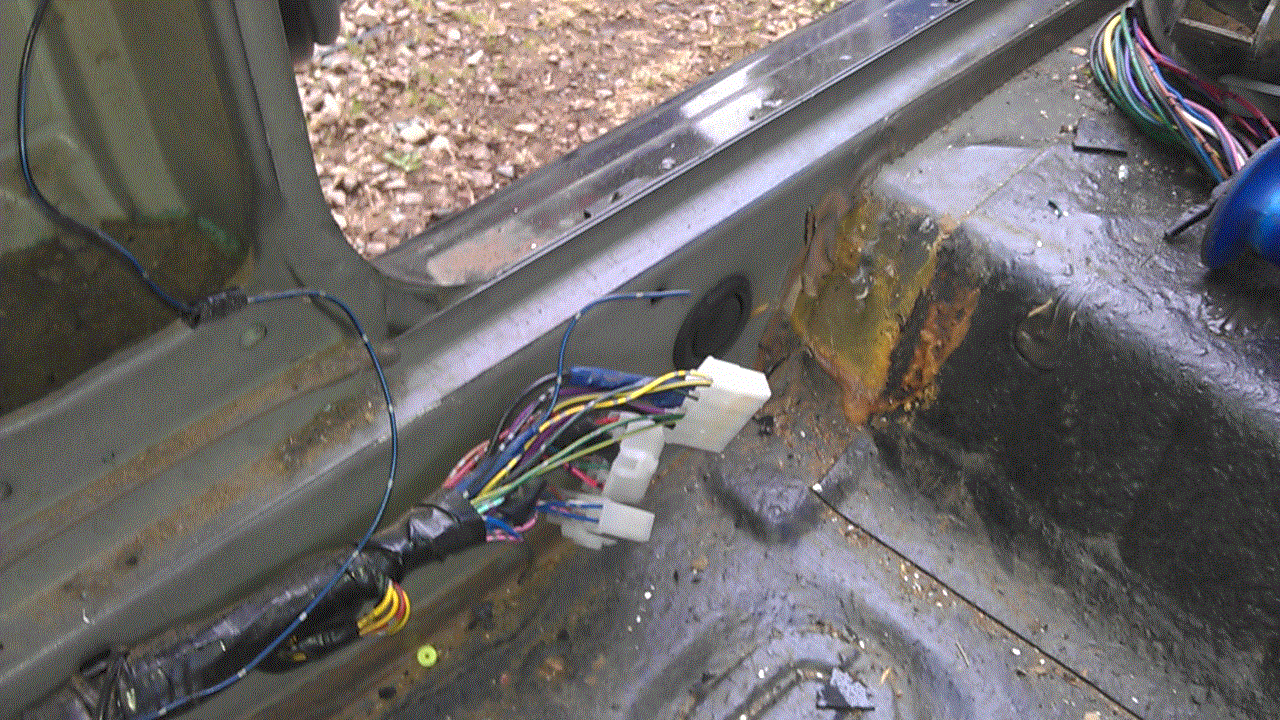

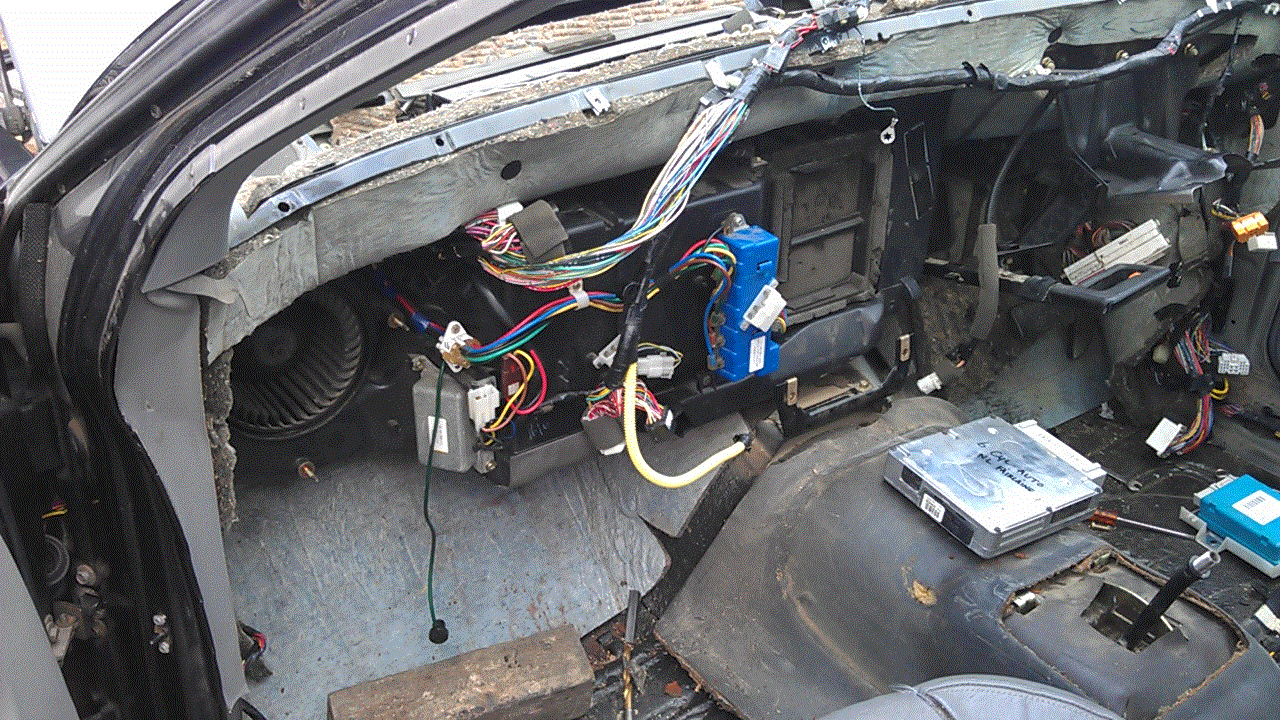

File comment: el loom placed in car
loom in car.gif
loom in car.gif [ 409.22 KiB | Viewed 35 times ]

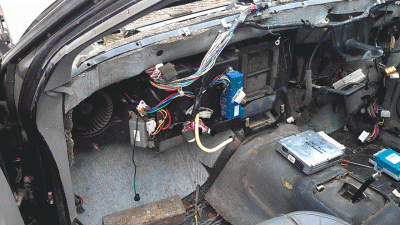

File comment: heaterbox in
heater box in.gif
heater box in.gif [ 420.13 KiB | Viewed 37 times ]

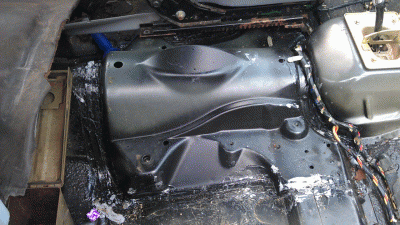

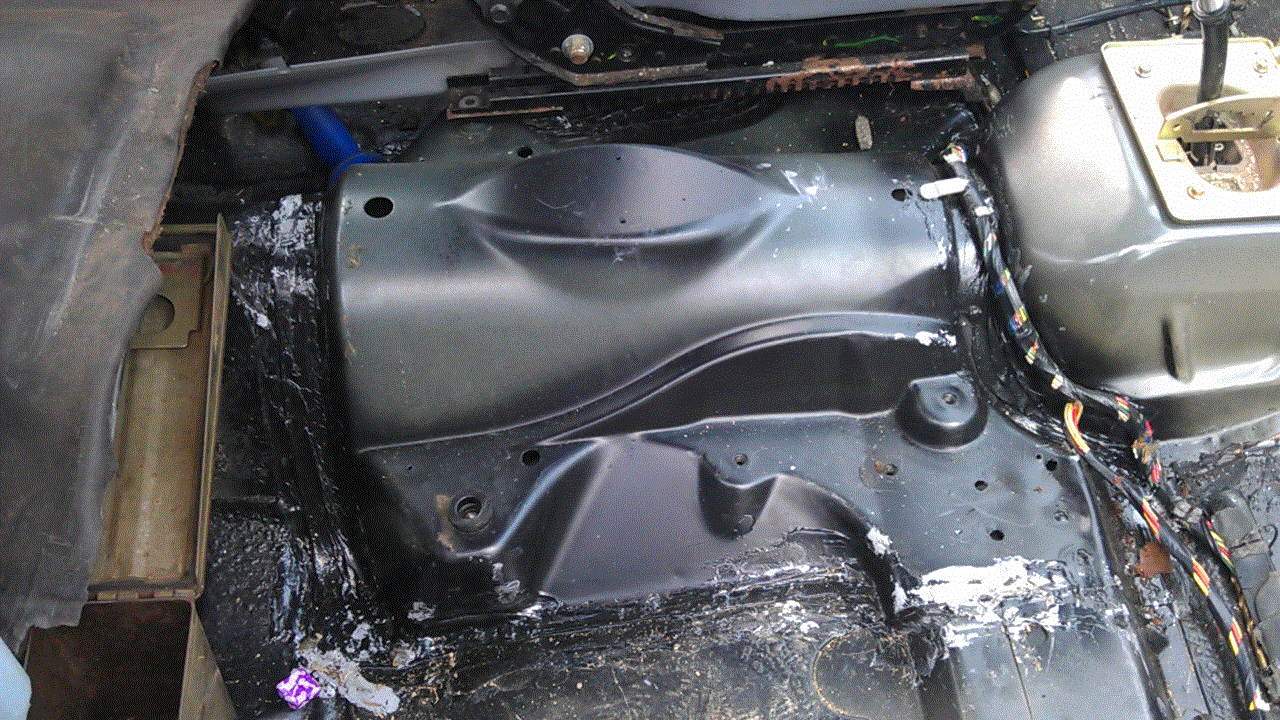

File comment: welded and seam sealed
floor pan welded in seam sealed.gif
floor pan welded in seam sealed.gif [ 415.41 KiB | Viewed 34 times ]

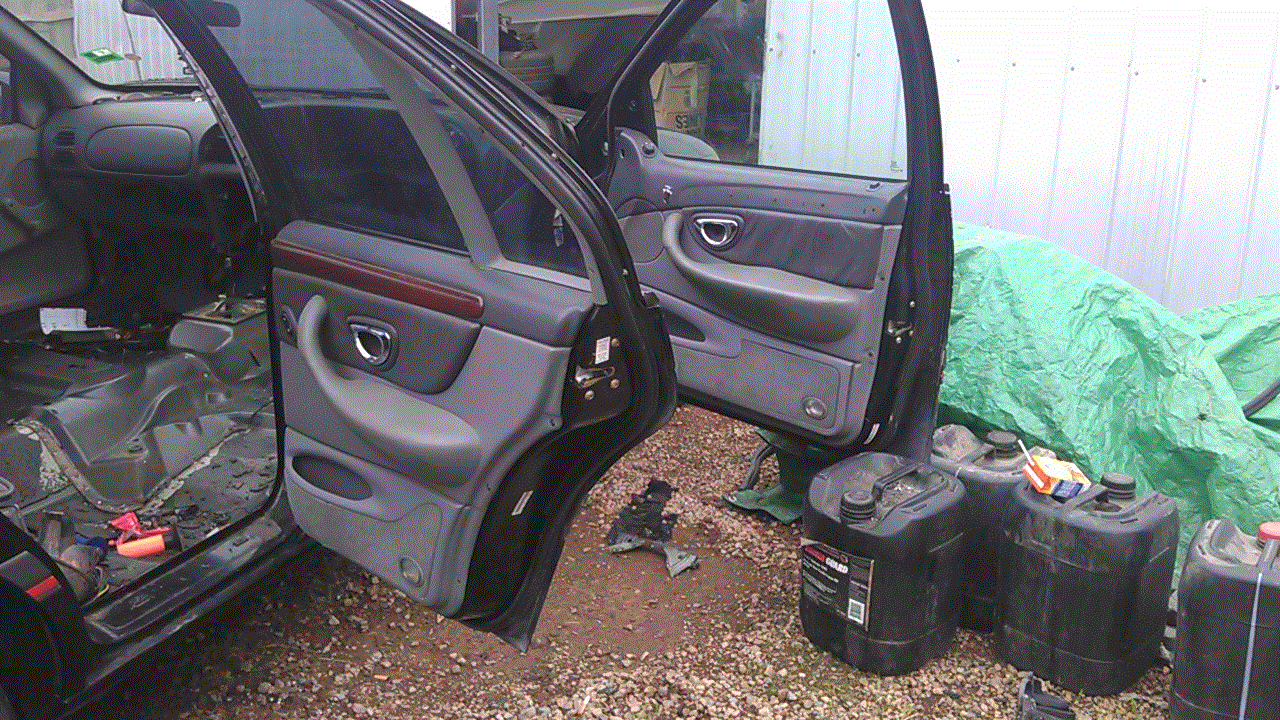

doors open rh side.gif
doors open rh side.gif [ 393.99 KiB | Viewed 35 times ]
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Tue Nov 01, 2011 7:55 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

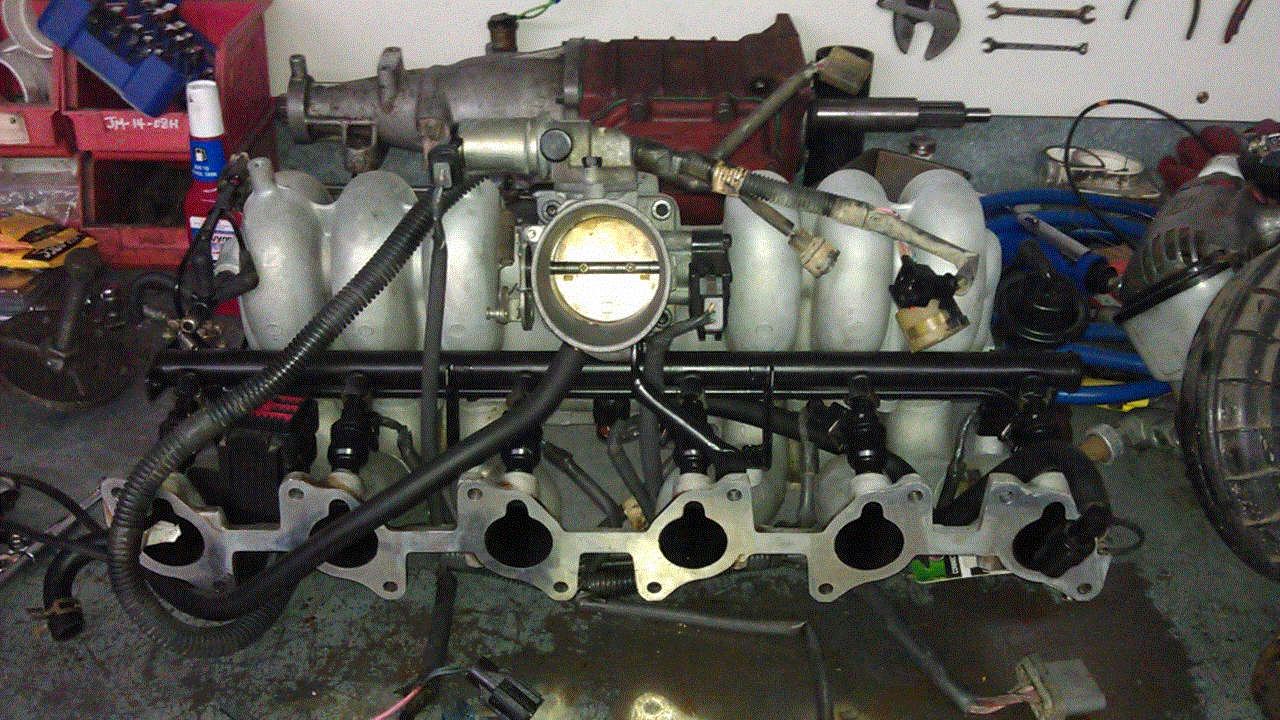

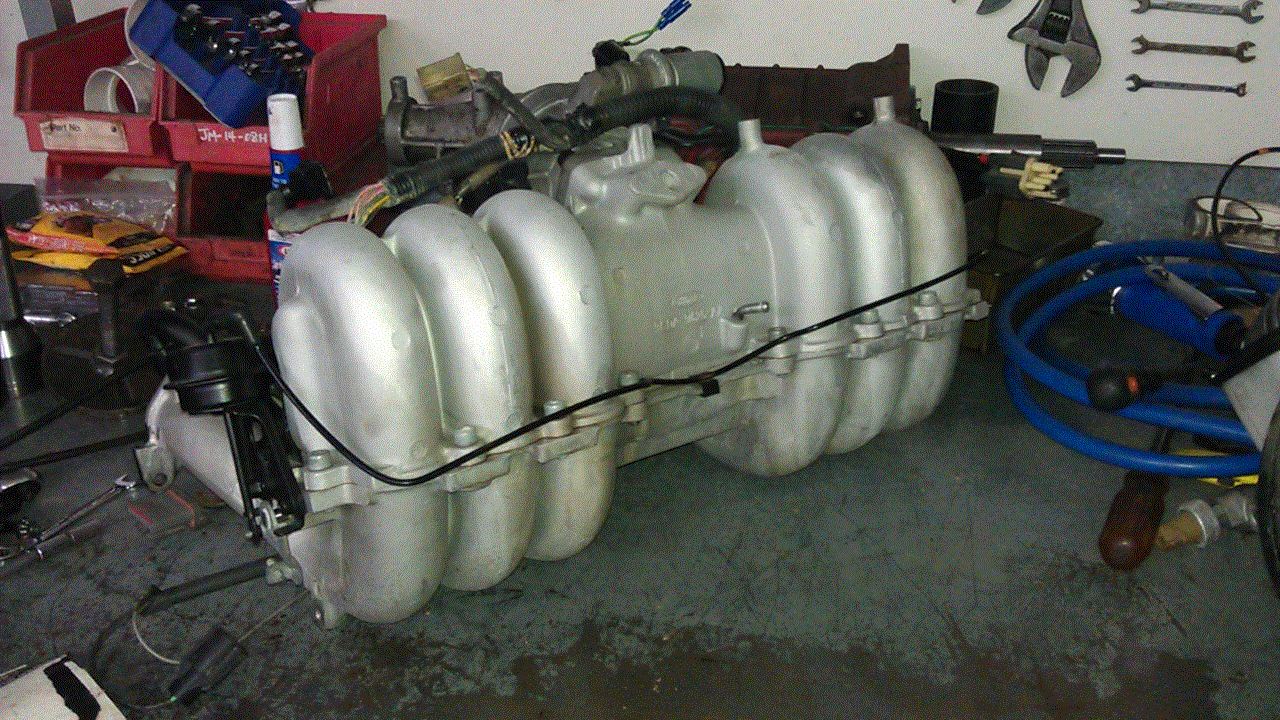

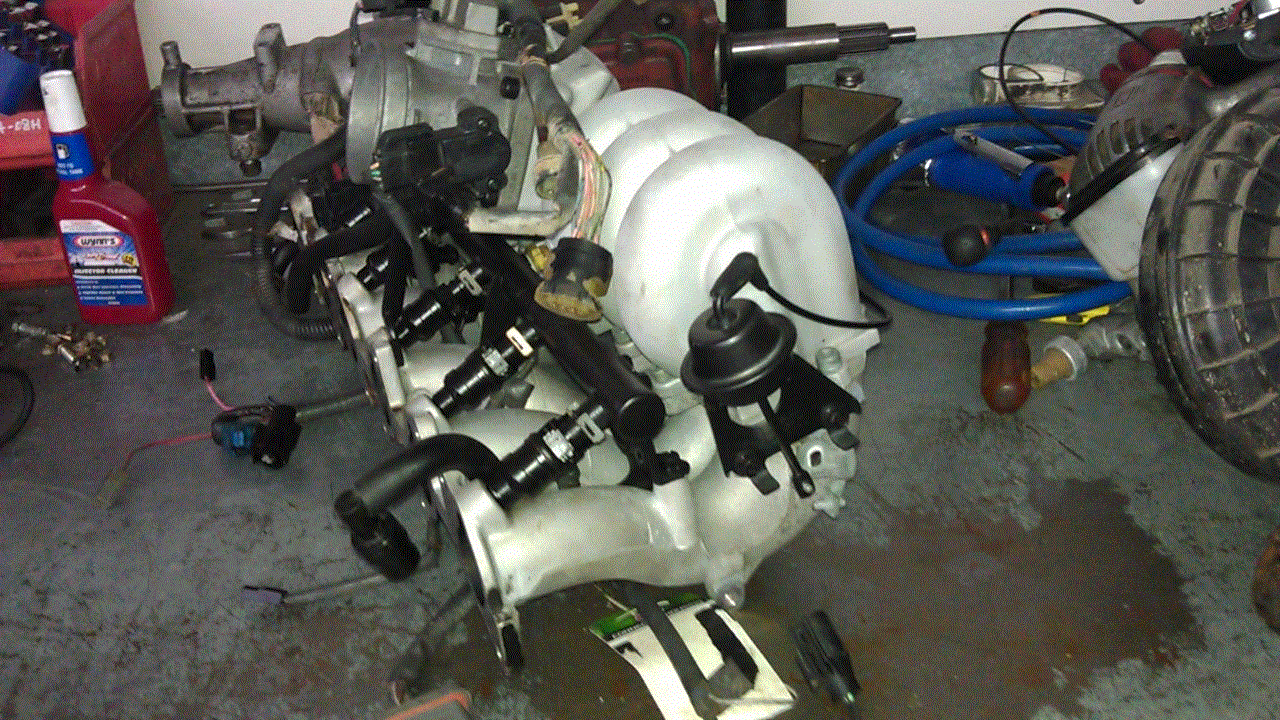

also painted the zinc plated bits on the intake manifold black

what do you guys think





Attachments:
manifold.gif [ 416.68 KiB | Viewed 23 times ]
manifold 2.gif
manifold 2.gif [ 412.43 KiB | Viewed 29 times ]
manifold 3.gif
manifold 3.gif [ 409.42 KiB | Viewed 30 times ]
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Tue Nov 01, 2011 7:58 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

I like that.

May have to steal that idea.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Wed Nov 02, 2011 5:05 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

Cheers benj go for it, they were pretty discolored very cheap mod and looks great imo.

Does anybody know where i can get the woodgrain pieces on the fairlane door trims. Tried ebay and wreckers they dont have any. Did they come out in any other color like silver or black seein as how i dislike woodgrain alot.
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Wed Nov 02, 2011 5:48 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Woodgrain only I am afraid.

It took me a long time to find a set in bad condition, but not broken, to paint, but I got there in the end.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Wed Nov 02, 2011 5:56 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

squidgy wrote:
Cheers benj go for it, they were pretty discolored very cheap mod and looks great imo.

Does anybody know where i can get the woodgrain pieces on the fairlane door trims. Tried ebay and wreckers they dont have any. Did they come out in any other color like silver or black seein as how i dislike woodgrain alot.


Have complete Fairlane trims here with woodgrain (plastic) if your interested..
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Nov 07, 2011 11:58 am
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

hey guys well engine is out, engine bay is painted in black and some of the el loom has worked its way into the engine bay just stuck on whether or not to swap the h-k frame to the el one is it worth it? am i going to need it in there? I know the rack has to be changed i think because it is different height to the eb rack and im using the el column cant see any difference in suspension parts.
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Nov 07, 2011 4:51 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

The EF/EL K Frame is considered to be more rigid. The lower control arm bushes are twice as big if not bigger compared to the EA-ED. Front strut bar bushes are also larger. Also will be heavier.

If you are considering an AU or BA engine conversion in the future, the K Frame will need to be notched. The EA-ED K Frame also would need modding though so a bit of a toss up there.

And yes, you will need the EF/EL steering rack and column.

In the end it is up to you.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Tue Nov 08, 2011 9:52 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

well i decided to put the el k frame in because it looks better its painted black, now just sorting the rest of what i can use.

I noticed the sway bar from the nl fairlane ghia concorde is 1mm thicker naturally i used it.

I was told the springs are stiffer and are like commodores fe2 suspension and will possibly sit the eb lower hard to believe because the fairlane is heavier can anybody confirm this?

I also threw the dash in for the last time fingers crossed.

by the way thank you benj for help with all you information its good practice to listen to a veteran!!





Attachments:
File comment: painted bay
painted bay.jpg
painted bay.jpg [ 318.65 KiB | Viewed 47 times ]

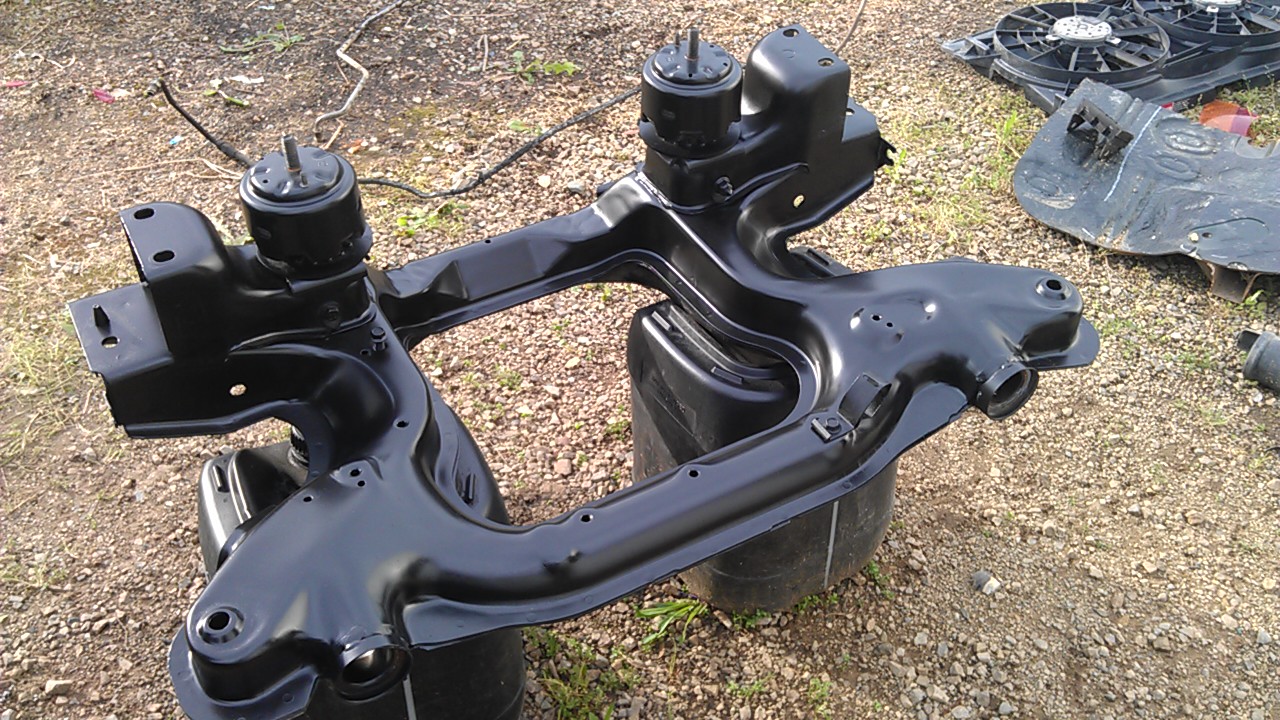

File comment: painted frame
painted frame.jpg
painted frame.jpg [ 418.47 KiB | Viewed 50 times ]

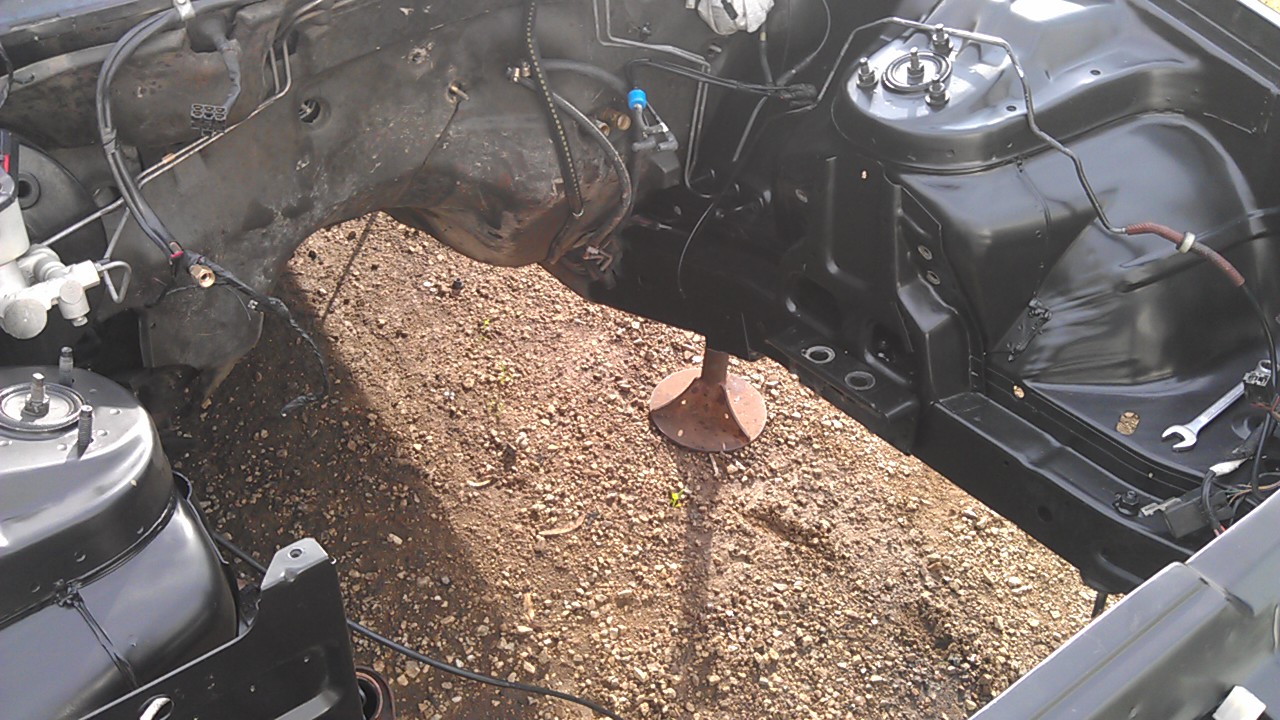

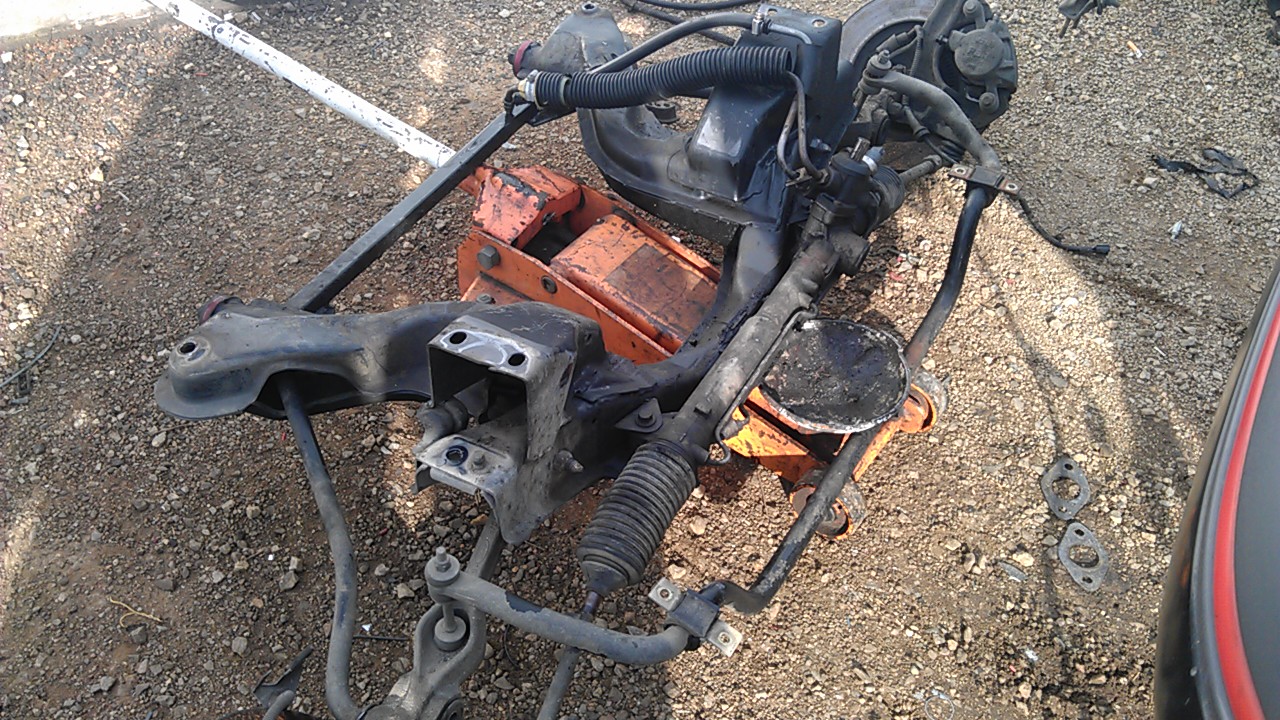

File comment: old frame removed
old frame.jpg
old frame.jpg [ 458.34 KiB | Viewed 47 times ]
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Tue Nov 08, 2011 9:54 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

That's cool mate.

Keep up the good work.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Nov 14, 2011 9:15 am
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

Thanks BenJ

hey guys, i have been doing some work to the Eb lately have some of the interior back together, however went to fit the back seats and they don't fit because they are out of a Fairlane which i didn't even think about.

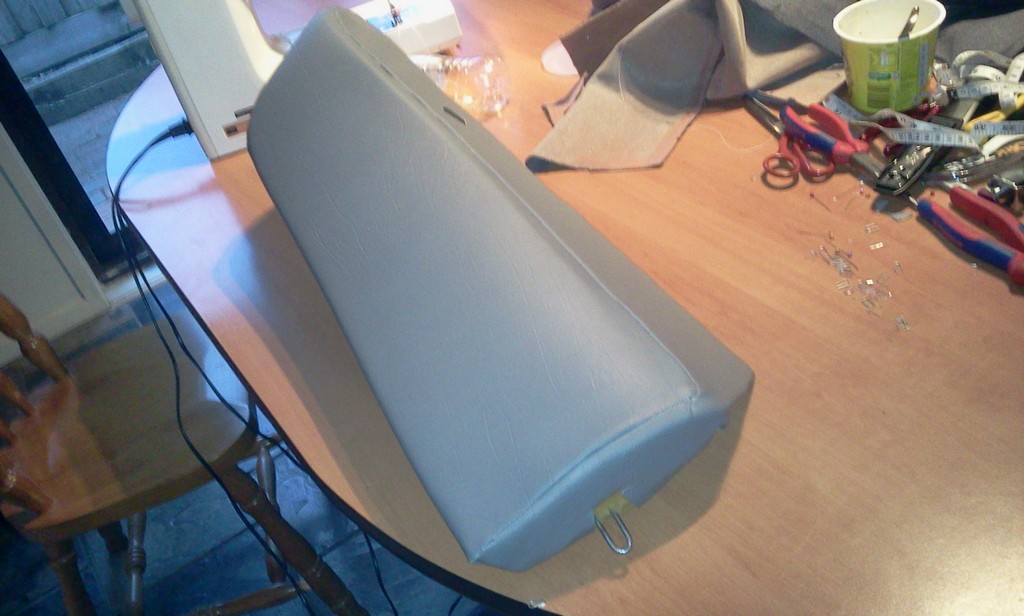

with much contemplating i decided to recover the old side bolsters with grey vinyl, after much driving around i could not find any vinyl or leather to fit the same color as the original seats so i got the closest color i could find, later on i will have to just vinyl dye them the right color.

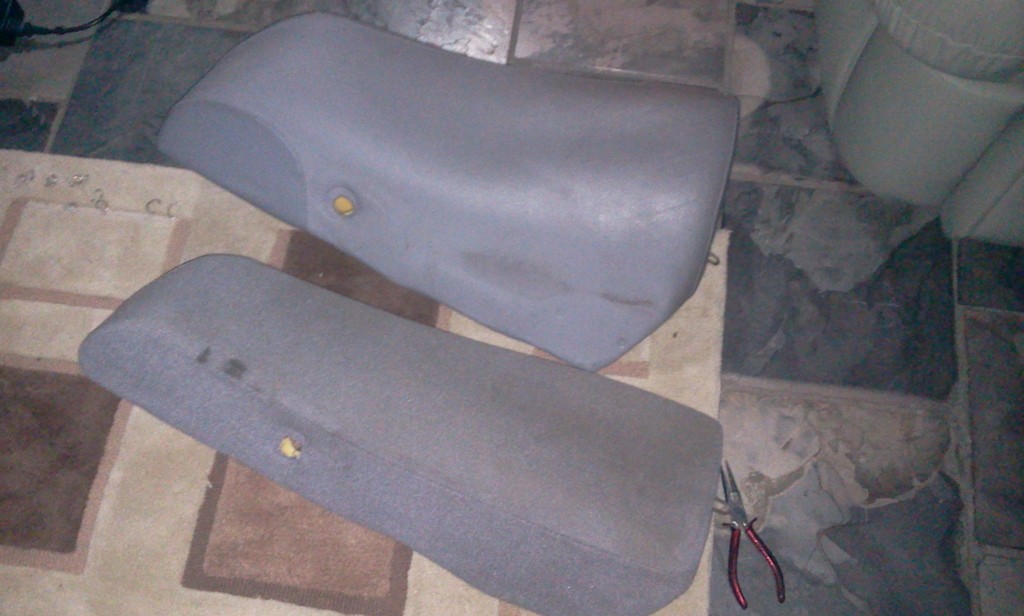

so me and my lovely girlfriend stripped the old bolsters, traced the old pattern on the vinyl cut it out and started to pin it together. with a sowing machine borrowed from her mother and little to no experience she sowed the vinyl together. around the top where you don't see the vinyl didn't sit tight so we used some old material and packed it in there then i painfully put the old staples back in the whole exercise cost me a little over 30 bucks for enough material to do both back bolsters





Attachments:

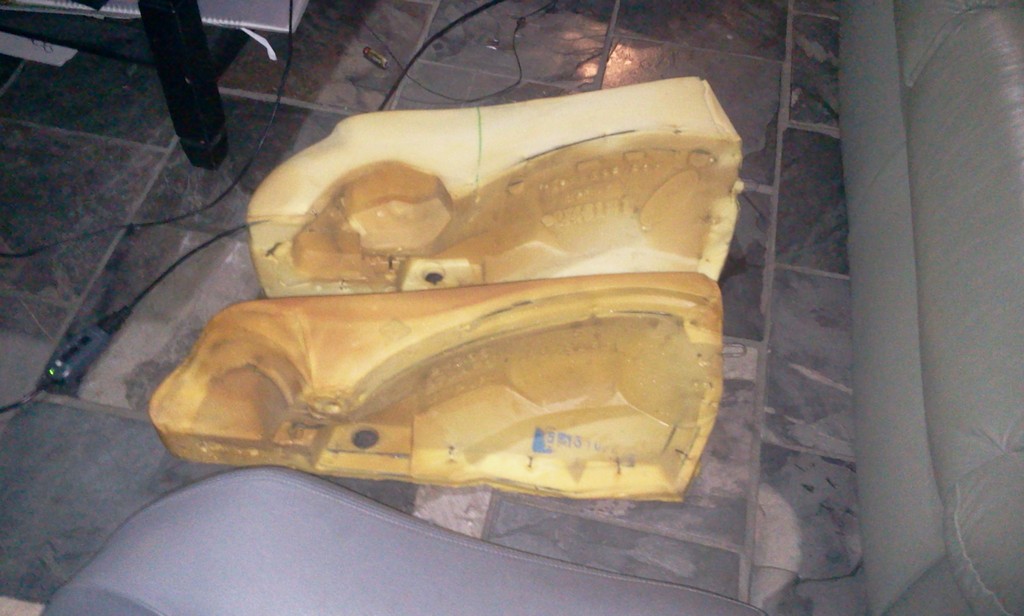

File comment: difference between fairlane and sedan bolsters
1.jpg [ 129.97 KiB | Viewed 32 times ]
2.jpg [ 134.91 KiB | Viewed 27 times ]
3.jpg [ 135.89 KiB | Viewed 37 times ]
4.jpg [ 137.78 KiB | Viewed 37 times ]
5.jpg [ 140.58 KiB | Viewed 46 times ]
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Nov 14, 2011 7:08 pm
Oompa Loompa
Offline
User avatar

Posts: 28

Joined: 27th Mar 2010

Ride: XH UTE

Location: Hervey Bay
QLD, Australia

WoW! Clever girl. Your doing a top job mate. Keep it up. Looking forward to seeing the rest.



_________________

Vintage bmx collector. What ya got?

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Nov 14, 2011 11:01 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

thanks coasty

i got the rear seats in today had to change the mounts. if anyone is interested i will post a tech doc on re trimming the bolsters and changing the mounts from fairlane to sedan vice versa

also pinched some rear headrests from the nc fairlane with velour? trim in the backyard that's the next couple of pieces to get the trimming treatment

the car is looking very sexy with the rear leather in it very comfy and matched with the door trims seats arnt the best but im sure it will end up being re trimmed

got most of the front end back together too just need some brake lines off an el with abs (if anybody has some reasonably locally ill buy them if you don't want too much for them) and then the motor can go in getting pretty excited about it now its getting there and looking good

will get some pics up of the back seats when the sun comes back up

Cheers Damo
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Tue Nov 15, 2011 1:38 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Very nicely done!

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Tue Nov 15, 2011 2:34 am
Tyre Shredder
Offline

Posts: 333

Joined: 20th Apr 2011

Ride: 1991 eb1 fairmont

Location: townsville
QLD, Australia

did you think of using the leather from the fairlaine side bolsters to re-trim the originals
when i did the fairlaine interior swap luckily my fairmont bolsters were the same trim
