correct positions for timing chain



Page 1 of 1 [ 4 posts ]

Post New Topic Post Reply  Previous topic Next topic

fiftyone
 Post subject: correct positions for timing chain
Posted: Tue Jan 26, 2010 1:11 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

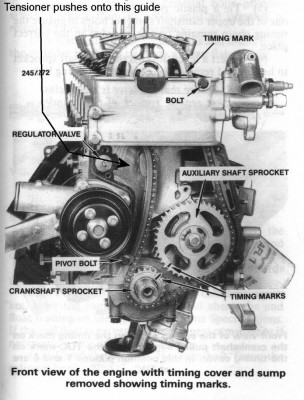

just wondering if the below pic is how to setup for a time chain reset? any common ways to stuff it up? any tricks? anything else to know?

Cheers





Attachments:
File comment: .
timing chain.jpg
timing chain.jpg [ 166.08 KiB | Viewed 170 times ]



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off
Top
 Profile


creeture3
 Post subject: Re: correct positions for timing chain
Posted: Tue Jan 26, 2010 10:13 am
Getting Side Ways
Offline

Posts: 975

Joined: 15th Nov 2004

Ride: el wagon

Location: melbourne
VIC, Australia
Nah, just do it like the book sez
Top
 Profile


nalane
 Post subject: Re: correct positions for timing chain
Posted: Tue Jan 26, 2010 2:08 pm
Tyre Shredder
Offline
User avatar

Age: 58

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia
Get it back together then rotate by hand at least 4 times then line up marks again. If they realine then all is good.
Top
 Profile


misk_one
 Post subject: Re: correct positions for timing chain
Posted: Tue Jan 26, 2010 2:11 pm
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia
good advice nalane.
i do the same, i crank it by hand once, then use the engine (with no spark obviously) to ensure its not just the tension holding everything in the right place



_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake
