Dyno'd my EA! (New Results bottom of page 1)



Page 2 of 2 [ 24 posts ] Go to page Previous  1, 2


Posted: Sun Jun 17, 2007 9:40 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1251

Joined: 22nd Mar 2006

Gallery: 9 images

Ride: BF XR6 Ute

Location: Rosebud, Mornington Peninsula
VIC, Australia

ilovmel, jjohnno - All cars will read different figures, even on the same dyno. It all depends how healthy the motor and driveline is. With a locknut's 117.8rwkw, I would say that it is a very healthy EA! :D

With a car that has the a*** flogged out of it, it may only pull around 90ish rwkw.

The only way to know is to actually put it on the rollers and see what she makes ;) Because just guessing is useless!
Top
 Profile


Posted: Sun Jun 17, 2007 9:52 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1780

Joined: 31st Jan 2005

Gallery: 10 images

Ride: 07 BF mk2 E-gas wagon + eb 5.0

Power: 174 rwkw

Location: Adelaide
SA, Australia

going by the temps on the bottom of the graph it was a pretty cold day which will always return slightly better figures.

dyno's are a tuning tool only. dyno figures can only really be compared to other cars run on the same dyno on the same day. most decent honest operators will be within coo-ee of each other but most arguements are settled down the strip.

had to be said :wink:



_________________

eb v8: low loud and fast. just how a v8 should be. i guess the big question is, is it fast enough...

Top
 Profile


Posted: Mon Jun 18, 2007 6:48 pm
Stock as a Rock
Offline

Age: 27

Posts: 121

Joined: 6th Mar 2007

Ride: fg mk2 xr6 ute

Location: canberra
ACT, Australia

sweet might have to hit him up for a go on it .



_________________

-----FG MK2 XR6 UTE-----

Top
 Profile


Posted: Mon Jun 18, 2007 6:58 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 673

Joined: 29th Jan 2006

Gallery: 8 images

Ride: BA XR6 Turbo

Location: Canberra
ACT, Australia

For sure man, will let ya kno when the next dyno day I hear of is on.

I'd very keen to see what rough exhaust alone give (snorkel or not).

I will have mine done by next dyno I hope, so will have a fairly good comparison.



_________________

I like boost
http://www.venomexhaustworks.com.au

Top
 Profile


Posted: Sun Nov 18, 2007 11:58 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 673

Joined: 29th Jan 2006

Gallery: 8 images

Ride: BA XR6 Turbo

Location: Canberra
ACT, Australia

Hey all, been away a little lately, but I have the newest dyno results. Previous runs were with the EA stock as a rock with a new head and valves. The runs were with airbox (stock) 114rwkw, and airbox removed; 117rwkw.

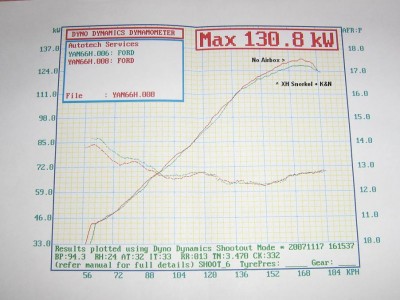

These new runs are (on a fkn hotish day) with my trusty EA running 4499's, small hi flo cat, lukey 2.5" twin muff sys. As it's a dyno day, I got the highest of the 2 figures without the airbox. 127.1rwkw (XH Snorkel and K&N Panel fitted), and 130.8rwkw without the airbox.

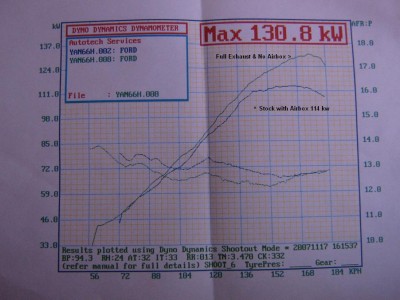

The guys were impressed that it's still running awesome Air/Fuel. Everything sounded nice, and I like to think of this as the "textbook" EA to compare mods Vs gain on. I did want another print out.. Street Trim Vs Street Trim, ie: 114rwkw Vs 127rwkw, but it didn't happen!

Cheers..





Attachments:
EA S - 130RWKW vs Stock small.JPG
EA S - 130RWKW vs Stock small.JPG [ 84.73 KiB | Viewed 28 times ]
EA S - 130RWKW vs Airbox small.JPG
EA S - 130RWKW vs Airbox small.JPG [ 99.82 KiB | Viewed 31 times ]



_________________

I like boost
http://www.venomexhaustworks.com.au

Top
 Profile


Posted: Sun Nov 18, 2007 12:22 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Wow...nice figures :D. Looks like you'll hit 150rwkw with a new cam mate. Keep us posted :D

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: power figures
Posted: Sun Nov 18, 2007 1:34 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 556

Joined: 10th Dec 2006

Gallery: 4 images

Ride: EAII Falcon S

Location: Brisbane
QLD, Australia

i have an official ford spec sheet here that might help (printed october 1989)
if you want it scanned let me know as linux has an issue with the scanner & will need to switch os's.

standard power figures are as follows:

3.9 EFI (EEC 4)
Fuel (Octane rating) 91-93
Compression Ratio 8.8:1
Max Power DIN kW/rpm - 120/4250
Max Torque Nm/rpm - 311/3250

3.9 Multipoint EFI (EEC 4)
Fuel (Octane rating) 91-93
Compression Ratio 8.8:1
Max Power DIN kW/rpm - 139/4250
Max Torque Nm/rpm - 338/3500



_________________

Speed Safely! ;-)

Top
 Profile


Posted: Sun Nov 18, 2007 2:13 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Thats a healthy figure for a un-cammed EA.

Got any plans for the 1/4 mile?



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Sun Nov 18, 2007 3:02 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 673

Joined: 29th Jan 2006

Gallery: 8 images

Ride: BA XR6 Turbo

Location: Canberra
ACT, Australia

Redford wrote:
i have an official ford spec sheet here that might help (printed october 1989)
if you want it scanned let me know as linux has an issue with the scanner & will need to switch os's.

standard power figures are as follows:

3.9 EFI (EEC 4)
Fuel (Octane rating) 91-93
Compression Ratio 8.8:1
Max Power DIN kW/rpm - 120/4250
Max Torque Nm/rpm - 311/3250

3.9 Multipoint EFI (EEC 4)
Fuel (Octane rating) 91-93
Compression Ratio 8.8:1
Max Power DIN kW/rpm - 139/4250
Max Torque Nm/rpm - 338/3500


Yeah, cheers. Am already aware of heaps of figures for cars in general, I see now why you posted this.. I just meant "textbook" in the sence that, I got the gains that aftermarket manufacturer's claim from their products, and that my EA (whilst it's only a sh!tter) is such a nice and simple example to experiment with modifications and dyno'ing on. Cheers tho.

1 other thing, cuz I have grown up a bit, and the fact I race 1/10 R/C (which teaches you: 1) make it handle 2) make it fast) I've modified this car in what I believe to be, a sensible order. Shocks and coils first, then the others. If anything, I should really get new discs and pads next... :D



krisisdog wrote:
Thats a healthy figure for a un-cammed EA.

Got any plans for the 1/4 mile?


Yeah one day after the 1636 cam finally goes in.. I hope to bust into 14's. Fk I wish there was still a dragstrip in ACT. I've only been here 2 years, but I heard there was one a few years ago. I think Wakefield has a 1/4mile strip? Or is it Eastern Creek?

Also hope that the Wade Cam and maybe some ignition timing ad's another 18 - 20rwkw, and puts me over 150rwkw in an EA.



_________________

I like boost
http://www.venomexhaustworks.com.au
