 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 3:28 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

its just that this conversion has been done many many times by many people ive done 4 myself and no one has ever had bonnet clearance issues,
maybe there is something a miss somewhere??
are you trying to use the ef engine mounts or ea??
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 3:30 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

TROYMAN wrote:
its just that this conversion has been done many many times by many people ive done 4 myself and no one has ever had bonnet clearance issues,
maybe there is something a miss somewhere??
are you trying to use the ef engine mounts or ea??


Used the EA mounts for certain. Asked about this before undertaking.

Sadly I now have new information about this topic, so it can be talked about again.
Unfortunately its not good or positive news.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 3:32 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

why?
what happened.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 3:33 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

TROYMAN wrote:
why?
what happened.


Only that the EF I have, will not fit under the bonnet of an EA, with EA mounts.
Id love to know why!
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 3:38 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

thats why we ask for pics..
because we all know it does fit. you must have done something different to everyone else..
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 3:38 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

TROYMAN wrote:
thats why we ask for pics..
because we all know it does fit. you must have done something different to everyone else..


Ill take some this arvo mate. Specifically for the forum.
I guess one thing I know that is slightly different is that my car is a "Tickford" 30.


Not a genuine tickford but the EA that had the Wings with the 30 badge. Not sure if that means anything or not. - shouldnt.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 3:49 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

Just postulating on a theory at the moment.

What if the previous owner of the EA broke a mount, and only had later model engine mounts to replace them with. The EA would still fit fine. But would prevent the later engine fitting.

But with only 150k kms on the car, and a stock EA motor, I doubt it broke a mount.

Ill take a close up of the EF mounts that have not been used.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 3:59 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

Is there a difference between the 3.9L and the 4.0L K frame in the EA?

We deffo used the EA mounts but from a 3.9L engine.. This car, apparently has an angle on the K frame close to 45 degrees where other EA's he has seen has an angle with only 10-15% angle. (similar to the EF)


I think I have parroted this back properly. I have no idea what he is on about.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 4:13 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the winged badge with the 30. is a 30th aviversay falcon badge. not tickford..

the k frame, engine mounts. engine block hights are all the same from 1988ea to 1994 ed..
just to add. the ef mounts will physically locate the engine the will not bolt up anyway..
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 4:16 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

TROYMAN wrote:
the winged badge with the 30. is a 30th aviversay falcon badge. not tickford..

the k frame, engine mounts. engine block hights are all the same from 1988ea to 1994 ed..


Yeah.. I know its not a Tickford, thus written as "Tickford" for lack of better way to describe the wings on the badge.

Ill get pics straight after work. will probably have to post tomorrow.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 7:03 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

just out of curiosity, have you got your trans/gearbox mounted? if not that could be allowing the engine to tilt back



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 7:11 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

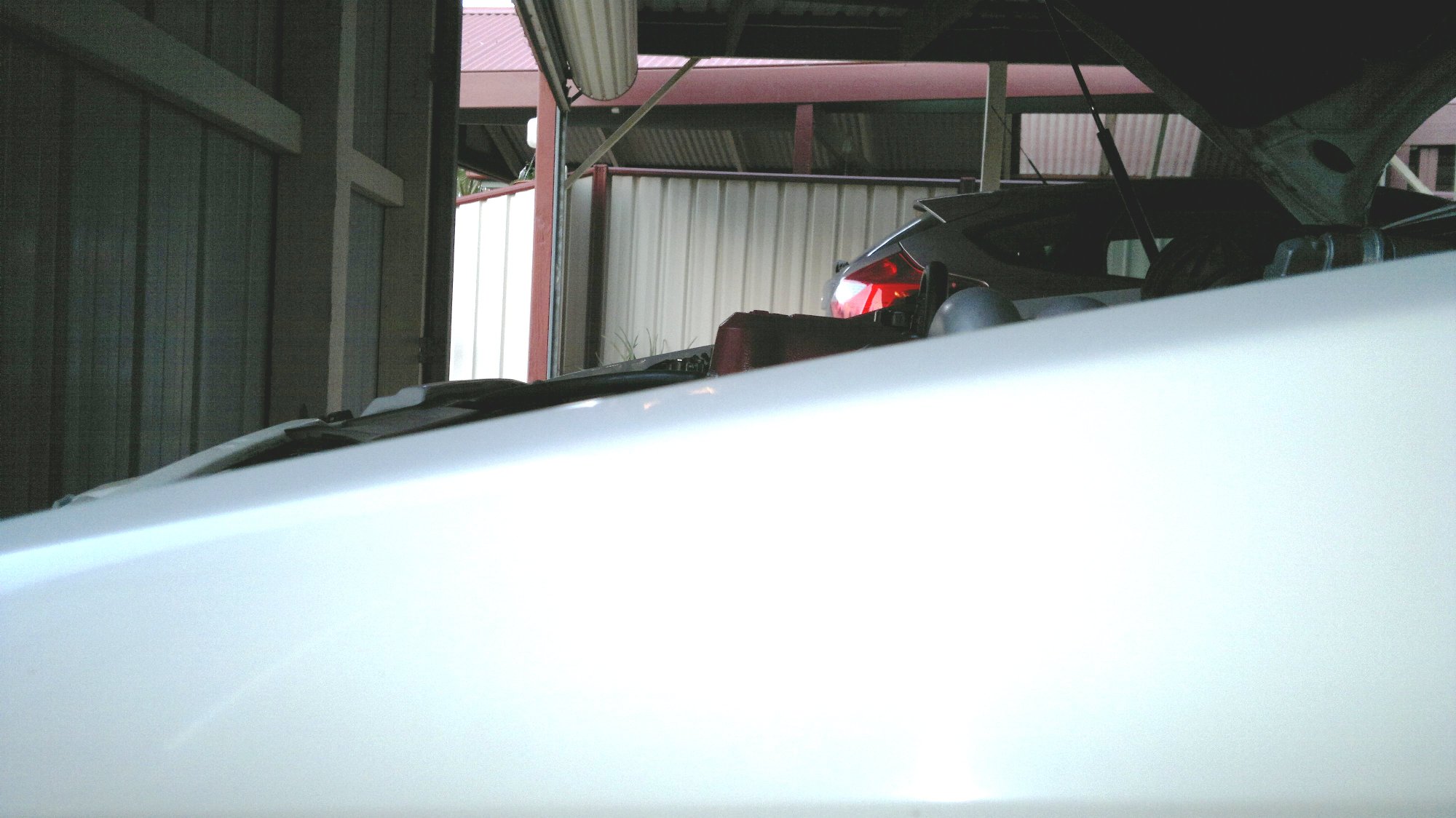

Here's some photos of my car. With the bonnet open about 150mm above the headlights, there's still +150mm clearance above the rocker cover. Only part of the rocker cover protrudes above the guards.

I'm wondering how the bonnet closed before as the 3.9 & 4.0L engines are identical in height.





Attachments:
12082014062.jpg [ 336.41 KiB | Viewed 43 times ]

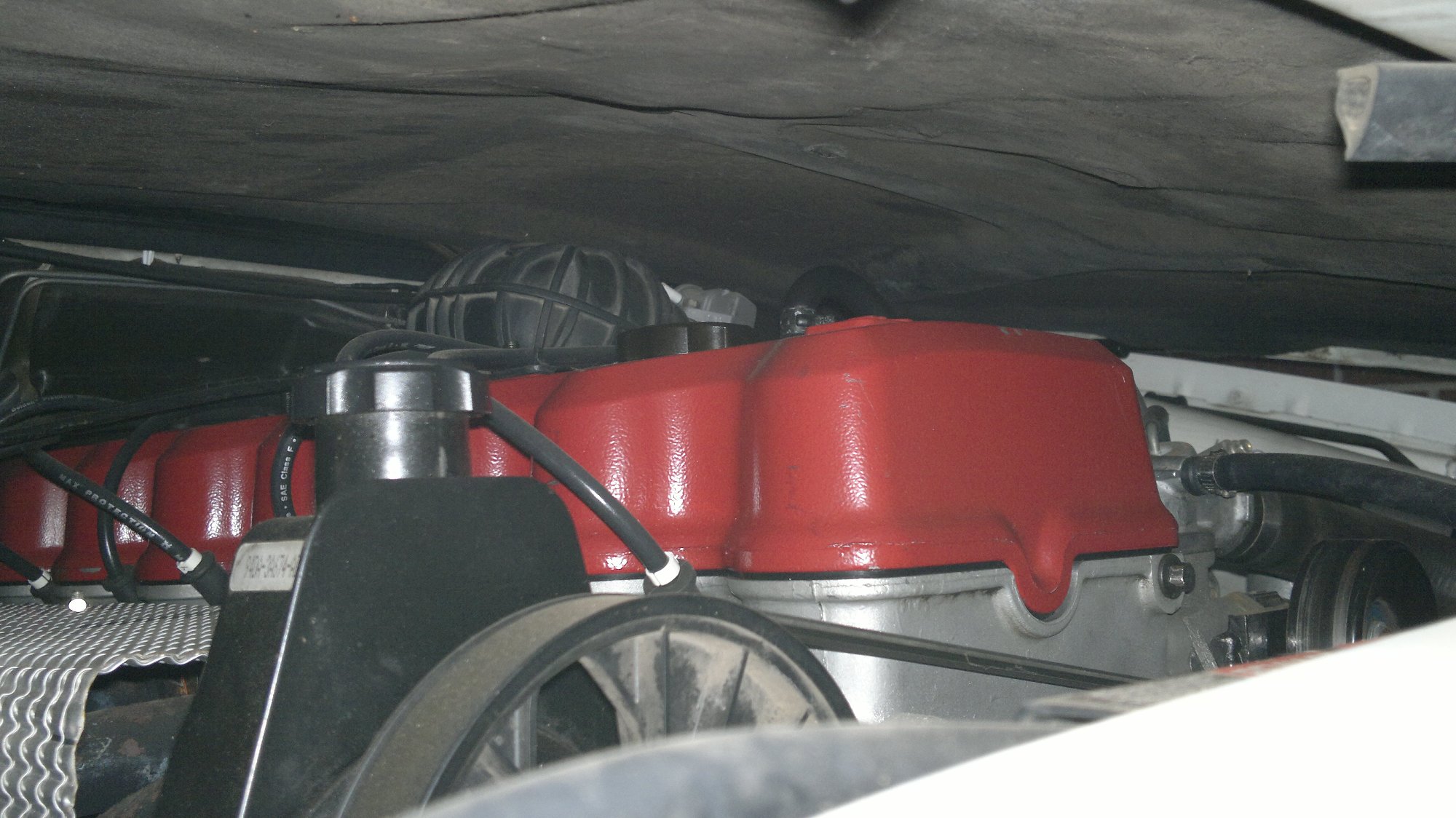

File comment: Only the rocker cover protrudes
12082014060.jpg [ 242.81 KiB | Viewed 36 times ]

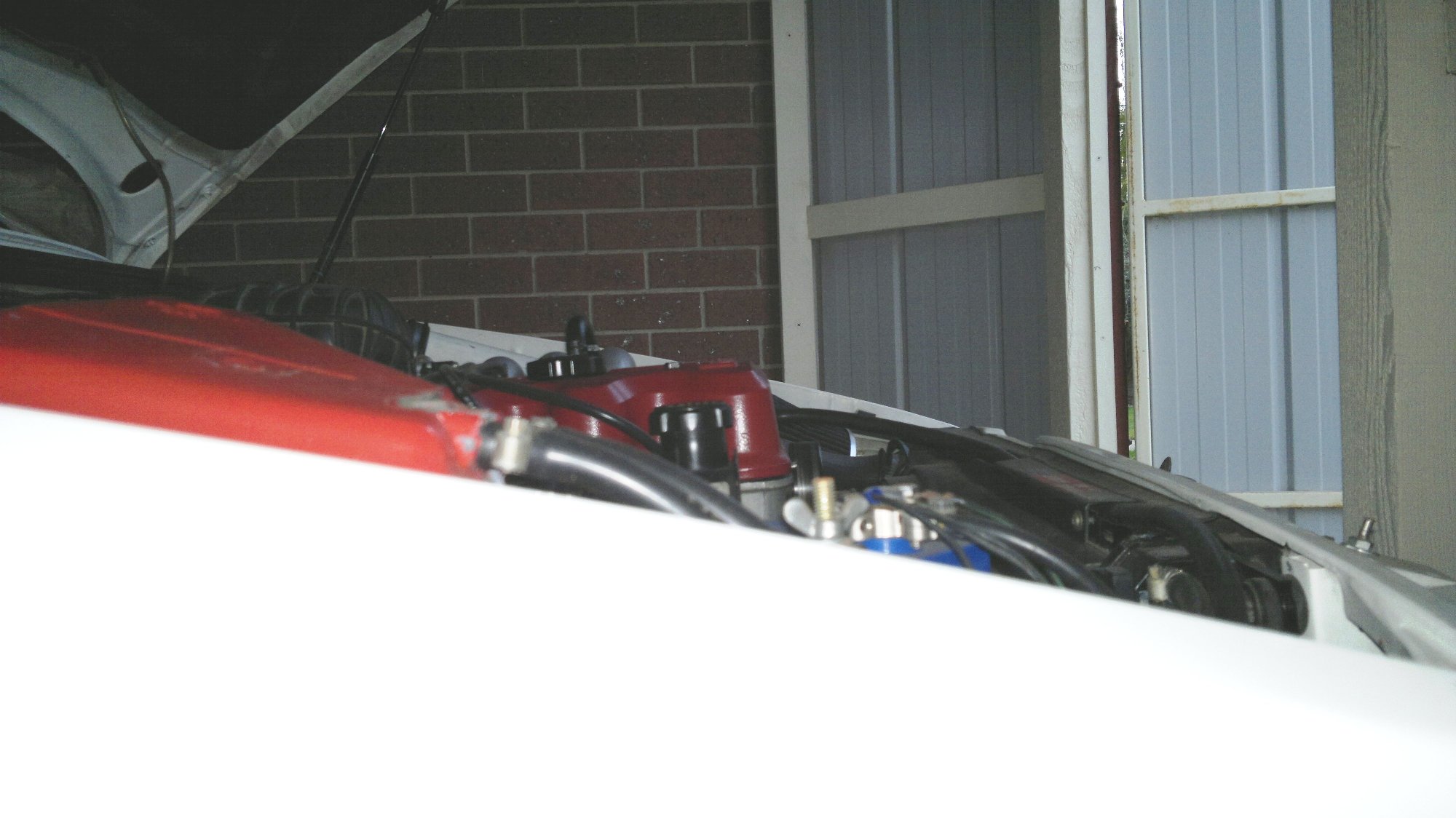

File comment: Looking across from one guard to the other
12082014059.jpg [ 271.42 KiB | Viewed 44 times ]



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Tue Aug 12, 2014 8:00 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Looks like the motor is tilted back.
Top
 Profile


 Post subject: Re: EF Tickford into EA - MY NIGHTMARE
Posted: Tue Aug 12, 2014 8:05 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Barnfind-EA wrote:
So, logically, we just went and put the standard EA log manifold on. That should work right?
And maybe in some magical world where unicorns f@rt rainbows and puppies and kittens 'n sh|t, it would have been fine. But in the world I live, the god damn air conditioner pump wouldnt fit! FML!

So, logically we look at the air co pumps (seems right) so we spent hours swapping the pulley over to fit the old EA air co pump. The son of a b**ch fits, but the pulley doesnt line up.

You need to use the EF/EL AC Pump.

The only solution I am left with now is to buy an idler pulley to replace the air conditioner, and hope to hell the prick fits!

This is not even yet addressing the conversion requirement from Coil pack back to dizzy (no problems so far as this was anticipated) and also the installation of thermo-fans needing further parts and mods.

I guess my advice is that if you're going to do this conversion, and you find the bonnet doesn't fit... RUN A MILE! (or have a EB GT bonnet sitting around)

WANTED... EB GT bonnet!

EB Bonnet is no different to the EB stock bonnet. The vents were just bolted on.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Wed Aug 13, 2014 9:54 am
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Have you checked the transmission has seated properly-its the only thing I can think of that would give the engine that angle, john.



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html
