 Post subject: Re: EF Tickford into EA
Posted: Wed Aug 13, 2014 10:19 am
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

johnnyeHCF wrote:
Have you checked the transmission has seated properly-its the only thing I can think of that would give the engine that angle, john.


Yeah mate. Shes in and running, pre tune.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Wed Aug 13, 2014 10:21 am
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

I have some engine mount/K-Frame photos if someoene would be a gentleman and instruct me on how to upload.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Wed Aug 13, 2014 10:30 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

if the site wont accept them because there to large and if you don't know how to resize them, you could upload them to photobucket... and copy the img link in your reply.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Wed Aug 13, 2014 1:31 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

TROYMAN wrote:
if the site wont accept them because there to large and if you don't know how to resize them, you could upload them to photobucket... and copy the img link in your reply.


Its that I dont know how to upload them, at all.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Wed Aug 13, 2014 1:44 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

This is sitting in the engine bay installed and bolted to the gear box


No radiator/air co compressor

Good shot of the engine mount as used.

Closer up

In case needed

EF mount. Not used.

Tidy old girl.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Wed Aug 13, 2014 1:47 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

f**k just great.. cant delete or edit that mess

MOD can you please delete or edit.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Wed Aug 13, 2014 7:24 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Have you bolted the gearbox mount up?

That engine is sitting low at the back in the first picture.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Wed Aug 13, 2014 7:51 pm
Fordmods Junkie
Offline
User avatar

Posts: 2750

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

Barnfind-EA wrote:
f**k just great.. cant delete or edit that mess

MOD can you please delete or edit.



links still work mate ....... just not the way you originally wished
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Thu Aug 14, 2014 9:16 am
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

SWC wrote:
Have you bolted the gearbox mount up?

That engine is sitting low at the back in the first picture.


You are quite right. In this pic the gearbox wasnt on. Regrettably still the bonnet hits when the box is on. This was an early pic. Next time I am at the mates house I will take a pick, sideways, of the height with everything bolted up.

Im at a loss.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Thu Aug 14, 2014 4:21 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

Is there any reason the EA box and converter wouldnt work?
Seems to be a bit of a rattle or something in it.


edit- just as I asked (here) I got news that the flywheel is different slightly
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Thu Aug 14, 2014 4:26 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the ea box should work fine..
even though the engine is from a ef, other than a few bolt ons like manifold belt accessories the engines are pretty much the same...
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Thu Aug 14, 2014 8:32 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

TROYMAN wrote:
the ea box should work fine..
even though the engine is from a ef, other than a few bolt ons like manifold belt accessories the engines are pretty much the same...


I saw a photo on my mates phone of the EF k frame. The attachments are profoundly different.
That is the part the engine mount attaches to. On my car they are higher attach at a 45 degree angle.
The EF is lower and are almost flat. With just a 10 or 15 degree angle.
I'd be happy for anyone to look and tell me where it's wrong.

There really isn't anything I can change to
make it work. Short of changing the K frame.
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Thu Aug 14, 2014 8:36 pm
Smokin em up
Offline

Age: 41

Posts: 230

Joined: 13th Feb 2014

Ride: EA Falcon

Location: Canberra
ACT, Australia

I agree it should work as planned. Can't explain it.
If I could it wouldn't have cost me 100s more and loss of my air co. :(
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Thu Aug 14, 2014 10:09 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Barnfind-EA wrote:
TROYMAN wrote:
the ea box should work fine..
even though the engine is from a ef, other than a few bolt ons like manifold belt accessories the engines are pretty much the same...


I saw a photo on my mates phone of the EF k frame. The attachments are profoundly different.
That is the part the engine mount attaches to. On my car they are higher attach at a 45 degree angle.
The EF is lower and are almost flat. With just a 10 or 15 degree angle.
I'd be happy for anyone to look and tell me where it's wrong.

There really isn't anything I can change to
make it work. Short of changing the K frame.



yes the ef k frame, engine mount and bracket are different, but where they bolt to the block is the same..
what part of the engine is hitting the bonnet???
I don't get why you say it hits the bonnet and don't fit because it does...

all below were fitted with ea-ed engine mounts the same as you have

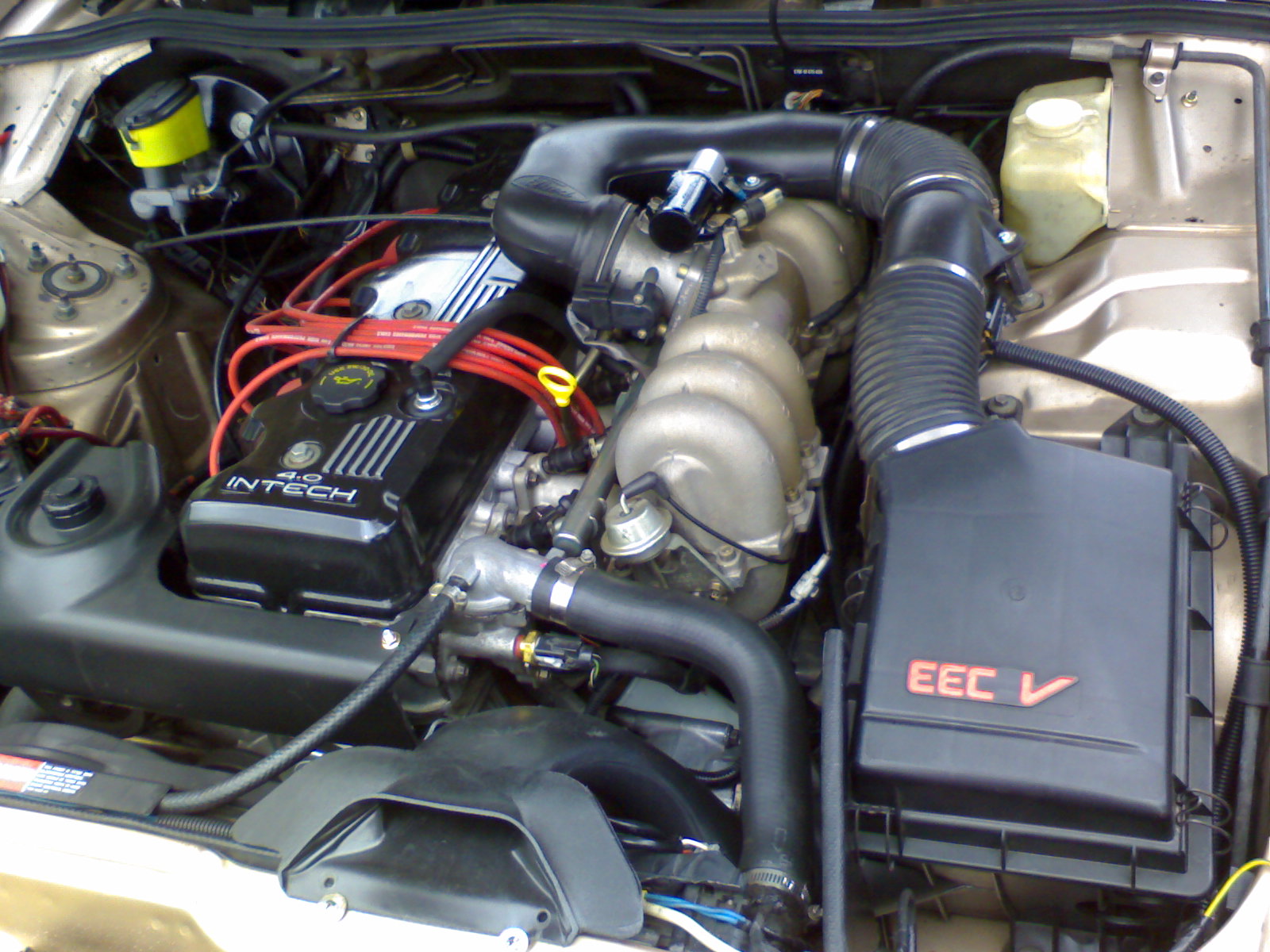

my old ea, with au and ef manifold fitted and no problems..
Attachment:
DSC00046.JPG [ 365.05 KiB | Viewed 45 times ]

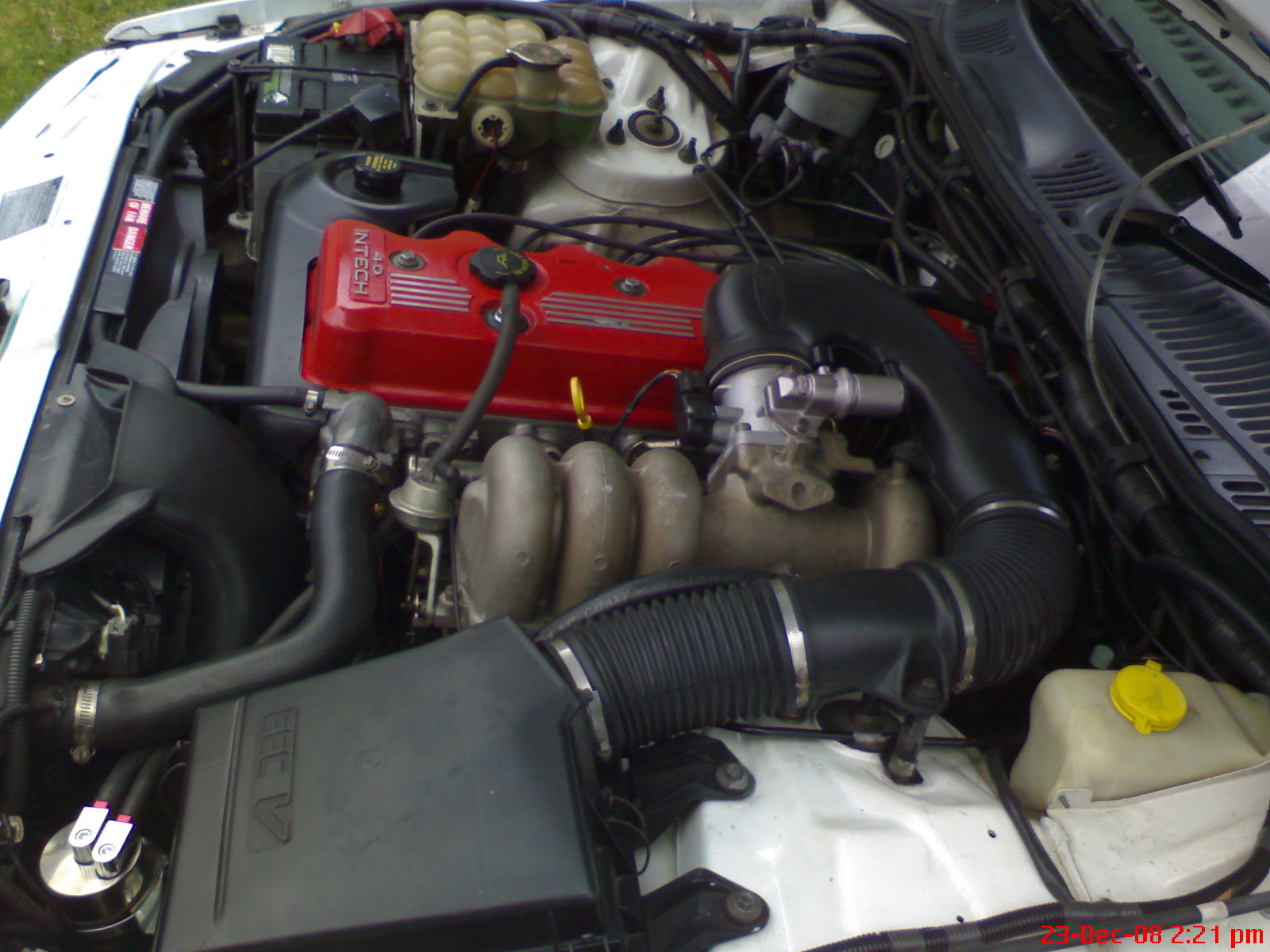

my old ed, with ef block and ef manifold, no problems..
Attachment:
DSC01207.JPG [ 292.8 KiB | Viewed 51 times ]

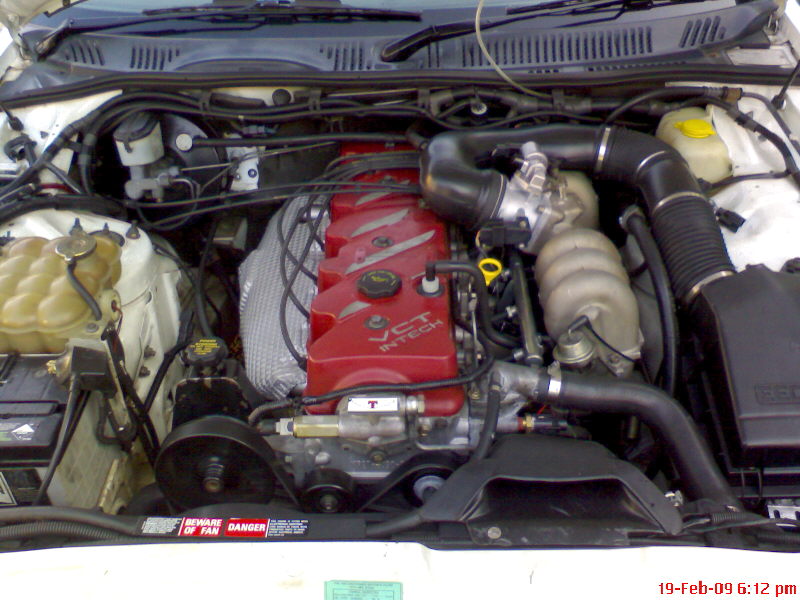

same ed with au vct engine and once again no problems..
Attachment:
DSC01273.JPG [ 99.4 KiB | Viewed 45 times ]
Top
 Profile


 Post subject: Re: EF Tickford into EA
Posted: Thu Aug 14, 2014 10:16 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

with the aircon if your using the ef belt set up with the ea manifold, you need to buy a xh ute belt tensioner and use the ea a/c pump bracket with the ef a/c pump, but you now need to change the a/c lines and evaporator to the eb2,ed or ef/el...

if you fit the ef manifold you just use all the accessories from the ef and swap over the a/c lines and evaporator to eb2-el ones..

otherwise, you fit all the ea accessories , eg..power steering pump, alternator, water pump, harmonic balancer and use the ea a/c pump..
