Help Identifying EB Fairmont



Page 1 of 1 [ 10 posts ]


 Post subject: Help Identifying EB Fairmont
Posted: Fri Jul 10, 2009 7:06 pm
Parts Gopher
Offline

Age: 34

Posts: 88

Joined: 10th Jul 2009

Ride: 1992 EB Fairmont

Location: Bendigo
VIC, Australia

Hi All

As stated above I have a EB Fairmont, and up until looking at doing the shiftkit mod assumed it was series 1. But after reading threw I am not so sure it has the 4.0I 6Cyl and the 4spd Auto, The ECU is 1DCC and I cant find a TCM or anything under the park brake also the build date is 07/92 according to the info I found here a lot of this point to it being a series 2 but I am not so sure so could someone please confirm which series this is or how I would find out for sure.

Thanks to anyone who can help.
Top
 Profile


 Post subject: Re: Help Identifying EB Fairmont
Posted: Fri Jul 10, 2009 7:20 pm
SA Cruise Moderator
Offline
User avatar

Age: 30

Posts: 1870

Joined: 14th Apr 2006

Ride: 1993 EBll xr6, 2003 ba xt

Power: 150 rwkw

Location: Whyalla
SA, Australia

Series II: Glossy door handles, 4.0L badges on 6 cylinder models, and body-coloured bumpers for the base model.

4.0L 6 cyl (Series II)
Bore and stroke: 92 x 99 mm
Power: 148kW at 4500rpm
Torque: 348Nm at 3750rpm
Overhead camshaft, 2 valves per cylinder
Fuel system: EEC IV fuel injection
Compression ratio: 8.8:1

information taken from http://www.geocities.com/falconfacts/fa ... alcon.html


mine is a 6/93 and mine has all as stated above i even have the series 2 ecu (1DCE - 1993 EB II Auto, smartlock, 3.23 diff )

hope this helps



_________________

Owning 1 of 84,847 ebII.
2x clarion subs 1200w, 1x clarion amp 400w, pioneer headunit, 16x8 roh reflex.
Clear side, front indicators, White dials, trip computer, boot spoiler, K & N air filter.
35% tint, paint code (z) stark white, 3" crome nudge bar, Xh snorkle

Top
 Profile


 Post subject: Re: Help Identifying EB Fairmont
Posted: Fri Jul 10, 2009 8:00 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

maca_404

It sounds like your is an early series 2.

My old Red EB was one of these, and it had some Series one bits on it, like the boot garnish said GL instead of GLi etc.

The best way to tell a series 1 from a series 2 from a visual perspective is the windscreen wiper cowl. A series one sits up high and protrudes above the bonnet, and a series two, sits down low below the bonnet.

Your car would also be a pre smartlock car as this was introduced in Sept 92 i.e. No remote central locking, and a lap buckle, non retractable centre rear seat belt.

Cheers BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Help Identifying EB Fairmont
Posted: Sat Jul 11, 2009 10:37 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 694

Joined: 6th Apr 2007

Ride: 98 NL, 97NL, 98EL

Power: 141 rwkw

Location: Sunny Coast or Beerburrum
QLD, Australia

BenJ wrote:
maca_404

It sounds like your is an early series 2.

My old Red EB was one of these, and it had some Series one bits on it, like the boot garnish said GL instead of GLi etc.

The best way to tell a series 1 from a series 2 from a visual perspective is the windscreen wiper cowl. A series one sits up high and protrudes above the bonnet, and a series two, sits down low below the bonnet.

Your car would also be a pre smartlock car as this was introduced in Sept 92 i.e. No remote central locking, and a lap buckle, non retractable centre rear seat belt.

Cheers BenJ


Totally agreed!!!!!

Laticia



_________________

BANNED!!!!

Top
 Profile


 Post subject: Re: Help Identifying EB Fairmont
Posted: Sat Jul 11, 2009 4:57 pm
Parts Gopher
Offline

Age: 34

Posts: 88

Joined: 10th Jul 2009

Ride: 1992 EB Fairmont

Location: Bendigo
VIC, Australia

Thanks for all the reply's I guess ill go with series 2, Been raining here all day but I got out between showers and got some pics which may help,

Attachment:

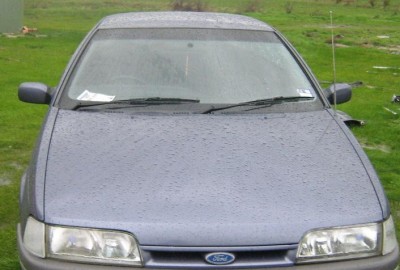

File comment: Front
front.JPG [ 51.68 KiB | Viewed 31 times ]


Attachment:

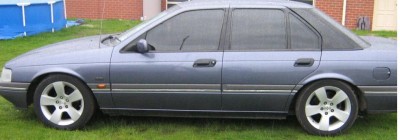

side.JPG [ 49.88 KiB | Viewed 39 times ]


Normally this would not matter its just when I look up the ecu on the website for the j3 chip guys it says that ecu is EB Series 1 and they suggest ECU upgrade but in mine there is no TCM so that ecu must be controlling the trans as well. So is there any point in upgrading ecu and if I did would it just be a simple plug in operation.

Thanks again for all your help
Top
 Profile


 Post subject: Re: Help Identifying EB Fairmont
Posted: Sat Jul 11, 2009 5:36 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Yep, your car is a Series 11.

If you want to upgrade to the J3 chip, you need to use an EL ECU.

You will be able to get the smartlock turned off on the J3 so that shouldn't be an issue.

Yes, the EL ECU is just a plug in option.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Help Identifying EB Fairmont
Posted: Sat Jul 11, 2009 6:46 pm
Parts Gopher
Offline

Age: 34

Posts: 88

Joined: 10th Jul 2009

Ride: 1992 EB Fairmont

Location: Bendigo
VIC, Australia

Thanks for everyone's help it is much appreciated :D
Top
 Profile


 Post subject: Re: Help Identifying EB Fairmont
Posted: Thu Jul 30, 2009 8:18 pm
Parts Gopher
Offline

Age: 34

Posts: 88

Joined: 10th Jul 2009

Ride: 1992 EB Fairmont

Location: Bendigo
VIC, Australia

Hey again all,

in the pics I posted above can someone give me any more details on the wheels in particular what they are originally from and how would I find the color code so I can touch them up.

Thanks
Top
 Profile


 Post subject: Re: Help Identifying EB Fairmont
Posted: Thu Jul 30, 2009 8:24 pm
Moderator
Offline
User avatar

Age: 40

Posts: 2327

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

They look like series 2 Au XR wheels. Not sure on the exact colour though.



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: Help Identifying EB Fairmont
Posted: Mon Aug 03, 2009 5:32 am
Getting Side Ways
Offline

Age: 37

Posts: 1273

Joined: 30th Sep 2007

Ride: g6e 2009

Location: hiding in the bushes
WA, Australia

correct au tickford rims
