home made 3' intake.



Page 1 of 2 [ 28 posts ] Go to page 1, 2  Next

Post New Topic Post Reply  Previous topic Next topic

HaZZa
 Post subject: home made 3' intake.
Posted: Sun Dec 09, 2007 1:10 am
Smokin em up
Offline
User avatar

Age: 39

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

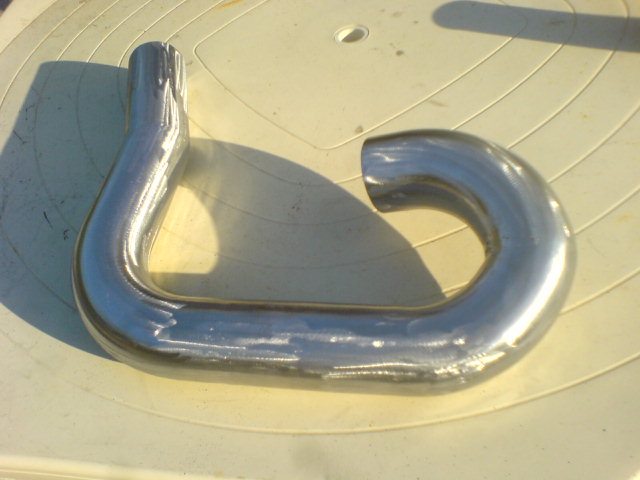

hey guys just thought id post up some pics of what ive been up to today .

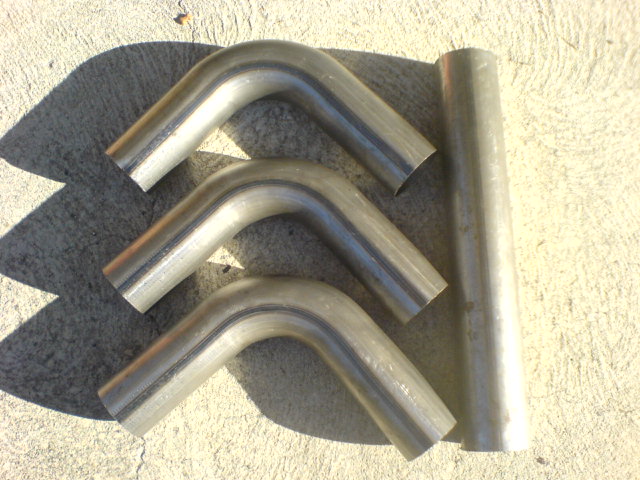

went and got 3 3" 90 degree bends. and a off cut of a straight lenght.

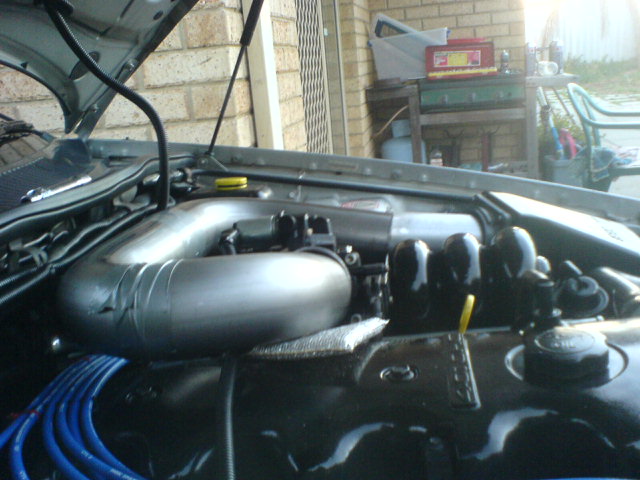

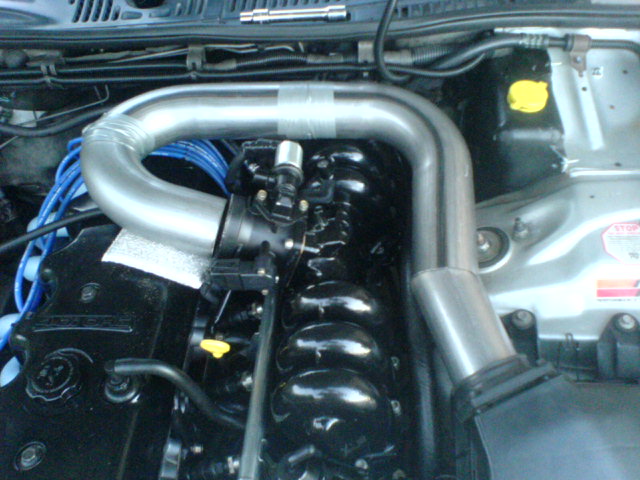

cut them and played around with it all to get it to fit under the bonnet. used tape to hold the joins to get the angles right then when i was happy i tac them together.

went to a mate who has a mig welder as i only had an arc.

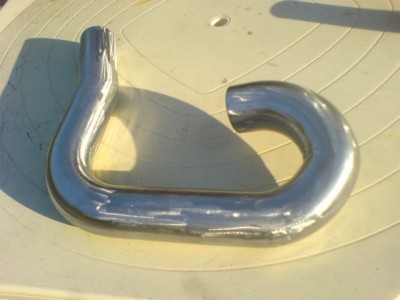

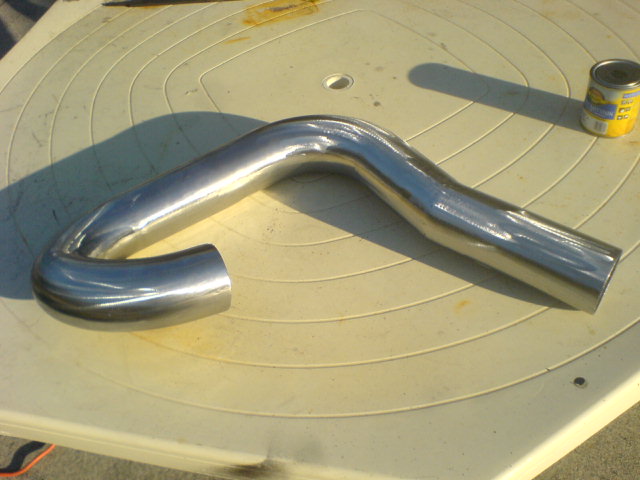

and welded it up then spent the arvo grinding the welds down then useing a sander pad on a grinder went over the whole thing. got to do a few little tuch up welds on some pin holes but other then that its come up pretty sweet.

plan on sanding it bac smooth and getting it chromed.


heres some pics enjoy





Attachments:
DSC00271.JPG [ 57.06 KiB | Viewed 133 times ]
DSC00270.JPG [ 50.13 KiB | Viewed 154 times ]
DSC00264.JPG [ 73.98 KiB | Viewed 149 times ]
DSC00262.JPG [ 80.67 KiB | Viewed 136 times ]
DSC00261.JPG [ 85.86 KiB | Viewed 116 times ]
Top
 Profile


Paulmac
Posted: Sun Dec 09, 2007 1:20 am
Getting Side Ways
Offline

Age: 76

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia
DIY is more satisfying than lining up at Supercheap, well done, should look the goods chromed.
Paul



_________________

What goes around, comes around.
Top
 Profile


Disco Frank
Posted: Sun Dec 09, 2007 1:31 am
Fordmods Junkie
Offline
User avatar

Age: 45

Posts: 1000493

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia
man looks sweet

$$ in thebends?



_________________

RIP SCOTT
Top
 Profile


locknut
Posted: Sun Dec 09, 2007 6:59 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 671

Joined: 29th Jan 2006

Gallery: 8 images

Ride: BA XR6 Turbo

Location: Canberra
ACT, Australia
That is trully RAD!



_________________

I like boost
http://www.venomexhaustworks.com.au
Top
 Profile


garthr
Posted: Sun Dec 09, 2007 8:29 am
Stock as a Rock
Offline

Age: 61

Posts: 153

Joined: 6th Dec 2004

Ride: ef gli

Location: Brisbane
QLD, Australia
Excellent effort, - should be more posts like this.



_________________

Garthr

Those who say "it can't be done" shouldn't interrupt those who are doing it.
Top
 Profile


garthr
Posted: Sun Dec 09, 2007 8:32 am
Stock as a Rock
Offline

Age: 61

Posts: 153

Joined: 6th Dec 2004

Ride: ef gli

Location: Brisbane
QLD, Australia
Excellent effort, - should be more posts like this.



_________________

Garthr

Those who say "it can't be done" shouldn't interrupt those who are doing it.
Top
 Profile


BenJ
Posted: Sun Dec 09, 2007 10:07 am
Getting Side Ways
Offline

Posts: 5503

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia
Hey Hazza

Nice work mate. Looks professional.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L
Top
 Profile


HaZZa
Posted: Sun Dec 09, 2007 10:27 am
Smokin em up
Offline
User avatar

Age: 39

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia
$20 a bend.

and chroming shouldnt be to much .

cheers peeps.
Top
 Profile


FordFairmont
Posted: Sun Dec 09, 2007 10:43 am
Getting Side Ways
Offline

Posts: 6113

Joined: 8th May 2007
Chroming? So isnt that your intake in the first 2 pics?

All it needs is alot of sanding and polishing, dont need chrome imo
Top
 Profile


HaZZa
Posted: Sun Dec 09, 2007 2:02 pm
Smokin em up
Offline
User avatar

Age: 39

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia
yeh just been sanding it back and now im thinking of powdercoating it like a metallic silver or a silver pearl or sometihing as i can get powdercoating done for free at work.
Top
 Profile


HaZZa
Posted: Sun Dec 09, 2007 2:10 pm
Smokin em up
Offline
User avatar

Age: 39

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

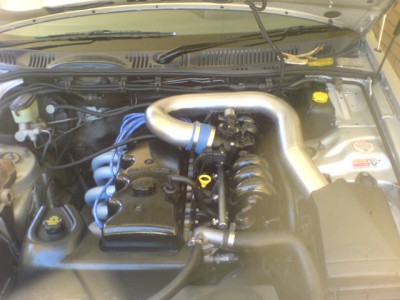

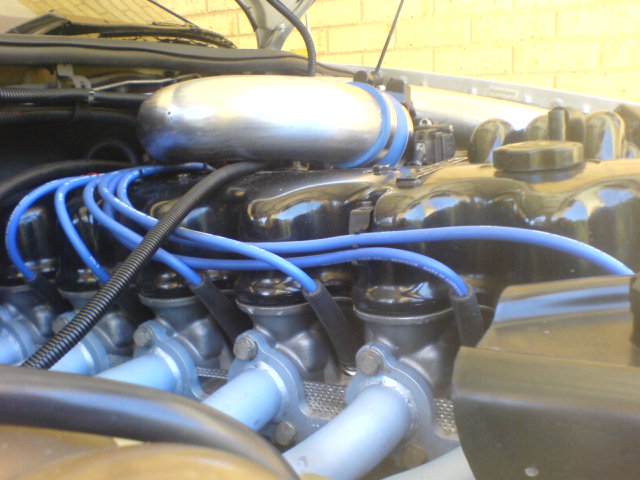

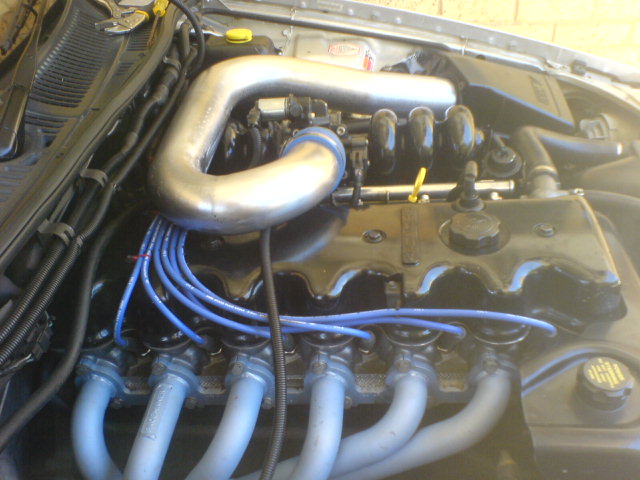

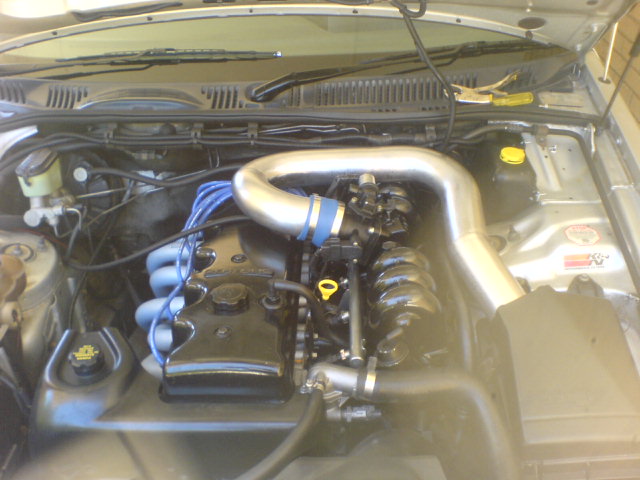

just fitted it to the car for a few quick shots





Attachments:
DSC00279.JPG [ 71.64 KiB | Viewed 127 times ]
DSC00275.JPG [ 73.75 KiB | Viewed 146 times ]
DSC00274.JPG [ 68.14 KiB | Viewed 135 times ]
Top
 Profile


Tocchi
Posted: Mon Dec 10, 2007 12:52 am
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 1063

Joined: 22nd Aug 2006

Gallery: 20 images

Ride: FG XR8, F6 F6 ute, XR5T, Capri

Location: Perth
WA, Australia
nice work man. i did the same for my EF.. but the whole hog (fmic piping as well) :P
Top
 Profile


Muffy
Posted: Mon Dec 10, 2007 9:56 am
Stock as a Rock
Offline

Age: 38

Posts: 115

Joined: 10th Jan 2005

Ride: Falcon

Location: Perth
WA, Australia
come on man, u weren't even going to attempt to weld that, good thing i pushed u. and i had the mig. I'm thinking of doing mine this week. Cheers for the inspiriation moonshine.
Top
 Profile


EFFALCONMAN
Posted: Tue Jan 01, 2008 8:48 pm
Parts Gopher
Offline

Age: 43

Posts: 80

Joined: 5th Nov 2004

Ride: FG MK 2 XR6

Location: Perth
WA, Australia
So what are you boys going to charge a fellow Perth lad for one of these???

:D

The more I see of this stuff the more attention I wish I had paid to manaul arts in school



_________________

Too many Fords and too much cash "invested" over the years.

New Project: Daily Cruiser, FG Mk 2 XR6 NA , headers, CAI, tuned, 238rwhp and counting.

Engine build in progress.....
Top
 Profile


Alex90
Posted: Tue Jan 01, 2008 10:12 pm
Stock as a Rock
Offline

Age: 33

Posts: 180

Joined: 18th Nov 2007

Location: Perth
WA, Australia
make that 2 fellow perth lads.... looks sweet as btw, also wondering how do i go about spray painting the airbox? sand it down and give it 2 coats??
cheers
alex



_________________

2007 BF Falcon MkII
-Superlow Kings
-cat back zorst
-home made cai
-green interior lights
Top
