 Post subject: Home modded EF/AU Inlet, power increase!!!!!!
Posted: Mon May 19, 2008 4:55 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 423

Joined: 17th May 2007

Hi my fellow Ford gods. I spent the weekend modding my BBM inlet manifold, it's an EF Monty. The car is smoother under acceleration, and has way better power and ressponse. It's a combo of small things that really worked on my car, you guys might be interested. There is a big depression in the bottom half of the inlet manifold in the centre, I cut and molded a piece of aluminium to a pyramid shape and covered it and the tin gasket had to be cut around. I covered the depression at the back of the plenum inside near the T-body with a piece of tin. The butterfly rod in the manifold, which is in 2 pieces and the butterflies slot between was cut in half leavingv the thread side for the screws to bite into. The actual butterflies we're halved in width on the bench grider. I cut the manifold gasket that sits against the head to the same size as the inlet ports, they are pretty rough stock. Also added a BA induction tube, BA airbox with the internal ribs removed, K&N Pod and AU Tickford snorkel. Also, as has been mentioned on here I moved the butterfly vacume tab up so that the butterflies fully open. The beast is otherwise bog stock, but it is quite a bit quicker than stock now, woot!!
Top
 Profile


Posted: Mon May 19, 2008 5:04 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

Pictures, Pictures



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Mon May 19, 2008 5:28 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 423

Joined: 17th May 2007

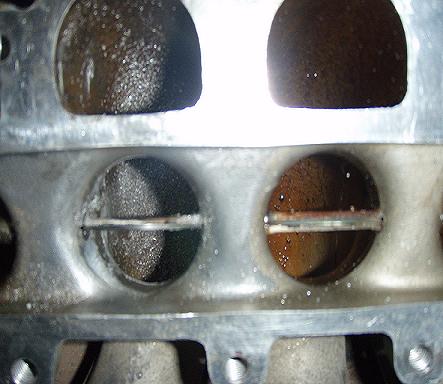

I've only got 2, my fu%^wit brother nicked off to Perth with the bloody camera..I was thinking how hard it is to xplain sh!t while I was typing without pics, lol. stocko butterfly and shaft on right.





Attachments:
valves.JPG [ 38.92 KiB | Viewed 33 times ]

Last edited by cboz on Mon May 19, 2008 5:35 pm, edited 1 time in total.

Top
 Profile


Posted: Mon May 19, 2008 5:34 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 423

Joined: 17th May 2007

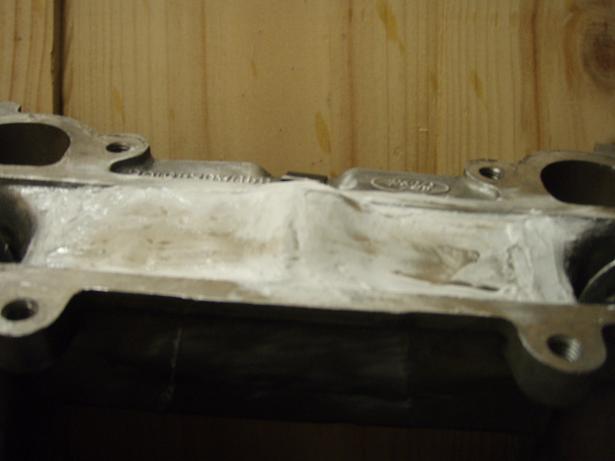

Yeah, it fukin looks dodge, but it improves air direction instead of it all going into the big depression underneath and then being sucked out of it.





Attachments:
P3301239.JPG [ 30.37 KiB | Viewed 28 times ]
Top
 Profile


Posted: Mon May 19, 2008 5:42 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 423

Joined: 17th May 2007

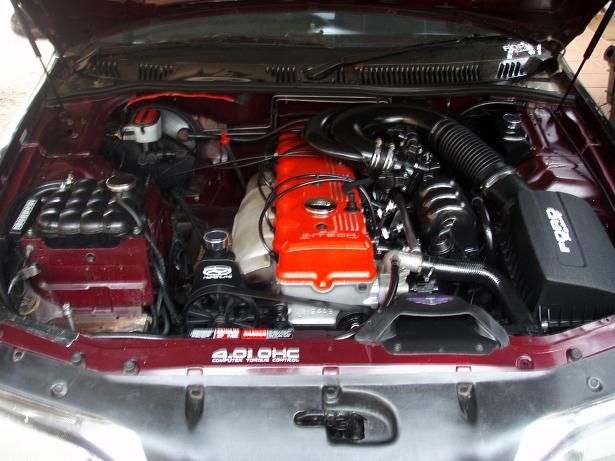

BA box and tube which has been done and seen before..
