my new engine bay mods.. (more polishing + dress up kit..)



Page 3 of 4 [ 51 posts ] Go to page Previous  1, 2, 3, 4  Next


Posted: Tue Jul 17, 2007 1:48 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

Jonathan Kakousidis wrote:
1
fordfreak ef your engine bay looks very nice love the look of the air box but i perffer braided hoses more

2
dasmq where did you get your coolent over flow thingy from like the crome look

3
Where did you guys get your heat sheilds from look killer compeared from the standard one


1.thanks... but braided hoses are a b**ch to install.. and being the sleeved ones that most people put on they retain heat.. and make it damn near on impossible to spot leaks in your hoses should one occur.. Pricey aswell the braided hose kits..

2... dasmq can expalin.. :wink:

3... "Fast-xr" built them and sold them for $110 each (pick up) as part of a group buy of 10 units.. (stainless steel heat shields)..



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Tue Jul 17, 2007 2:06 pm
Getting Side Ways
Offline

Age: 55

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

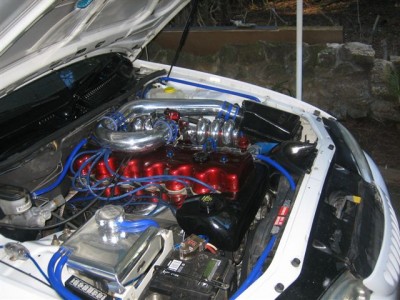

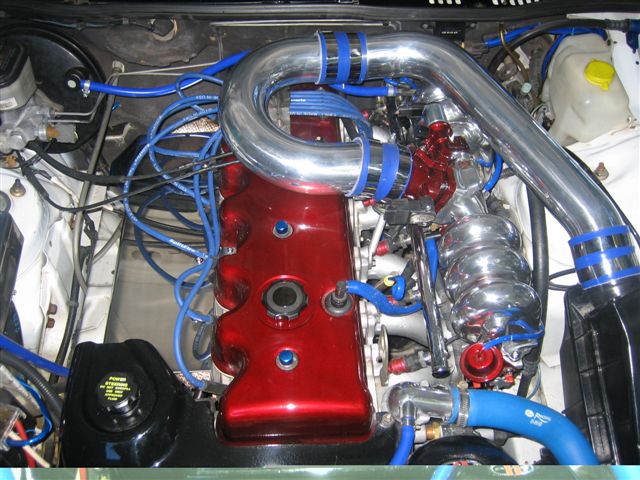

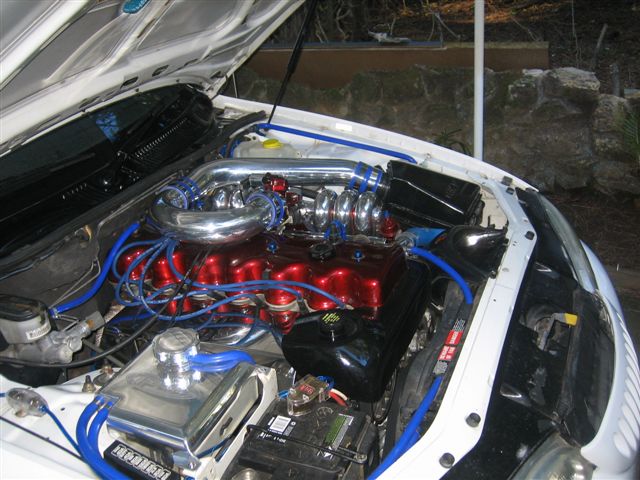

Here is better Photos the only chrome in my bay is the fuel lines every thing else is polished alloy or stainless heat shield by Fastxr





Attachments:
IMG_0611.jpg [ 69.19 KiB | Viewed 30 times ]
IMG_0609.jpg [ 76.46 KiB | Viewed 29 times ]
IMG_0607.jpg [ 84.19 KiB | Viewed 4135 times ]



_________________

In Henry I Trust

Top
 Profile


Posted: Tue Jul 17, 2007 3:03 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

dasmq wrote:
Here is better Photos the only chrome in my bay is the fuel lines every thing else is polished alloy or stainless heat shield by Fastxr
jeez i realy hope you have both your cars in the show and shine at the Sydney AFD.. all our fordmodders cars together would look great!... all bonnets up of course.. :wink: 8-) nice touches with the marroon/red candy colours.. im thinking of soon tackling the battery connections..



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Tue Jul 17, 2007 3:35 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 824

Joined: 10th May 2007

Ride: Xr6 Turbo

Location: Melbourne
VIC, Australia

what about all the blue tubing? that the same as the red stuff?? or if it is new hose's how much and where from?



_________________


Previous cars


1995 ef futura - nothing special
2003 xr6 turbo 5 -speed 307rwkw

Top
 Profile


Posted: Tue Jul 17, 2007 3:51 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

lil_lincoln wrote:
what about all the blue tubing? that the same as the red stuff?? or if it is new hose's how much and where from?
in the pics of the engine on the 1st page.. all the hoses are silicon hoses.. yellow/red/blue... only the diametre varys.. 4mm/6mm/10mm...

Try..
"super cheap auto"..
"auto barn"..
-thats were i got the silicon hoses from..

price varys.. but its not too cheap..
*3m of 10mm bue silicon hose $36 "autobarn
*3m of 4mm/3m of 6mm and 1 m of 10mm red silicon hose kit "$49.95" -"supercheap auto"..
*1 metre of 4mm yellow silicon hose.. $16 from "auto barn"..



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Tue Jul 17, 2007 6:39 pm
Getting Side Ways
Offline

Age: 55

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

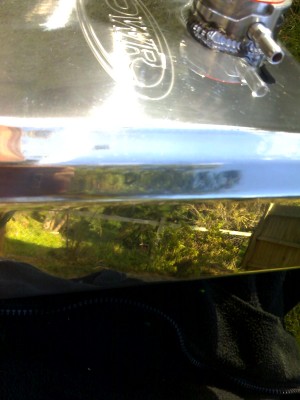

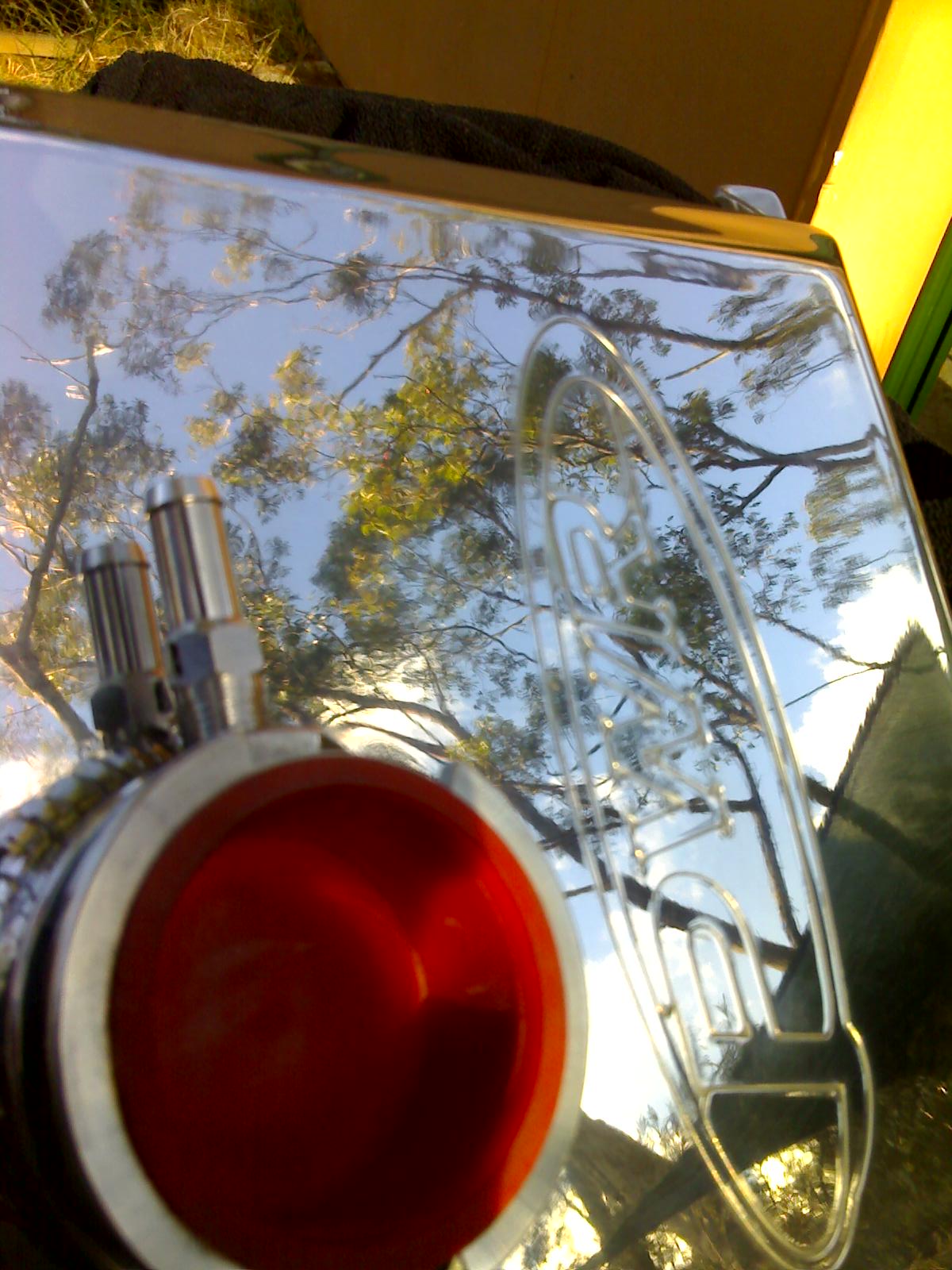

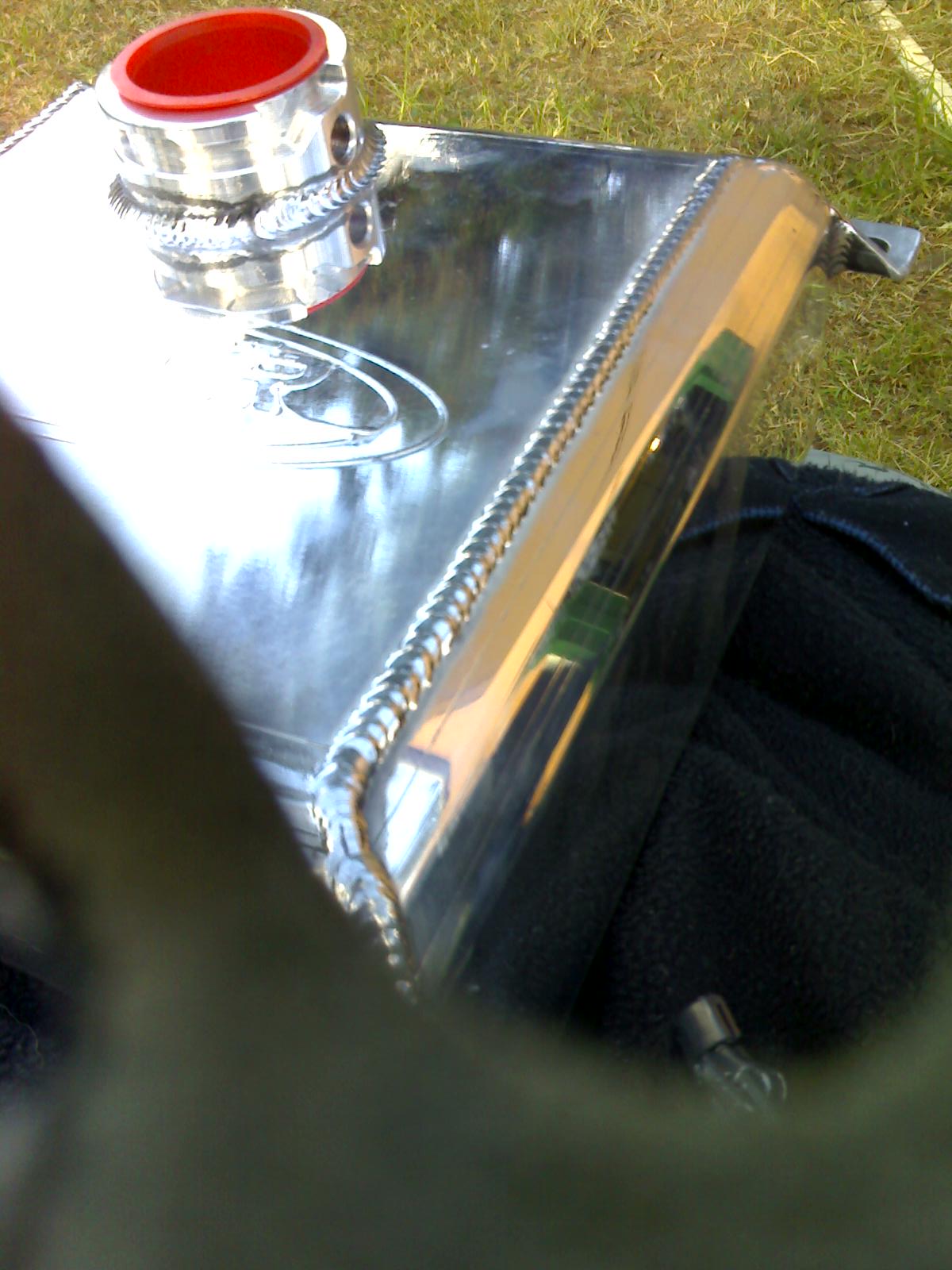

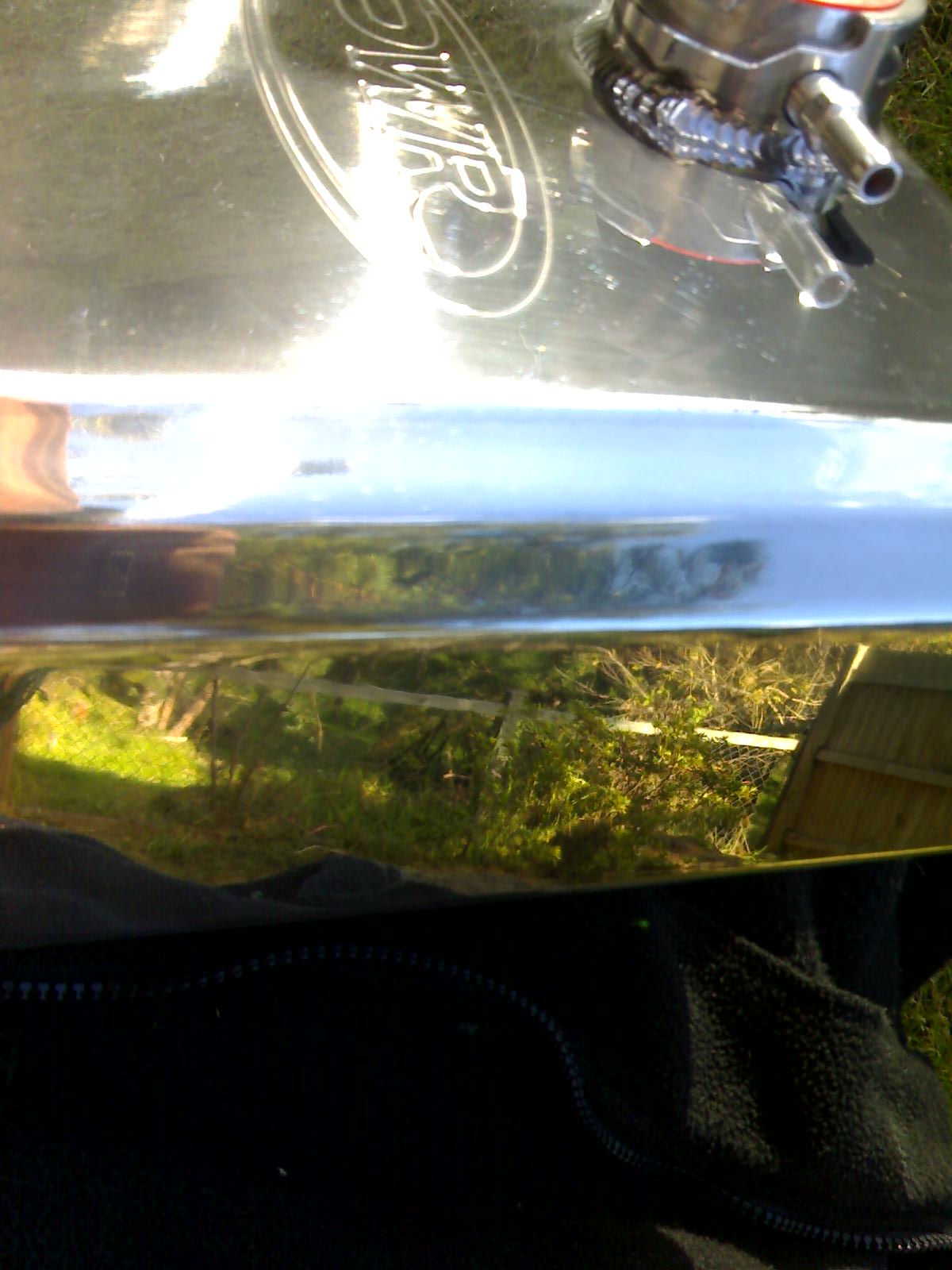

Johnathon sorry in a rush at work and didn't answer your question the header tank is a PWR one it cost $308 delivered but the finish was crap so I went to a mate and asked him to fix it and he did. The welds and press marks were polished out and he took the burn marks out now you could shave in it. The cost is about $100 to fix.

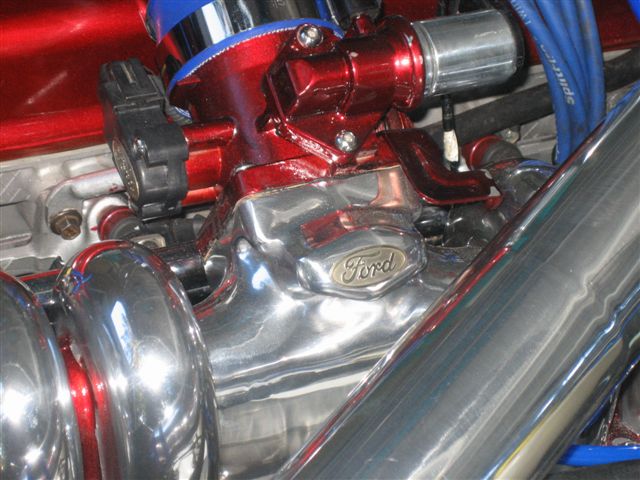

People thought the manifold was chromed dipped but again same person completed it from start to finish 2hrs cost was around $300 and all the bolts you can see are stainless mushroom polished. You will also notice the hole in the right of the manifold I covered with a Ford badge and the useless tag was removed.

The next thing is to tidy up the engine bay it is untidy at the moment but I have some more ideas but my finances are low after my engine rebuild the motor and gear box is ford performance blue and the diff (lsd) will go in maybe next weekend and it will be blue as well. Then I had a tailshaft that was alloy but it was for a long wheel base but it was lighty polished and sealed but it ws the wrong size so now I'm after one for a sedan and fit that.

Brakes are metalic blue on the front and polished on the rear the kyb shocks will be blue as well. All of my parts are from the good old Ebay including the silicone hoses I used in the engine bay alot cheaper than car shops.





Attachments:
File comment: finished
02-06-07_1432.jpg [ 220.13 KiB | Viewed 16 times ]
File comment: after
02-06-07_1431.jpg [ 155.73 KiB | Viewed 13 times ]
File comment: before clean up
02-06-07_1354.jpg [ 173.48 KiB | Viewed 47 times ]



_________________

In Henry I Trust

Top
 Profile


Posted: Tue Jul 17, 2007 7:04 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 623

Joined: 24th May 2007

Gallery: 9 images

Ride: 97 TICKFORD XR6 Manaul

Location: Aldinga Beach
SA, Australia

now it looks sweeeeeeet

thanks will have to have a look around for something like that as i need a new one mine is fillthy inside and cant seem to clean it
when i brought my wagon the last owner just run water and now it cost me DAMN them
Top
 Profile


Posted: Tue Jul 17, 2007 7:19 pm
Getting Side Ways
Offline

Age: 55

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

Remove the tank empty it out and put some clean sand in it add water and shake the sh#t out of it it will clean the side as if it has a scubbing brush. Then wash it out and it will look better.


Matt we might go to AFD but I don't know the paint work is crap on mine so thats what my next major project.



_________________

In Henry I Trust

Top
 Profile


Posted: Tue Jul 17, 2007 7:25 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 907

Joined: 13th Jul 2005

Gallery: 10 images

Ride: ef futura/ef fairmont

Location: sydney
NSW, Australia

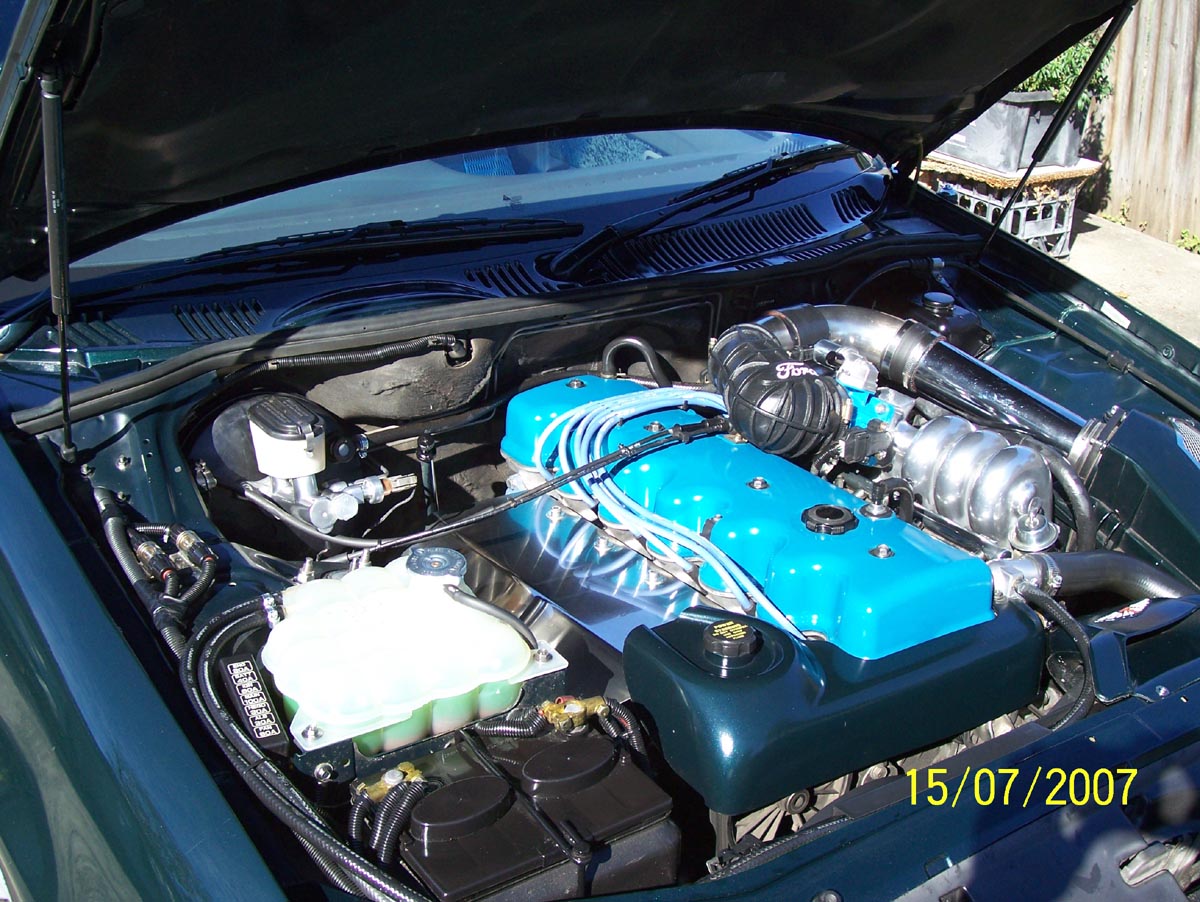

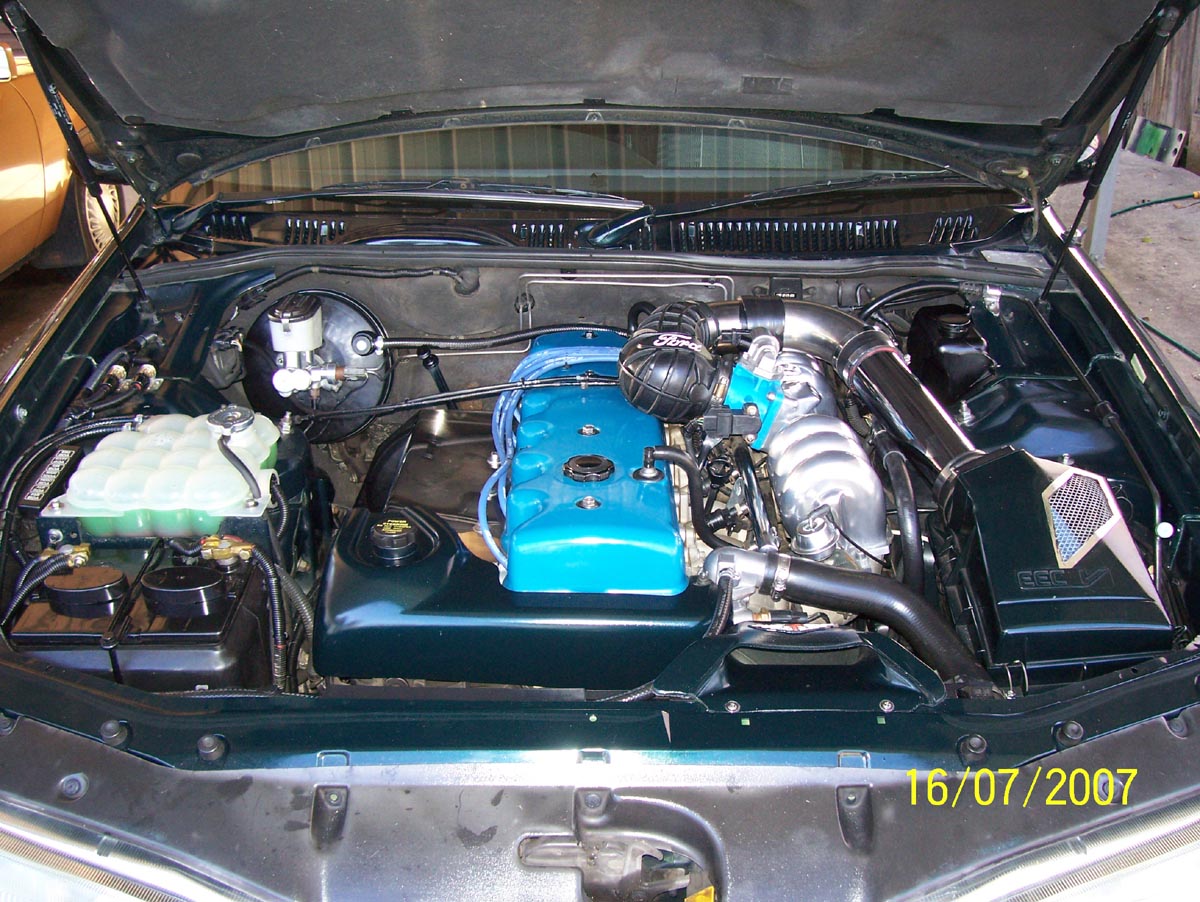

Hey matt here's a couple of mine!





Attachments:
side shot of bay.jpg
side shot of bay.jpg [ 237.54 KiB | Viewed 31 times ]
100_2871.3.jpg [ 251.19 KiB | Viewed 1064 times ]



_________________

custom airbox,custom intake
paccie comps,lukey 2.5 cat back,high flow cat
CMS stg2 head,CMS stg2.A. cam,CMS hybrid auto with mod shift,3.9 lsd
custom 3500rpm hi stall
ANZ mayhem 18's,custom interior,venom body kit,xr wing,jumbo 2' low springs
143rwkw and 407rwnm on CMS dyno

Top
 Profile


Posted: Tue Jul 17, 2007 7:26 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 623

Joined: 24th May 2007

Gallery: 9 images

Ride: 97 TICKFORD XR6 Manaul

Location: Aldinga Beach
SA, Australia

thanks ill try that tomorrow
Top
 Profile


Posted: Wed Jul 18, 2007 12:43 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

dasmq wrote:
Remove the tank empty it out and put some clean sand in it add water and shake the sh#t out of it it will clean the side as if it has a scubbing brush. Then wash it out and it will look better.


Matt we might go to AFD but I don't know the paint work is crap on mine so thats what my next major project.
paint work engine bay? or exterior? i will admit.. mine so far from perfect!.. but thats what i love about it.. its a never ending story with my car..always future mods to look forward to... :wink:



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Wed Jul 18, 2007 12:59 am
Stock as a Rock
Offline
User avatar

Age: 35

Posts: 122

Joined: 7th Jun 2006

Ride: ED XR6

Location: Perth
WA, Australia

damsq, is your rocker cover anodised? or just polished?



_________________

The 6000 km Road trip... Rockhampton QLD, Surfers Paradise QLD, Coffs Harbour NSW, Sydney NSW, Canberra ACT, Melbourne VIC, Launceston TAS, Adelaide SA, Kalgoorlie WA, Perth WA.

Top
 Profile


Posted: Wed Jul 18, 2007 11:32 am
Getting Side Ways
Offline

Age: 55

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

The tappet cover is painted by pressure pack. Andizing I'm looking at as the next step as it is not done yet and the colurs have expanded to a better range.

Externaly the boot is pealing as well as the rear spoiler, the rear bumper is scrached from the car trailer, side strips the paints comming off and that toxic bat crap on the bonnet. I have high standards on apperance of my car I was given some money from my sister to do what I wanted with it and the price to respray quoted $6500 plus from the better shops in my area and that is the same colour, so I had the motor and manual gearbox done.



_________________

In Henry I Trust

Top
 Profile


Posted: Wed Jul 18, 2007 3:25 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

hmm you gave me some ideas to freshen up the eb but i think these can wait til the manual box a hehehe



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Wed Jul 18, 2007 11:07 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 423

Joined: 17th May 2007

'RiceBarn' funny s**t. Cool engine bays.
