my new intake



Page 1 of 1 [ 15 posts ]


 Post subject: my new intake
Posted: Tue Dec 04, 2007 2:39 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 632

Joined: 9th Jun 2007

Gallery: 7 images

Location: Rockingham
WA, Australia

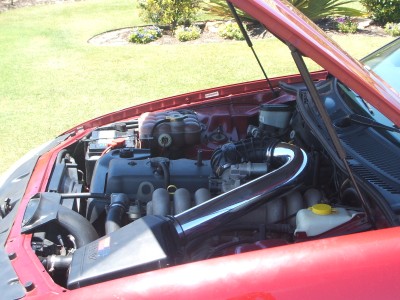

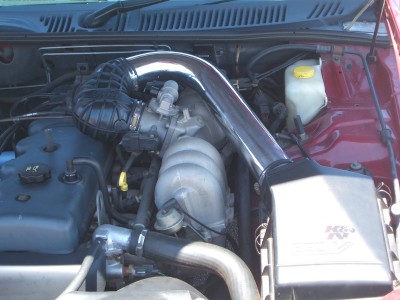

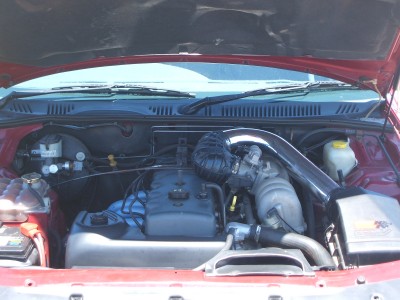

i bought a 3inch air intake for my car the other day and im happy with it performance wise, i just have one problem. when the bonnet is up the pipe is almost touching the intake manifold but when the bonnet is down i think it is pushing the pipe down even further so the air intake and manifold are now touching. this is giving heaps of vibrations through the bonnet and that makes a noise that is starting to s**t me, and makes my car sound like a piece of s**t.
it only makes the noise when the car is in gear and not moving (when its idling at its lowest)
is there something i can put between them like a thin piece of rubber or something? but something to absorb the vibrations??
any suggestions anyone?
helps appreciated cheers.





Attachments:
DSCF0941.JPG [ 591.63 KiB | Viewed 51 times ]
DSCF0940.JPG [ 589.77 KiB | Viewed 62 times ]
DSCF0939.JPG [ 588.16 KiB | Viewed 52 times ]



_________________

BA Fairmont Ghia
Optioned.
V8.
Superlows.
18's

Alot to come

Top
 Profile


Posted: Tue Dec 04, 2007 2:49 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1169

Joined: 23rd Oct 2006

Gallery: 3 images

Ride: BA MKII Futura

Location: melbourne
VIC, Australia

yes put rubber in between them....or some felt or something
Top
 Profile


Posted: Tue Dec 04, 2007 3:04 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

What i would do is cut a small section off where it touches on the manifold, then invert it and weld it back on.

My BA intake has a recessed section where it passes over the bbm and have no problems
Top
 Profile


Posted: Tue Dec 04, 2007 4:01 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 632

Joined: 9th Jun 2007

Gallery: 7 images

Location: Rockingham
WA, Australia

FordFairmont wrote:
What i would do is cut a small section off where it touches on the manifold, then invert it and weld it back on.

My BA intake has a recessed section where it passes over the bbm and have no problems


ohh that sounds a bit tricky for me ay, plus i dont have access to a welder.

if i use rubber or felt wat would be the best way of attatching it?



_________________

BA Fairmont Ghia
Optioned.
V8.
Superlows.
18's

Alot to come

Top
 Profile


Posted: Tue Dec 04, 2007 4:44 pm
Oompa Loompa
Offline

Age: 28

Posts: 25

Joined: 16th Nov 2007

Ride: AU Futura

Location: Ballarat
VIC, Australia

or even better, maybe padded double sided tape? easy to obtain and wont budge easily
Top
 Profile


Posted: Tue Dec 04, 2007 4:57 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

wild_ef wrote:
FordFairmont wrote:
What i would do is cut a small section off where it touches on the manifold, then invert it and weld it back on.

My BA intake has a recessed section where it passes over the bbm and have no problems



an exhaust place wouldnt charge you much to weld that little piece back on. Dont muck around with tape, its obviously not clearing the bonnet, so get it fixed properly.
Top
 Profile


Posted: Tue Dec 04, 2007 5:00 pm
Stock as a Rock
Offline

Age: 35

Posts: 187

Joined: 30th Dec 2006

Ride: 95 EF I

Location: Melbourne
VIC, Australia

might sound stupid but would squashing the pipe to an oval shape cause any issues? volume should remain the same and you get clearance above and below.. just a thought.. although maybe that does cause a restriction i have no idea :p
Top
 Profile


Posted: Tue Dec 04, 2007 9:34 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

i know green machine uses a l;il piece of rubber matting on it.. and it works for him... i should do it too.. lol



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Tue Dec 04, 2007 9:58 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 632

Joined: 9th Jun 2007

Gallery: 7 images

Location: Rockingham
WA, Australia

fordfreak ef wrote:
i know green machine uses a l;il piece of rubber matting on it.. and it works for him... i should do it too.. lol


ohk cheers man, im pretty sure this is the same intake as green machine we both bought them of FAST-XR



_________________

BA Fairmont Ghia
Optioned.
V8.
Superlows.
18's

Alot to come

Top
 Profile


Posted: Tue Dec 04, 2007 10:00 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

zxhoon wrote:
might sound stupid but would squashing the pipe to an oval shape cause any issues? volume should remain the same and you get clearance above and below.. just a thought.. although maybe that does cause a restriction i have no idea :p


I would suggest the same ^^^^^^^^^^^^, squish it a bit.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Tue Dec 04, 2007 10:22 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

I think if you change the bonnet lining to an EL one it'll stop it pushing on the piping as it has more clearance, well according to these forums anyway.



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Tue Dec 04, 2007 10:50 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Open your engine bay and get someone to start the engine and rev it - watch how far the engine moves.

Now look at what you've done - your connecting a solid firm pipe from the moving engine to the stationary air filter box (which obviously doesn't move as it's bolted to the cars body).

While this may not be the cause of your vibrations, you really should have a flexible section in that intake pipe.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Wed Dec 05, 2007 11:32 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

^^^
Didnt notice that, but yeh, definetely should have some silicone pieces in there.
You could add 2, one out of the airbox, and the other between the EL pipe and your custom pipe.



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Wed Dec 05, 2007 12:53 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 632

Joined: 9th Jun 2007

Gallery: 7 images

Location: Rockingham
WA, Australia

twr7cx wrote:
Open your engine bay and get someone to start the engine and rev it - watch how far the engine moves.

Now look at what you've done - your connecting a solid firm pipe from the moving engine to the stationary air filter box (which obviously doesn't move as it's bolted to the cars body).

While this may not be the cause of your vibrations, you really should have a flexible section in that intake pipe.

thats a really good point i never really thought of that. surely 1 flexable part would be enough yeh? between the ford rubber piece and the intake pipe? wat would be the best way to go about it.
where can i get this kind of stuff from



_________________

BA Fairmont Ghia
Optioned.
V8.
Superlows.
18's

Alot to come

Top
 Profile


Posted: Wed Dec 05, 2007 2:20 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

supercheap has it. the reason i suggested 2 parts is because with one part it will make the angle of the piping wrong, but if the joiner is flexible enough it wont really matter.



_________________

>>>EF Futura T build<<<
