 Post subject: remove alternator?
Posted: Tue May 15, 2007 3:41 pm
Stock as a Rock
Offline

Age: 32

Posts: 102

Joined: 27th Dec 2004

Ride: EF

Location: Melbourne
VIC, Australia

For those of you who have replaced your alternators...how did you do it. My car is an EF i6 and I cant get the alternator off. took off the two bolts, earth point and electrical plug, but the thing wont come off. it pivots where the lower bolt goes (swivels up and down) but i cant get it to remove. any ideas? thanks
Top
 Profile


Posted: Tue May 15, 2007 6:01 pm
Fordmods Newbie
Offline

Age: 31

Posts: 18

Joined: 10th Jun 2006

Location: Sydney
NSW, Australia

pry bar between the block and alternator?
Top
 Profile


Posted: Tue May 15, 2007 7:05 pm
Stock as a Rock
Offline

Age: 32

Posts: 102

Joined: 27th Dec 2004

Ride: EF

Location: Melbourne
VIC, Australia

i'll have to give it a go tomorrow. I was under the impression that it comes off fairly easily after unbolting it
Top
 Profile


Posted: Tue May 15, 2007 7:40 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

They have a oversized roll pin, much like a washer bush. when you tighten the lower bolt, the bush clamps the alterator and takes up the slack.

Once this is levered or tilted with pressure they come off easy.

Its an idea to knock this bush out a little before refitting and then tighten as normal.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Tue May 15, 2007 8:48 pm
Stock as a Rock
Offline

Age: 32

Posts: 102

Joined: 27th Dec 2004

Ride: EF

Location: Melbourne
VIC, Australia

not quite sure what any of that really means :D ...sorry im not really that mechanically minded. do i have to pull it out or put pressure from a different angle or something?
Top
 Profile


Posted: Tue May 15, 2007 8:55 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

Krytox wrote:
They have a oversized roll pin, much like a washer bush. when you tighten the lower bolt, the bush clamps the alterator and takes up the slack.

Once this is levered or tilted with pressure they come off easy.

Its an idea to knock this bush out a little before refitting and then tighten as normal.


good description dude...

gate_21 wrote:
not quite sure what any of that really means ...sorry im not really that mechanically minded. do i have to pull it out or put pressure from a different angle or something?


you will understand when you finally get it out..



_________________

[SEXYR-6] ED XR6 T5 Turbo Build
[EBW-347] EB Wagon V8 Stroker Build
FordMods Member #1761

Top
 Profile


Posted: Tue May 15, 2007 9:10 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

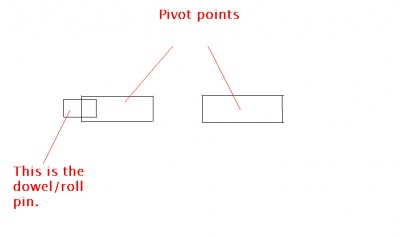

I just drew a picture (sorry I'm not an artist :lol: so you will have to use your imagination. The roll pin is pushed out and takes up slack as the bolt is done up. To refit it is easier if this roll pin is knocked back in a bit. It will then push back out when it is done up. Hope this helps.





Attachments:
alt.jpg [ 46.09 KiB | Viewed 34 times ]



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Tue May 15, 2007 9:19 pm
Stock as a Rock
Offline

Age: 32

Posts: 102

Joined: 27th Dec 2004

Ride: EF

Location: Melbourne
VIC, Australia

thanks for the replies...still not really understanding it :? hopefully it will all make sense when it comes out tomorrow hopefully :D
Top
 Profile


Posted: Tue May 15, 2007 9:25 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

Yeah sorry bout the pic mate. Best I could do on short notice :lol: and I'm no artist :oops: . When you get it out it should all make sense. 8-)



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Tue May 15, 2007 10:23 pm
Stock as a Rock
Offline

Age: 32

Posts: 102

Joined: 27th Dec 2004

Ride: EF

Location: Melbourne
VIC, Australia

thanks for trying anyway...any idea on how to get it to actually release though? thats my main problem at the moment. thanks
