Serpentine Belt Tensioner Issue.



Page 1 of 4 [ 59 posts ] Go to page 1, 2, 3, 4  Next


 Post subject: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 1:15 am
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 368

Joined: 22nd Aug 2008

Ride: 2002 AUII Fairlane Sportsman V8

Location: Roxby Downs
SA, Australia

My serpentine belt is rubbing from the front of the belt on the metal part of the tensioner from the lower pulley.

I have put another unit on (used) but it still seems to be doing the same thing.

Now i have looked at my serpentine belt & have noticed that this hasn't been going on for a long time.

Does anyone know why this might be happening?
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 1:16 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

worn harmonic balancer. rubber pulled back/forward



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 3:05 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

I agree with WILDEB.

You need to replace the harmonic balancer.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 10:59 am
Getting Side Ways
Offline

Age: 26

Posts: 1109

Joined: 4th Sep 2009

Ride: 92 EB s

Location: DORRIGO
NSW, Australia

Sooner rather then later by the sounds of it.
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 5:04 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 368

Joined: 22nd Aug 2008

Ride: 2002 AUII Fairlane Sportsman V8

Location: Roxby Downs
SA, Australia

So does that mean front main seal & harmonic balancer needs to be changed as well??
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 6:00 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Shen Long wrote:
So does that mean front main seal & harmonic balancer needs to be changed as well??


As you will need to pull the old harmonic balancer off to put on a new replacement, I would suggest you replace the front main seal on the timing cover whilst you have the opportunity.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 6:12 pm
Getting Side Ways
Offline

Age: 26

Posts: 1109

Joined: 4th Sep 2009

Ride: 92 EB s

Location: DORRIGO
NSW, Australia

If it aint broke don't fix it...
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 7:37 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i would change the seal while your changing the balancer, you dont want to have to pull it all apart to fix a leaking seal not long after you change the balancer
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 7:49 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 368

Joined: 22nd Aug 2008

Ride: 2002 AUII Fairlane Sportsman V8

Location: Roxby Downs
SA, Australia

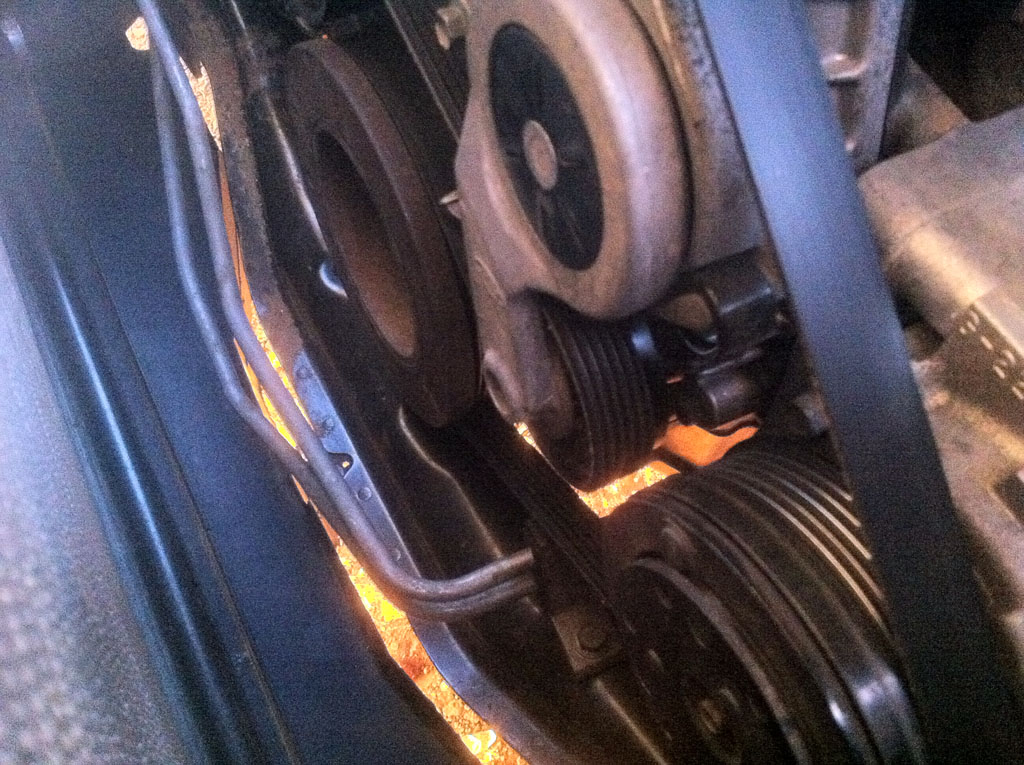

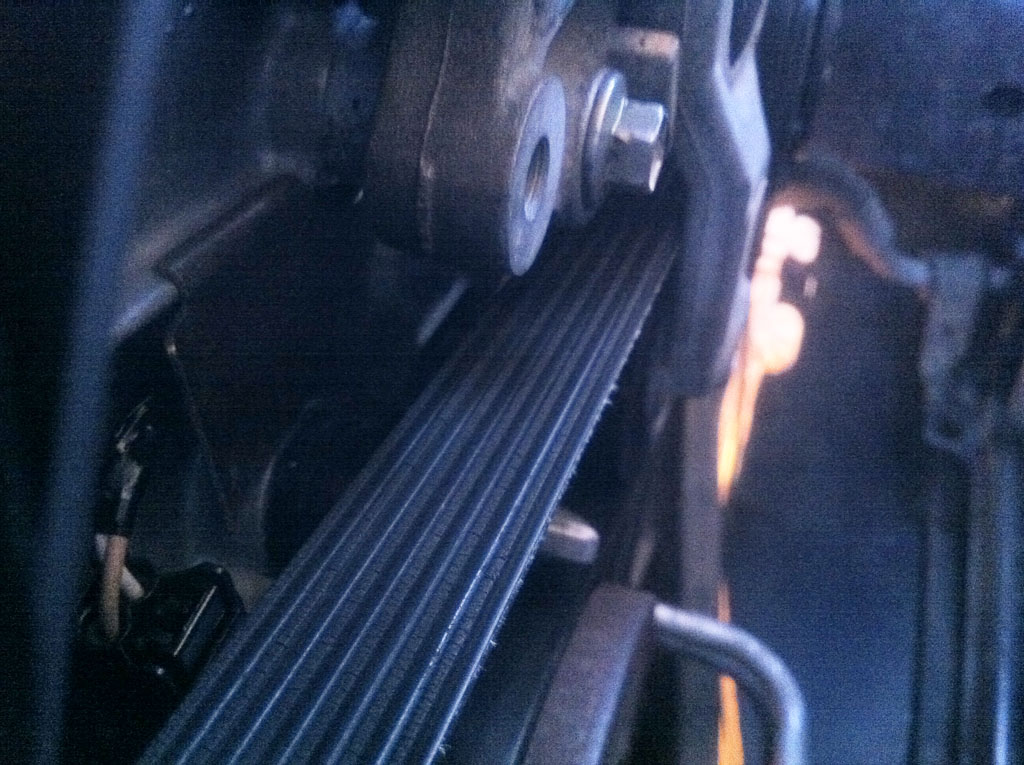

Maybe you guys can tell me what you think if i put up a couple of pics?

I mean don't get me wrong i am not questioning your comments but we as a family have owned Ford Falcon's since i was 5 years old. I can not recall once that dad or I replaced a harmonic balancer.





Attachments:
IMG_0022_s.jpg [ 204.57 KiB | Viewed 110 times ]
IMG_0020_s.jpg [ 247.39 KiB | Viewed 129 times ]
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 8:00 pm
Parts Gopher
Offline

Posts: 73

Joined: 28th Nov 2010

Ride: EF Futura wagon, BF MKIII Wagon

Location: Brisbane
QLD, Australia

either the car has previously been in a frontal smash and the tensioner was struck and forced backwards, or the waterpump pully is misaligned. Some pump pulleys are pressed on too far and the belt actually hangs over the front edge slightly, fraying the belt and eventually breaking it.
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 8:04 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 368

Joined: 22nd Aug 2008

Ride: 2002 AUII Fairlane Sportsman V8

Location: Roxby Downs
SA, Australia

The tensioner has just been replaced by another used unit.

My old tensioner is having the same issue as this used replacement tensioner.

I will take a couple more pics of the water pump pulley setup.

The water pump is still original factory from what i could see. Motor only had 90,000KM's when i put it in.

I've done around 30,000KM's since i installed it.
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 8:11 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the water pump pulley has no effect on the ilignment off the belt.
the ribbed pulies are what align the belt, harmonic balancer, alternator, powersteer pump top tensioner pulley and aircon compressor...
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 8:12 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

you may hav hung around flacs for a log time but harmoniac balanced probemaics aren't unheardf of.

but I'm not sure of the questioon or problem.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 8:15 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 368

Joined: 22nd Aug 2008

Ride: 2002 AUII Fairlane Sportsman V8

Location: Roxby Downs
SA, Australia

TROYMAN wrote:
the water pump pulley has no effect on the ilignment off the belt.
the ribbed pulies are what align the belt, harmonic balancer, alternator, powersteer pump top tensioner pulley and aircon compressor...


Going by this logic (which i do agree) i would have to conclude that it's either A/C or Harmonic Balancer.

The other ribbed pulley's are all aligned properly as are all the other free spinning pulley's.
Top
 Profile


 Post subject: Re: Serpentine Belt Tensioner Issue.
Posted: Sun Jun 12, 2011 8:17 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 368

Joined: 22nd Aug 2008

Ride: 2002 AUII Fairlane Sportsman V8

Location: Roxby Downs
SA, Australia

If it is the harmonic balancer should i go standard type or should i opt for a more better type?

I have no idea of any better spec'ed HB's however any suggestions would be great.


thx
Top
 Profile
