 Post subject: Timing chain tensioner
Posted: Fri Oct 26, 2012 7:36 pm
Getting Side Ways
Offline

Posts: 597

Joined: 4th May 2007

Ride: 1992 EBII Fairmont

Location: Aga
VIC, Australia

Hey guys, just about to do the head on my car what's the go with the timing chain tensioner?

Do I just remove the little plug bolt on the end or the big black bolt/housing that requires some special tool :?

Every thread on the topic has the entire housing removed but the gregorys just says to remove the little plug bolt and use the special tool to loosen the chain (which is what I did and it worked). By the looks of it you can just click the tensioner back anticlockwise with the tool to retension the chain... But is this the right way to do it?? I've read overtightening can stuff the motor so I want to make sure I do it properly. Any help would be greatly appreciated!! Cheers.
Top
 Profile


 Post subject: Re: Timing chain tensioner
Posted: Fri Oct 26, 2012 8:36 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

take all the tensioner assembly out and reset it in your hands, refit when your putting everything back together, and release with an allen key

if your removing the head, this is the easiest part, dont make it more complicated than it should, because the parts are flimsy and can become a pain to work with trying to leave it all in the block

heres a thread i started when wanted to find out how it works, all the info is there
ford-4l-and-6-cylinder-f1/timing-chain-tensioner-t59820.html
Top
 Profile


 Post subject: Re: Timing chain tensioner
Posted: Sun Oct 28, 2012 2:23 pm
Getting Side Ways
Offline

Posts: 597

Joined: 4th May 2007

Ride: 1992 EBII Fairmont

Location: Aga
VIC, Australia

cheers, I was hoping I could do it without having to remove the retainer!!
Top
 Profile


 Post subject: Re: Timing chain tensioner
Posted: Sun Oct 28, 2012 2:34 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

the retainer in mine was a royal b**ch to undo because some smart curnt loctited it on previously

a makeshift tool somehow got it off in the end. They really only need a bit of blue sealant going back on, not tarzan grip :roll:
Top
 Profile


 Post subject: Re: Timing chain tensioner
Posted: Sun Oct 28, 2012 7:48 pm
Getting Side Ways
Offline

Posts: 597

Joined: 4th May 2007

Ride: 1992 EBII Fairmont

Location: Aga
VIC, Australia

FordFairmont wrote:
the retainer in mine was a royal b**ch to undo because some smart curnt loctited it on previously

a makeshift tool somehow got it off in the end. They really only need a bit of blue sealant going back on, not tarzan grip :roll:


hahaha yeah tell me about it someone's done the exact same on this one! I can't get it off and don't have anything here really to make tools out of. Was thinking of hitting it with a blowtorch lol to perish the loctite as a last resort..
Top
 Profile


 Post subject: Re: Timing chain tensioner
Posted: Sun Oct 28, 2012 9:04 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The tensioner in exploded view.
I use Loctite 567 Pipe sealant for the thread....and don't forget to use new 'O'rings.





Attachments:

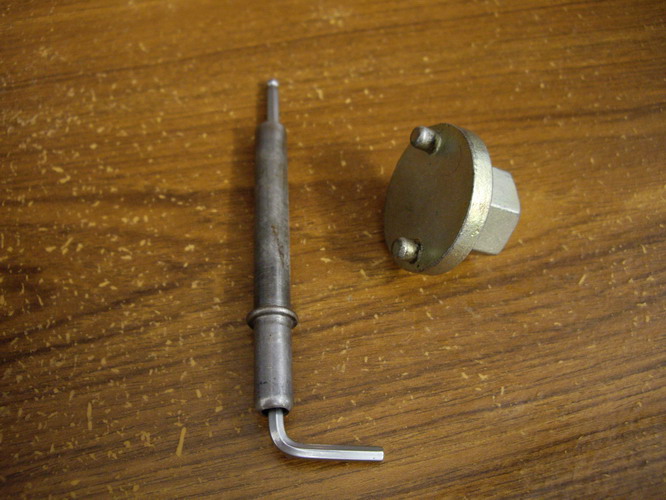

File comment: TOOLS FOR THE JOB
IMGP1066_resize.JPG [ 101.46 KiB | Viewed 172 times ]

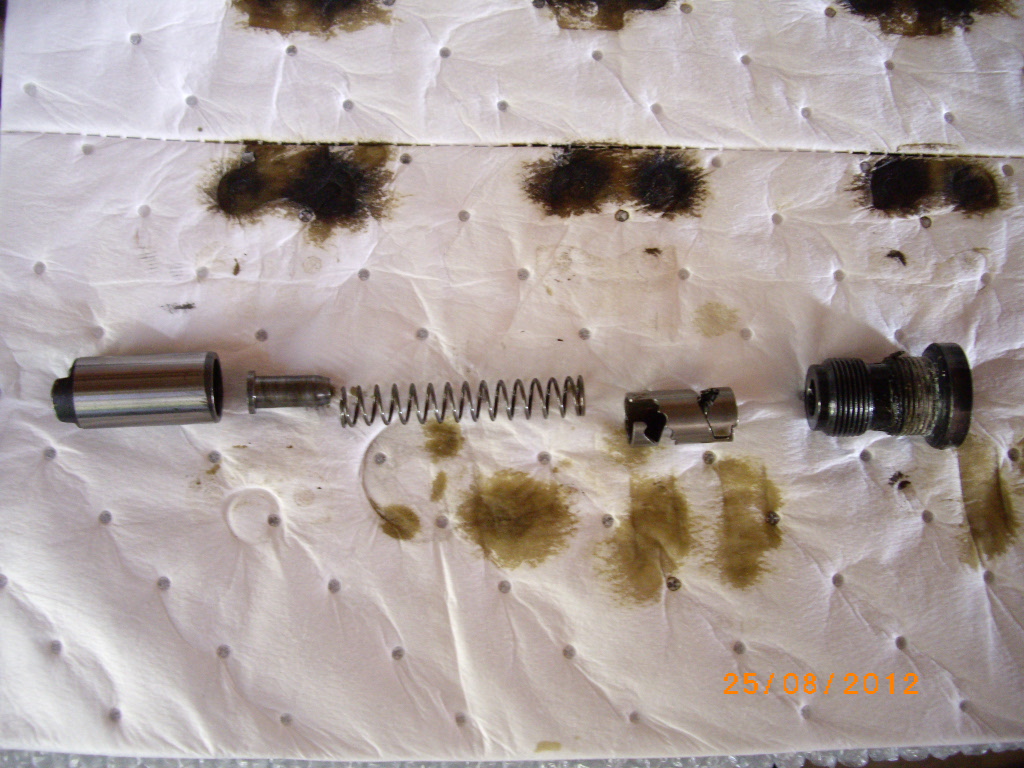

File comment: EXPLODED VIEW
IMGP12057.JPG [ 308.76 KiB | Viewed 200 times ]

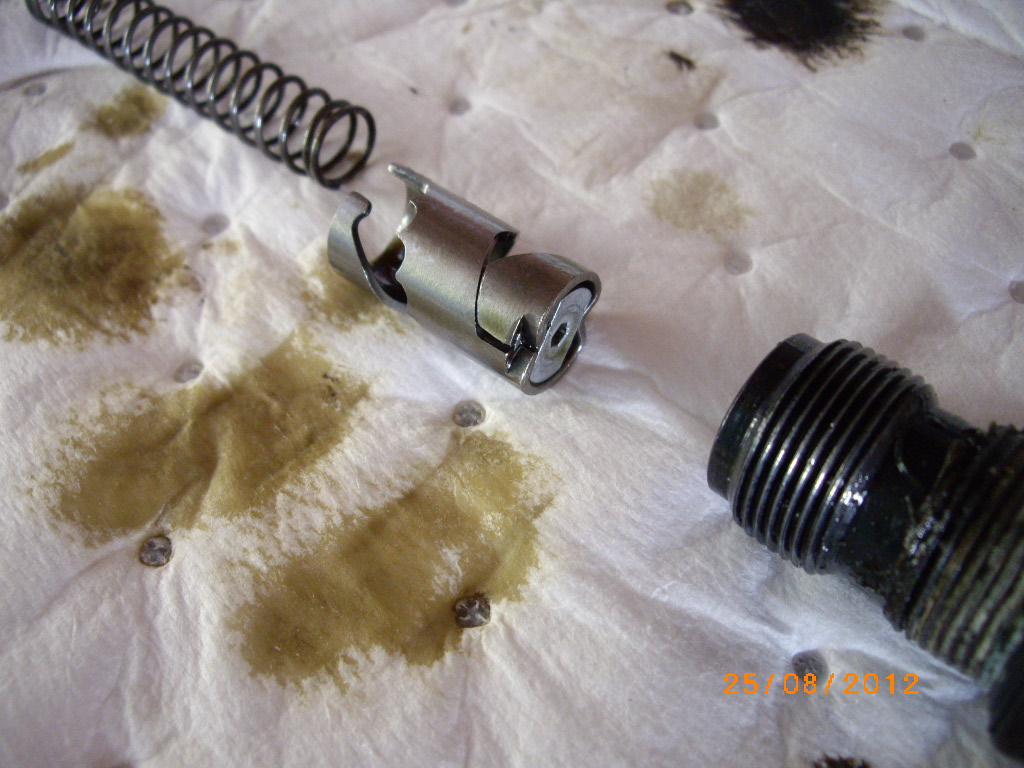

File comment: SHOWING THE LITTLE 3mm HEX
IMGP12058.JPG [ 321.71 KiB | Viewed 137 times ]

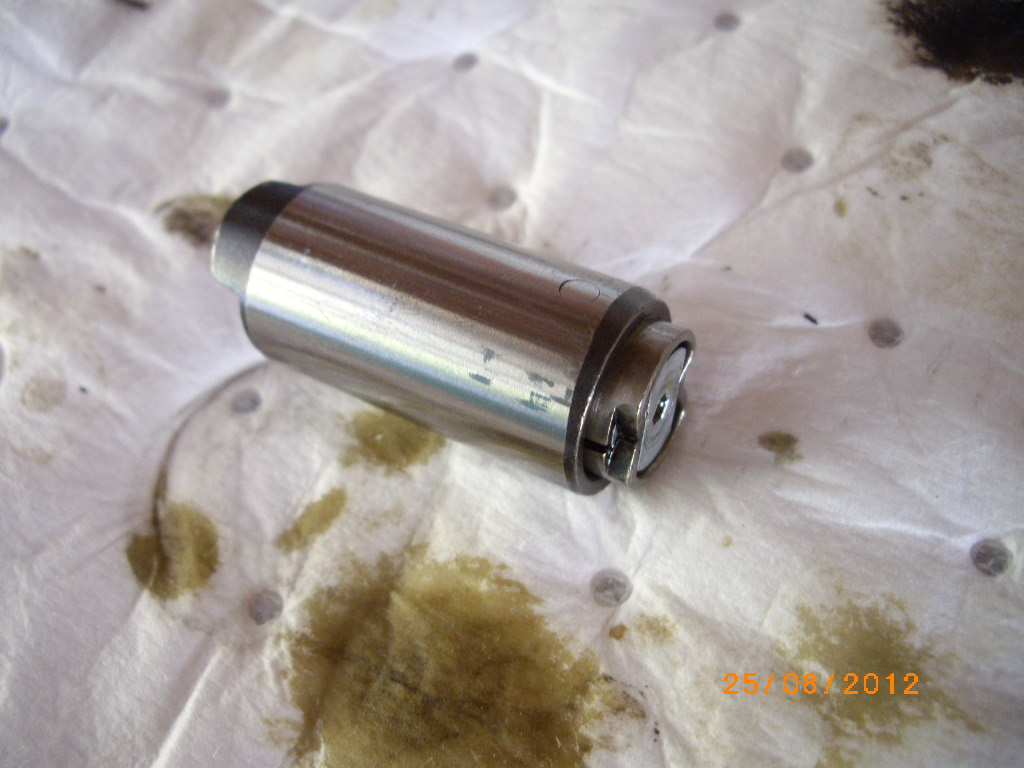

File comment: ASSEMBLED
