 Post subject: What is this and do I need one?
Posted: Tue May 27, 2008 4:04 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

Howdy

I was just looking at my ED with the intention of changing the temp sensor as the guage doesn't work and I noticed a difference between my ED and an EB2 I have.

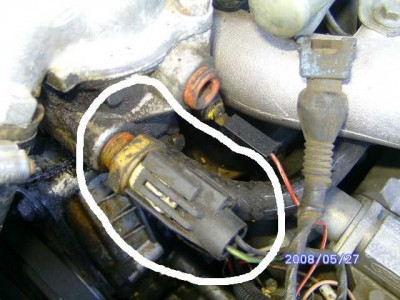

In the first shot what is the circled bit (ED) and do I need one of the things that are circled on the EB 2?

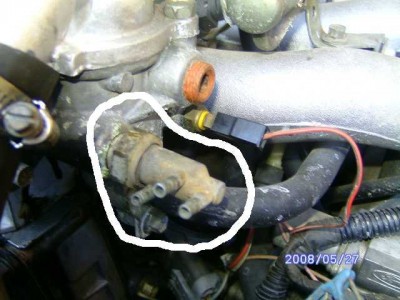

In the second shot, what is the circled bit? This is EB 2.

The wiring for the thing is there, just not connected (of course) on the ED.

Cheers
RD





Attachments:
File comment: ED without thingie the EA 2 has. Do I need it?
BILD0386-Small.JPG [ 71.83 KiB | Viewed 27 times ]
File comment: EB 2 thingie...
BILD0385-Small.JPG [ 80.88 KiB | Viewed 28 times ]



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Top
 Profile


Posted: Tue May 27, 2008 4:56 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Must be an early EB II - my EB II didnt have that Vacuum switch and stuff.

As far as I can recall - that was used on earlier falcons to switch vacuum, sending the A/C to recirculate mode when the engine got real hot.

As for the ED one... thats the Temp. Sensor for the Climate Control. If you dont have that, you will have a blanking plug.

Cheers

Nigel
Top
 Profile


Posted: Tue May 27, 2008 7:12 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

first one is a temp sensitave vacume tree, used for things like egr valves ect for pollution control. second is a temp sensor all falcons need a working one of these as it to is a emmisions control piece . it tells ecu what temp engine is and how much fuel to inject allong with the other components of the efi system. correct me if im wrong but it also operates the gauge



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Tue May 27, 2008 9:59 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

I would suggest you remove the one on the ED, and replace it with the other type, as that way the ECU will get the info it needs.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


Posted: Tue May 27, 2008 10:10 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the vac tree in the first pic is from ea or eb1..
as nigel said above its for the airconditioning ..when the engine temp rises above 100 deg it opens and switches the aircon to recirculate for some reason?(for some reason its in the wrong position on the housing as ea and eb1 still need that sensor in the 2nd pic?)

and you deffinatly need the one in the 2nd pic conected or your car will run like a shagy dog lol.. that one is for the ecu to know what the coolant temp is..
Top
 Profile


Posted: Tue May 27, 2008 10:36 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

I was just thinking about this - was the EA a CPI or MPI car? - or did it possibly have a webber carb swapped in????

Your right - the sensor is the ECU Temp - and I know the MPI Needs it. I wasnt sure about the CFI car though.

Nigel
Top
 Profile


Posted: Tue May 27, 2008 10:53 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

Thanks everyone

I had never seen one of those doohickeys that is on the ED whereas pretty much every falcon I have looked at has the same unit as the EB II has. Hell, even my CFI 3.9 had one!

I'll install one and see if it cures the absolutely horrible cold start issues the ED currently has.

Cheers
RD



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Top
 Profile


Posted: Tue May 27, 2008 10:56 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

Thanks everyone

I had never seen one of those doohickeys that is on the ED whereas pretty much every falcon I have looked at has the same unit as the EB II has. Hell, even my CFI 3.9 had one!

I'll install one and see if it cures the absolutely horrible cold start issues the ED currently has.

Cheers
RD



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Top
 Profile


Posted: Tue May 27, 2008 10:57 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

Whoops - double post. I got an SMTP 111 error and then it produced two of 'em.... weird



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Top
 Profile


Posted: Wed May 28, 2008 12:02 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

Well, I installed a sensor from another engine and it made some difference. The engine fired first time from cold (a first since getting it home!) and idled better than it had before. This is a vast improvement. Still no temp gauge though, even after replacing the sender as well. Oh well, off to investigate the cluster or the wiring.

Cheers
RD



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Top
 Profile


Posted: Wed May 28, 2008 1:58 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

temp guage is the single-wire sensor (red wire)

cheers
Top
 Profile


Posted: Wed May 28, 2008 2:09 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

Nigel wrote:
temp guage is the single-wire sensor (red wire)

cheers

Yup, I know - I replaced that sender as well due to the temp gauge not working. That is why I was under the bonnett in the first place and notice the other sensor. Seems I fixed a problem I didn't know I had but didn't fix the original one! :)
