 Post subject: where do these wires go to?
Posted: Tue Oct 24, 2006 8:33 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

hey all. im doing a BBM conversion and need to know where the 3 wires on the right hand side of the throttle body go to?
or better still if anyone knows where they go to in a conversion that would also be a great help




_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Tue Oct 24, 2006 8:39 pm
Stock as a Rock
Offline

Age: 31

Posts: 115

Joined: 10th Jan 2005

Ride: Falcon

Location: Perth
WA, Australia

Idle Air controller or Throttle Position sensor.
Top
 Profile


Posted: Tue Oct 24, 2006 8:41 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

but whats what tho? there is 3 wires. ill have to have a look at the EA one and see how many wires there is on the,. i know the other one on the left goes into the same plug but i think is a different connection so i can just add new plugs



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Tue Oct 24, 2006 8:47 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Its pretty much the same as the EA except the plugs will be different. TPS has 3 wires, IAC has 2. If it makes it easier just take the TPS and IAC off of the log manifold and put them on the BBM.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Tue Oct 24, 2006 8:48 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

do you know what order each wire is? the plugs are different so its not plug and play unfortunately, i need to chop and solder the wires



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Tue Oct 24, 2006 8:49 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

what i need is a copy of the engine bay wireing loom from a gregories manual for an EF/EL if anyone knows where to get it



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Tue Oct 24, 2006 9:02 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

I have one but its not that good - ill scan it in for you anyway.

edit: http://stockstandard.homeip.net/pics/ef-wiring-diagram/



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Tue Oct 24, 2006 9:16 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

awsome, thanks guys. thats exactly what im after... now to find my gregories manual for the EA lol



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Wed Oct 25, 2006 12:03 am
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

stockstandard wrote:
I have one but its not that good - ill scan it in for you anyway.

edit: http://stockstandard.homeip.net/pics/ef-wiring-diagram/


you couldn't take a pic of the pin outs for a EL V8 ECU could you :D



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Wed Oct 25, 2006 9:29 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

whats the name of the item on the right of the throttle body? the 3 wires one. i cant seem to find it on the wiring diagrams

the TPS has 2 wires so it would be the one on the left, but the one on the right i just cant find



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Wed Oct 25, 2006 11:51 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

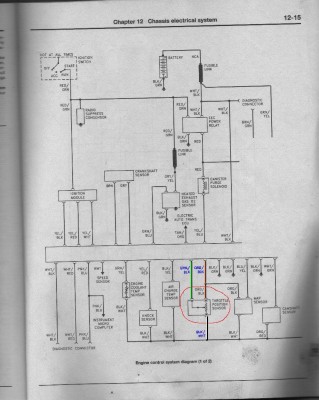

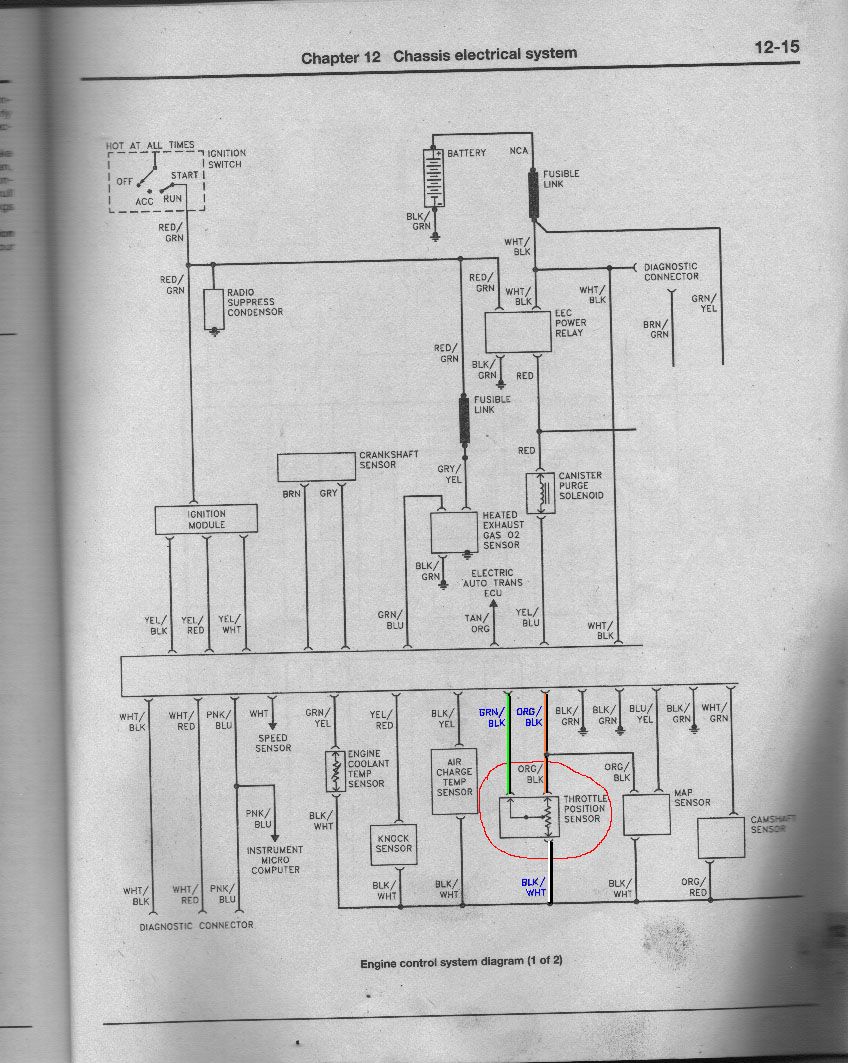

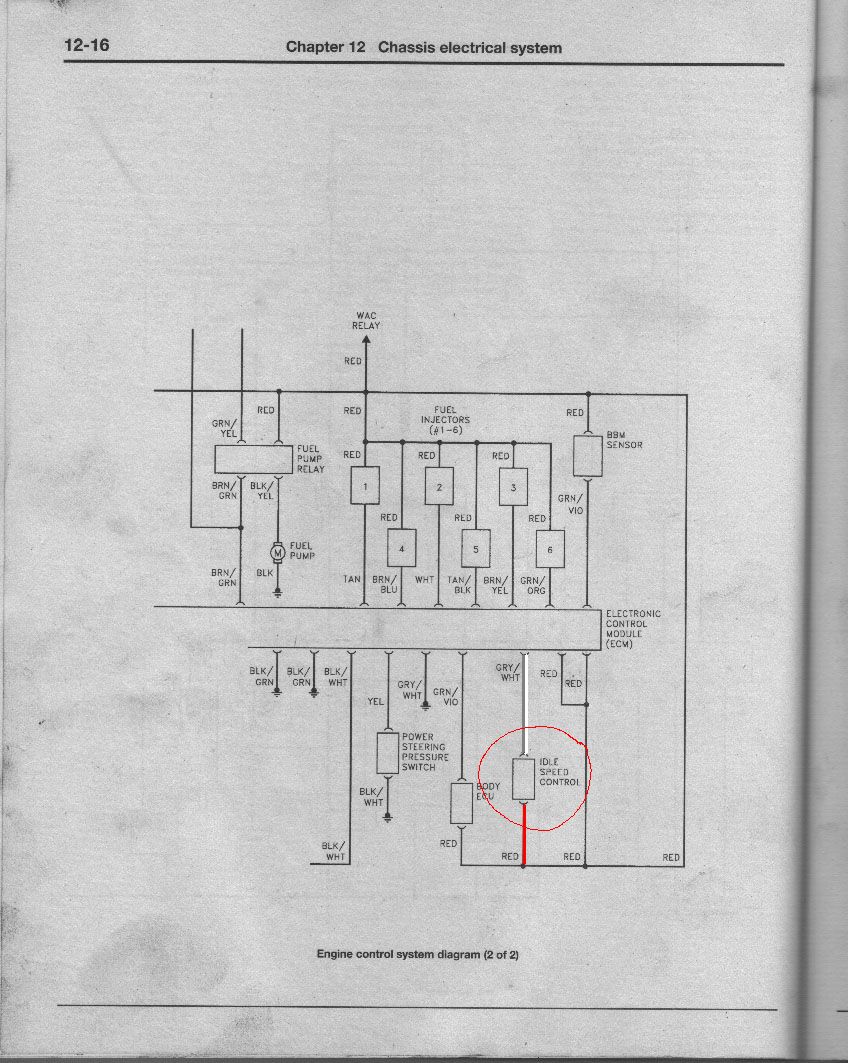

Diagram supplied by Stockstandard





Attachments:
page2.jpg [ 167.8 KiB | Viewed 29 times ]
WIRE DIA.jpg
WIRE DIA.jpg [ 170.93 KiB | Viewed 27 times ]



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Wed Oct 25, 2006 12:17 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

the TPS has 3 wires. One is a voltage reference, one is ground, and one is the signal to the ECU. The IAC has 2 wires, a constant 12V and switched earth (which is PWM for position). As I said before though if you are reusing your existing wiring loom, undo the 2 screws that holt the TPS to the throttle body and put the one from your EA on it. Same goes for the IAC. That way your plugs will match.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Wed Oct 25, 2006 12:18 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

stockstandard wrote:
If it makes it easier just take the TPS and IAC off of the log manifold and put them on the BBM.


Don't use the EA-ED IAC on the BBM, there is a clearance issue with the bonnet :)



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Wed Oct 25, 2006 12:19 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

fordzatmyplace wrote:
stockstandard wrote:
I have one but its not that good - ill scan it in for you anyway.

edit: http://stockstandard.homeip.net/pics/ef-wiring-diagram/


you couldn't take a pic of the pin outs for a EL V8 ECU could you :D


None of the books I have detail the EL V8 pinouts. Im sure i have one somewhere but might have to dig around for a while



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Wed Oct 25, 2006 5:02 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

thanks for the info guys. i guess on the log manifold loom the top one would be the top one on the BBM too. makes sense



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile
