Installed!! Quad XR headlights/parkers.



Page 1 of 3 [ 36 posts ] Go to page 1, 2, 3  Next


 Post subject: Installed!! Quad XR headlights/parkers.
Posted: Thu Aug 04, 2005 6:03 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 320

Joined: 19th Nov 2004

Gallery: 3 images

Ride: AU-XR8

Location: Sth Syd
NSW, Australia

{Edit}

Installed the parking globes into the high beam centre headlight.

Pics dont do it justice! Sweet mod!

Pictures on next page!




Just an idea, Not sure how it would look.
Im thinking about adding parking globes in the high beam headlights of my xr so when the lights are on, the high beams have the glow of parkers to change the look of it at night.

1: Would this be legal?

2: Would fitting parker globes into the lense effect the light spread?

3: Anyone think it'd look any good?

Just thought it'd be something differnent.....



_________________

She'd be a lot more modded if I didn't have to keep wasting cash on repairs.

Last edited by BLKXR8 on Thu Aug 18, 2005 9:55 pm, edited 3 times in total.

Top
 Profile


Posted: Thu Aug 04, 2005 8:23 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

I reckon it'd look good, I always thought thats were tyhey were but then heard they were with the indicators. Silly Ford.
So long as you use normal park light globes (i.e. not blue or anything) shouldn't have any legal issues.
Don't damage the reflector shinny stuff to much when you drill in to fit the globe and should all be good I reckon.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Thu Aug 04, 2005 10:18 pm
Getting Side Ways
Offline

Age: 31

Posts: 3772

Joined: 5th Nov 2004

Gallery: 33 images

Ride: EL Fairmont Ghia

Location: Hobart
TAS, Australia

i was thinkin about doin this myself wanted to get spare high beams to do it coaus u will prob need to cut a hole
Top
 Profile


Posted: Thu Aug 04, 2005 10:29 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Rapier wrote:
i was thinkin about doin this myself wanted to get spare high beams to do it coaus u will prob need to cut a hole


Park globes arn't big, you'd just have to drill an 8mm hole and do something to hold it there. If your willing to be dodgy a bita clear silicone or something'd hold it in place and be easy to remove if necessary.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Thu Aug 04, 2005 10:55 pm
Stock as a Rock
Offline

Posts: 100

Joined: 9th Mar 2005

Ride: EB

Location: dandenong melbourne
VIC, Australia

u could use a ea parker holder its just like a rubber gromett
Top
 Profile


Posted: Fri Aug 05, 2005 10:57 am
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 320

Joined: 19th Nov 2004

Gallery: 3 images

Ride: AU-XR8

Location: Sth Syd
NSW, Australia

christopher wrote:
u could use a ea parker holder its just like a rubber gromett


Might take a trip to the wreckers today and have a look around for some ideas.

In terms of wiring it up, just tap into the existing parkers wiring and jump it across to the next globe?



_________________

She'd be a lot more modded if I didn't have to keep wasting cash on repairs.

Top
 Profile


Posted: Fri Aug 05, 2005 1:43 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 320

Joined: 19th Nov 2004

Gallery: 3 images

Ride: AU-XR8

Location: Sth Syd
NSW, Australia

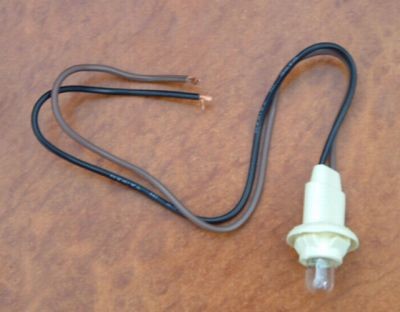

Picked these up from the local auto shop. Narva part no: 49812.

Its just a simple glode holder with a rubber base that pushes into the lens.

All up with globes was less than $10.

Does anyone know if the parkers stay on when you turn the actual headlights and/or high beams on?





Attachments:
parker 001.jpg
parker 001.jpg [ 27.28 KiB | Viewed 44 times ]



_________________

She'd be a lot more modded if I didn't have to keep wasting cash on repairs.

Top
 Profile


Posted: Fri Aug 05, 2005 2:00 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

yes they do stay on...



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Fri Aug 05, 2005 3:35 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

You could put a relay in there to stop it though, but would require leaving the original parkers working too. Would look good, and i can provide wiring diagrams if youd like. Just send me a pm. the only thing is, where would you put them to not affect the current light output, and to give a reasonable glow throughout the light when parkers alone are on?



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Fri Aug 05, 2005 4:38 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 320

Joined: 19th Nov 2004

Gallery: 3 images

Ride: AU-XR8

Location: Sth Syd
NSW, Australia

Im not sure of the possition, I'll Have to do some experimentation with them at night to see where the best place is.

The current parkers glow well so hopefully these will too if positioned right.

I want them to glow all the time as soon as either the parkers or headlights are turned on



_________________

She'd be a lot more modded if I didn't have to keep wasting cash on repairs.

Top
 Profile


Posted: Fri Aug 05, 2005 6:48 pm
Parts Gopher
Offline
User avatar

Age: 31

Posts: 67

Joined: 13th Apr 2005

Location: Adelaide
SA, Australia

Sounds like a really neat idea mate. I'd say tapping them into your existing parkers wouldn't be too much of a problem - they're very low current globes. It shouldn't burn anything out. ;)



_________________

1998 EL Fairmont 4.0L Auto
~Tinted~ ~Dumped~ ~Zorsted~

Top
 Profile


Posted: Fri Aug 05, 2005 8:16 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 320

Joined: 19th Nov 2004

Gallery: 3 images

Ride: AU-XR8

Location: Sth Syd
NSW, Australia

Thanks pully but im sure it's been done before, just havent seen it yet.

Hopefully be done over the weekend if I can spare the time so I'll post pics monday if all goes to plan.



_________________

She'd be a lot more modded if I didn't have to keep wasting cash on repairs.

Top
 Profile


Posted: Fri Aug 05, 2005 8:56 pm
Getting Side Ways
Offline
User avatar

Posts: 2772

Joined: 27th Jan 2005

Gallery: 11 images

Ride: BOXCAR (Not some sorry ass EF/EL

Location: Mackay, Far North New South Wales.
QLD, Australia

Would look good but pretty sure its illegal.



_________________

The artist formerly known as seton005 (and allegedly The_Murph).

When I was growing up, we were so poor we could'nt even afford to pay attention.


Top
 Profile


Posted: Fri Aug 05, 2005 9:16 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 320

Joined: 19th Nov 2004

Gallery: 3 images

Ride: AU-XR8

Location: Sth Syd
NSW, Australia

Illegal?

In what regard?



_________________

She'd be a lot more modded if I didn't have to keep wasting cash on repairs.

Top
 Profile


Posted: Sat Aug 06, 2005 9:28 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

yeh i dont see why it'd be illegal. BA's had problems with the running lamps because they were too low to be parkers and wired wrong to be driving/fog lamps, but a parker/running lamp at headlight height shouldnt be an issue i dont think
