Just in case anyone else wants to do this at some stage in the future.. here is how I've been doing it.

I'll do this in stages.. starting with the bollards.

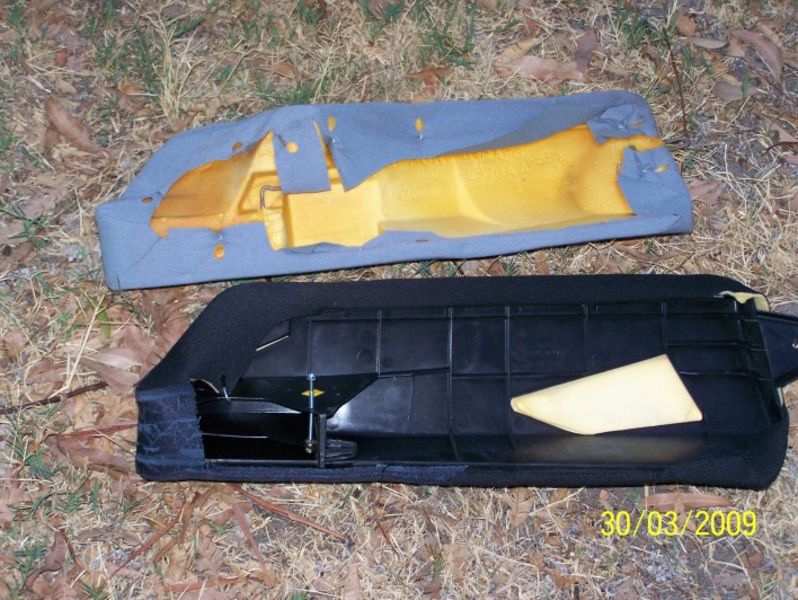

These first photo will show how the bollards (EL and AU) do not attach to the vehicle in the same manner:


Namely, the AU bollards are missing the thick wire that locks in the EL unit and the AU bollard has a plastic hook mount for it's own attachment that doesn't match anything in the EL.

So, what to do?

The plastic AU attachment mount on the bollard is fairly close to where the wire is on the EL bollard so here is a photo of what I did.


Look closely at the AU mount in this photo, I drilled a hole though the mount (two sides of plastic) and used two nuts to lock the long thin bolts in place on the plastic. Did that on both sides and was all set to install them when I realized that the plastic mount fouled on the bracket in the EL that locks in the center pieces of the seats. Luckily they are not needed with the AU seats anyway, so off with their heads...

before:

after:
(actually they are opposite sides but you get the idea.)
I just undid the two bolts and then bent the bracket back and forth till it snapped.

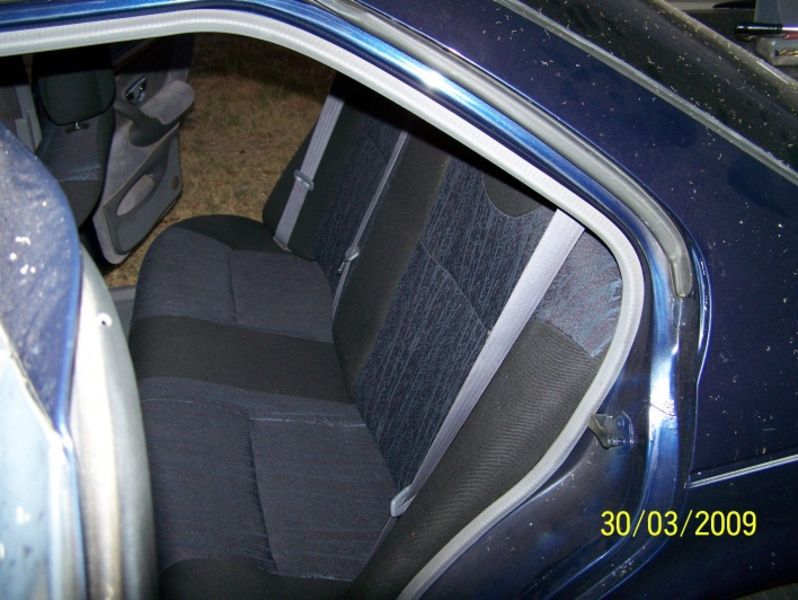

The finished result:


As you can see.. perfect fit... they are locked in tight and have no gap... total time this bit took me was about 30 minutes, most of which was spent figuring out how I was gonna do it. ( I have a newborn.. 30 minutes is all I get at the moment)

hope that helps someone, I'll add the rest with photos later as I think AU seats into e series could be popular (should be too.. they look great.) Also BA seats are apparently similar to AU, and that's also a pretty cool option.

Oh, and if you're wondering, all that stuff on the paintwork in the photos is not scratches.. the car's been parked in my backyard for months and it's mostly sand and dirt and it gets on everything.. got sick of hosing it every week... it's going in my shed soon anyway.

rgds

Frank

Last edited by frankieh on Tue Mar 31, 2009 2:12 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Tue Mar 31, 2009 7:45 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2098

Joined: 19th Jan 2005

Gallery: 9 images

Ride: 5L 5 speed Fairmont Ghia

Location: St Maoris
NSW, Australia

Thaks for that.

I had figured out the front seat, and was stuck on the rear.

It just makes my black interior conversion that much cheaper 8-)



_________________

Remember kids, the more pages of crap in your build thread, the bigger your e-penis is

Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Tue Mar 31, 2009 8:09 am
Tyre Shredder
Offline

Age: 52

Posts: 373

Joined: 27th Jan 2005

Gallery: 2 images

Ride: Falcon EL

Location: Bathurst
NSW, Australia

So whats the story with fitting AU front seats into a EL is what I wanna know, how much hassle is it. Also Ive read somewhere else that the BA seats will go into a EL, just not sure how much effort is needed to make them fit.
Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Tue Mar 31, 2009 10:09 am
Smokin em up
Offline

Age: 30

Posts: 239

Joined: 13th Jan 2008

Ride: EF Fairmont

Location: Sydney
NSW, Australia

Well i've got front and rear ba xr6 seats so i will let you know how that goes. Hopefully it's as simple as that. I'll get the fronts in for sure



_________________

"You only need 2 tools, WD-40 and duct tape. If it doesnt move and it should, use WD-40. If it moves and it shouldnt, use the duct tape!"

Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Tue Mar 31, 2009 1:58 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

nightstalker wrote:
So whats the story with fitting AU front seats into a EL is what I wanna know, how much hassle is it. Also Ive read somewhere else that the BA seats will go into a EL, just not sure how much effort is needed to make them fit.


The front seats were easier than the back.. just more time consuming.


The short version is that you unbolt all the padded bits from both old and new seats, swap them over and rebolt them..

Well worth the effort I think.
Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Wed Jun 16, 2010 5:15 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

ef_paddy wrote:
Well i've got front and rear ba xr6 seats so i will let you know how that goes. Hopefully it's as simple as that. I'll get the fronts in for sure


ba rear seats are much different to au's completely different mounting brackets all round, not as wide, and bench seat is about half the thickness, after saying this tho nothing is impossible i have done the ba rear seat conversion before in my old eb and was a pain in the a**, here are some pics.


Cheers Jesse



_________________


Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Sun Jun 20, 2010 5:25 pm
Smokin em up
Offline
User avatar

Age: 27

Posts: 236

Joined: 4th Jan 2010

Ride: el wagon

Location: garfield
VIC, Australia

hey, sorry to wake up an old thread,
but how would i go about putting an AU sedan rear seat into an EL wagon?
Can it be done?
Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Sun Jun 20, 2010 5:31 pm
Getting Side Ways
Offline

Age: 45

Posts: 444

Joined: 12th Apr 2010

Ride: 2006 BF XR8 Boss 260

Location: Auckland
New Zealand

gasdea wrote:
hey, sorry to wake up an old thread,
but how would i go about putting an AU sedan rear seat into an EL wagon?
Can it be done?

I'm doing it currently, check my build thread, I'll post pics as I go.



_________________

Current...
XY Faker Project...
EL XR6 Work Hack...

Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Thu Sep 09, 2010 12:30 am
Getting Side Ways
Offline

Age: 38

Posts: 668

Joined: 24th Jul 2006

Gallery: 4 images

Location: Geelong
VIC, Australia

Jester do u have this install of the ba seats in a forum at all on how it was done



_________________

EL Fairmont - GT steering wheel -3.45 lsd - superlows - white line sway bars - xr kit - au11 xr8 engine - 3500 convertor -BA XR8 leather interior - ltd woodgrain - di filippo extractors - trick flow track heat manifold - tfs1 camshaft - twin 2.5 inch system venom cats hooker mufflers - 187rwk

Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Fri Sep 10, 2010 10:38 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

the car in those photos is long gone, sadly it got parted out and i didnt end up with many photos of the interior, those are the best i could find.
so i cant help much with pictures but baisicly if you use the search engine for the front seats there will be plenty of info on that they are pretty easy and a quick mod, as for the rears, i had to strip the ba seats and fit them over the e series frames, the smaller flip down section is the tricky bit because the ba skin is smaller then the e series frame, so you either cut the e series frame to suit or add aditional fabric to the ba skin to fit. this is of course using the ba foam too. all the mounting points are different so there is trimming involved, like cutting holes for your eb bracket to come through and closing off holes where the ba brackets were.
for the bench seat i submerged the eb framework from the eb seat into the ba one, the problem i had was the seat was really low as the ba foam is half the thickness of the eb. so you either settle with that result or you retrim the ba skin onto the eb foam...
i suggest that au rears is the way to go they are so much easier then ba.
but if you do have a crack at put some pics up as id like to see it done again, im hoping someone comes up with an easier solution.
let me know if you have anymore questions.
cheers Jesse



_________________


Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Mon Jan 09, 2012 5:24 pm
Stock as a Rock
Offline
User avatar

Age: 50

Posts: 137

Joined: 4th Nov 2009

Ride: EL XR6

Location: Perth
WA, Australia

So, any more pics of exactly how this was done ...specifically the rears? I'm talking AU into EL here..

Does the AU rear bottom seat just drop straight in, or does it have / need loop-style mounting catches to fit, like the E-series?

Also, any more info, or more close up pics of how the rear bollards are modified, and where on the car they actually fit??

Cheers, MARK



_________________

Hot Chilli Red EL XR6, 5-spd manual, with BF F6 TYPHOON motor and supporting mod's, 3" exhaust etc..
(298 rwkw @ 12 psi)

My car here: the-garage-f53/mark-s-el-xr6-bf-f6-dohc-transplant-in-progress-t106821.html
BF TYPHOON BOOSTED!!!

Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Mon Jan 09, 2012 6:11 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

take a look at the top of this page. frankieh has done it
Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Mon Jan 09, 2012 9:31 pm
Stock as a Rock
Offline
User avatar

Age: 50

Posts: 137

Joined: 4th Nov 2009

Ride: EL XR6

Location: Perth
WA, Australia

SWC wrote:
take a look at the top of this page. frankieh has done it


Yep, saw that ...I just wanted a little more in-depth info of how the rears fitted up.

PM'd Frankie, but no reply as yet ...is he still an active member on here, or does he have a different username now?



_________________

Hot Chilli Red EL XR6, 5-spd manual, with BF F6 TYPHOON motor and supporting mod's, 3" exhaust etc..
(298 rwkw @ 12 psi)

My car here: the-garage-f53/mark-s-el-xr6-bf-f6-dohc-transplant-in-progress-t106821.html
BF TYPHOON BOOSTED!!!

Top
 Profile


 Post subject: Re: AU seats into EL.... some details of how it's done.
Posted: Tue Jan 10, 2012 6:59 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

I'm still around.. Just got rellies over so not had any time to browse.

Have a look at this for the bollard:

If you look at the AU one, you can see the bolt I put in place to hook it into place. It's been ages now and they are both still there so obviously it works.

As for the bottom, I was going to get the AU clips and drill them in, but instead I made some brackets to stop the loop from sliding forwards.

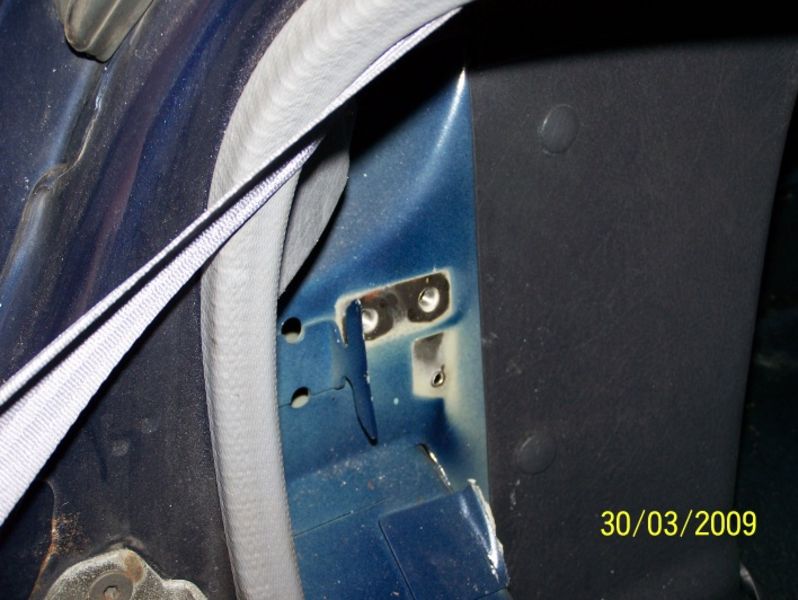

Here you can see how I snapped off the bracket that locked the EL seat in the back position:
The AU bollard won't go in without it.

The end result:


cheers

Frank
