Hey fellas
I have an EF Futura, and have read the doco http://www.fordmods.com/forums/documents.php?doc=24
on installing lights in the footwell.
However, I dont know if I have the Ignition Key Illumination (wherever that is), or if I have to remove my CD player and install from there.
I was planning on putting 2 short LED sticks from Supercheap in the footwells, 1 on each side.
It would be good to do this at the same time I install my wiring kit for my amp because it will all be apart anyways.

Any help on this would be great. 8-)



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Mon Mar 26, 2007 11:36 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

tap into the roof interior lighting, it runs on the drivers side under the carpet near the door .. can't remember which colour wire - trace it back from the light!



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Mon Mar 26, 2007 11:43 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

or take it from the gear shift illumination.
(even if manual the wiring is there at the connector under the ashtray...while ur there, add the rear vent light!)



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Tue Mar 27, 2007 12:19 am
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Happy wrote:
tap into the roof interior lighting, it runs on the drivers side under the carpet near the door .. can't remember which colour wire - trace it back from the light!


Go from the keyhole illumination above the ignition. From memory its a green and yelllow wire and then a black one.
Top
 Profile


Posted: Tue Mar 27, 2007 12:02 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

did the futura's come with the keyhole illumination ?



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Tue Mar 27, 2007 12:15 pm
Technical Contributor
Offline
User avatar

Age: 33

Posts: 5858

Joined: 5th Nov 2004

Gallery: 8 images

Ride: '95 EF's

Location: Leederville
WA, Australia

Happy wrote:
did the futura's come with the keyhole illumination ?


99% sure they did yes



_________________

R.I.P. Scotty

Top
 Profile


Posted: Tue Mar 27, 2007 12:34 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Ahhh yer I get the Ignition Key Illumination thing now - haha yes the Futuras did come with that.

Well to install my wiring kit I have to get in behind the CD player, underneath the centre console (for RCAs) and take up the carpet on one side to run the power cable.

So seeing as I have to take up the carpet anyway, would it be easier to tap into the cable there, or the gear shift illumination (it is a manual btw)? Does the gear shift illumination do what the rest of the interior lights do - dim out? or is it a constant when the parkers are turned on?

Im pretty sure in the wiring harness for the stock tape player there was these illumination and dimming wires? can anyone confirm this? I know there was some leftover wires, 2 or 3 I think. I'm pretty sure I read they were dimming/illumination wires.

Thanks for your help so far :)



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Tue Mar 27, 2007 12:43 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

I thought the gear shift light only came on when the lights were turned on!! Hence the reason I went for the interior lighting .. that and my pov pack gli didn't have the key illumination!



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Tue Mar 27, 2007 12:49 pm
Getting Side Ways
Offline
User avatar

Age: 79

Posts: 1233

Joined: 7th Apr 2005

Gallery: 7 images

Ride: GTHO PH 1 EF ex chaser

Location: Willow vale, GOLD COAST
QLD, Australia

krisisdog wrote:
Well to install my wiring kit I have to get in behind the CD player, underneath the centre console (for RCAs) and take up the carpet on one side to run the power cable.



Thanks for your help so far :)

Make sure your power cables go down drivers side of car NOT passenger side near the ECU as it can cause funny problems :roll: :D



_________________

Rotten Old Revhead!!! XW GTHO + EF ex cop car (exractors 2.5 cat back zorst !6" Simmons K&N +airbox mods Lowered with Bilstein shocks+Whiteline Bars NEXT THING Swap HO for GTP or Ferrari!

Top
 Profile


Posted: Tue Mar 27, 2007 1:23 pm
Getting Side Ways
Offline
User avatar

Posts: 538

Joined: 17th Feb 2006

Ride: EF Gli

Location: Mount Gambier/Adelaide
SA, Australia

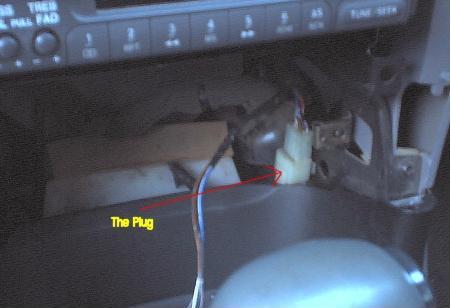

I did it in my Gli, (no ignition key illumination) and i tapped into the black/blue and green/yellow wires that were in that plug. Pretty straight forward





Attachments:
plug.JPG [ 17.67 KiB | Viewed 36 times ]

Last edited by fordnuttz on Tue Mar 27, 2007 5:50 pm, edited 2 times in total.

Top
 Profile


Posted: Tue Mar 27, 2007 5:42 pm
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Happy wrote:
did the futura's come with the keyhole illumination ?


Most certainly did.
Top
 Profile


Posted: Tue Mar 27, 2007 11:34 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Use the plug behind the radio as the source for the LH footwell, use the ign key illumination for the RH footwell. The ign key illum has it's own 2 pin plug amongst all the other steering column connectors.
White LED's look good if you want to convert all the interior lighting - the EF BEM will dim fine, EL's won't - the LED's stay on very dimly - need to keep a normal globe installed for proper dimming, e.g. the ign key illum.
Just for a bit of trivia . . . .



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Wed Mar 28, 2007 7:21 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Brilliant picture fordnuttz, thankyou very muchly :)
Makes it very obvious for first time owners like myself.
I was thinking white LEDs instead of blue, but a stick is hard to come by, and I'm not too confident in wiring up LEDs and resistors underneath my dash just yet.
GTBob, yeh I ran my power cable down that side and the RCAs down the other, except along the centre console then to the side after the ECU, (along the front of the passenfer seat).
I have a few other problems now, but that would be off topic.



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Thu Mar 29, 2007 11:42 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 324

Joined: 19th Mar 2007

Gallery: 11 images

Ride: EL XR6

Location: Gold Coast
QLD, Australia

coincidently i did this mod 2 days ago. Its relly straight forward. Ive got an xr6 but still used that plug behind the radio as its easy to get to. I did find them in the loom that runs on the drivers side but its not a real nice place to work so the one behind the dash is a better option in my opinion. I made a junction box and ran wire from the center to the LH, RH and Rear console lights. (yes the junction box is a hollowed out ac charger. believe it or not i had one lying about)

One problem with the tech document explaining it.... the rear stop lamp bulb holder IS NOT THE SAME as the ones required. The auto trans bulb holder is the correct one.for all the pre fab'ed holes. I had to modify these rear lamp ones and glue them in. Its not a huge problem as i dont plan to take the footwell lights out but its an inconvienence.

the rear console lamp cover is from ford and costs a mear $8.05

Took less than an hour to do. For an outlay of less that $20 bucks its a good mod to do if your bored. It looks the business at night too.





Attachments:

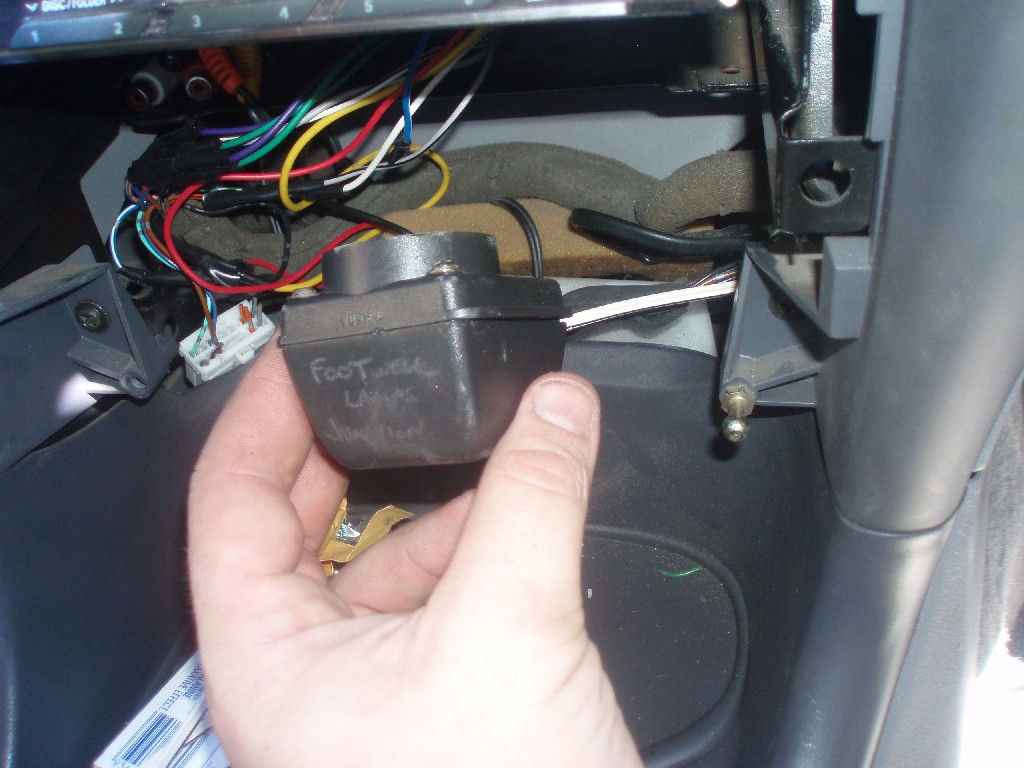

File comment: Junction Box.
junction box.JPG
junction box.JPG [ 149.53 KiB | Viewed 35 times ]

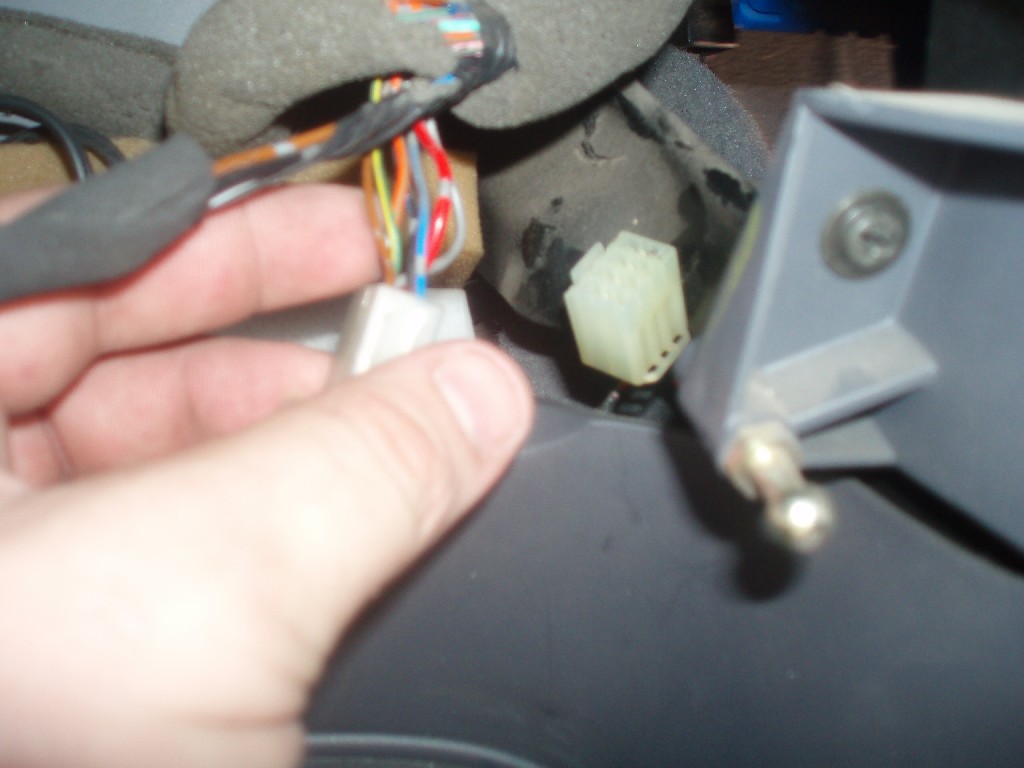

File comment: Behind the Ashtray Souround. It has an orange wire connected to it (handbrake light)
loom to splice into.JPG
loom to splice into.JPG [ 102.83 KiB | Viewed 33 times ]

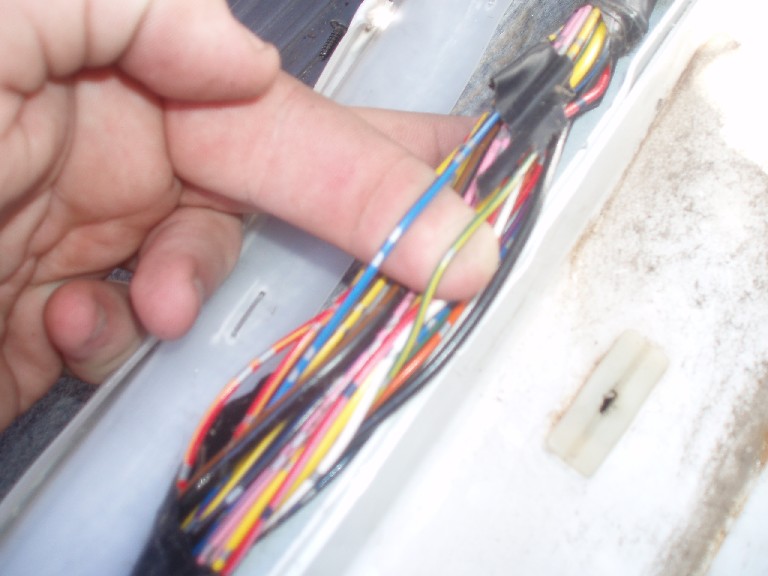

File comment: The loom at the drivers foot. Not a suggested place to work
wires in loom.JPG
wires in loom.JPG [ 71.16 KiB | Viewed 29 times ]

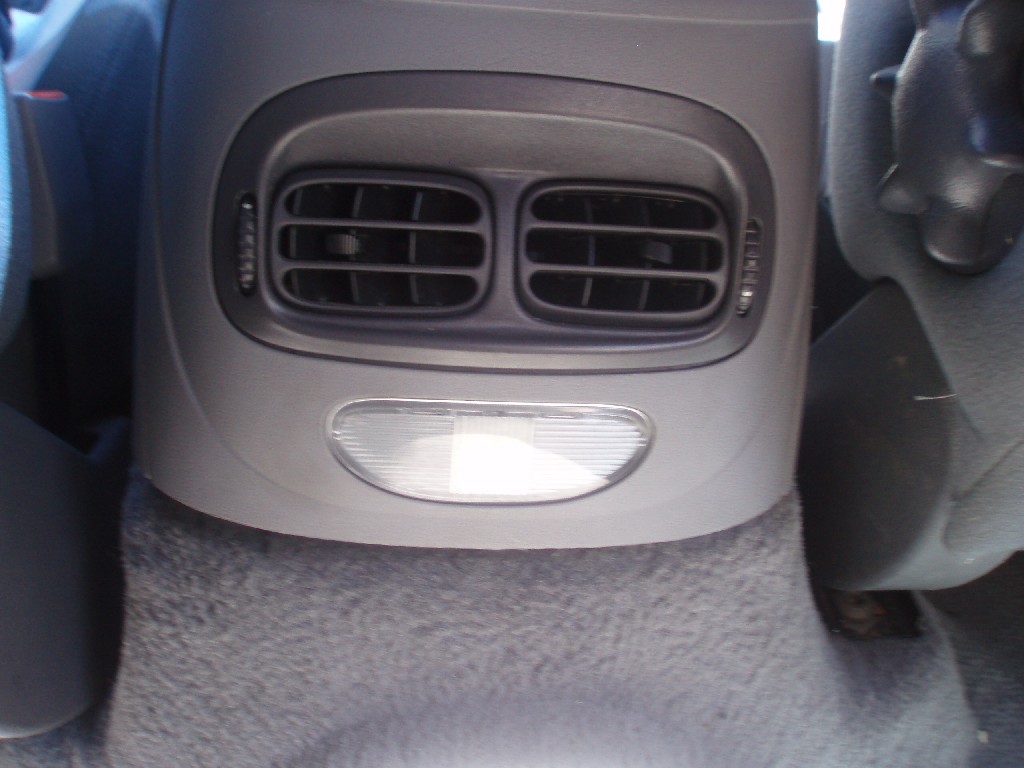

File comment: Rear console Light
centre console rear light.JPG
centre console rear light.JPG [ 122.21 KiB | Viewed 37 times ]
Top
 Profile


Posted: Thu Mar 29, 2007 11:53 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

I can't beleive you actually made a junction box.

And the rear HIGHRISE stop lamp holder is correct.
