 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Wed May 06, 2009 11:12 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

ohh yeh I also frosted the led's with a drill and a 180grit sponge so light was distributed around, not directional.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Thu May 07, 2009 10:56 pm
Smokin em up
Offline
User avatar

Age: 30

Posts: 265

Joined: 10th Nov 2005

Ride: ED Futura

Location: Melbourne
VIC, Australia

Krytox wrote:
EBFAN666 wrote:
the problem is with the blue dashes, you've still got an orange trip computer (if you've got a fairmont) which sucks cause you cant even change the filter behind it like with the trip/clock and the cluster lcd! I had a look and the only way I can figure out how to do it is unsolder the lcd screen itself!



Wrong, you can remove the filter very easily.

No un-soldering required. you just need to remove the entire plastics around the pcb to get to the lcd.

as for the Trip computer/CC they're relatively easy, same again, undo them and replace the filter.


seriously? Cause I was at it for a while! How do you remove the plastics? is it fairly simple procedure Ill probably kick myself next time I pull it apart!



_________________

"We will rise from chaos to elude this damnation, Hail horror, hail infernal world, better to reign in hell than serve in heaven"

Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Thu May 07, 2009 11:02 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

krisisdog wrote:
The secret it quality LEDs, I'll post a pic of mine tonight if I remember.


Cant believe how high the CBF factor is atm. I was going to do it as well tonight, but just cbf......
Must be getting lazy in my old age... heck I'm starting to enjoy driving the auto slow-mont instead of the 5spd mod'd futura....... :|



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Sun May 10, 2009 10:45 pm
Oompa Loompa
Offline

Age: 27

Posts: 33

Joined: 22nd Apr 2006

Location: Endeavour Hills
VIC, Australia

elf100capri wrote:
here is a pic of my el xr8 dash, i put white ef needles in


How did you get the lcd display blue??
Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Sun May 10, 2009 11:28 pm
Smokin em up
Offline

Age: 26

Posts: 218

Joined: 27th Apr 2008

Ride: EF Fairmont

Location: Perth
WA, Australia

i was told to get the T5 blue led's wedge types
is this ok to use ?
Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Sun May 10, 2009 11:30 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

pull the old orange filter out from behind the lcd and i just cut a piece of paper the same shape and replaced it with that.
remove dash instruments from car,remove front clear cover
remove needles from gauges (making sure to mark where they were pointing)
remove screws to each gauge 'motor'
remove clear lenses

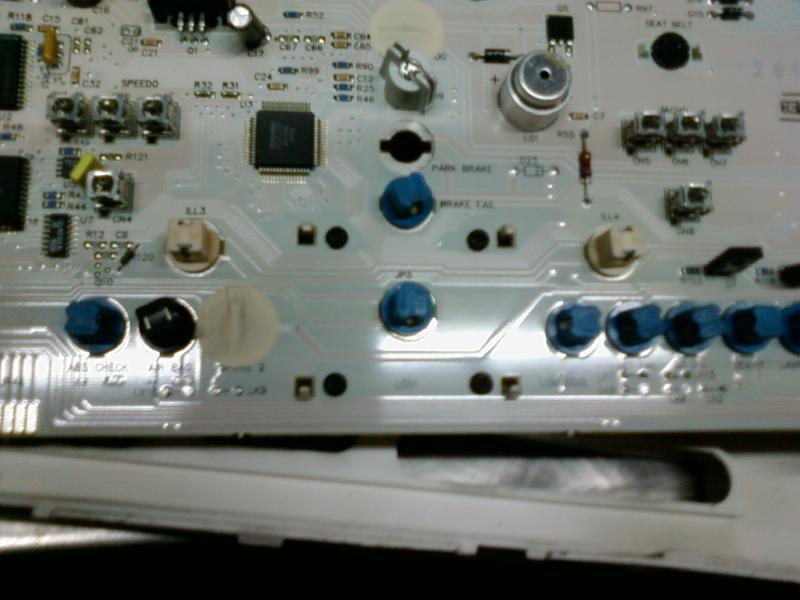

then when u have the dash out and apart there are 2 screws that hold the circuit board to the white housing backing,1 on each lower corner, remove them and seperate the circuit board from the housing and turn it over
Attachment:
File comment: dash1
Dash1.jpg [ 49.26 KiB | Viewed 124 times ]

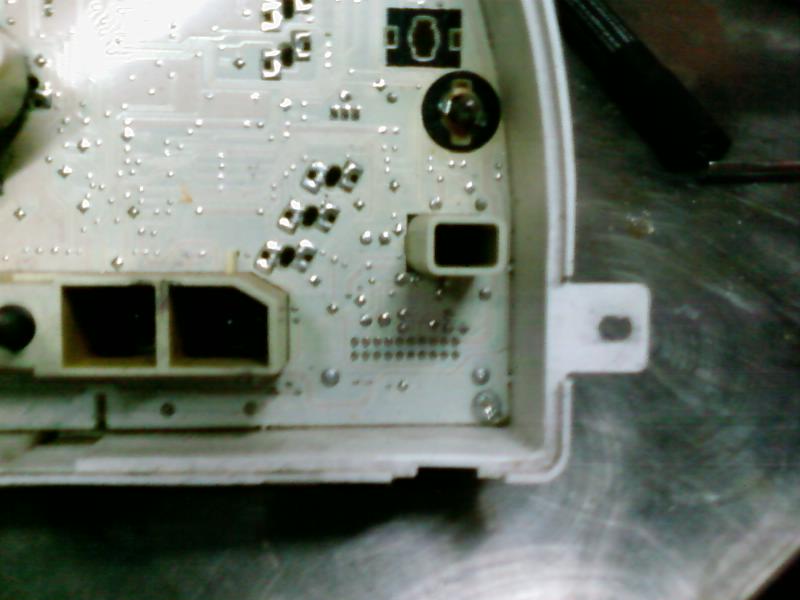

then remove the 4 screws that hold the lcd panel and warning lights to the board
Attachment:
File comment: dash2
Dash2.jpg [ 56.59 KiB | Viewed 130 times ]

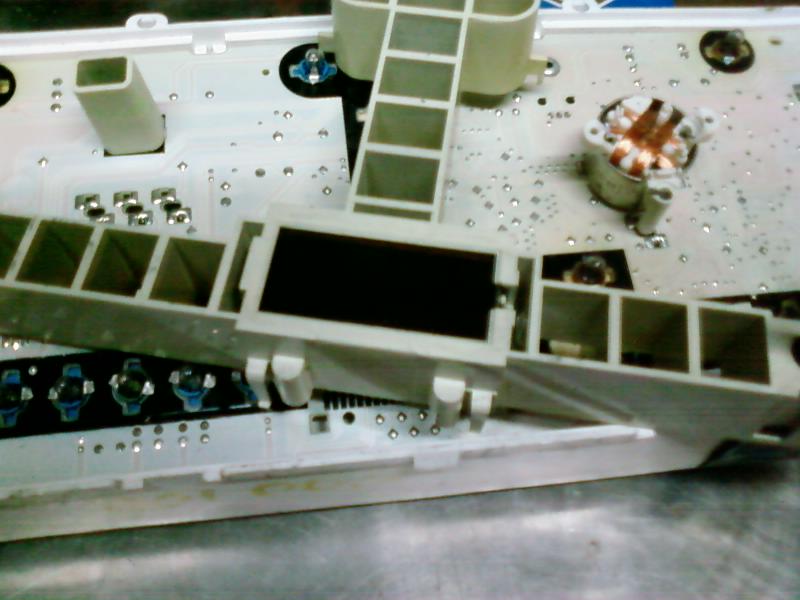

4 clips hold that in the board,release them and take the warning light/lcd panel off
Attachment:
File comment: dash3
Dash003.jpg [ 59.33 KiB | Viewed 107 times ]

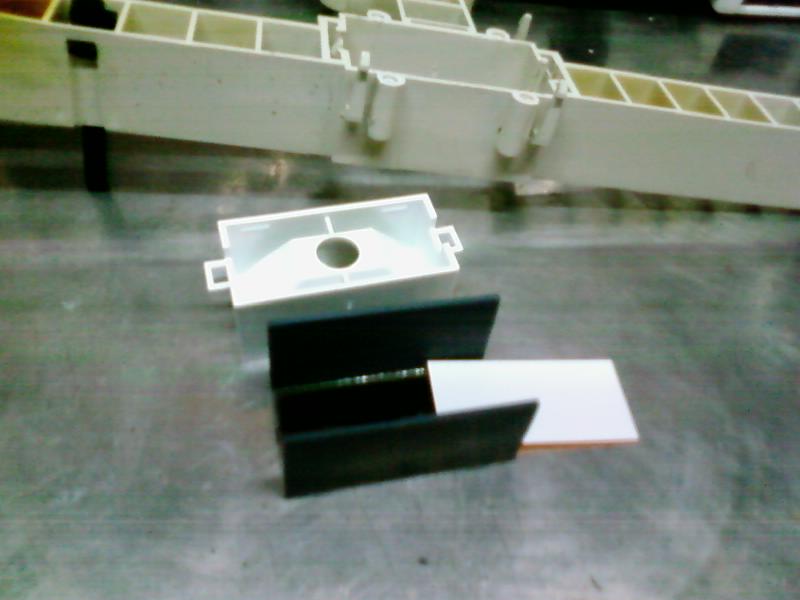

remove lcd panel and take the orange filter out and replace with white one
Attachment:
File comment: dash4
Dash05.jpg [ 43.65 KiB | Viewed 110 times ]


installation is - reverse above steps
Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Sun May 10, 2009 11:46 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

t5 wedge leds can be used, make sure u use the white globe holders as the blue holders have the globes soldered in.
also when i put mine in i frosted the leds with some 180grit sand paper and took 2-3mm off the led 'bulb' shaped tip (makes the led shine in a larger pattern instead of a spot) makes the finished display colour even instead of blotchy

narva plug and play t5 coloured leds are the easiest to use, as sometimes the wedge style are too long to fit,
i made my own, soldered led and resistor together and soldered them into old blue housings with the glass globe cut out of it
Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Mon May 11, 2009 12:46 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

yes... but if you get single led wedges, they will be unidirectional and not bright enough..

The T5's I have here have 3 ultrabrite LED's on the one wedge and they are equivalent to the old globe only blue.

I first bought a box of single led T10 wedges for my EA ghia dash and I've ended up using them on the under dash lights and the rear console etc as they are just not bright enough for the cluster or climate control
Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Mon May 11, 2009 1:46 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

frankieh wrote:
I wouldn't mind a decent scan of that police facia so I can use it when I redo mine.. (police has many more speed increments and looks better)

He probably has the 8LED globes I used in mine..

The normal single LED lights look terrible and splothy.. the ones I got had 8 led's per globe pointing out and up all around and they nice and bright.

rgds

Frank



where can u get 8 led t5's from frankieh?

frankieh wrote:
yes... but if you get single led wedges, they will be unidirectional and not bright enough..

The T5's I have here have 3 ultrabrite LED's on the one wedge and they are equivalent to the old globe only blue.

I first bought a box of single led T10 wedges for my EA ghia dash and I've ended up using them on the under dash lights and the rear console etc as they are just not bright enough for the cluster or climate control


or even the 3 led blue t5's
never seen either before
Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Mon May 11, 2009 1:58 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

I found the 8 globe T10's in my EA on ebay from a link someone provided in this forum actually..

the T5's I found the same way... lots of searching on ebay.

If I can find the post I'll stick it up... but there are tons selling them.

Just did a quick ebay search for T10 LED and found this in the first page (a 6 led t10 globe)

http://cgi.ebay.com.au/20X-T10-168-194-White-6-LED-Wide-Angle-Light-Bulbs-LOT_W0QQitemZ230340360654QQcmdZViewItemQQptZAU_Car_Parts_Accessories?hash=item230340360654&_trksid=p3286.c0.m14&_trkparms=66%3A4|65%3A1|39%3A1|240%3A1318|301%3A1|293%3A1|294%3A200

or this cheaper better option....

http://cgi.ebay.com.au/2-X-9-led-Blue-12V-T10-Xenon-Bulbs-Wedge-158-168-194_W0QQitemZ350196966203QQcmdZViewItemQQptZAU_Car_Parts_Accessories?hash=item350196966203&_trksid=p3286.c0.m14&_trkparms=66%3A4%7C65%3A1%7C39%3A1%7C240%3A1318%7C301%3A0%7C293%3A1%7C294%3A200


Takes lots of wading though results, but multi LED globes are available in T5 and T10 and are much much brighter than singles, also they spread the light out like a normal incandescent.

rgds

Frank
Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Mon May 11, 2009 7:05 pm
Stock as a Rock
Offline

Age: 31

Posts: 197

Joined: 3rd Dec 2005

Ride: XHII V8S Ute

Location: Darwin
NT, Australia

Ok I'm finally going to get around to doing this mod next week. I know these are silly questions but any help is great!

I know that the single leds are no good...the multis are much better. Which type do I need ? The T5's or T10s? I think from memory I need six if i want to just change the gauges. I might get around to changing the odo one day so how many all up?

Thanks



_________________

Pacies & single 2.5'. New manifold to come soon...

Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Mon May 11, 2009 7:16 pm
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

T5 for EF/EL Cluster, T10's are for the globes like the footwell, glove box and others. Not sure on the total amount for full cluster :(



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Mon May 11, 2009 7:43 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

Yup its the T5 wedge LED's your after.

If you just want the gauges/dials done theres 6 bulbs you need to replace. 3 for each side of the cluster. The bulb holders for those six bulbs are white ones so you'll be able to use those bulb holders by taking the old bulbs ones out and plugging the LEDs in. Some of them can be stuck in real good due to heat so you may need to wriggle them a bit to get them out. There is 1 bulb for the odometer.

The 6 bulbs you'll need to replace to do just the gauges/dials are pointed out below.. Excuse my shocking paint skills :lol:
Attachment:
led bulbs.JPG
led bulbs.JPG [ 9.64 KiB | Viewed 5524 times ]



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Tue May 12, 2009 7:24 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Demister is blown


You will need 6 to do the cluster lighting, one for odo, one for demist, one for clock/two for trip...



_________________

>>>EF Futura T build<<<

Last edited by krisisdog on Tue Feb 02, 2010 8:10 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Pics of blue led dash - EL Falcon
Posted: Tue May 12, 2009 7:29 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

s**t that looks good krisisdog 8-)

The lighting in the cluster came out nice and even



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread
