 Post subject: Woodgrain manual Centre console
Posted: Fri Mar 06, 2009 6:47 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

I am preparing myself for a battering from all you people who wish they had the woodgrain in one piece, but anyway, As i am putting a T5 into my LTD, i didn't want the "poverty pack" look of the Grey plastic console surround, so i spent many hours crafting this with my Dremel. It is not quite finished as you will see it needs a bit of tidying up around the edges, and the rubber boot is just a temp measure as i know an upholsterer who is making me a custom Grey leather to match my trim that will come up over the edges like a lip effect. As for the small hole where the auto "power" button used to be, i will be covering that up with a small chrome rectangle with the shift pattern on it and also a ford logo.

So here are the pic's, please share your views, btw this was my spare panel, so i didn't feel that guilty....sort of.

Pic's all uploaded now





Attachments:

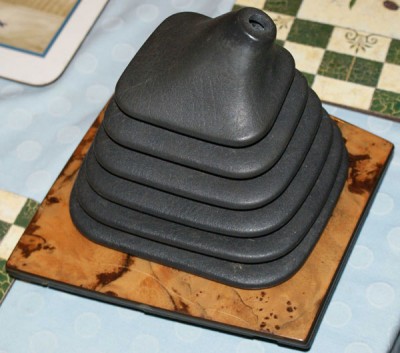

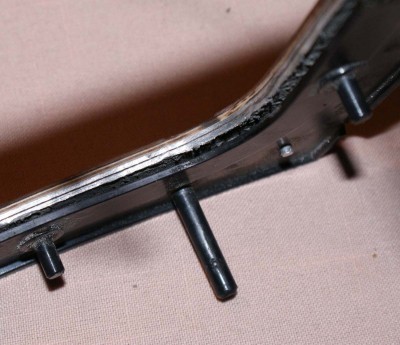

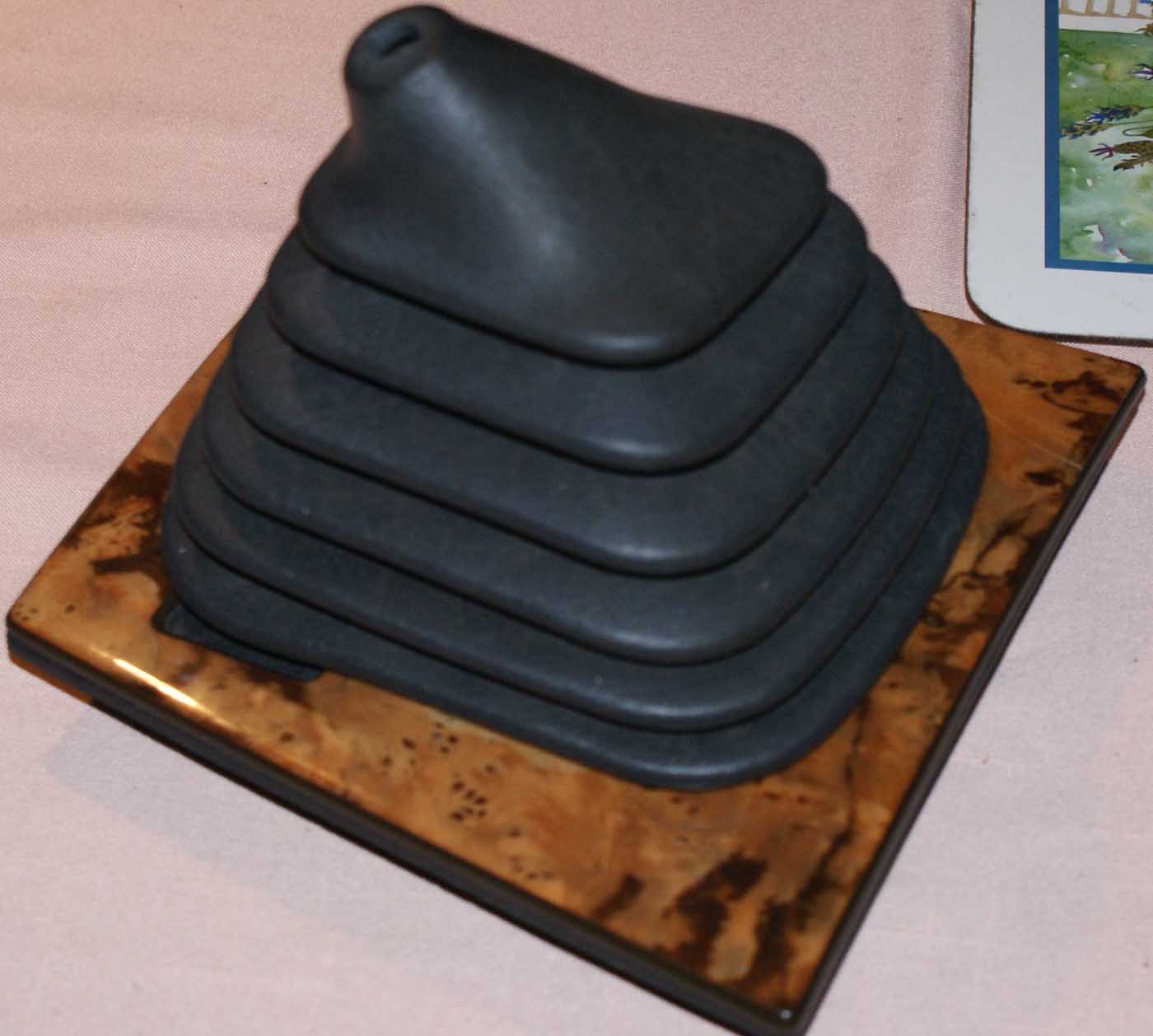

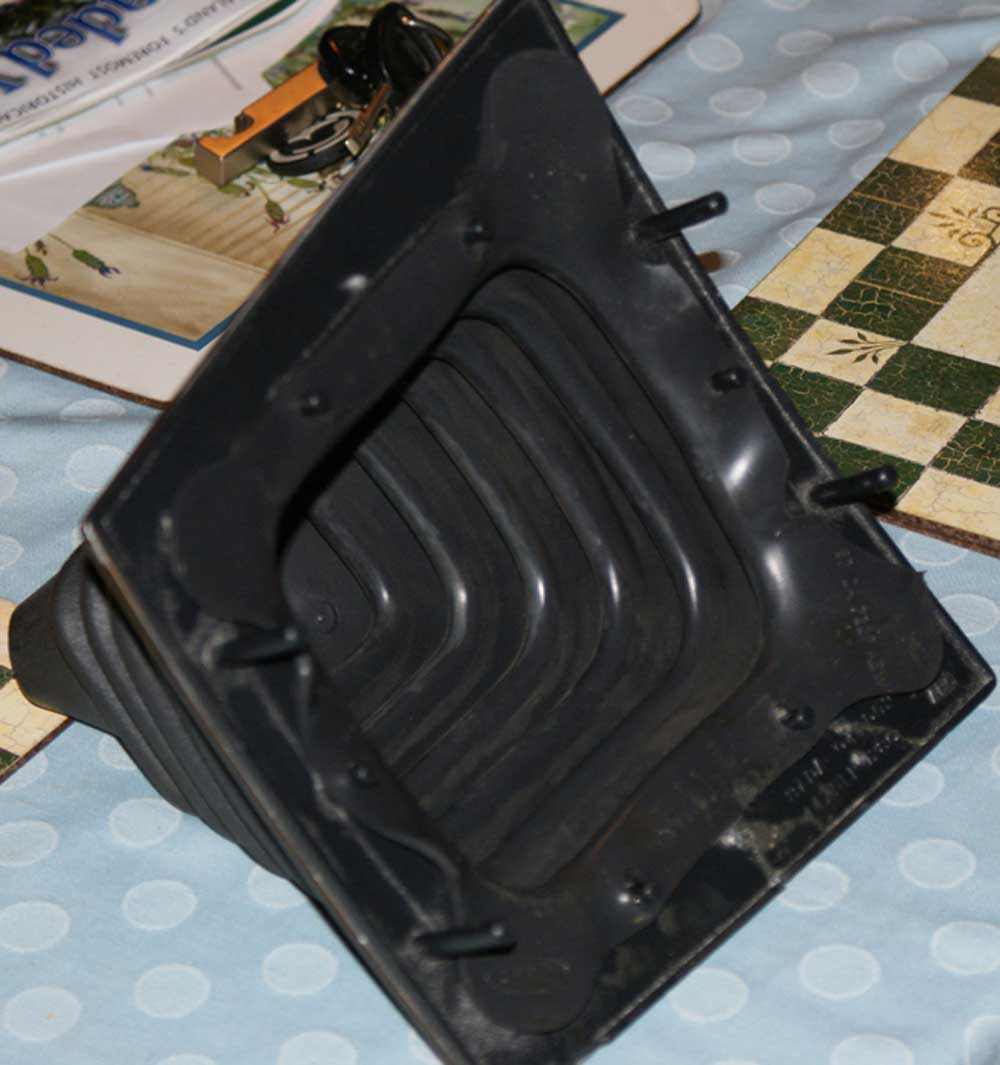

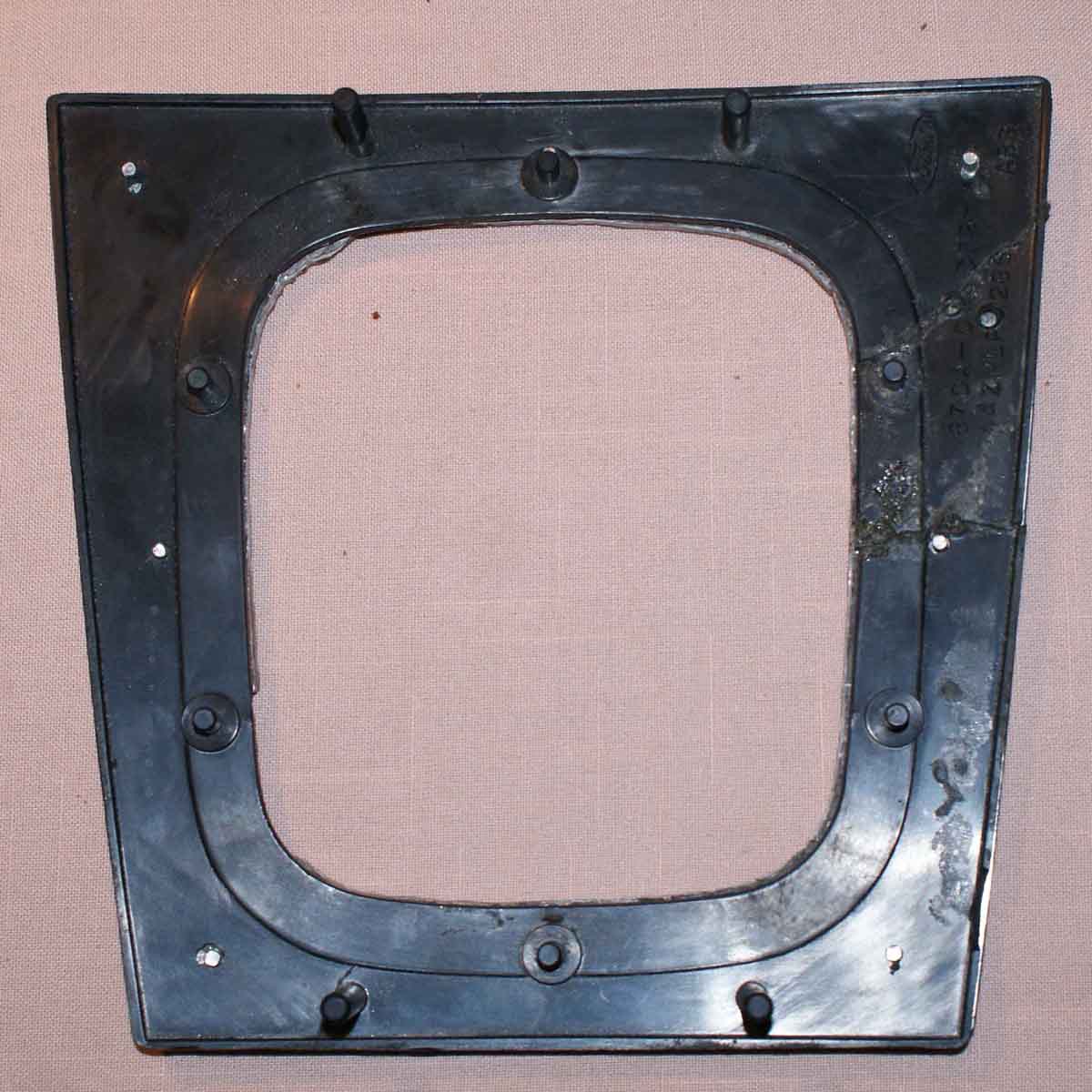

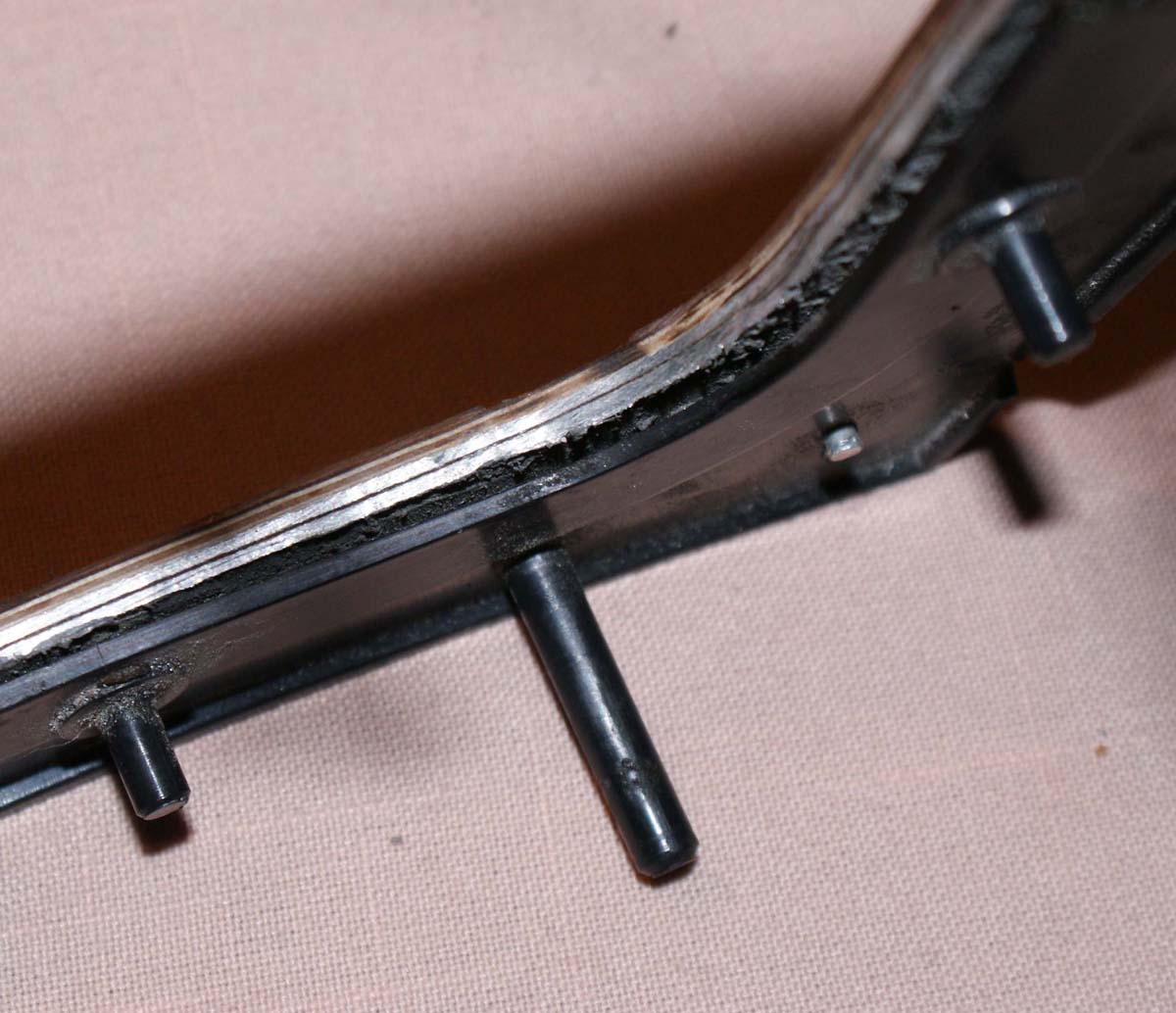

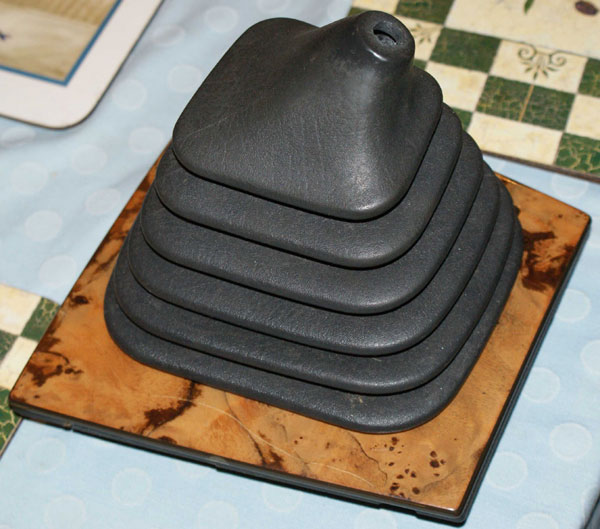

DSC00386.JPG [ 102.47 KiB | Viewed 34 times ]
