 Post subject: Intake manifold
Posted: Thu Nov 22, 2012 10:00 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

I am looking at upgrades for the intake manifold on my fg, allowing for a potential turbo setup.

I was wondering what people have done DIY style, and also if anyone knows if the intake dimensions are similar across the different models of falcon. I know there are people putting fg manifolds on their N/A sixes, I was thinking of modifying older series (cast) manifolds to suit my fg... But yeah, just wanted to know what my options were apart from $1000 after market setups...



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: Intake manifold
Posted: Fri Nov 23, 2012 8:23 am
Getting Side Ways
Offline
User avatar

Posts: 901

Joined: 28th Apr 2011

Gallery: 18 images

Ride: 1997 EL XR6

Power: 180 rwkw

Location: Melbourne
VIC, Australia

Could get the stock one ported, got my EL one done for $350...



_________________

MGW Short Throw Shifter, CVE Cam, CVE Head, SS Big Mouth Air Intake, Pacemaker Headers, 3" Exhaust, 3" Varex, 3" Cat, 19" Silver Agents, EMS Stinger 4424, 42lb Injectors and Walbro 255lb Fuel Pump

Next: Pacemaker Comps, 6 Individual Throttle Bodies, ICE Coil and ignition

Top
 Profile


 Post subject: Re: Intake manifold
Posted: Fri Nov 23, 2012 10:14 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

if your going to go turbo, just use the fg turbo manifold its a cast log style manifold..

http://www.google.com.au/imgres?um=1&hl ... ,s:0,i:174
Top
 Profile


 Post subject: Re: Intake manifold
Posted: Fri Nov 23, 2012 11:04 am
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

Well an fg one would be ideal, but short of getting one direct from ford. They are difficult to find second hand...



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: Intake manifold
Posted: Fri Nov 23, 2012 11:46 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

well if cost is an issue, just use a bf xr6t manifold (bbm with no butterflies).
otherwise there are options like nizpro, plazmaman, snort or custom made type plenums but your still looking at $1200-$1500 just for the upper manifold..

slightly different car but i have kept the std operating bbm on my au and on my ed and still made the same power as cars with custom plenums..

if your going to turbo your fg, be prepaired and be willing to spend large amounts of money on parts, reliable quality turbo s**t is not cheap !!!
Top
 Profile


 Post subject: Re: Intake manifold
Posted: Fri Nov 23, 2012 1:38 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

Yeah I'm a tight a** lol na just an apprentice, trying to do what I can as cheap as possible. But like you said, without drastically sacrificing quality (and therefore reliability) it just can't be done on the cheap. I'm up for a ZF and LSD. So there's $3000... It's not a cheap exercise no matter how you do it...

Umm BA/BF <--> FG are interchangeable (swapping bolts - as lengths are different), but any other series? Eg the e series log manifolds? Or are they way too different to be able to fit...

And really silly question... BBM? Tried googling it so I didn't have to ask, but just came up with heaps of blackberry crap...



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: Intake manifold
Posted: Fri Nov 23, 2012 2:21 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 849

Joined: 3rd Jan 2011

Gallery: 1 images

Ride: Subaru Liberty RX Wagon MY03

Location: North Richmond
NSW, Australia

BBM = Broadband Manifold. There are butterfly valves in them to change the length of the intake as engine speed increases. It is in long mode (valves open or closed???) for low RPM low down torque and then as engine speed increases, this length is too restrictive, so the valves are actuated to the short mode.




_________________

Current ride: MY03 Liberty RX Wagon
EBII S-XR6, Now 5 speed. Moved on to greener pastures...

Top
 Profile


 Post subject: Re: Intake manifold
Posted: Fri Nov 23, 2012 2:35 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

long runners, low rpm= closed making the air take the long path
short runners, high rpm= open letting the air flow through short and long paths...
Top
 Profile


 Post subject: Re: Intake manifold
Posted: Fri Nov 23, 2012 2:48 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

Well there's my learn something every day fact :) cheers guys :)



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: Intake manifold
Posted: Mon Nov 26, 2012 8:40 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

Getting a very cheap intake from an EA/EB/ED...
Going to see if I can modify it to suit my fg, cut the runners and weld them back on at the correcting spacing to suit the fg. I'm also assuming there will need to be modification to suit the injectors/fuel rail. Big job. But shouldn't cost much, just time and if it doesn't work out... No big lose...

Though still looking for a b/fg series manifold like we've discussed above. But I thought I couldn't go wrong with this for a bit of stuff around. Should keep me occupied at least.



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: Intake manifold
Posted: Mon Nov 26, 2012 8:42 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

Oh, btw can someone point me in the direction of someone that might know more regarding the dimensions? Eg someone that makes after market plenums on here. I was going to CNC mill up a mock flange to use as a jig, but yeah just need to centre to centre spacing, and flange bolt details if possible.



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: Intake manifold
Posted: Mon Nov 26, 2012 8:53 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

that log manifold is going to give you so many dramas its not funny..

what are you going to do about the ac pump hitting the throttle body??
in e series eg fitting a log to ef/el or xh the ac pump is lowered an inch or 2 to clear the low throttle body, need to make provisions for b series t map sensor. ect.

pissing in the wind if you ask me, you mention you want a turbo in the future, you would still be better off just using the fg n/a manifold, i guarentee it will still make more power fitting a turbo using the n/a manifold over the butchered eb log manifold..

sorry to say but it seems like your ruining a perfectly good fg..
Top
 Profile


 Post subject: Re: Intake manifold
Posted: Mon Nov 26, 2012 9:11 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

Don't be sorry for saying that... If I didn't want your opinion I wouldn't be posting it on here for you to give your opinion. Your opinion is very much appreciated...

I was going to modify it so that the 'log' was positioned higher, more flat out from the ports rather then dipped down (if you understand what I mean). I was thinking I would be pissing into the wind with injector/fuel rail situation, but yeah... If you think it's just going to be a massive nightmare... Then I won't worry... I'll just polish them and give them to a mate for Christmas lol



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: Intake manifold
Posted: Mon Nov 26, 2012 9:15 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

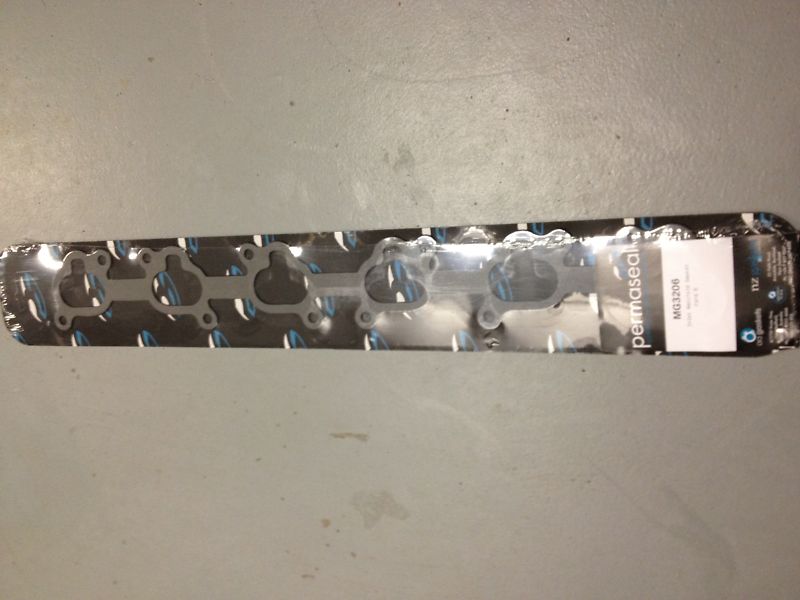

Barra Motors have oval intake ports, not round like the E series/AU. Bolt pattern is also wrong.
