5.0L ignition system upgrade with MSD components????????????



Page 2 of 2 [ 26 posts ] Go to page Previous  1, 2


Posted: Sat Jul 19, 2008 2:31 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 741

Joined: 29th May 2007

Ride: EF XR8 347

Power: 232 rwkw

Location: Perth
WA, Australia

diggin up again... where wo uld one proceed to mount a 6A module under an E-Series bonnet? I'm lookin fo ra decent place to mount mine.



_________________

347 XR8 Build Thread

Top
 Profile


Posted: Sat Jul 19, 2008 2:38 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

s-tranzor wrote:
diggin up again... where wo uld one proceed to mount a 6A module under an E-Series bonnet? I'm lookin fo ra decent place to mount mine.


Down near your where your airbox once was, seeing as though its gone and a pod now lives there, that should have cleared up some room.
I mounted mine near the passenger side strut tower, only problem is it can get quite exposed to moisture up there so i think i'll be moving it if i change my airbox set-up.

Jeff



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


Posted: Sat Jul 19, 2008 11:30 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Cannot go too far wrong with one of these..
http://www.jegs.com/p/Mallory/750026/10002/-1

http://www.cranecams.com/index.php?show ... 5&prt=1967

http://www.horsepowerinabox.com/hpiab2/category34_1.htm



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Sun Jul 20, 2008 8:57 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 291

Joined: 5th Nov 2004

Ride: EL GT - T2 TS50

Location: Cairns
QLD, Australia

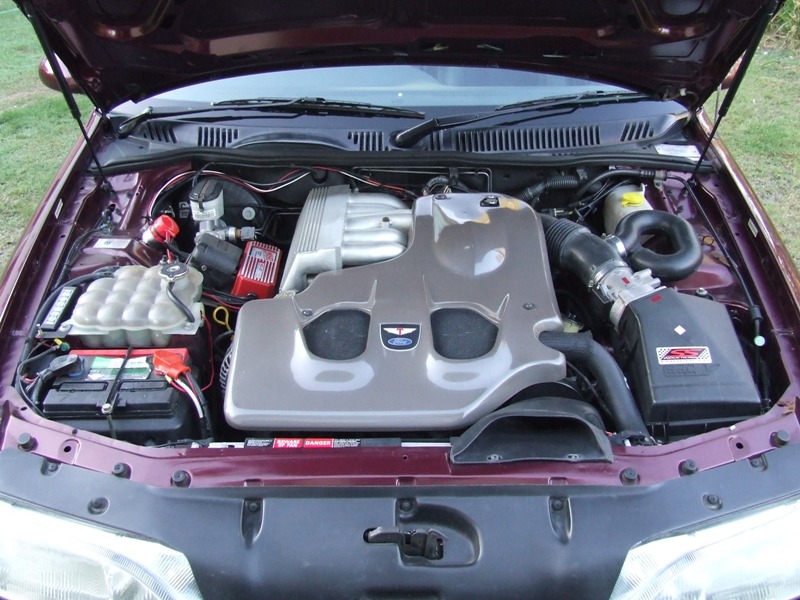

I made a little plate up for mine





Attachments:
DSCF0694_r.jpg [ 154.59 KiB | Viewed 845 times ]
Top
 Profile


Posted: Sun Jul 20, 2008 9:09 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

Drooooolllllllllllllllllllllllll EL GT arhhhhhhhhhhhhhhhhhhhhhh

I want one.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Mon Jul 21, 2008 11:41 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 741

Joined: 29th May 2007

Ride: EF XR8 347

Power: 232 rwkw

Location: Perth
WA, Australia

That looks so awesome haha thats also what im considering now, making a mounting plate and bolting it to the side of a strut tower. :)



_________________

347 XR8 Build Thread

Top
 Profile


Posted: Tue Jul 22, 2008 8:50 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 363

Joined: 7th Feb 2007

Ride: BLOWN 347 EB GT/ BF XR6 TURBO

Power: 345 rwkw

Location: eastern creek
NSW, Australia

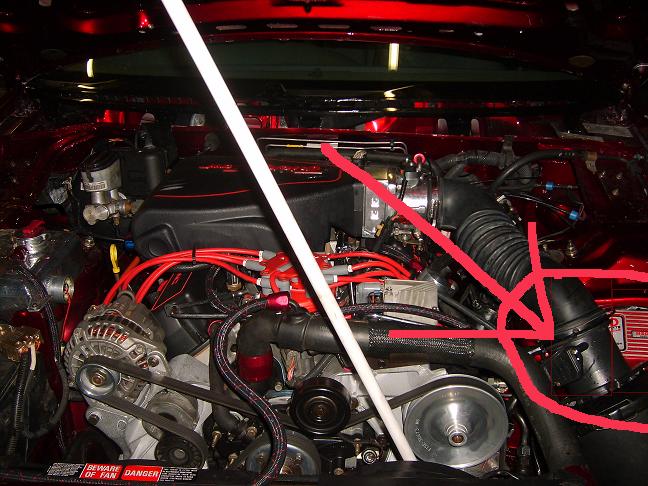

not a good spot on a hot day the expoy inside will melt and fry your computer as the tfi spout signal is connected to your tps return wire and anything over 5v will fry your computer

need away from direct heat source like exhaust and such its in the manual that came with the 6al box
maybe try here as its closer to the coil and tap into the abs power supply plug as yours will fail from heat were it is





Attachments:
msd.JPG [ 114.47 KiB | Viewed 757 times ]



_________________

MY CAR PLZ TAKE A LOOK forums/xtt909-update-t66227.html

DAZFAB MEMBERS ,,,,DAZZLE, EBI347, TERRORISTGHIA, TROYMAN ,SWC, XTT909

Top
 Profile


Posted: Tue Jul 22, 2008 10:22 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 732

Joined: 5th Nov 2004

Gallery: 1 images

Ride: LTDHO

Location: South eastern
VIC, Australia

I'm interested to hear about anyone who has used it with forced and over 10 PSI
Top
 Profile


Posted: Wed Jul 23, 2008 1:56 pm
Smokin em up
Offline

Age: 64

Posts: 225

Joined: 9th Nov 2004

Ride: EDV8 Fairmont

Location: perth
WA, Australia

I ran with MSD gear, namely dizzy #8456, HVCII coil #8253, Digital 6 ignition #6520 & TFI harness adapter & ford factory tacho adapter. Ran great!

Have changed things & now running individual coils / cam sensor & crank sensor & Motec M800.

The MSD stuff is up for grabs.

Richie



_________________

1993 ED F/mont 5.0L, Auto, Edelbrock RPM's, CompCam XE276HR, Crane Gold Race 1.7's, Edelbrock Performer, 75mm T/B, MAP, 42lb , GenIII coils, PH4000's , Twin 2.5", Thermos & underspeeds, 3.7 LSD, 2800 stall and MoTec M800, 372fwhp @ 5400rpm & 387 ft-lb @ 4400 rpm.

Top
 Profile


Posted: Thu Jul 24, 2008 8:02 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 291

Joined: 5th Nov 2004

Ride: EL GT - T2 TS50

Location: Cairns
QLD, Australia

XTT909 wrote:
not a good spot on a hot day the expoy inside will melt and fry your computer as the tfi spout signal is connected to your tps return wire and anything over 5v will fry your computer

need away from direct heat source like exhaust and such its in the manual that came with the 6al box
maybe try here as its closer to the coil and tap into the abs power supply plug as yours will fail from heat were it is


Its been there for 2 years now........... its a 6T sitting on rubber mounts, with HPC coated extractors, there is as cool as anywhere under there, especially with holes in the bonnet.
Top
 Profile


Posted: Fri Jul 25, 2008 11:30 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 741

Joined: 29th May 2007

Ride: EF XR8 347

Power: 232 rwkw

Location: Perth
WA, Australia

It would have to get pretty close if not directly in contact with the exhaust to melt the internal epoxy filling and enamel anyhow. Where it is there would be ok. If wiring looms can survive in proximity to exhaust the module can. It's cool how you've managed to fit the module behind the BA airbox though XTT909.



_________________

347 XR8 Build Thread

Top
 Profile
