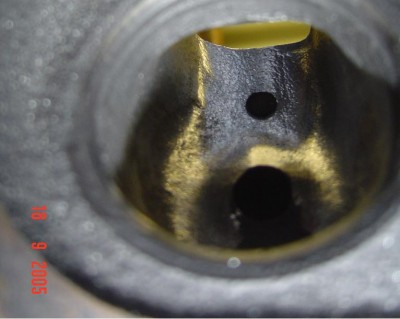

Ive got a spare set of E7TE heads, so just for s**t and giggles I have decided to port and polish them. Here are some pics so far





Attachments:
worked IN port comparison.JPG
worked IN port comparison.JPG [ 109.79 KiB | Viewed 40 times ]
std IN port.JPG
std IN port.JPG [ 159.04 KiB | Viewed 34 times ]



_________________

Dima, Mitch & Jay's RPD

Top
 Profile


Posted: Wed Sep 28, 2005 3:40 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Hi Jaysen,

Whilst you're obviously well equipped and knowledgable, thought you might like to see how the yanks take to the mustang heads:

http://www.armstrong.edu/ron/auto/e7.html

Cheers. And keep the pics coming.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Thu Sep 29, 2005 12:02 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

THey would make good weights in a home gym..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Thu Sep 29, 2005 12:27 am
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

hey, good stuff. i'm havin a crack at the same thing myself. here are some links that i'm using for inspiration
http://www.workmonster.com/index.htm
http://hometown.aol.com/valakoraceheads ... index.html
http://hometown.aol.com/valakoraceheads/page11.html
http://www.diyporting.com/ (see project e7te & parts 1-4 + update)
i'll see if i can post some pics of the first port tomorrow.



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)

Top
 Profile


Posted: Thu Sep 29, 2005 4:34 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1037

Joined: 5th Nov 2004

Gallery: 1 images

Ride: V8 T5 Fairmont & BA XR6T

Location: Sydney
NSW, Australia

EBXR8380 wrote:
THey would make good weights in a home gym..


I knew I would encourage comments like this :D



_________________

Dima, Mitch & Jay's RPD

Top
 Profile


Posted: Thu Sep 29, 2005 4:49 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1037

Joined: 5th Nov 2004

Gallery: 1 images

Ride: V8 T5 Fairmont & BA XR6T

Location: Sydney
NSW, Australia

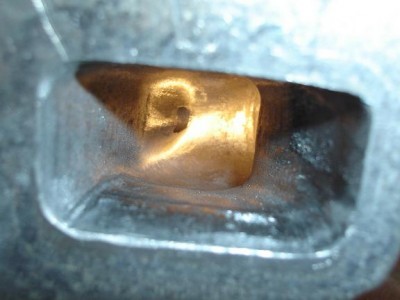

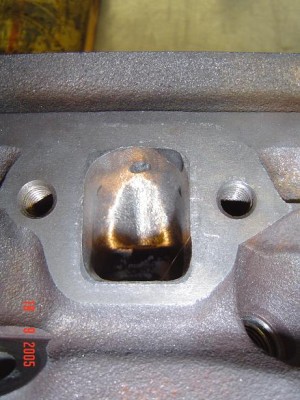

here is what I have done to the exhaust ports





Attachments:
DSC01271.JPG [ 29.76 KiB | Viewed 44 times ]
ported ex2.JPG
ported ex2.JPG [ 43.35 KiB | Viewed 46 times ]
ported ex1.JPG
ported ex1.JPG [ 58.81 KiB | Viewed 45 times ]



_________________

Dima, Mitch & Jay's RPD

Top
 Profile


Posted: Thu Sep 29, 2005 5:26 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1037

Joined: 5th Nov 2004

Gallery: 1 images

Ride: V8 T5 Fairmont & BA XR6T

Location: Sydney
NSW, Australia

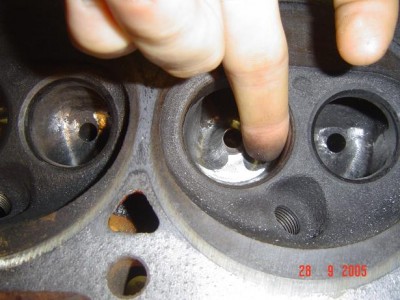

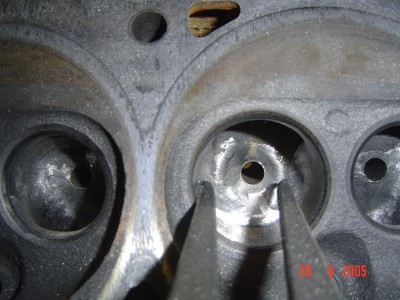

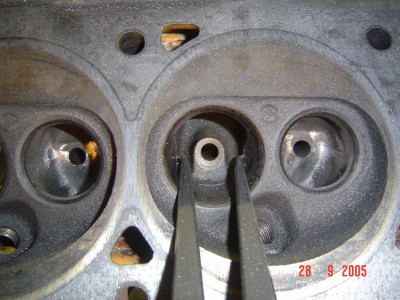

here is a better idea of the difference in width of the intake bowl

NB: the valve stem is 0.340" dia





Attachments:
finger 3.JPG
finger 3.JPG [ 49.03 KiB | Viewed 43 times ]
finger.JPG [ 51.94 KiB | Viewed 46 times ]



_________________

Dima, Mitch & Jay's RPD

Last edited by Jaysen on Thu Sep 29, 2005 5:32 am, edited 1 time in total.

Top
 Profile


Posted: Thu Sep 29, 2005 5:30 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1037

Joined: 5th Nov 2004

Gallery: 1 images

Ride: V8 T5 Fairmont & BA XR6T

Location: Sydney
NSW, Australia

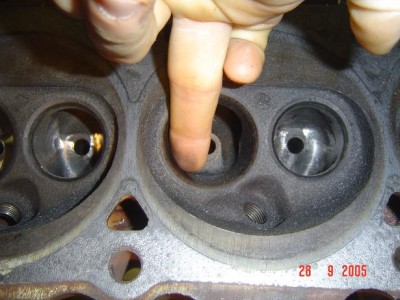

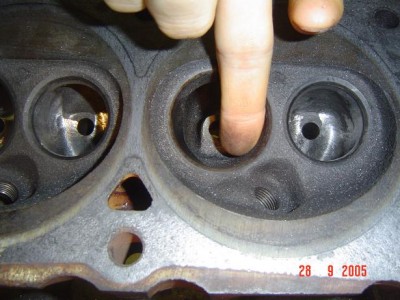

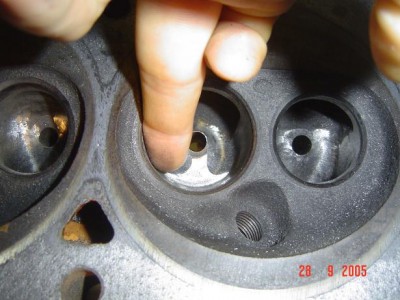

last pic, Im aiming for an intake port size of approx 150cc





Attachments:
finger 2.JPG
finger 2.JPG [ 51.56 KiB | Viewed 48 times ]
finger 4.JPG
finger 4.JPG [ 48.58 KiB | Viewed 46 times ]



_________________

Dima, Mitch & Jay's RPD

Top
 Profile


Posted: Thu Sep 29, 2005 11:25 am
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

EBXR8380 wrote:
THey would make good weights in a home gym..


Better to make weights out of these than home port a set of AFR's and make a set of weights out of them

a) because they cost more
b) they aint as heavy LOL



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Thu Sep 29, 2005 4:27 pm
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

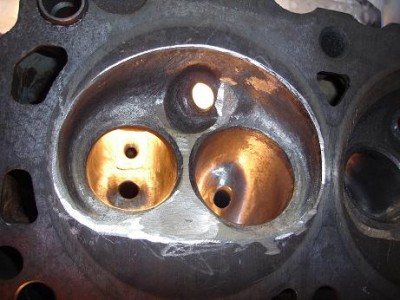

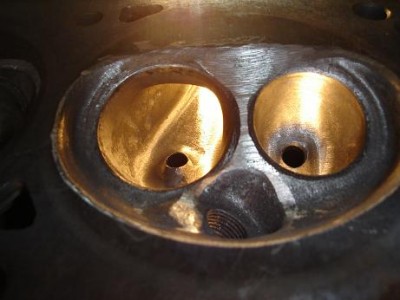

ok, here is my 1st effort on the intake. these have only been roughed out with a rotary file so far (note the un-smoothed gouges in the intake bowl). They still need grinding, sanding & polishing, as well as 1.94" & 1.6" valve seats cut. The deck face will also be shaved to gain some compression. the main aim is to gain airflow all the way to .550" lift (or thereabouts)





Attachments:
File comment: sleeving the pushrod hole on the outboard wall opens up the port considerably
sam's 1st e7 sleve a sml.JPG
sam's 1st e7 sleve a sml.JPG [ 28.03 KiB | Viewed 42 times ]
File comment: just ignore the filings on the port floor
sam's e7 1st intake sml.JPG
sam's e7 1st intake sml.JPG [ 26.09 KiB | Viewed 40 times ]
File comment: i'm trying to go as far left of pic in the intake bowl as i can without finding water
sam's 1st e7 chamber a sml.JPG
sam's 1st e7 chamber a sml.JPG [ 21.89 KiB | Viewed 46 times ]



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)

Top
 Profile


Posted: Thu Sep 29, 2005 10:33 pm
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

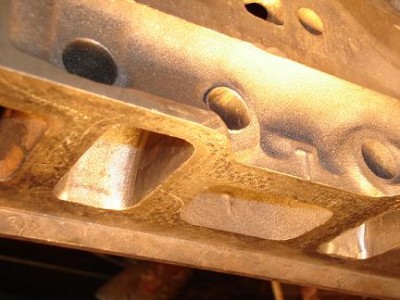

Here is the exhaust. once again, only rotary filed so far. at the exit, the floor and roof are about where they started, but the shape has been altered greatly. the added volume came from widening, especially the radius of the floor.





Attachments:
File comment: measured 56cc. much bigger than stock 44cc
sam's 1st e7 exhaust port sml.JPG
sam's 1st e7 exhaust port sml.JPG [ 16.57 KiB | Viewed 47 times ]
sam's 1st e7 chamber b sml.JPG
sam's 1st e7 chamber b sml.JPG [ 32.46 KiB | Viewed 46 times ]



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)

Top
 Profile


Posted: Sat Oct 01, 2005 4:56 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2376

Joined: 5th Nov 2004

Gallery: 3 images

Ride: Shell with 4 wheels

Location: Richmond,
NSW, Australia

nice work there jaysen keep up the good work i say top job.

EBXR8380 wrote:
THey would make good weights in a home gym..


Dude not everyone has money like some got to give him credit for trying something hey
Top
