EB 347 stroker Question



Page 2 of 2 [ 28 posts ] Go to page Previous  1, 2


Posted: Sun Aug 17, 2008 9:12 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 741

Joined: 29th May 2007

Ride: EF XR8 347

Power: 232 rwkw

Location: Perth
WA, Australia

for the amount of money spent on getting a stocker EB motor stroked to 347 with all that fruit I'd say something is bad with the engine. 50,000k old? for 6000? nah id steer clear or get it looked at by a specialist. Maybe its had a bad tune which has screwed it. on the other hand, might just be a component that was overlooked in the rebuild thats holdin it back. My 347 with GT40p heads makes 236rwkw. If it's in good nick it certainly is a bargain but i'd very a bit sus. And yeah it should be making way more than just 200rwkw i reckon.

edit: by comparison, my 347 cost $10,000 to get up and running and that was just for the engine.



_________________

347 XR8 Build Thread

Top
 Profile


Posted: Sun Aug 17, 2008 10:04 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 13th Nov 2007

Location: Melbourne
VIC, Australia

What are the specs of your cam -tranzor?
Top
 Profile


Posted: Sun Aug 17, 2008 11:55 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

I'd like to see what it's doing everywhere else in rev range in both power and torque?
Is the link ecu running the whole show....maybe there is no MAF already?
Is that cam spec with the 1.7 rocker ratio factored in? Because power wise it sounds about right with that little cam and it probably only has a performer intake.
Exactly what are the injectors? "Petro-ject" is meaningless.
Top
 Profile


Posted: Mon Aug 18, 2008 12:05 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

I think you guys are forgetting one major thing. A 347 stroker doesnt always give major gains over a 5.0L in top end power. Sure it should make more HP up top but its usually only around 20rwhp. A 347's major gain is in torque, you'll find this car will have bucketloads more torque than a 5.0L with the same mods.
Dont always be thinking about peak power,especially on a chassis dyno, at the end of the day its just a wank factor.
What dyno was the car ran on? Has everyone that is quoting rear wheel HP/KW numbers here ran their car on the same dyno as the car in question?

The car in question is making 272rwhp. Which isnt too bad at all.
There are many factors which could be limiting its power output.
He says its running Edelbrock heads. These may only be the Performer 5.0's with a 170cc runner, theres a restriction on peak power for a 347.
It says Edelbrock manifold, what manifold? It may be a Performer 5.0. Another limiting factor for peak HP on a 347.
That cam is very mild for a 347 and if the lift is at the valve with the 1.7's then there you go, another limiting factor.
What size injectors?
What size MAF?
What headers? Primary size etc?
What exhaust?
What comp ratio?

Theres just too many factors involved. I wouldnt by any means say that the engine is stuffed. All of the above are possibly a restriction of peak power but would make for a damn torquey street car.

Jeff



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


Posted: Mon Aug 18, 2008 1:15 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 13th Nov 2007

Location: Melbourne
VIC, Australia

Hey, thanks for all the replys guys, very informative. I'm not too sure on the size of the injectors, i'll have this information mid-week. Its got pacie headers, again not sure on the size. Exhaust is a 2.1/4" into a single 2.5", not sure on how many mufflers but i'd assume there are a few because the car is pretty quite.

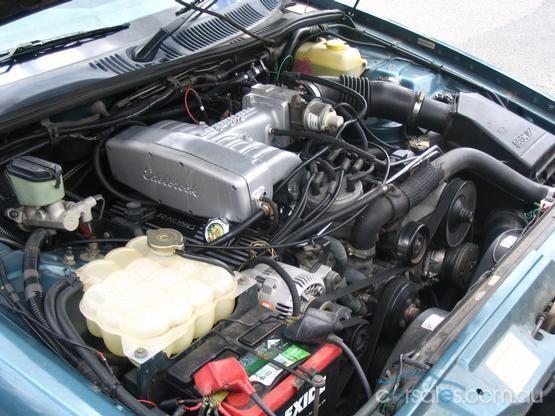

Here is a pic of the engine bay





Attachments:
EB.jpg [ 51.5 KiB | Viewed 1125 times ]
Top
 Profile


Posted: Tue Aug 19, 2008 2:58 pm
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

Do a compression test and go from there.



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
 Profile


Posted: Tue Aug 19, 2008 7:45 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 13th Nov 2007

Location: Melbourne
VIC, Australia

green car wrote:
Do a compression test and go from there.


This is most likely a silly question but what will a compression test reveal?
Top
 Profile


Posted: Tue Aug 19, 2008 8:15 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 661

Joined: 14th Jan 2007

Ride: T1 TE50 P01

Location: Perth NoR
WA, Australia

Is it just me or is that thing running the standard EGR plate? And possibly the standard MAF unit?

I think there is more in that combo, especially seeing as that camshaft is the largest 'off the shelf' that Crow do. However without seeing the car and what parts have been used its impossible to say where the problem lies. Do you have any dyno graphs for the engine?



_________________

TE50 T1 P01
200kw 5.0L, T5, Koni shocks, King S/Lows, Whiteline swaybars, DBA 4000 rotors, Acron CAI, 80mm Accufab TB, Difillipo headers & cats, twin 2.5" & Aerochambers, 3.91 LSD.

To Come:
Long rod 306, TFS 11R 205cc heads, SHP camshaft, 1.72 R/R, ported TFS Box R, 400hp NX SHO kit...

Top
 Profile


Posted: Tue Aug 19, 2008 8:19 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

BOTTLEDUP wrote:
Is it just me or is that thing running the standard EGR plate? And possibly the standard MAF unit?


EGR plate looks like a BBK unit, with the two raised sections on the top. With this fitted i'd be checking for full throttle.
MAF is definately bigger than the std 55mm unit, looks like it might just be a blank type as if its running a MAFless tune already.



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


Posted: Tue Aug 19, 2008 8:43 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 13th Nov 2007

Location: Melbourne
VIC, Australia

BOTTLEDUP wrote:
Is it just me or is that thing running the standard EGR plate? And possibly the standard MAF unit?

I think there is more in that combo, especially seeing as that camshaft is the largest 'off the shelf' that Crow do. However without seeing the car and what parts have been used its impossible to say where the problem lies. Do you have any dyno graphs for the engine?


At the moment i dont, however i will have one at the end of this week (hopefully).
Top
 Profile


Posted: Tue Aug 19, 2008 8:44 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 13th Nov 2007

Location: Melbourne
VIC, Australia

XH5LWEPN wrote:
BOTTLEDUP wrote:
Is it just me or is that thing running the standard EGR plate? And possibly the standard MAF unit?


EGR plate looks like a BBK unit, with the two raised sections on the top. With this fitted i'd be checking for full throttle.
MAF is definately bigger than the std 55mm unit, looks like it might just be a blank type as if its running a MAFless tune already.


Sorry, what do u mean, checking at full throttle?
Top
 Profile


Posted: Tue Aug 19, 2008 8:49 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

Fairmont_5litre wrote:
Sorry, what do u mean, checking at full throttle?


Remove the intake piping between MAF and T/B.
Have a mate sit in the car, with the engine shut OFF, and put his foot flat on the throttle while you look into the T/B and make sure the butterfly is going all the way to WOT, i.e 90degrees.



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


Posted: Tue Aug 19, 2008 9:18 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 13th Nov 2007

Location: Melbourne
VIC, Australia

XH5LWEPN wrote:
Fairmont_5litre wrote:
Sorry, what do u mean, checking at full throttle?


Remove the intake piping between MAF and T/B.
Have a mate sit in the car, with the engine shut OFF, and put his foot flat on the throttle while you look into the T/B and make sure the butterfly is going all the way to WOT, i.e 90degrees.


Thanks for that mate, i'll try that when i pick it up..

By the way, what type of cam do you think would be more suited to this application?
Top
 Profile
