few questions about issues with my 5lt change over



Page 1 of 1 [ 8 posts ]


 Post subject: few questions about issues with my 5lt change over
Posted: Wed Apr 20, 2011 2:28 am
Parts Gopher
Offline

Age: 38

Posts: 59

Joined: 7th Aug 2010

Ride: 1996 NF ford fairlane v8

Location: melbourne
VIC, Australia

hi guy
i am currently replacin the 5lt in my NF fairlane. all the info can be found here
ford-v8-f2/swappin-my-nf-5lt-with-a-second-handy-i-need-a-little-help-t102261.html

I just have a few questions that have got me a little stumped.

have just mounted my engine on an engine crane but it seems a little wobbly? have posted a pic to show how i bolted it on.

Have stripped it down to the block and heads but have found the water jackets have a lot of rubbish in them. does anyone know if the darker stains would be oil from a leak in a gasket?
whats the best way to clean it all out?
how do i clean off the old intake gasket without it all fallin into the motor?

i seem to be having a bit of an issue gettin the power steering pump off the braket. any tips?

thanks guys its comming along i just want to make sure im not missin anythin.

any input appriceated japcrp





Attachments:

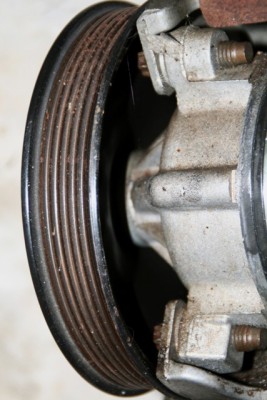

File comment: dam power steerin pump bolts!
100.JPG [ 89.13 KiB | Viewed 50 times ]
File comment: another pic of the rubbish in the water jacket
097.JPG [ 64.68 KiB | Viewed 40 times ]

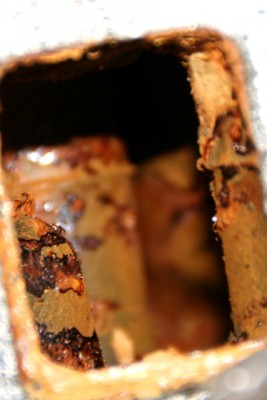

File comment: water jaket in the heads with alot of debrie and dark patches that im thinking may be oil from a gasket leak?
093.JPG [ 79.56 KiB | Viewed 34 times ]

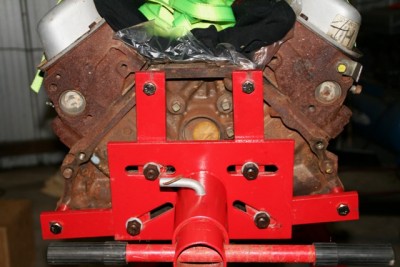

File comment: engine stand bolted onto the motor. is this right?
085.JPG [ 87.03 KiB | Viewed 38 times ]
Top
 Profile


 Post subject: Re: few questions about issues with my 5lt change over
Posted: Wed Apr 20, 2011 6:31 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

The rubbish in the water jackets looks like it'll clean out with a good flush, once the engine is up and running, wouldnt worry about it till then. The engine is mounted to the engine stand properley, but those engine stands are notourious for being crap with balance, especially when they have a 6 cyl or a V8 bolted to them, maybe add some reinforcement at the front? some strong timber should do.

Gab
Top
 Profile


 Post subject: Re: few questions about issues with my 5lt change over
Posted: Wed Apr 20, 2011 11:13 am
Parts Gopher
Offline

Age: 38

Posts: 59

Joined: 7th Aug 2010

Ride: 1996 NF ford fairlane v8

Location: melbourne
VIC, Australia

Gab1 wrote:
The rubbish in the water jackets looks like it'll clean out with a good flush, once the engine is up and running, wouldnt worry about it till then. The engine is mounted to the engine stand properley, but those engine stands are notourious for being crap with balance, especially when they have a 6 cyl or a V8 bolted to them, maybe add some reinforcement at the front? some strong timber should do.

Gab


thanks gab
will try to blow as much of it out with the compresser first and give it a good flush. was just a little worried that the deposits were oil.
japcrp
Top
 Profile


 Post subject: Re: few questions about issues with my 5lt change over
Posted: Wed Apr 20, 2011 11:34 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

Doesnt look like it to me, yeah blowing out with compressor is a good idea, even see what you can do with a rag and some WD40, petrol, degreaser etc

Gab
Top
 Profile


 Post subject: Re: few questions about issues with my 5lt change over
Posted: Wed Apr 20, 2011 5:38 pm
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1566

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

Has the engine been sitting for a while? as it looks rusty on the outside too.



_________________

NF Fairlane with 5.0 and 5 speed goodness!
ZD build thread under construction at post1136180.html#p1136180

Top
 Profile


 Post subject: Re: few questions about issues with my 5lt change over
Posted: Thu Apr 21, 2011 1:03 am
Getting Side Ways
Offline

Posts: 2091

Joined: 3rd Apr 2008

Ride: EF Fairmont, XG Ute

You need to remove the pulley off the pump before you can pull the pump off the bracket. I normally just remove them in one piece if need be, as in leave the pump on the bracket and just remove the bracket.
Top
 Profile


 Post subject: Re: few questions about issues with my 5lt change over
Posted: Thu Apr 21, 2011 3:16 pm
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1566

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

there is a thread running atm about this power steering pump stuff.



_________________

NF Fairlane with 5.0 and 5 speed goodness!
ZD build thread under construction at post1136180.html#p1136180

Top
 Profile


 Post subject: Re: few questions about issues with my 5lt change over
Posted: Wed Apr 27, 2011 1:14 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

The pics don't look all that bad at all, seen blocks a lot worse. As for the outside, Ford did stop painting engine blocks around the ef when it comes to the 6cyl, did they do that too with the v8? lol.

I have seen people talk about fitting a filter to the top rad hose so any crap left over after a rebuild get's caught in it before it clogs the radiator. Otherwise just flush the block as much as possible, then after its in & running for a bit, remove the radiator & reverse flush it......

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|
