 Post subject: My XR8 power XF Falcon
Posted: Fri Dec 30, 2005 8:27 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 320

Joined: 23rd Nov 2004

Ride: XHII XR8 Ute - Supercharged

Location: Perth
WA, Australia

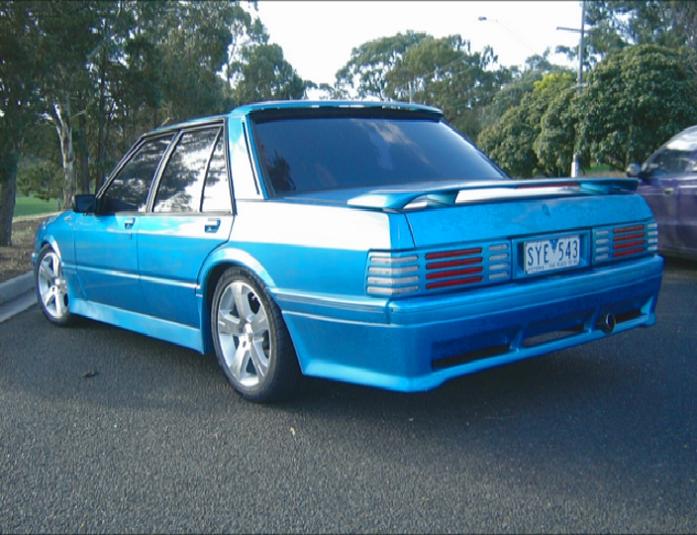

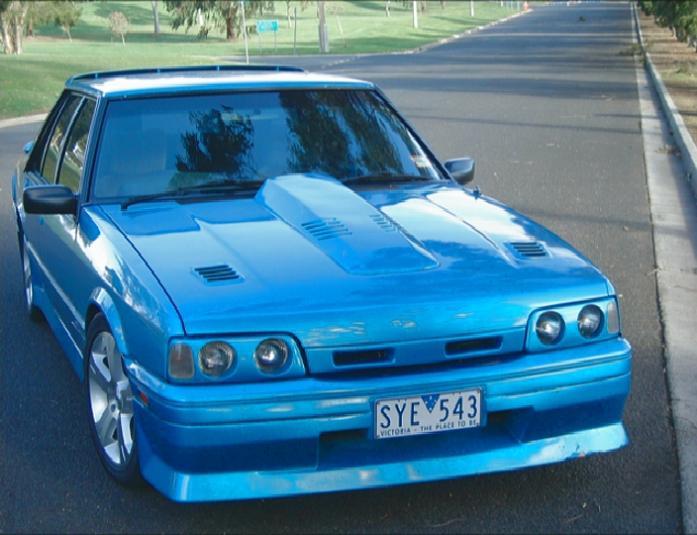

Thought i'd post up pictures of my XF. I finished this project a few months ago. I started with a XF Fairmont Ghia, white in colour, added a body kit (done by my uncle in Recliffe QLD), removed rust, had a respray in 'Blueprint' paint. This was a couple of years ago. It was still running the 250 crossflow, which was heavily modified - pumped out about 175rwhp. Not bad for N/A 250! Also had a 5 speed, and the LSD was done with 3.77 gears...

Earlier this year i blew the clutch. Sick of all the oil leaks and constant money put into the 250 - i sold it - picking up a donor car. It was a 97 model Series 2 XH XR8 ute. Was a very lucky find. (very similar motor to EL XR8)

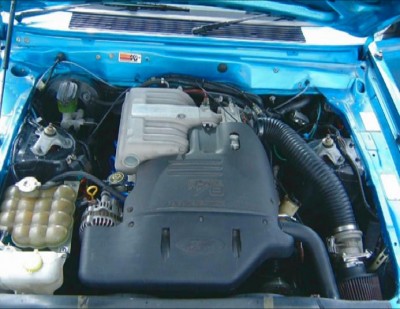

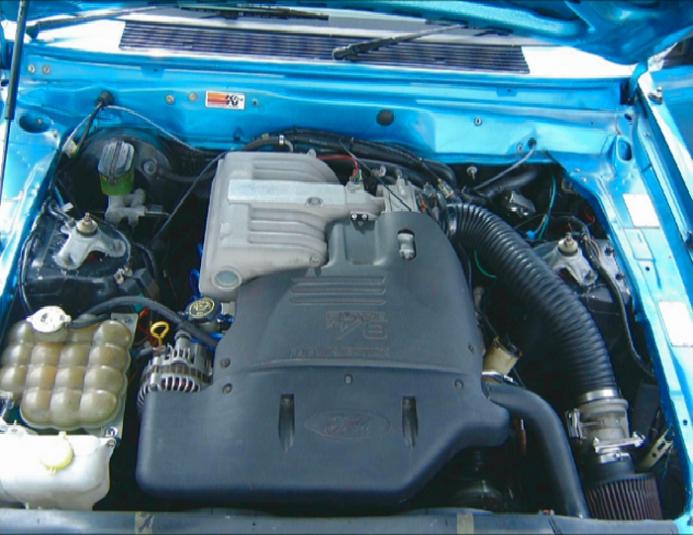

My car runs EEC V and all electronics from the ute, including smartlock. I also changed the steering columns over. No - i dont have rack and pinion - but it would be good! Used XR fuel pump in my XF tank, XY engine mounts. Engine dropped straight in. Had an issue with air con compressor hitting shock wall tower - so fixed that with a big hammer...
The only things i needed custom was gearbox crossmember (BTR is a bit longer than XF box) and custom extractors (they are hopeless so im getting new ones done)....

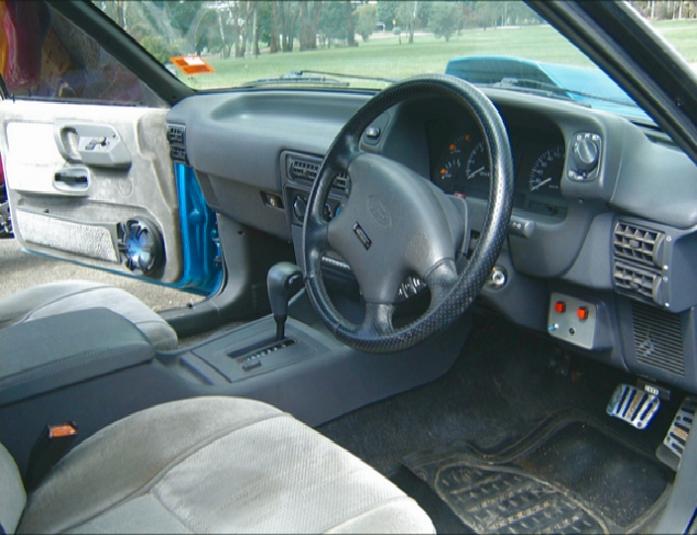

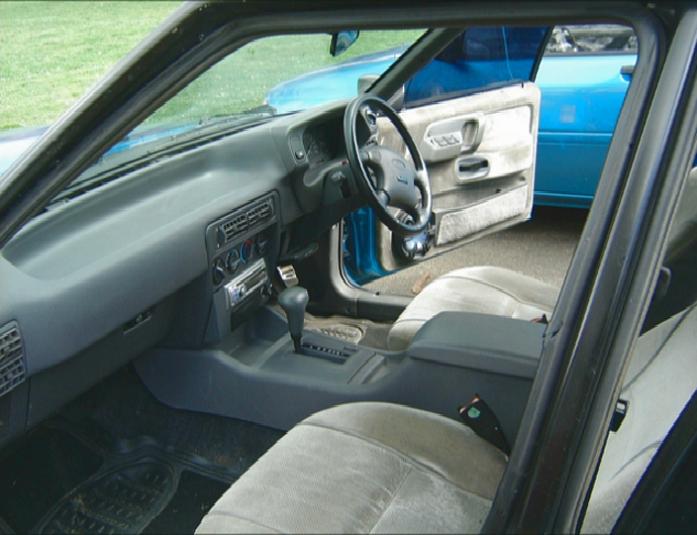

Im using XH dash now with EL fairmont cluster and XH centre console. It all bolted straight up. Also threw in some clear tail lights while i was at it.

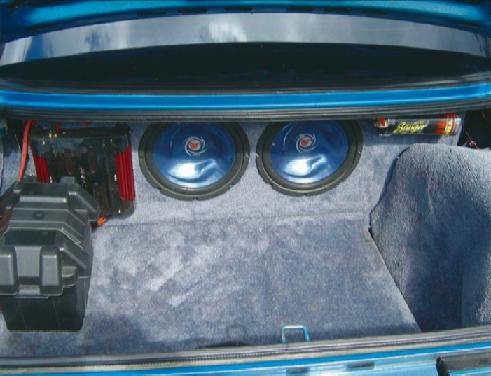

The car's got the usual stuff done, exhaust, pedders suspension, Alpine/mixed BIG stereo etc....
and of course the car is engineered and legal...

Ive been a member on this site for a while, but never got on it much until now. Theres a lot of useful info - and its good theres a heap of EF/EL V8 lovers on here!

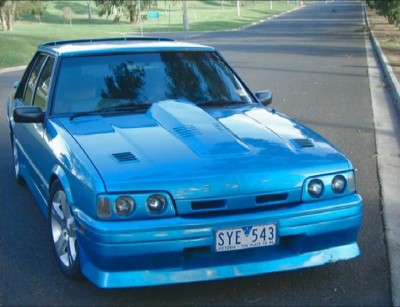

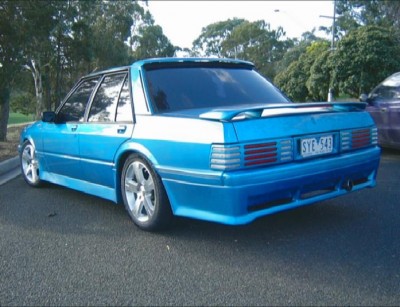

So anyway heres some pics - let us know what u think....
dont ask me how much ive spent i lost count ages ago :cry:





Attachments:
5898.jpg [ 63.33 KiB | Viewed 155 times ]
5896.jpg [ 53.86 KiB | Viewed 210 times ]
5894.jpg [ 30.83 KiB | Viewed 130 times ]



_________________

Old - XF with XH XR8 Driveline... http://www.fordmods.com/ford-v8-f2/my-xr8-power-xf-falcon-t20529.html
Current - XHII XR8 ute - Kenne Bell Supercharged - Build in progress

SUPERCHARGED XHII XR8 UTE - BUILD THREAD >http://www.fordmods.com/post1195532.html#p1195532

Top
 Profile


Posted: Fri Dec 30, 2005 8:32 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 320

Joined: 23rd Nov 2004

Ride: XHII XR8 Ute - Supercharged

Location: Perth
WA, Australia

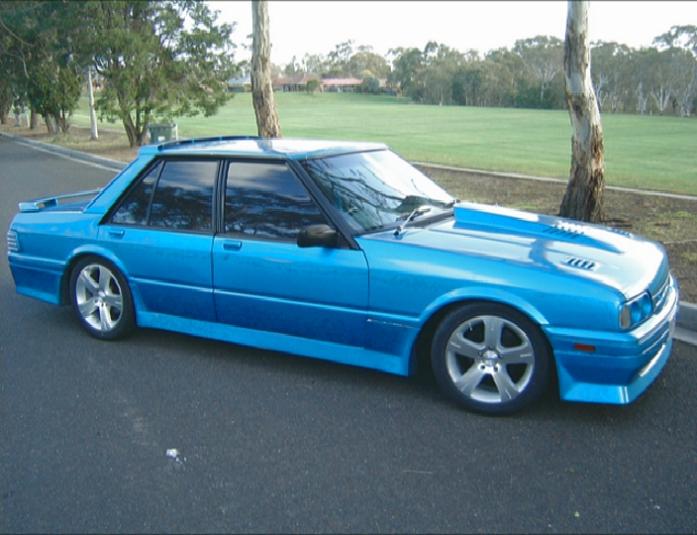

some more





Attachments:
5909.jpg [ 52.46 KiB | Viewed 191 times ]
5908.jpg [ 54.47 KiB | Viewed 133 times ]
5901.jpg [ 55.07 KiB | Viewed 177 times ]



_________________

Old - XF with XH XR8 Driveline... http://www.fordmods.com/ford-v8-f2/my-xr8-power-xf-falcon-t20529.html
Current - XHII XR8 ute - Kenne Bell Supercharged - Build in progress

SUPERCHARGED XHII XR8 UTE - BUILD THREAD >http://www.fordmods.com/post1195532.html#p1195532

Top
 Profile


Posted: Fri Dec 30, 2005 8:32 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

A quick glance at the middle picture I thought it was a VK commie!!!!! Sorry for the insult.

Car looks good though. Very nice paint job.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Fri Dec 30, 2005 8:32 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

Nice for an XF! Looks like some quality work has gone into it!



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Fri Dec 30, 2005 8:37 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 320

Joined: 23rd Nov 2004

Ride: XHII XR8 Ute - Supercharged

Location: Perth
WA, Australia

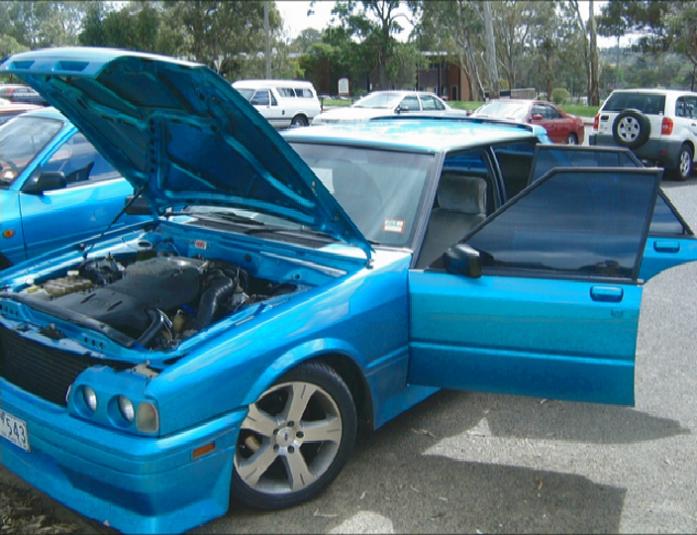

and more





Attachments:
5918.jpg [ 58.85 KiB | Viewed 269 times ]
5916.jpg [ 64 KiB | Viewed 144 times ]
5911.jpg [ 49.14 KiB | Viewed 152 times ]



_________________

Old - XF with XH XR8 Driveline... http://www.fordmods.com/ford-v8-f2/my-xr8-power-xf-falcon-t20529.html
Current - XHII XR8 ute - Kenne Bell Supercharged - Build in progress

SUPERCHARGED XHII XR8 UTE - BUILD THREAD >http://www.fordmods.com/post1195532.html#p1195532

Top
 Profile


Posted: Fri Dec 30, 2005 8:41 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

You going to get a cold air intake for that beast?

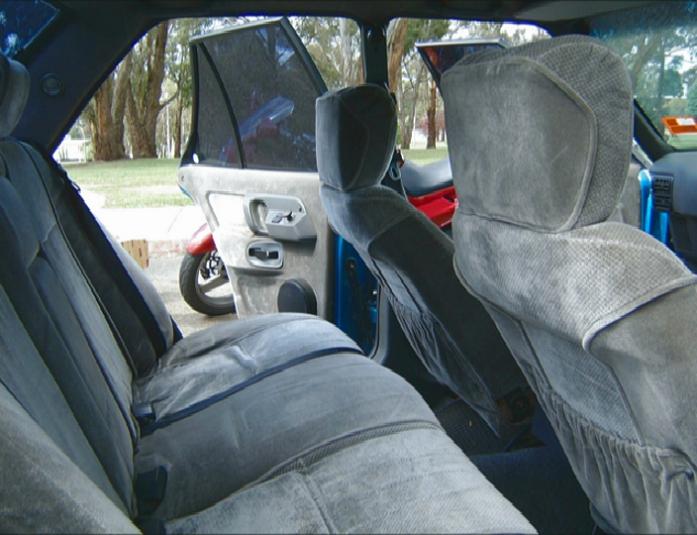

The interior looks in tip top condition. Well done.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Fri Dec 30, 2005 8:44 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

I f**k love it!



_________________

Because i can.

Top
 Profile


Posted: Fri Dec 30, 2005 8:45 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

Oh yes I like very much. Phill would probably come in his pants very much. This is what I always wanted in an XF. Same coulour too. Just no bodykit and old school 15x8 weld rims with fat rubber and white writing on the sidewalls. How does it go with the new V8 anyway? 14/13 second quarters?
Top
 Profile


Posted: Fri Dec 30, 2005 9:28 pm
Getting Side Ways
Offline

Age: 37

Posts: 661

Joined: 2nd Dec 2004

Ride: AU XR8

Location: Wollongong
NSW, Australia

Thats awesome...a ton of effort has gone into that. I like it :)

Any plans to run it down the strip?
Top
 Profile


Posted: Fri Dec 30, 2005 9:33 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

thats f**k awsome!



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Fri Dec 30, 2005 10:51 pm
Getting Side Ways
Offline

Age: 37

Posts: 1500

Joined: 14th Nov 2004

Ride: Falcon

Location: SE Melb
VIC, Australia

Now just for the trip computer mounting, someone on this site recently posted pictures of a trip computer mounted into the centre console of their XH ute. That would look the part.....



_________________

Instant Karma is gonna get you!

Top
 Profile


Posted: Fri Dec 30, 2005 11:01 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 320

Joined: 23rd Nov 2004

Ride: XHII XR8 Ute - Supercharged

Location: Perth
WA, Australia

Thanks 4 replies fellas...

Havent run it down the strip yet. Ill do it once the exhaust/heads/cam/etc sorted out (if by the way u can help with my other posts/questions on heads/cam)

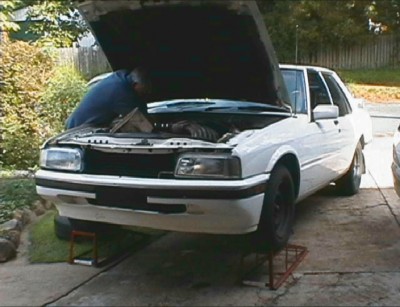

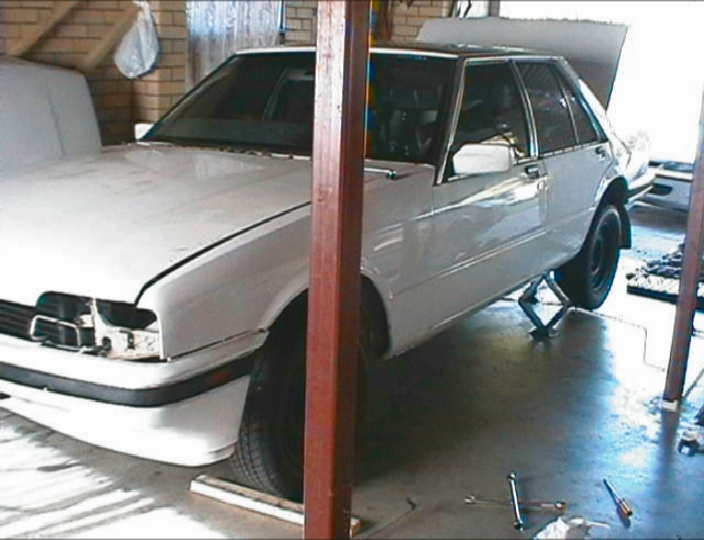

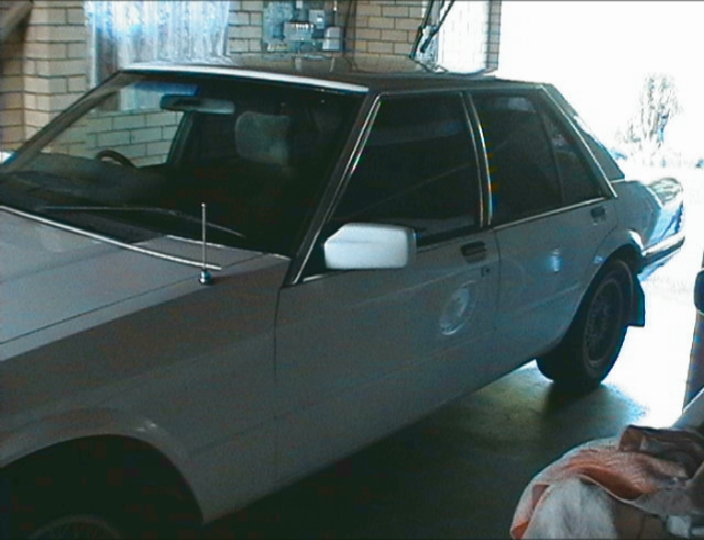

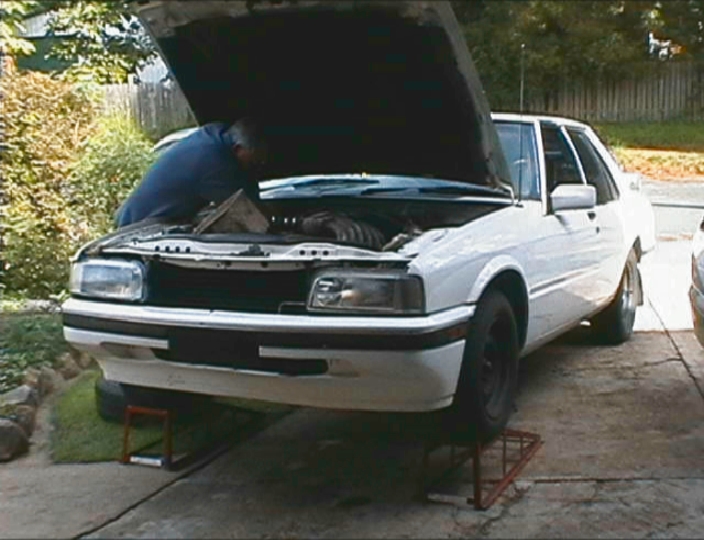

anyway, if u think those pics r good - heres what it used to look like. gives u an idea of how busy ive been. ive done a lot of the work myself - and learnt a s**t load!





Attachments:
436.jpg [ 230.59 KiB | Viewed 114 times ]
417.jpg [ 237.16 KiB | Viewed 115 times ]
386.jpg [ 206.33 KiB | Viewed 104 times ]



_________________

Old - XF with XH XR8 Driveline... http://www.fordmods.com/ford-v8-f2/my-xr8-power-xf-falcon-t20529.html
Current - XHII XR8 ute - Kenne Bell Supercharged - Build in progress

SUPERCHARGED XHII XR8 UTE - BUILD THREAD >http://www.fordmods.com/post1195532.html#p1195532

Top
 Profile


Posted: Fri Dec 30, 2005 11:06 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Gun effort love the XF's!



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Fri Dec 30, 2005 11:17 pm
Getting Side Ways
Offline

Posts: 3516

Joined: 8th Nov 2004

[self-deleted]

Last edited by blackjack_original on Fri Jun 06, 2014 8:01 pm, edited 1 time in total.

Top
 Profile


Posted: Fri Dec 30, 2005 11:52 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

Different.. unsure of the bodykit.. but love to see the 302 in there. Top job!



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile
