BA - Auto Tiptronic Manual Mode - Buttons on Steering Wheel?



Page 1 of 2 [ 25 posts ] Go to page 1, 2  Next


 Post subject: BA - Auto Tiptronic Manual Mode - Buttons on Steering Wheel?
Posted: Mon Mar 12, 2007 10:06 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

I'll start by saying I don't know much about automatics.

The BA Workshop Manual, however, mentions that it drives the transmission solenoids from the PCM following instructions from the hall-effect transistors mounted in the Gear Lever Assembly for the Tip + and Tip - selectors.

The question follows then, can I jumper these connectors to two buttons on the steering wheel that would let me select up or down gears while keeping both hands on the wheel (gear Level would have to be pushed to the left into Perf mode of course) - or does the lever participate in some manner with the hydraulics when Manually selecting gears?

I'm only asking Re: the 4 speeds obviously, as the missus has an SX Terri....

I'd be curious if anyone knows one way or the other.


Lukeyson

Last edited by Lukeyson on Thu Jun 19, 2008 9:02 pm, edited 1 time in total.

Top
 Profile


Posted: Mon Mar 12, 2007 11:02 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 912

Joined: 6th Nov 2004

Ride: XR8

Power: 238 rwkw

Location: Perth
WA, Australia

I wouldnt think it would be hard to do, as when you move it across to Perf mode, it doesnt move the selector attached to the gear box (im pretty sure it wouldnt). so as you say it may just be a case of adding jumper connecters to it.



_________________

03 XR8 ute.... 251.5rwkw and counting

Top
 Profile


Posted: Tue Mar 13, 2007 1:27 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4401

Joined: 25th Mar 2005

Ride: BA XT, BA XR6T, ED Ghia 5.0

Location: Perth
WA, Australia

What for though? My dad's VZ Calais has a 5 speed semi auto with the changes on the wheel and it's damn annoying to use.. you forget which is which if you have a bit of lock on. The Ford system is much better.



_________________

What's the difference between a Holden and a sheep? It's less embarrasing getting out of the back of a sheep..

Top
 Profile


Posted: Tue Mar 13, 2007 7:39 am
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Yes, I've heard other people with the same opinion.

Let's just call it an intellectual excercise for the moment.

I looked into it further, and the shift mechanism is separate like you say, but is connected with a cable to the transmission. So when in tiptronic, does this cable get used at all, or is that only used when moving on PRND?


Lukeyson
Top
 Profile


Posted: Tue Mar 13, 2007 8:40 pm
Oompa Loompa
Offline

Age: 63

Posts: 49

Joined: 29th Dec 2006

Location: Melbourne
VIC, Australia

The cable does not move when in Tiptronic mode.
Top
 Profile


Posted: Tue Mar 13, 2007 9:39 pm
Technical Contributor
Offline
User avatar

Posts: 69

Joined: 26th Feb 2007

Gallery: 9 images

Ride: BA XR6

Location: Wellington
New Zealand

Can the + and - be reversed???
IE push FWD to change up and Pull Back to change down.

I HATE the way it is now, its backwards.



_________________

Hi-flow airfilter
Hi-flow cold air box
Mesh Grills
Lowered 45mm, Kings Progressive springs
FPV Start Button
Gauge pod with Glowshift Tinted 7 smoke blue backlit gauges
HPC coated Extractors with full 2.5" Rage system no cat.
Flashed ECU
19" 6 Spoke Zoom Hyper black wheels F19x8.5, R19x9.5

Top
 Profile


Posted: Tue Mar 13, 2007 10:45 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

mattathm wrote:
Can the + and - be reversed???
IE push FWD to change up and Pull Back to change down.

I HATE the way it is now, its backwards.


why ? it is backwards to all the tohers for a reason it is a better system

pull back to change up as the car accelerates u are not working against the accelerational Forces



_________________

RIP SCOTT

Top
 Profile


Posted: Tue Mar 13, 2007 10:51 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Hmm. This doesn't look easy.

The TRS-A2 sensor has only 3 pins - a GND and Vref in (which I think is 5V) and a signal out.

The manual is a little vague on which pins are 1, 2 and 3, but there are meant to be specific Voltages set between pins 2 and 3 depending on if the system is in auto, manual, tip + or tip -.

It's almost impossible to simulate these voltages on the pin using external circuitry while the internal circuit is also in operation. I won't say it's completely impossible, but would take a bit of figuring out. It doesn;t help any that the TRS-A2 circuit diagram appears incomplete.

If anyone has a complete circuit diagram of the TRS-A2 sensor then we might be able to figure out a way to provide external tiptronic settings.

I'd have to say that at this point it looks unlikely that we'd be able to reverse the direction of the tiptronic unit without opening up TRS-A2 and swapping a couple of resistors.

Pinout
1 and 2 - all positions -> 4.8V to 5.2V
2 and 3 - Auto -> 3.7V to 4.2V
2 and 3 - Manual -> 2.6V to 3.3V
2 and 3 - Tip + -> 1.5V to 2.0V
2 and 3 - Tip - -> 0.5V to 1.3V


Lukeyson





Attachments:

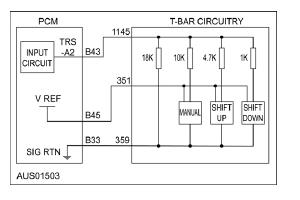

File comment: TRS-A2 circuit diagram (incomplete?)
TRS-A2 Circuit.JPG
TRS-A2 Circuit.JPG [ 10.97 KiB | Viewed 1827 times ]
Top
 Profile


Posted: Tue Mar 13, 2007 11:02 pm
Technical Contributor
Offline
User avatar

Posts: 69

Joined: 26th Feb 2007

Gallery: 9 images

Ride: BA XR6

Location: Wellington
New Zealand

cheers lukeyson....

I have been drag racing for quite a while and pushing fwd on pretty much all hiperf shifters changes up, my subaru, honda, bmw all pushed fwd if I remember correctly to change up, this was the first car I owned that was pull back to change up.
Im making a d**k of my self when i drive it in manual mode as when i go to change gear without thinking I go the wrong way... hehehehe

oh and PS, there are no acceleration forces in my BA falcon. (compared to what I have been driving)



_________________

Hi-flow airfilter
Hi-flow cold air box
Mesh Grills
Lowered 45mm, Kings Progressive springs
FPV Start Button
Gauge pod with Glowshift Tinted 7 smoke blue backlit gauges
HPC coated Extractors with full 2.5" Rage system no cat.
Flashed ECU
19" 6 Spoke Zoom Hyper black wheels F19x8.5, R19x9.5

Top
 Profile


Posted: Wed Mar 14, 2007 7:16 pm
Parts Gopher
Offline
User avatar

Age: 46

Posts: 81

Joined: 15th Jul 2006

Gallery: 10 images

Ride: 1967 xr

Location: kadina
SA, Australia

its nice to know im not alone with the shifting down.
Top
 Profile


Posted: Fri Apr 04, 2008 9:55 am
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

I just bought a selector with the TRS-A2 in it. So I'll pull it out and have a good look at it to see what can be done. (The kids will love the new gear handle on teh cubby house!)

However, it will have to queue up with the other stuff I'm doing:

(1) Sedan Rear Map Reading lights - split into two globes, so that the Courtesy Light comes on Blue, but the Map Read light comes on white.
(2) Swap up to BF Fairlane leather interior (requires harness and impact sensor changes for side airbags to work). 8-way drivers memory, 6-way power passenger seat and memory mirros. Woohoo! What a job!
(3) verify ability to enable cruise control, set wheel diameter/axle ratio etc on PCM (I'm pretty close now).

And now

(4) Try to make an auto gear selector swap direction, or add whell-mounted tiptropnic buttons.


Luke
Top
 Profile


Posted: Fri Apr 04, 2008 11:36 am
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

I know the new Mazda RX8 have the paddle shift setup, maybe check their wiring as well?
Top
 Profile


Posted: Fri Apr 04, 2008 12:01 pm
Stock as a Rock
Offline
User avatar

Age: 35

Posts: 174

Joined: 9th May 2005

Ride: BF Fairmont

Location: Gippsland
VIC, Australia

There's a little bar magnet on the shaft, when you flick to PERF the magnet sits over a circuitboard. My electric windows switchboard, plus my BA shifter circuitboard wiring died in my EB due to lack of heat shielding (driving with the windows down would suck hot air from the cats/trans up through the gaps under my centre console). I've heat-shielded everything effectively now so no hot air gets sucked up anymore but I digress...

Anyway when my circuitboard with the 3 sensors died on it, I bought a replacement BA shifter from a wreckers, pulled the circuit off that, slotted it in place of the original circuit on my modified BA shifter housing, and volia, it worked fine again.

I'd say that you could simply stick the circuit in back to front to get upshifts & downshifts reversed, assuming the wiring coming from the a***-end of the circuit won't foul on anything on top of the housing...

It's worth a shot, and if it doesn't work, just stick it back in the right way again.



_________________

EB Ghia Leather interior & more - CLICK HERE

Lightning Strike '06 BF Fairmont - powered by ICOM JTG

Top
 Profile


Posted: Fri Apr 04, 2008 4:41 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

If you swapped the 4k7 and 1k resistors around you would achieve a reversed direction shifter.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Fri Apr 04, 2008 4:48 pm
Stock as a Rock
Offline
User avatar

Age: 35

Posts: 174

Joined: 9th May 2005

Ride: BF Fairmont

Location: Gippsland
VIC, Australia

^^^ that sounds a bit easier than my way :P



_________________

EB Ghia Leather interior & more - CLICK HERE

Lightning Strike '06 BF Fairmont - powered by ICOM JTG

Top
