BA BF Complete front suspension including crossmember in XF



Page 1 of 2 [ 20 posts ] Go to page 1, 2  Next


 Post subject: BA BF Complete front suspension including crossmember in XF
Posted: Fri Jul 29, 2016 8:10 pm
Oompa Loompa
Offline
User avatar

Age: 54

Posts: 47

Joined: 26th May 2005

Gallery: 9 images

Ride: XR6 EF

Power: 367 rwkw

Location: Gisborne
New Zealand

I think I'm dreaming :idea: , but if you don't ask you'll never know..I was wondering if anyone has tried to fit BA -FG complete front suspension including alloy cross member brakes struts etc into a XF or earlier Falcon front Chassis.
After watching how bull at a gate the Yanks (Gas Monkey Garage etc) are fitting Crown Victoria front suspension into early fords, or Mustang 2 front into early mustang, or even the SN95 mustang strut suspension into 60s- early 70s mustangs, I suppose what I wish to do is fit the likes of a RRS kit but use factory parts if possible. As some of that RRS stuff just looks too reverse engineered.
I want Power Rack & Pinion , The Bigger Brakes, and even maybe run BA offset wheels on the front at least.



_________________

BF MkII F6 R Spec Typhoon, 6 spd Manual , Conquer blue and loving it...also xf panelvan 460 v8 FG G6ET Interior

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Fri Jul 29, 2016 8:36 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 398

Joined: 31st Aug 2005

Gallery: 9 images

Ride: Explorer

Location: St clair
NSW, Australia

A lot of that stuff is commercial off the shelf parts made to fit/upgrade those model cars
You could probably get a 330mm rotor conversion kit for a model A ford over there

Being an XF you can get bits from hopper stoppers, and changing some stuff over with and E series may be another option.



_________________

kangaroos and radiators are a bad mixture

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Fri Jul 29, 2016 9:26 pm
Oompa Loompa
Offline
User avatar

Age: 54

Posts: 47

Joined: 26th May 2005

Gallery: 9 images

Ride: XR6 EF

Power: 367 rwkw

Location: Gisborne
New Zealand

mendyxr6 wrote:
A lot of that stuff is commercial off the shelf parts made to fit/upgrade those model cars
You could probably get a 330mm rotor conversion kit for a model A ford over there

Being an XF you can get bits from hopper stoppers, and changing some stuff over with and E series may be another option.

Yeah E series might be easier and I have some reasonable DBA drilled and slotted rotors at 297mm on there now , it was more about the steering . Another thought I had was dare I say it Nissan S15 and McPherson Strut.. except I don't like cross breeds.. but the lower arm and radius rod look similar on the Nissan to the falcon front end.



_________________

BF MkII F6 R Spec Typhoon, 6 spd Manual , Conquer blue and loving it...also xf panelvan 460 v8 FG G6ET Interior

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Fri Jul 29, 2016 11:02 pm
Technical Contributor
Offline
User avatar

Age: 52

Posts: 5559

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

bigmat wrote:
I want Power Rack & Pinion , The Bigger Brakes, and even maybe run BA offset wheels on the front at least.
The only X series falcon that could fit the bill is an XH with a big brake conversion.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Sat Jul 30, 2016 7:39 am
Oompa Loompa
Offline
User avatar

Age: 54

Posts: 47

Joined: 26th May 2005

Gallery: 9 images

Ride: XR6 EF

Power: 367 rwkw

Location: Gisborne
New Zealand

snap0964 wrote:
bigmat wrote:
I want Power Rack & Pinion , The Bigger Brakes, and even maybe run BA offset wheels on the front at least.
The only X series falcon that could fit the bill is an XH with a big brake conversion.

What is the reason that you say this. I am not looking to follow convention. I don't necessarily want easy or logical. Its more about trying to be different. And as I have already fitted fg g6et dash just seems like an option.

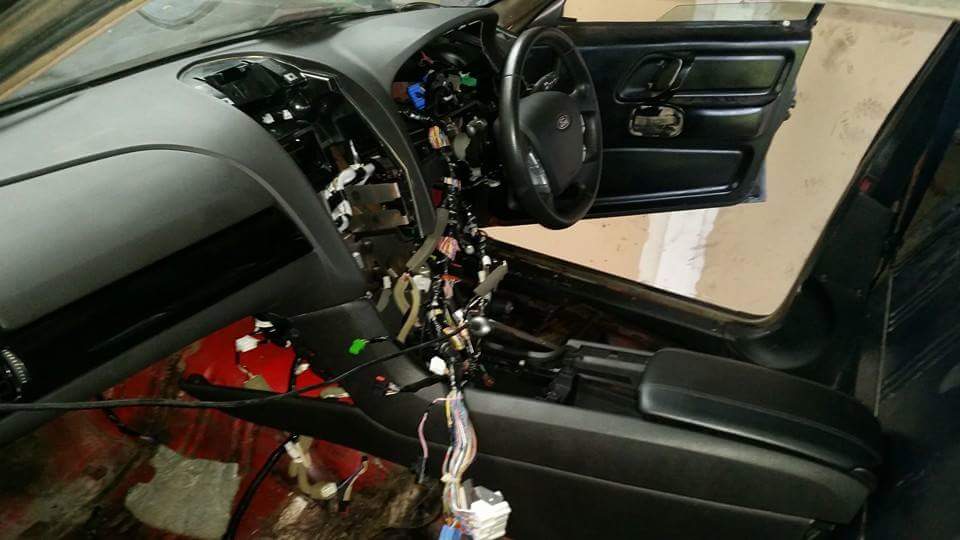

Attachments:
FB_IMG_1430162561747.jpg [ 52.94 KiB | Viewed 49 times ]



_________________

BF MkII F6 R Spec Typhoon, 6 spd Manual , Conquer blue and loving it...also xf panelvan 460 v8 FG G6ET Interior

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Sat Jul 30, 2016 2:36 pm
Technical Contributor
Offline
User avatar

Age: 52

Posts: 5559

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

bigmat wrote:
What is the reason that you say this. I am not looking to follow convention. I don't necessarily want easy or logical. Its more about trying to be different. And as I have already fitted fg g6et dash just seems like an option.
Don't get me wrong, I've done enough mods myself that were deemed 'impossible'. Thing is though, suspension requires spot on position of components, particularly with what you want to do, getting the rack position particularly, so you don't add unwanted bump steer. The XF spring/shock/upper arm is vastly different to the later SLALS setup. An XH has already the setup you require, and you can go a bigger brake upgrade kit, or fit a BA/BF crossmember and add the brakes that way.
gearbox-suspension-brake-driveline-f4/au-k-frame-into-eb-with-ba-brakes-question-t130996.html



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Sun Jul 31, 2016 7:59 am
Oompa Loompa
Offline
User avatar

Age: 54

Posts: 47

Joined: 26th May 2005

Gallery: 9 images

Ride: XR6 EF

Power: 367 rwkw

Location: Gisborne
New Zealand

Thanks but that does mean finding an XH Panelvan shell.
Not an easy task in Nz at least. Maybe I need to source one direct from Aussie. But then I have difficulty registering it in Nz. Stupid maximum age of import laws unless I can prove it is a classic. Maybe retag one but still Vin numbers are a problem. I do know that I can register it as home built but almost have to fit airbags and crash intrusion bars abs dsc black bla etc to make it up to current standards.



_________________

BF MkII F6 R Spec Typhoon, 6 spd Manual , Conquer blue and loving it...also xf panelvan 460 v8 FG G6ET Interior

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Sun Jul 31, 2016 11:52 am
Getting Side Ways
Offline
User avatar

Posts: 2572

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Sun Jul 31, 2016 2:11 pm
Technical Contributor
Offline
User avatar

Age: 52

Posts: 5559

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

^^^^ Be handy to find out the owner of that red ute.

XFalcon forums might give you more info on what you want to achieve.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Sun Jul 31, 2016 4:01 pm
Oompa Loompa
Offline
User avatar

Age: 54

Posts: 47

Joined: 26th May 2005

Gallery: 9 images

Ride: XR6 EF

Power: 367 rwkw

Location: Gisborne
New Zealand

snap0964 wrote:
^^^^ Be handy to find out the owner of that red ute.

XFalcon forums might give you more info on what you want to achieve.

It's the colour as Mine. Already started to change things. I'm going for a colour change from the red interior & matte black exterior to hopefully emperor violet I think the colour is called. See photos https://www.flickr.com/gp/54830224@N05/pDC648
https://www.flickr.com/gp/54830224@N05/17juqi



_________________

BF MkII F6 R Spec Typhoon, 6 spd Manual , Conquer blue and loving it...also xf panelvan 460 v8 FG G6ET Interior

Last edited by bigmat on Sun Jul 31, 2016 4:07 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Sun Jul 31, 2016 4:06 pm
Oompa Loompa
Offline
User avatar

Age: 54

Posts: 47

Joined: 26th May 2005

Gallery: 9 images

Ride: XR6 EF

Power: 367 rwkw

Location: Gisborne
New Zealand

snap0964 wrote:
^^^^ Be handy to find out the owner of that red ute.

XFalcon forums might give you more info on what you want to achieve.

It's the same car. Mine. Already started. I'm going for a colour change from the red interior to matte black exterior to hopefully emperor violet I think the colour is called. https://www.flickr.com/gp/54830224@N05/pDC648
https://www.flickr.com/gp/54830224@N05/17juqi



_________________

BF MkII F6 R Spec Typhoon, 6 spd Manual , Conquer blue and loving it...also xf panelvan 460 v8 FG G6ET Interior

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Sun Jul 31, 2016 11:54 pm
Technical Contributor
Offline
User avatar

Age: 52

Posts: 5559

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

bigmat wrote:
It's the colour as Mine.
bigmat wrote:
It's the same car. Mine.

So it's similar to yours - not yours ??

What sort of clearance do you have between the brembo caliper and the rim on the GTR ??



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Mon Aug 01, 2016 6:22 am
Oompa Loompa
Offline
User avatar

Age: 54

Posts: 47

Joined: 26th May 2005

Gallery: 9 images

Ride: XR6 EF

Power: 367 rwkw

Location: Gisborne
New Zealand

snap0964 wrote:
bigmat wrote:
It's the colour as Mine.
bigmat wrote:
It's the same car. Mine.

So it's similar to yours - not yours ??

What sort of clearance do you have between the brembo caliper and the rim on the GTR ??


Same colour as Mine
F6R has about 6mm clearance on the brembo on the versus wraith rims the other wheels I tried had about 1mm. Too close for me so decided to not go that way.



_________________

BF MkII F6 R Spec Typhoon, 6 spd Manual , Conquer blue and loving it...also xf panelvan 460 v8 FG G6ET Interior

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Mon Aug 01, 2016 6:30 am
Oompa Loompa
Offline
User avatar

Age: 54

Posts: 47

Joined: 26th May 2005

Gallery: 9 images

Ride: XR6 EF

Power: 367 rwkw

Location: Gisborne
New Zealand

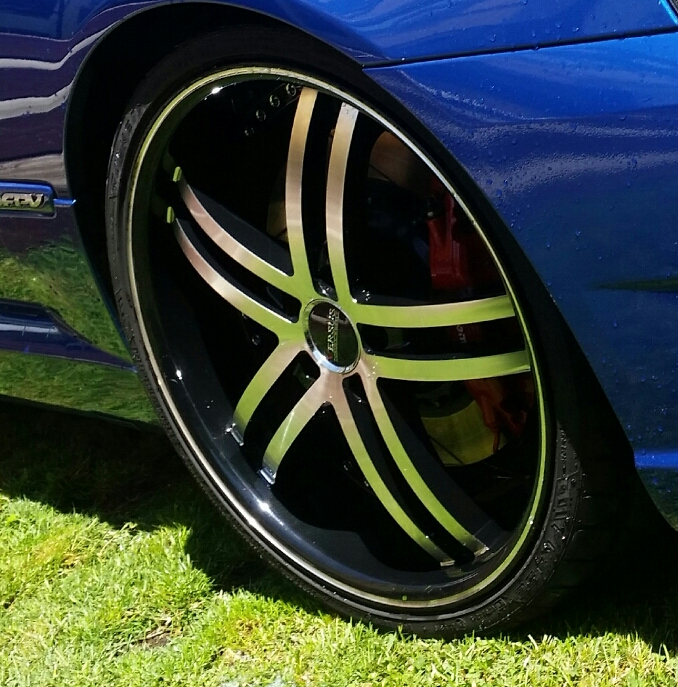

As per





Attachments:
2016-08-01 07.28.10-1.jpg
2016-08-01 07.28.10-1.jpg [ 402.96 KiB | Viewed 44 times ]



_________________

BF MkII F6 R Spec Typhoon, 6 spd Manual , Conquer blue and loving it...also xf panelvan 460 v8 FG G6ET Interior

Top
 Profile


 Post subject: Re: BA BF Complete front suspension including crossmember in XF
Posted: Mon Aug 01, 2016 1:12 pm
Technical Contributor
Offline
User avatar

Age: 52

Posts: 5559

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

bigmat wrote:
F6R has about 6mm clearance on the brembo on the versus wraith rims the other wheels I tried had about 1mm. Too close for me so decided to not go that way.
Yeah, with a floating caliper, 1 mm would be not enough - a bit of wear on the slide pins, and I'd say some contact of the caliper with the rim at speed . . . . .
gearbox-suspension-brake-driveline-f4/machining-stub-axles-budget-big-brake-build-brakes-on-t112322-540.html
My setup has around 4mm between the caliper top and the inside rim - sounds small, but heaps of room when you see it in real.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
