 Post subject: Clutch Bracket Question
Posted: Sat Sep 10, 2016 3:58 pm
Oompa Loompa
Offline

Age: 29

Posts: 20

Joined: 15th Dec 2013

Ride: Ford Falcon

Location: Armadale
WA, Australia

Hi Guys,

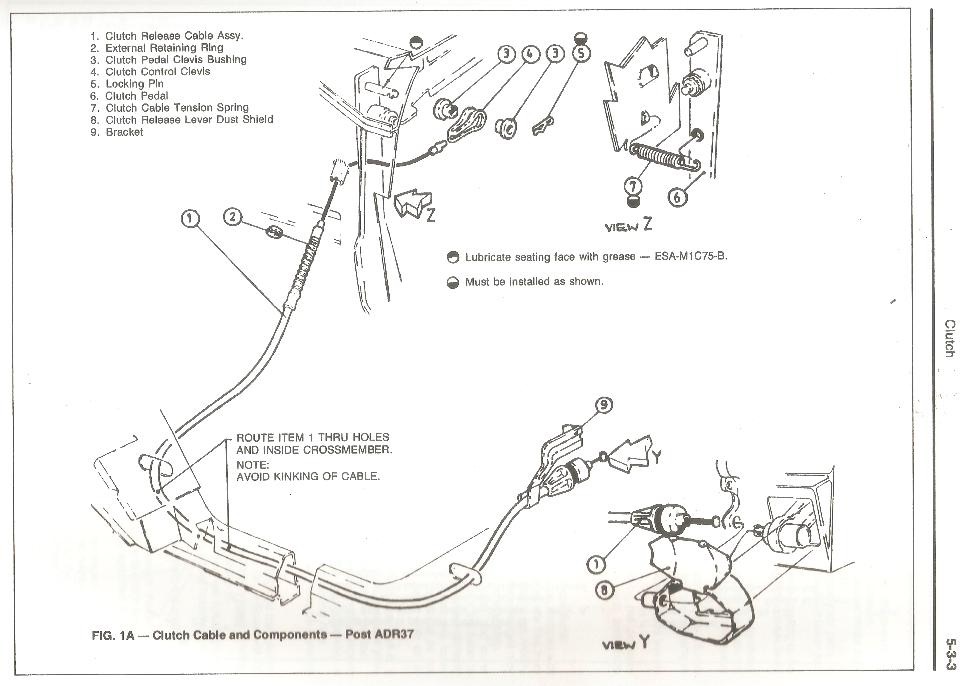

I'm trying to find a part and its number 9 in this pic. Can anybody tell me the name of the part and where I might find one?

For an EF Falcon 6 Cylinder Manual.

It just says on picture it's a Bracket. Tried to find it everywhere on the net and can't find it, I'm chasing as I'm having trouble with my cable, I know there's a possibility that the cable is getting worn/frayed so I may have to replace it. Yes I've got a moded firewall and even my clutch pin has been repaired on the pedal box. Have also purchased the clutch fork arm insulator from Dellow Clutch Conversions.

Any help would be greatly appreciated.

Cheers, Grant.





Attachments:
image.jpeg [ 118.98 KiB | Viewed 41 times ]
Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sat Sep 10, 2016 10:02 pm
Getting Side Ways
Offline

Age: 33

Posts: 1106

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

I may have one laying around. Will check tomorrow



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sat Sep 10, 2016 10:23 pm
Oompa Loompa
Offline

Age: 29

Posts: 20

Joined: 15th Dec 2013

Ride: Ford Falcon

Location: Armadale
WA, Australia

Sweet as man. Wait to hear from ya. Just out of curiosity, what is the part called? (Or if there's even a part no.)
Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sat Sep 10, 2016 10:25 pm
Getting Side Ways
Offline

Age: 33

Posts: 1106

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

No idea. One would assume along the lines of a "clutch cable guide/bracket"



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sat Sep 10, 2016 10:32 pm
Oompa Loompa
Offline

Age: 29

Posts: 20

Joined: 15th Dec 2013

Ride: Ford Falcon

Location: Armadale
WA, Australia

Yeah, thought so too. Searched under various names.
Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sun Sep 11, 2016 4:09 pm
Getting Side Ways
Offline

Posts: 2438

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Is that Diagram from your model of car?

The Post ADR37 comment has me thinking its actually an XF Diagram. The XF Falcon had pre and post ADR37 I believe, where Pre did not have Cat's, and Post did. When the Cat was introduced, they moved the Clutch Cable to the other side of the car so It wouldnt get melted.

Of course, we had been cooking those cables since *way* before then. Any car with Extractors would melt/Soften the Outer Cable and render the clutch useless.

I dont recall that bracket on my E Series - but Im completely good to be wrong too

Heres a link to pictures on an EB - (Same as EL normally), not showing the bracket.
gearbox-suspension-brake-driveline-f4/clutch-cable-routing-t101583.html
Cheers

Nigel
Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sun Sep 11, 2016 4:10 pm
Getting Side Ways
Offline

Posts: 2438

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sun Sep 11, 2016 4:18 pm
Getting Side Ways
Offline

Age: 33

Posts: 1106

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

Nigel wrote:
Any car with Extractors would melt/Soften the Outer Cable and render the clutch useless.

I dont recall that bracket on my E Series - but Im completely good to be wrong too



Nigel

Over 6 years with extractors on mine and cable is still good.
Mine an EF and it has the bracket. My last EF was factory manual and had the bracket



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sun Sep 11, 2016 4:33 pm
Getting Side Ways
Offline

Posts: 2438

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Any car with Extractors would melt the Cable <Pre ADR37>. So XD, XE, XF. Moving the cable to the Passenger side simply fixed a problem that was already there. I am aware that the issue was mostly fixed for E Series hence my comment, although I have managed to make a few cables go cludgy as well on my EB. Perhaps that was a combination of the work on the Engine, and the Injected LPG.

Glad youve not done a cable yet.
Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sun Sep 11, 2016 4:46 pm
Getting Side Ways
Offline
User avatar

Posts: 2353

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

Nigel wrote:
Is that Diagram from your model of car?

The Post ADR37 comment has me thinking its actually an XF Diagram. The XF Falcon had pre and post ADR37 I believe, where Pre did not have Cat's, and Post did. When the Cat was introduced, they moved the Clutch Cable to the other side of the car so It wouldnt get melted.

Of course, we had been cooking those cables since *way* before then. Any car with Extractors would melt/Soften the Outer Cable and render the clutch useless.

I dont recall that bracket on my E Series - but Im completely good to be wrong too

Heres a link to pictures on an EB - (Same as EL normally), not showing the bracket.
gearbox-suspension-brake-driveline-f4/clutch-cable-routing-t101583.html
Cheers

Nigel



if you read down Snap makes a referance to it :mrgreen:



ranga83 wrote:
Nigel wrote:
Any car with Extractors would melt/Soften the Outer Cable and render the clutch useless.

I dont recall that bracket on my E Series - but Im completely good to be wrong too



Nigel

Over 6 years with extractors on mine and cable is still good.
Mine an EF and it has the bracket. My last EF was factory manual and had the bracket


EB i wrecked has one & one wrecked years ago also had one
Top
 Profile


 Post subject: Re: Clutch Bracket Question
Posted: Sun Sep 11, 2016 5:12 pm
Oompa Loompa
Offline

Age: 29

Posts: 20

Joined: 15th Dec 2013

Ride: Ford Falcon

Location: Armadale
WA, Australia

Nigel wrote:
Is that Diagram from your model of car?

The Post ADR37 comment has me thinking its actually an XF Diagram. The XF Falcon had pre and post ADR37 I believe, where Pre did not have Cat's, and Post did. When the Cat was introduced, they moved the Clutch Cable to the other side of the car so It wouldnt get melted.

Of course, we had been cooking those cables since *way* before then. Any car with Extractors would melt/Soften the Outer Cable and render the clutch useless.

I dont recall that bracket on my E Series - but Im completely good to be wrong too

Heres a link to pictures on an EB - (Same as EL normally), not showing the bracket.
gearbox-suspension-brake-driveline-f4/clutch-cable-routing-t101583.html
Cheers

Nigel

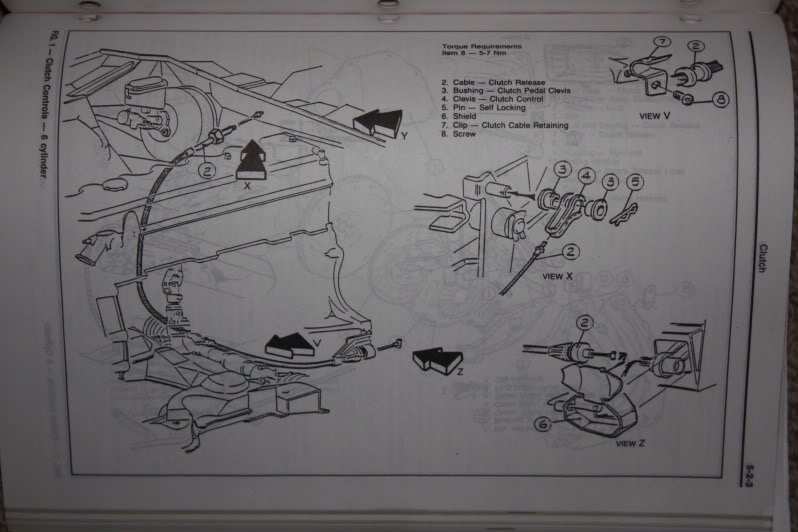

I have the pic of the EF/EL. Sorry might have put up the wrong pic. Pretty sure this one's for the pre (EF/EL)
