Different Diff Gears??



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: Different Diff Gears??
Posted: Wed Dec 30, 2009 9:09 pm
Stock as a Rock
Offline
User avatar

Age: 36

Posts: 128

Joined: 16th Mar 2008

Ride: XG ute, XT sedan

Location: Crazyburn
VIC, Australia

Do the Diff gears change between EA-EL? NOT the ratios but the gears themselves as I want to put 3.9's in my XG but Im not sure if they will suit????

As I had my Diff rebuilt recently I had a single spinner 3.27, and I supply'ed a LSD centre with 3.27's from an ED and when I picked it up the guy said he could not use one set as they were to suit a Narrow carrier??
What dose this mean?....The hole in the housing or between the bearing caps?
What tpye of Diff do XG's have?.... is it still XF?
Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Thu Dec 31, 2009 11:25 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The later EL's had a different pinion...bigger thread on it too. Not sure what he meant.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Thu Dec 31, 2009 2:19 pm
Stock as a Rock
Offline
User avatar

Age: 36

Posts: 128

Joined: 16th Mar 2008

Ride: XG ute, XT sedan

Location: Crazyburn
VIC, Australia

Thanks
Is it possible to install EL gears in to earlier Diff's then?
Is there a difference from XF-EA,EB gears?
Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Thu Dec 31, 2009 10:54 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

ive got 3.45 and im thinking about 3.7 or heigher anyone have a set for sale ?



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 2:18 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Olive Xm wrote:
Thanks
Is it possible to install EL gears in to earlier Diff's then?
Is there a difference from XF-EA,EB gears?


I have fitted a set of EBII diff gears ( 3.27 ) into an XD ute diff that was a 2.92:1 LSD.
I had also fitted an EA LSD centre into an EBII housing.
I am currently using an EBII diff housing in my ED, with an aftermarket 28 spline 4 pinion LSD, with EBII axles and my old EA brakes.
I went to fit some late EL gears ( 3.23 ) into an EA housing, when I found the EL pinion was a lot different.
I'll have to take photo's one day and post them up.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 10:06 am
Stock as a Rock
Offline
User avatar

Age: 36

Posts: 128

Joined: 16th Mar 2008

Ride: XG ute, XT sedan

Location: Crazyburn
VIC, Australia

Pic's would great cjh
So I should be right as long as I dont use EL gears then
Now Im really wondering what my Diff guy is on about
Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 12:37 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Olive Xm wrote:
Pic's would great cjh
So I should be right as long as I dont use EL gears then
Now Im really wondering what my Diff guy is on about


The main thing I noticed was that the thread on the pinion ( Late EL ), was bigger, and the length of the shoulder/boss was different too.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 12:50 pm
Stock as a Rock
Offline
User avatar

Age: 36

Posts: 128

Joined: 16th Mar 2008

Ride: XG ute, XT sedan

Location: Crazyburn
VIC, Australia

Can you get any measurements of the pinion thread so I can forward them to the guy how I may be buying the gears from so I know what he has?
Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 2:30 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

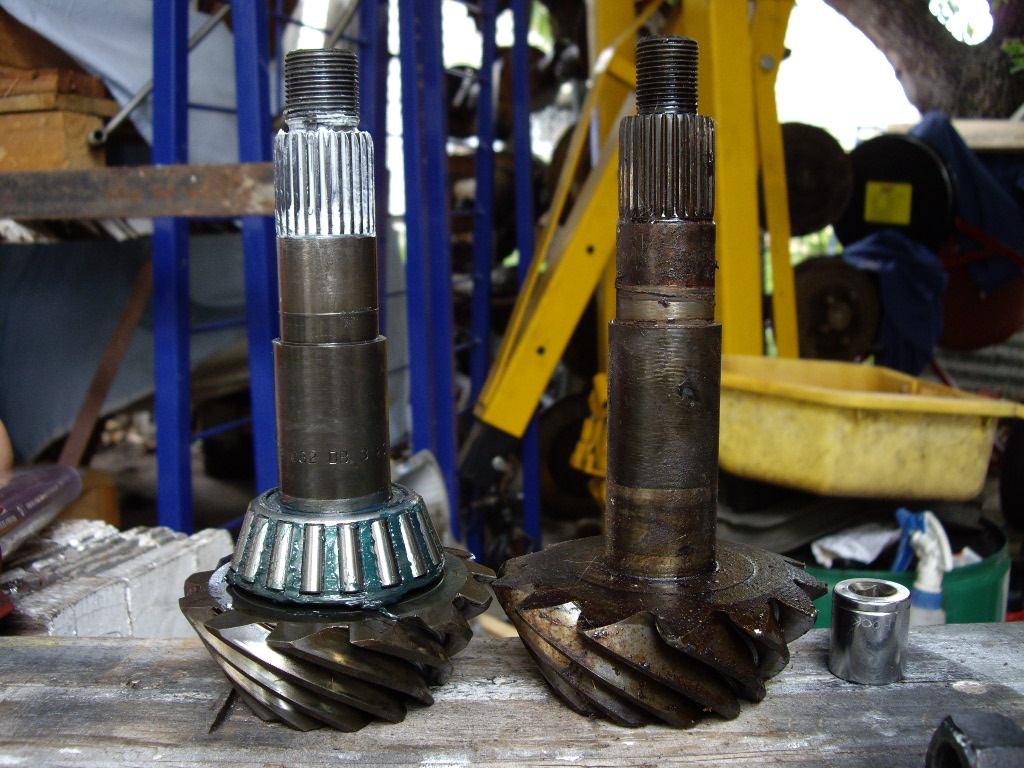

OK, had to find where the pinions were, One is the EL 3.23, and the other is an EA 2.92.
I went to fit the EL gears and could get the crush spacer to fit.

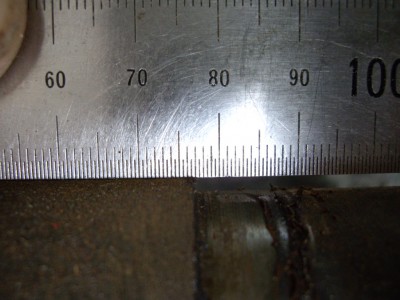

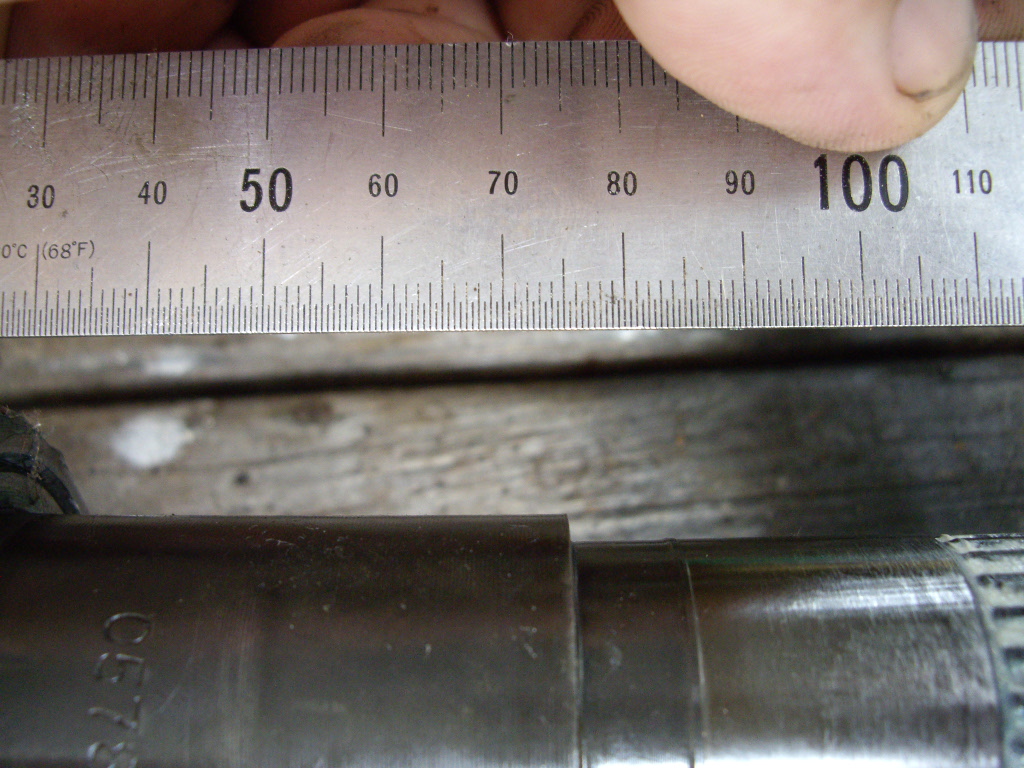

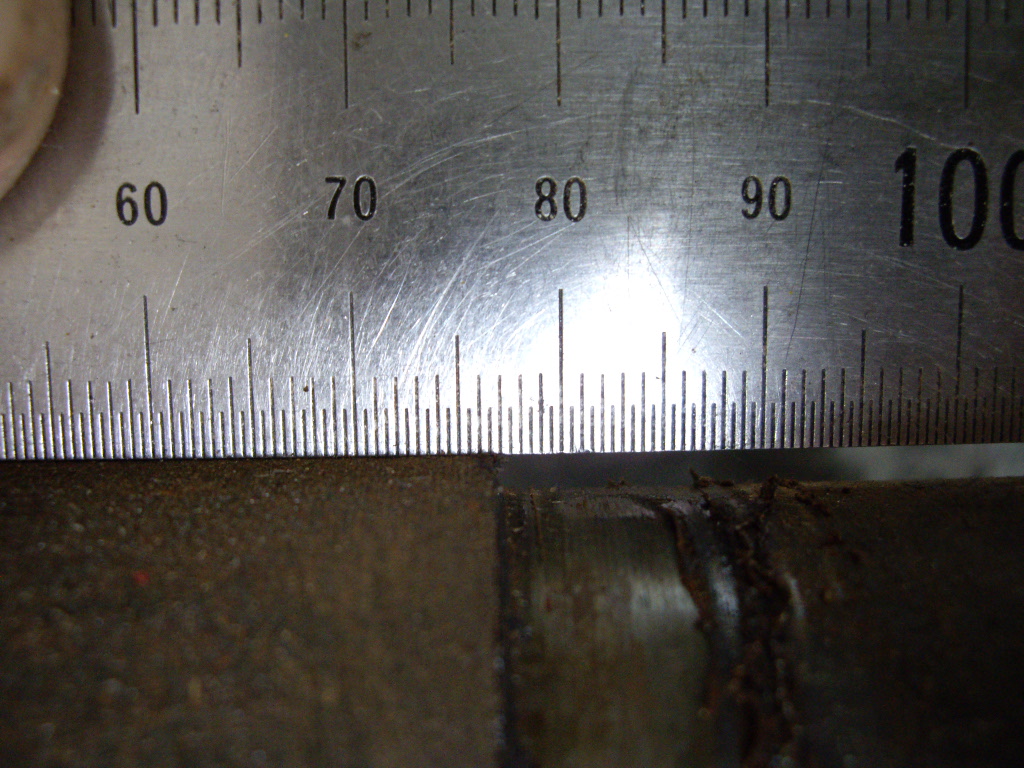

The EL is 2mm shorter than the EA one....hence fitted EBII gears instead.
The cleaner one is the EL pinion.
The thread sizes are different too, 3/4" UNF verses 22mm.
I hope this helps.





Attachments:
IMGP3580.JPG [ 360.29 KiB | Viewed 49 times ]
IMGP3578.JPG [ 367.87 KiB | Viewed 48 times ]
IMGP3577.JPG [ 336.39 KiB | Viewed 55 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 2:35 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

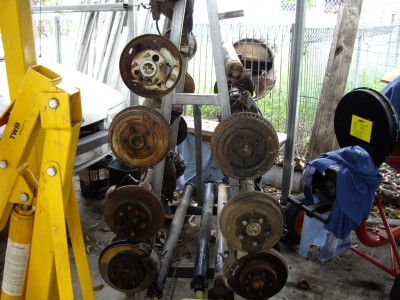

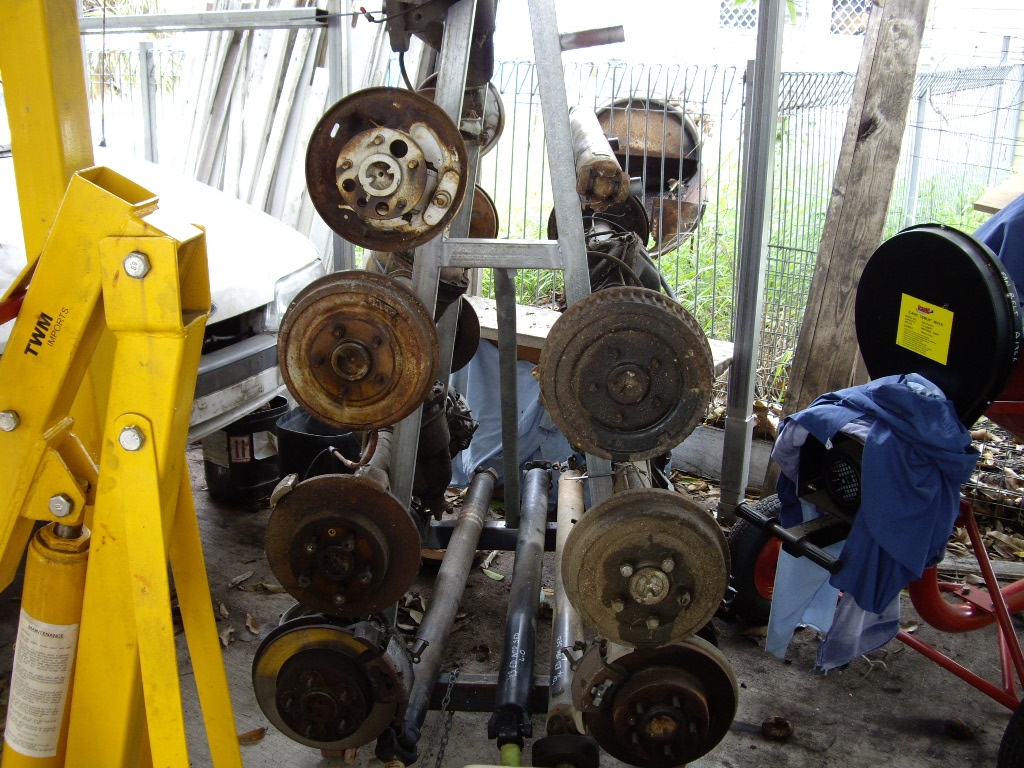

This is some of the selection I have of diffs. From 302 XC, XD, XF, EA, EB, ED + a big brake Charger one.
There are more above not shown in the photo.





Attachments:
IMGP3567.JPG [ 418.28 KiB | Viewed 49 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 2:42 pm
Stock as a Rock
Offline
User avatar

Age: 36

Posts: 128

Joined: 16th Mar 2008

Ride: XG ute, XT sedan

Location: Crazyburn
VIC, Australia

Gee theres a noticeable difference thanks for that.
Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 6:29 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

cjh wrote:
This is some of the selection I have of diffs. From 302 XC, XD, XF, EA, EB, ED + a big brake Charger one.
There are more above not shown in the photo.


how much you want for the charger diff?



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 6:42 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

how hard is it to remove the pinion gear apart from removing the axels, and diff center? do i need a press or will the pinion gear just fall out or tap out once the pinion nut has been undone and removed? is the any special tools i will need ie a puller?



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 6:56 pm
Tyre Shredder
Offline

Age: 26

Posts: 371

Joined: 6th Jan 2009

Gallery: 21 images

Location: mackay
QLD, Australia

cjh wrote:
This is some of the selection I have of diffs. From 302 XC, XD, XF, EA, EB, ED + a big brake Charger one.
There are more above not shown in the photo.

any chance of an e series lsd? :D



_________________

xb falcon 500: currently being striped for full respray
ef falcon gli wagooon: currently finishing bodykit and then doors closed respray
the-garage-f53/ef-wagon-kit-pics-up-t77713.html

Top
 Profile


 Post subject: Re: Different Diff Gears??
Posted: Fri Jan 01, 2010 7:54 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The Charger diff is bent, hit a Patrol at about 80kmh and twisted the Patrol chassis by about 80mm. Needed new chassis, and the Charger was a right off......wasn't mine.
The only E series are 25 spline 2 pinion LSD.
Going use it in a VF Valiant diff housing to go in my SV1 Valiant.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
