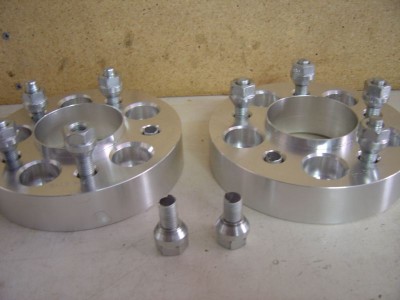

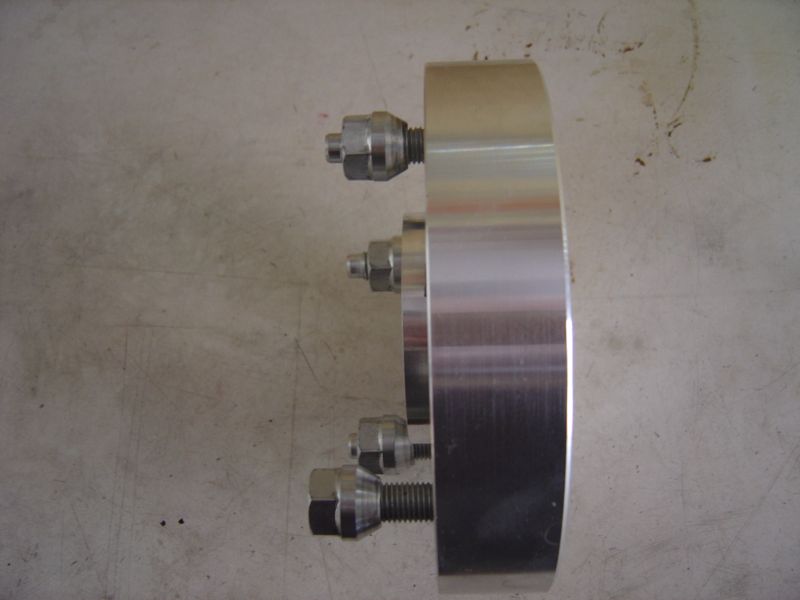

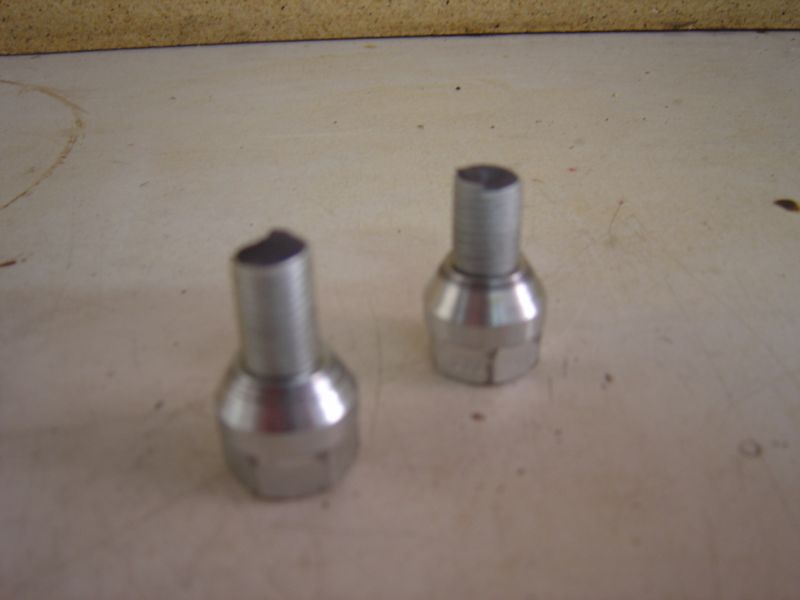

Today I went and checked the tension on my wheel nuts on my newly acquired wheels. I was checking 1 nut when it felt suprisingly loose and would not tighten up, so I pulled the socket out to find a stud and nut in my socket. This happened on 3 studs on 3 seperate wheels !!!
All nuts were done to a recommended 80ft/lb.

I believe I was doing the right thing in the setting up of these adaptors, so is It most likely to be cheap chinese s**t or am I in the wrong?

Even if I am in the wrong, I am not going to take the chance of risking my life by putting them on again in a different manner

Attachment:
K.jpg [ 55.26 KiB | Viewed 66 times ]

Attachment:
KL.jpg [ 41.56 KiB | Viewed 75 times ]

Attachment:
KLJ.jpg [ 45.95 KiB | Viewed 59 times ]

Attachment:
KLJH.jpg [ 33.27 KiB | Viewed 76 times ]



_________________


Last edited by nardz27 on Sun Sep 13, 2009 2:14 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sat Sep 12, 2009 8:18 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

did these spacers have a stud thread size of 12x1.5mm instead of the factory 1/2 inch?
Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sat Sep 12, 2009 8:48 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 363

Joined: 7th Feb 2007

Ride: BLOWN 347 EB GT/ BF XR6 TURBO

Power: 345 rwkw

Location: eastern creek
NSW, Australia

lol yea the nuts have 1.5mm thread pitch they ARE NOT FACTORY SIZE STUDS :lol: :lol:



_________________

MY CAR PLZ TAKE A LOOK forums/xtt909-update-t66227.html

DAZFAB MEMBERS ,,,,DAZZLE, EBI347, TERRORISTGHIA, TROYMAN ,SWC, XTT909

Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sat Sep 12, 2009 9:07 pm
Parts Gopher
Offline
User avatar

Age: 25

Posts: 69

Joined: 4th Feb 2009

Ride: EF Mont

Location: Narrogin
WA, Australia

yea I knew about this, but I did not use the original wheel nuts on the adaptors so none of the threads were stripped



_________________


Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sat Sep 12, 2009 9:40 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Doesnt matter about the threads, if he put the 1/2" nuts on it would have stripped the thread, not broken the stud. Those studs are very weak.

At least you can still go to Ford and buy new factory 1/2" studs and get them pressed in. Most of the value of an adaptor is in the machining.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sat Sep 12, 2009 10:37 pm
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

did you shave your inner studs for rim clearance ?
ive never had a drama with mine over 80,000km now. heavy towing ,sliding round ect
they also have survived a 140km into trip into sand and on seperate occassions two cracked rims.
Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sat Sep 12, 2009 11:31 pm
Parts Gopher
Offline
User avatar

Age: 25

Posts: 69

Joined: 4th Feb 2009

Ride: EF Mont

Location: Narrogin
WA, Australia

yea man sure did ey.

what torque setting did you use for your wheel nuts? rattle gun? lol

where did you get your adaptors from?



_________________


Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sun Sep 13, 2009 1:12 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 862

Joined: 8th May 2005

Ride: BA Wagon Turbo, Ba Fairlane G220

Location: Colac
VIC, Australia

Is it just me or don't the pics work?

Did your adapters have the center locating ring? If not there's your answer right there



_________________

Congo Green Ba Wagon With F6 6 Speed Manual Driveline.

Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sun Sep 13, 2009 1:49 am
Smokin em up
Offline

Posts: 244

Joined: 6th Apr 2008

Location: Melbourne
VIC, Australia

pics dont work, and here i was hoping for proof.
Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sun Sep 13, 2009 2:10 pm
Parts Gopher
Offline
User avatar

Age: 25

Posts: 69

Joined: 4th Feb 2009

Ride: EF Mont

Location: Narrogin
WA, Australia

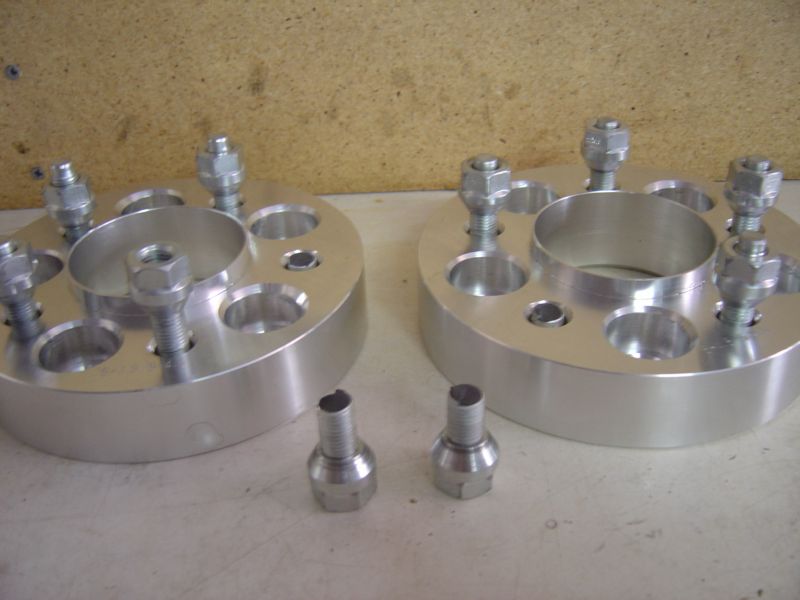

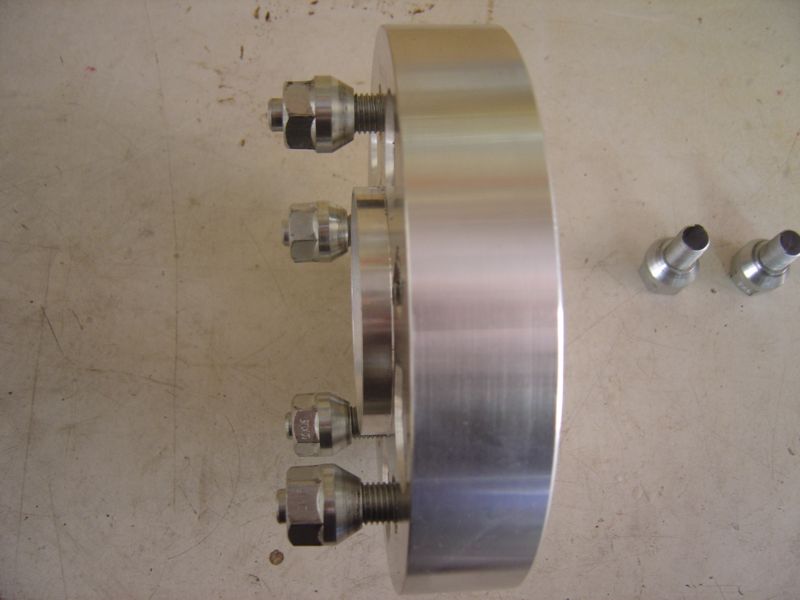

Pics redone...can you see them now?





Attachments:
KLJ.jpg [ 45.95 KiB | Viewed 58 times ]
KL.jpg [ 41.56 KiB | Viewed 76 times ]
K.jpg [ 55.26 KiB | Viewed 66 times ]



_________________


Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sun Sep 13, 2009 4:55 pm
Smokin em up
Offline

Posts: 244

Joined: 6th Apr 2008

Location: Melbourne
VIC, Australia

yep working! hmm, thats the first time ive seen that happen to a set of spacers!
look even without spacers the dangers of snapping studs is still there, it happened to a friend of mine just yesterday with no spacers on his car and studs that had just been replaced by a motorsports shop (not mentioning who.)
in any case, those broken studs may have just been caused by overtightening, who knows.
Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sun Sep 13, 2009 5:07 pm
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 3045

Joined: 26th Nov 2008

Ride: 1975 XB Falcon 500

Location: In the drivers seat
SA, Australia

Where did you buy them? Maybe they are cheap versions that dont have high tensile studs?



_________________

http://www.facebook.com/Ford1975

Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sun Sep 13, 2009 5:59 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

one possibility could be the centres of the studs and the centres of the lip may be slightly offset,, causing excessive sheer stress on one particular stud
Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sun Sep 13, 2009 6:10 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

Geez thats bloody scary man, imagine what could of happened if they let loose while driving aye, that has put me off getting any non pre-au offset rims and running adaptors, even if they are high quality :lol:

There was a guy on here, or maybe AFF, who had one of his front adaptors s**t themselves while driving round a corner and basically had the drivers side front sitting on the brake rotor lol, ill see if can get pics of it..

EDIT: haha found it, it was Tocchi's good ol' XR

http://www.fordmods.com/gearbox-suspension-brake-driveline-f4/why-not-to-run-hub-adaptors-this-is-proof-pics-t54731.html



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: DO NOT USE HUB ADAPTORS-PHOTOGRAPHIC PROOF
Posted: Sun Sep 13, 2009 7:25 pm
Parts Gopher
Offline
User avatar

Age: 25

Posts: 69

Joined: 4th Feb 2009

Ride: EF Mont

Location: Narrogin
WA, Australia

XR-Lane - bought em from Tempe Tyres, and wouldnt suprise me if they are cheap chinese s**t

eboost - the wheel PCD was 114.3 so they should be right shouldnt they?

KWIKXR - yeah I've seen that before lol, but he used the wrong nuts and stripped the threads, plus he used a rattle gun, where as I used a torque wrench on all the nuts.
