lowering for my wagon



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next


 Post subject: lowering for my wagon
Posted: Thu Nov 27, 2008 7:46 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

hey people i got a wagon and am thinkin of upgrading the suspension and possibly dropping it little bit, has anyone dropped leaf suspension before and what shocks would you recommend to use,



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile


Posted: Thu Nov 27, 2008 10:46 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Hi, there are two ways to lower the rear of a Wagon.

The easy and cheap way, is to use lowering blocks. Available in varying sizes and easy to install.

The other and more expensive way, and the correct way, is to get the leaves reset, or purchase the Kings Springs rear end.

I am using lowering blocks.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


Posted: Fri Nov 28, 2008 2:09 pm
Getting Side Ways
Offline
User avatar

Posts: 649

Joined: 20th Mar 2005

Gallery: 2 images

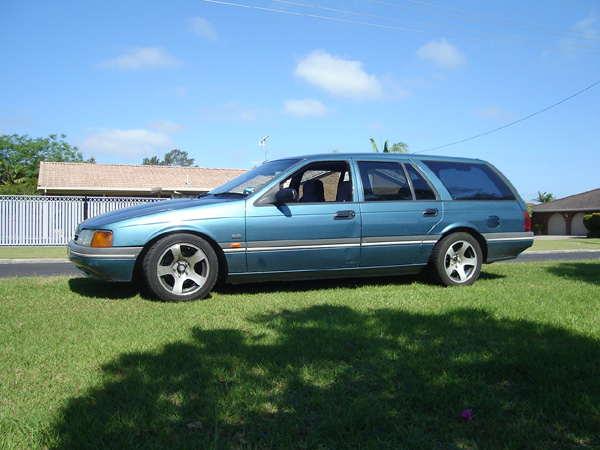

Here is a pic of my brother's old EB wagon.
- King Springs super low fronts
- King Springs low leaf springs rear
- Ultima shortened struts and shim type camber kit up front
- Ultima shocks and new bush kit at rear
- Running 16x8 mags & 225/50 tyres, front guards needed rolling





Attachments:
ebwagon.jpg [ 109.95 KiB | Viewed 482 times ]
Top
 Profile


Posted: Tue Jan 06, 2009 1:30 pm
VIC Cruise Moderator
Offline
User avatar

Age: 27

Posts: 1167

Joined: 6th Jan 2009

Gallery: 12 images

Ride: ed

Location: Mooroolbark
VIC, Australia

i know it might be a stupid question but what would the difference with lowering blocks and doing it properly? i have a 94 ed wagon and it handles well (for a wagon) but i get a lot of body roll. would lowering blocks be better in my case?



_________________

94 White ED Wagon
eaton M112 supercharger, lowered a tad, extractors, 2.5" exhaust, T5 , custom SureCam supercharger cam, 3.45 lokka, 2 piece tailshaft, poyair bags in the back, TSS front Skirt, Sprint skirts, XR wagon spoiler.
soon to get: AU diff, upc 330mm brakes, Vapor LPG injection.

Top
 Profile


Posted: Tue Jan 06, 2009 2:43 pm
Getting Side Ways
Offline

Age: 48

Posts: 1061

Joined: 7th Sep 2007

Gallery: 3 images

Ride: BF3 Egas wag SY AWD Terry Ghia

Location: Brookfield
VIC, Australia

get the ute springs and use blocks = $80

reset leaves at suspension shop = $350

I have done both and am about to do ute springs again on my mont wagon conversion.



_________________

BF3 Egas XT Wagon
SY Territory Ghia AWD 6spA :))

Top
 Profile


Posted: Tue Jan 06, 2009 2:50 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

Ute springs? Interesting..... might have to look for a set of those :)



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Top
 Profile


Posted: Tue Jan 06, 2009 8:42 pm
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 398

Joined: 31st Aug 2005

Gallery: 9 images

Ride: Explorer

Location: St clair
NSW, Australia

get better sway bars aswell make less body roll and steer sharper



_________________

kangaroos and radiators are a bad mixture

Top
 Profile


Posted: Wed Jan 07, 2009 9:59 am
Getting Side Ways
Offline

Age: 48

Posts: 1061

Joined: 7th Sep 2007

Gallery: 3 images

Ride: BF3 Egas wag SY AWD Terry Ghia

Location: Brookfield
VIC, Australia

Have a look at Fiend's budget buildup threads. He did the whole wagon ute spring setup after i told him what to get. He even found a nice swaybar which I am yet to find for my wagons.

http://www.fordmods.com/forums/viewtopic.php?t=67005



_________________

BF3 Egas XT Wagon
SY Territory Ghia AWD 6spA :))

Top
 Profile


Posted: Wed Jan 07, 2009 8:26 pm
Fordmods Newbie
Offline

Posts: 18

Joined: 9th Nov 2008

Location: Melbourne
VIC, Australia

What makes resetting the leaves better than using lowering blocks?
Top
 Profile


Posted: Wed Jan 07, 2009 8:31 pm
Getting Side Ways
Offline

Age: 31

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

resetting the springs means they are stiffer so the car wont bottom out over small bumps

Pedders do a wicked job
Top
 Profile


Posted: Wed Jan 07, 2009 9:48 pm
Getting Side Ways
Offline

Age: 48

Posts: 1061

Joined: 7th Sep 2007

Gallery: 3 images

Ride: BF3 Egas wag SY AWD Terry Ghia

Location: Brookfield
VIC, Australia

Pedders quoted me $350 5 years ago.

then I spotted the ute springs at the wreckers.



_________________

BF3 Egas XT Wagon
SY Territory Ghia AWD 6spA :))

Top
 Profile


Posted: Thu Jan 08, 2009 5:54 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 3804

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

HI again - Was about to say "blah blah, thanks Rick, once more for telling me about... blah blah" for the tenth time... etc etc etc


MATE.


I repeat, for the 100th time - I honestly tell everyone who has a wagon or leaf sprung rear end EA - AU about this...

THE BEST MOD BY FAR FOR HANDLING ON YOUR WAGON IS...

1 tonne leaf springs directly taken from the truck. Two inch lowering blocks (if not more if you're super cool).

That, with a swaybar fitted is almost... Well.. Dare I say it... SPORTS CAR like.

It also allows you to carry about 500kg in the boot without bottoming out - trust me - I did it for 1400 odd k's since New Years... Sideways on gravel roads, wheelspinning over humps, 170km/hour up three lane hills.... Keep scraping the mud guard on the left front, but that's just as I smashed it hard, it's cracked and dragging.

Had a bit of a race with a Porsche 911 this afternoon down the motorway. I promise you - there was no way in hell I would have ever got around that non-cambered corner at over 100mile an hour before doing this.

Just cannot say enough about it. Luckily I found a swaybar for $10NZ (about 1c aussie) on the back of an XR6'd ED wagon at a scrap dealer. Whitelines one was quoted at over $300 to me.

The 1 tonne leaves are hard to bottom out. I thought they would bottom out all the time when I put the 2.5" lowering blocks in... But I've had a close look at the axle and the bump stops just now to make sure I can back up my words with facts... And - guess what --- there's a layer of dirt on the right hand side, and a slight mark on the left. Which leads me to believe that I had bottomed the left, but not the right.


Without those heavy as truck leafs in the back, the lowering blocks would have cause carnage already.


You'll need longer U-Bolts so you may as well get a larger diametre units whilst you're at it...



By the way - The Porsche kicked my a*** from 120-170km/h. I kicked it from 100-120, but that's maybe as he hadn't got into the gap in the traffic as well as me... Was laughing my head off... Honestly... I drop down into second and hoofed it, and so did he. I think he actually should have gone for first or something, coz for a split second I had him I tell you! When we got to town the yuppie boys in it were cracking up, and so was it. Had a gearbox in the back and four or five wooden pallets from NZEA, and I'm saying to them "yeah yeah, bet you can't do that with four or five wooden pallets and a spare gearbox in your boot..." And they wheelspin off with two wheels leaving 265 wide black marks and wait for me. And say "yeah, but you can't do that with your motor in the back..."


About this point in time I decide to hand this thread back to people who can stay on one train of thought for more than two paragraphs.....

Cheerio - just go get some leaves from a big ute for $20, some lowering blocks for $40, u-bolts $40 and then the money you've saved on getting springs re-tempered could be used for a sway bar. Not only that, I guarantee you that your wagon will be more practical....


PS - With the XR6 sports springs in the front and the tough as leaves in the back, you start feeling all the bumps. The leaves are a lot stiffer. I recommend finding an old replacement shock for the rear. Find one that is easy to close, and hard to open (or get expensive adjustable ones)....
Top
 Profile


Posted: Fri Jan 09, 2009 9:37 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

anyone know what the kings leafs are worth?

i wanna lower the back of my wagon more, but $350 to reset em seems excessive.

alreaedy got 2" blocks



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Fri Jan 09, 2009 10:16 am
Stock as a Rock
Offline

Posts: 105

Joined: 24th Jan 2007

Gallery: 2 images

Ride: EL Wagon, Honda CBR600, The Wife

Location: Chelsea
VIC, Australia

EFFalcon wrote:
anyone know what the kings leafs are worth?

i wanna lower the back of my wagon more, but $350 to reset em seems excessive.

alreaedy got 2" blocks


If $350 is excessive, how about $485 with an extra leaf sound :roll:
Retail you would be looking about $225 to reset them down if u were to drop leaves in to a place loose- no extra leaf. Or $308 with an extra 8mm plate in each loose.



_________________

"In my opinion, my opinion is better than yours"

Top
 Profile


Posted: Fri Jan 09, 2009 11:02 am
Getting Side Ways
Offline

Age: 48

Posts: 1061

Joined: 7th Sep 2007

Gallery: 3 images

Ride: BF3 Egas wag SY AWD Terry Ghia

Location: Brookfield
VIC, Australia

I paid $920 for all round in my EL wagon in '98.... I was stupid then. But the wagon handled awesome.
that was lowered 30mm fronts, GT GAS struts, adjustable Camber kit, extra leaf in the rears, GT gas shocks.

I now know that I could have achieved the same result, which I did for $144 doing it myself on my EF Classic. I got the ute springs for $34 at pick-a-part (must go there again and see what i can find) and $110 for GT GAS shocks(NOTE re-use the original rubbers the new ones are crap, mine disintegrated).
I may cut a coil from the fronts when I replace the struts soon. $180 for new Ultimate struts. I will have a hunt at pick-a-part for a rear swaybar which should be about $25.

I have carried many 1 ton loads since with no bottoming out.



_________________

BF3 Egas XT Wagon
SY Territory Ghia AWD 6spA :))

Top
 Profile
