Fordmods Logo

Shwoing differences in Auto and Manual Tail shaft



Page 1 of 2 [ 18 posts ] Go to page 1, 2  Next


 Post subject: Shwoing differences in Auto and Manual Tail shaft
Posted: Mon Jun 07, 2010 4:04 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia

Hi all. After some first hand experience i thought i would share some of my findings with you guys. We all know that auto to manual (T5) tail shafts are interchangeable. But based on what i found there are some noticeable difference with the cv joint part on the end that goes into the gear box.

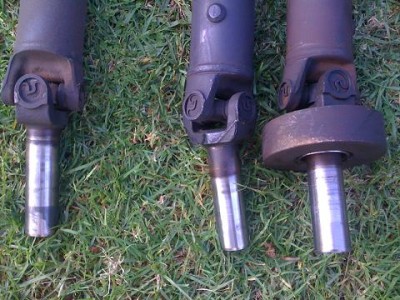

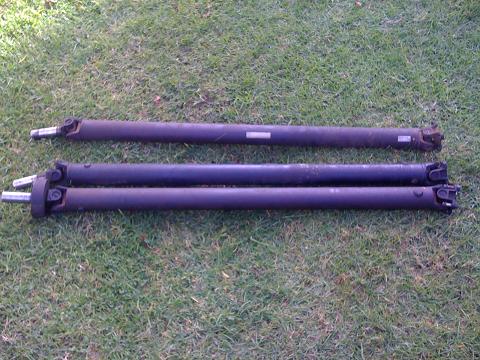

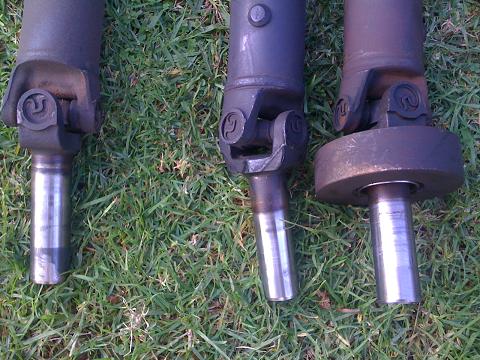

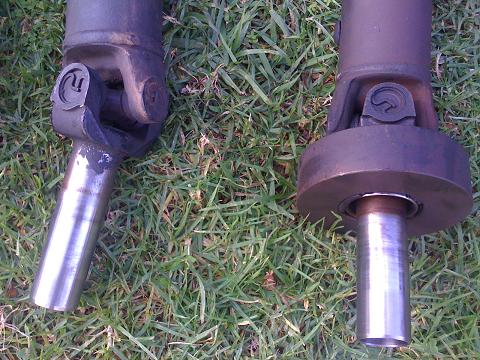

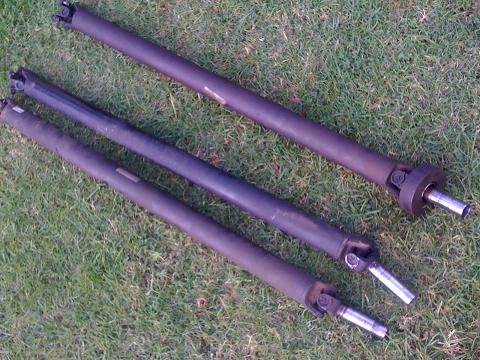

In the below piks i am comparing two auto tail shafts (one from an EB XR6 Auto and one from an EL GHIA with tickford everything auto), with an EF XR6 manual tail shaft. As you can see the manual tail shaft has this huge steel dampner on the end that goes into the gear box.

What i found with the 'auto' tail shaft on the manual box is that when i would take my foot off the clutch with out accelerating is that i would have a very annoying clunk sound.

when i fit the 'manual' tail shaft this noise has completely gone and can not be heard any more.

Not sure if this has been discussed before although based on this its safe to say you can use the auto tail shaft but you will have a better result with the manual one.

I believe this heavy steel dampener weighs the tail shaft down on the gearbox end not allowing back lash from the tail shaft.





Attachments:
IMG_2124.JPG [ 61.29 KiB | Viewed 159 times ]
IMG_2123.JPG [ 63.57 KiB | Viewed 75 times ]
IMG_2122.JPG [ 61.23 KiB | Viewed 93 times ]
IMG_2121.JPG [ 58.3 KiB | Viewed 80 times ]



_________________

EB SXR6. ED XR8 Sprint.

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Mon Jun 07, 2010 4:08 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

I noticed the same thing on my AU. The manual one had the dampner and the auto one didnt.

AU tailshafts are a different length between auto and manual though.
Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Mon Jun 07, 2010 4:23 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia

hhmmm interesting...

they probably just had them in a pile and put what ever on the next car off the line.

considering i hadnt seen this dampner on any auto i had been under, and saw it on the manual i thought i was on to something lol...

the dampner made it noticably heavier and really did make a big improvment for me anyway...

interesting feedback though thanks guys.



_________________

EB SXR6. ED XR8 Sprint.

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Mon Jun 07, 2010 4:59 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ive noticed the same thing, i have an original manual shaft and it dont have the dampener..an original eb ghia auto shaft with no dampener
and again i previously had an efxr8 auto shaft that had the dampener..
strange... :?
Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Mon Jun 07, 2010 9:34 pm
Getting Side Ways
Offline

Age: 22

Posts: 613

Joined: 13th Mar 2010

Ride: EF Falcon Monti

Location: Central Coast
NSW, Australia

i always thought it was for the "park" option the auto offers :?



_________________

BANNED USER

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Wed Jun 09, 2010 2:09 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

And to further confuse the issue, my EB Wagon Auto Alloy tailshaft has a dampener on it too.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Wed Jun 09, 2010 2:32 pm
Smokin em up
Offline

Age: 27

Posts: 259

Joined: 13th May 2008

Gallery: 2 images

Ride: 1995 Fairmont 5 Speed

Location: Traralgon
VIC, Australia

The donor ea I had for my manual conversion had no dampner neither did my auto ef shaft. But then again the ea-eb1's shafts I think are slightly different in the uni-joints. I do also have that issue where I engage the clutch to get moving there is that same clunk where it feels like there is heaps of backlash in the diff. Yet to try one with dampner.

Anyone got a spare yoke with dampner that will fit my ef shaft?

Cheers
Sam



_________________

FOR SALE: EBII TICKFORD HEAD. Pm me :)
TOONGABBIE MOTORSPORTS
FAIRMONT 5 SPEED BUILD THREAD: http://www.fordmods.com/the-garage-f53/sam-s-ef-new-car-1995-fairmont-t92322.html
FOR SALE: ford-parts-for-sale-f17/fs-things-that-need-to-go-eseries-bits-t100455.html

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Wed Jun 09, 2010 4:00 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I am currently running the manual EA box in my ED, using an EBII auto tail shaft ( no balancer ), and have no vibe/noise issues whatsoever.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Wed Jun 09, 2010 5:41 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 741

Joined: 29th May 2007

Ride: EF XR8 347

Power: 232 rwkw

Location: Perth
WA, Australia

I doubt a clunk would have anything to do with anything other than gearbox/Diff slap or buggered unijoints.



_________________

347 XR8 Build Thread

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Wed Jun 09, 2010 5:44 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Wed Jun 09, 2010 9:50 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I have seen them on Fairlanes too.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Wed Jun 09, 2010 9:55 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

My 5 speed doesn't have one...

I have no clunking and the diff gears have very minimal backlash...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Thu Jun 10, 2010 12:56 am
Getting Side Ways
Offline
User avatar

Posts: 1043

Joined: 7th Feb 2005

Location: Canberra
ACT, Australia

I think my EL has got one...



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Thu Jun 10, 2010 9:04 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 863

Joined: 26th Nov 2007

Gallery: 20 images

Ride: XH Ute / AU3 V8 Wagon

Location: Bris-Vegas
QLD, Australia

The big heavy round steel thingy is a dampner. It is to reduce the SOUND that is transmitted up the driveshaft tube, caused by backlash in the diff. When I was doing driveshafts, I was told by a Ford engineer that they were matched to the diffs at the factory when the diff backlash is "on the high side of acceptable" rather than have the customer complain about the noise. There is no rule as to which car or shaft type they were fitted to.
If you get your diff rebuilt, it can then be removed.
If it comes loose on the yoke, throw it away. By the time it works loose, the diff backlash will have changed anyway.
If you have a noisy/sloppy diff centre, one of these shafts may reduce the noise, but it doesnt solve the problem. Get the diff fixed. 8-)



_________________

Yes, I own a Ute. No, I won't help you move!

EL Wagon Build Thread http://www.fordmods.com/the-garage-f53/sooty72-s-ef-futura-wagon-long-term-project-t90025.html
XH Ute Thread http://www.fordmods.com/post1138970.html#p1138970

Top
 Profile


 Post subject: Re: Shwoing differences in Auto and Manual Tail shaft
Posted: Thu Jun 10, 2010 11:47 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Wasn't that the idea of puting thick cardboard rolled up inside the tailshaft???.....to stop noise???
The damper is for vibes.....as is the rubber mounted weight you find bolted to the extension housing.
There are 2 different dampers.....a thin one, about an 1" thick, and the big one, nearly 2" thick.
They tended to be found on wagons, Fairlanes and Fairmonts, some XR6's, utes & vans.....depending on transmission fitted.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile

Display posts from previous:
Sort by
 Page 1 of 2  [ 18 posts ]  Go to page 1, 2  Next

Who is online

Users browsing this forum: No registered users and 29 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Mon Dec 18, 2017 4:57 pm All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
