 Post subject: How to convert to new battery terminals
Posted: Fri Sep 18, 2009 10:09 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

How would you convert the from these old terminals to the new one?

The old terminals have the wires clamped on by some sort of lug.

The new terminals have a screw on type arrangement

see pics below

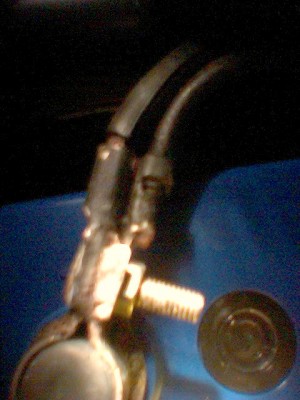

OLD TERMINAL
Attachment:
image_00182.jpg [ 65.8 KiB | Viewed 249 times ]

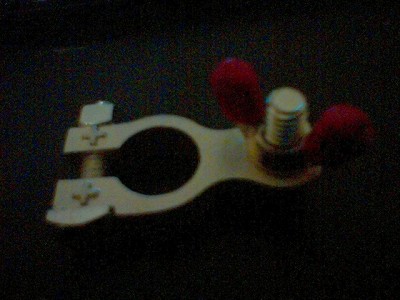

NEW TERMINAL
Attachment:
image_00184.jpg [ 76.87 KiB | Viewed 172 times ]



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Fri Sep 18, 2009 10:57 pm
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

undo the 10mm nut on the bolt, remove the 2 lugs. Put the new terminal on the battery terminal. Now place the 2 lugs over the threaded bolt and tighten down the wing nut.......

cheers............



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Fri Sep 18, 2009 11:15 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

EL__Fairmont wrote:
undo the 10mm nut on the bolt, remove the 2 lugs. Put the new terminal on the battery terminal. Now place the 2 lugs over the threaded bolt and tighten down the wing nut.......

cheers............


the old lugs are connected to the "O" shaped battery clamp

i went to the shops to find a new lug, but there doesn't seem to be one that would "clamp" onto the wiring.

i've checked about 5 shops, supercheapauto, BCF, JB HiFi, d**k Smith, Repco

haven't tried coventrys or ford yet



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Fri Sep 18, 2009 11:23 pm
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1629

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

hacksaw the ring part off, dress sharp edges with file, refit to new terminal
Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Fri Sep 18, 2009 11:55 pm
Getting Side Ways
Offline

Age: 40

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: SF5 Forester

Location: Bathurst
NSW, Australia

check bonnet clearance first, IMO I wouldn't have chosen the ones with wing nuts, cause of this possiblity...

I have put "other" tpye on both mine and the missus car.

just get a screwdriver to spread the exisiting clamp off the wires and just neaten them up and place in new clamp.



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sat Sep 19, 2009 12:30 am
Fordmods Junkie
Offline
User avatar

Age: 61

Posts: 2903

Joined: 26th Nov 2008

by the looks of his pics he will need the eyelets because they will go straight on the thread the wingnut is on. I would only cut them off if he had the other type.
Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sat Sep 19, 2009 12:39 am
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

XR-Lane wrote:
by the looks of his pics he will need the eyelets because they will go straight on the thread the wingnut is on. I would only cut them off if he had the other type.



hello yes you are correct, i cannot cut it off because it connects to the eyelet

any other method?

do i need a special lug?

i found a lug at supercheapauto but there is no way the lug can clamp onto the wires....



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sat Sep 19, 2009 12:46 am
Getting Side Ways
Offline

Age: 40

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: SF5 Forester

Location: Bathurst
NSW, Australia

falcon1999 wrote:
XR-Lane wrote:
by the looks of his pics he will need the eyelets because they will go straight on the thread the wingnut is on. I would only cut them off if he had the other type.



hello yes you are correct, i cannot cut it off because it connects to the eyelet

any other method?

do i need a special lug?

i found a lug at supercheapauto but there is no way the lug can clamp onto the wires....


I would just simply return the ones you brought and get these Image

but with the nut fitting not the screw type



_________________

R.I.P Tobias my son.

Last edited by Froudey on Sat Sep 19, 2009 12:49 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sat Sep 19, 2009 12:46 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 824

Joined: 10th May 2007

Ride: Xr6 Turbo

Location: Melbourne
VIC, Australia

solder them in :) best connection possible



_________________


Previous cars


1995 ef futura - nothing special
2003 xr6 turbo 5 -speed 307rwkw

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sat Sep 19, 2009 12:56 am
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

good suggestion

what material terminals should i get? excluding copper

brass, zinc, lead



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sat Sep 19, 2009 1:01 am
Fordmods Junkie
Offline
User avatar

Age: 61

Posts: 2903

Joined: 26th Nov 2008

Froudey wrote:
falcon1999 wrote:
XR-Lane wrote:
by the looks of his pics he will need the eyelets because they will go straight on the thread the wingnut is on. I would only cut them off if he had the other type.



hello yes you are correct, i cannot cut it off because it connects to the eyelet

any other method?

do i need a special lug?

i found a lug at supercheapauto but there is no way the lug can clamp onto the wires....


I would just simply return the ones you brought and get these Image

but with the nut fitting not the screw type


they are the better option, and I would tin the wires with the solder for a great connection :P
Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sat Sep 19, 2009 7:41 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

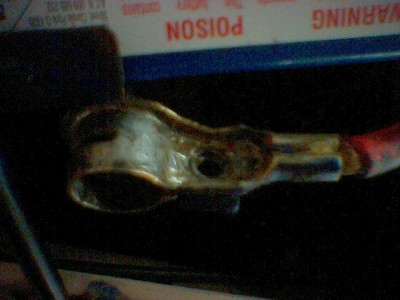

How do you disconnect the wire from the eyelet?

I've tried prying it with a screwdriver, not working.

Is cutting the wire the only way?

cheers

Attachment:
image_00186.jpg [ 61.36 KiB | Viewed 215 times ]



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sat Sep 19, 2009 8:26 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 676

Joined: 7th Jun 2009

Ride: Ford EB II Falcon

Location: Morphett Vale
SA, Australia

I would just cut it off with a hacksaw or the fast way i did was use an angle grinder !
As for the material Gold is the best but expensive ! Next best thing is Copper followed by Aluminum !



_________________

OLD CAR: EB II Falcon, Everglade Green, 250thous (Rough Guess), Wildcat Extractors, 2.5 Exhaust with Muffler + Hot Dog, 18 Inch Rodney Jane Mags, XH Snorkel, EA MPEFI Tubing !

NEW CAR: 1996 TE Magna...Mods Soon To Come

Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sun Sep 20, 2009 6:07 pm
Tyre Shredder
Offline
User avatar

Age: 58

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

peaandham wrote:
I would just cut it off with a hacksaw or the fast way i did was use an angle grinder !
As for the material Gold is the best but expensive ! Next best thing is Copper followed by Aluminum !

Aluminium is a s**t conductor.
Top
 Profile


 Post subject: Re: How to convert to new battery terminals
Posted: Sun Sep 20, 2009 11:46 pm
Smokin em up
Offline

Age: 61

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

im being cruel to be kind , you dont know what you are doing, pay 20 bucks and get a auto sparky to do it,the cars worth more, eg. fire , theft when its parked in the wrong place not going etc.



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile
