| filipop1 |
|
||
|
I have LED blinkers I want to put on this car - the LEDs flash light crazy
Can someone tell me where the flasher relay is and if anyone tried replacing this with one for LEDs to work as normal? I see a few of these LED flasher relays on ebay but I dont know where mine is so I can compare |
||
| Top | |
||
| my671fordv8 |
|
|||||
|
Dont know where it is in the ghia but the relay is in the Au falcons fuse box is just above your right leg on the dash

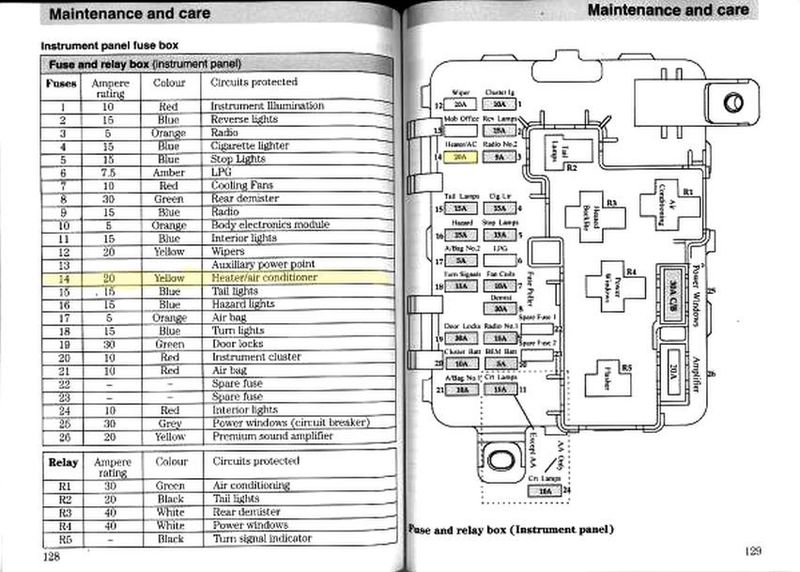

Here is a pic . The flasher relay is R5
|
|||||
| Top | |
|||||
| filipop1 |
|
||
|
Thank you - should be the same I guess I'll have a look - cheers
|
||
| Top | |
||
| my671fordv8 |
|
|||||
|
No worries . i made my own led tail lights for my wagon ad had the same problem till i got a manual and an led flasher relay
|
|||||
| Top | |
|||||
| filipop1 |
|
||
|
where did you get the single LEDs from? I only bought the ones for cluster, interior and parker - where do you get the little panel you put LEDs on - Im thinking d**k smiths or something if thats correct - thanks
|
||
| Top | |
||
| my671fordv8 |
|
|||
|
Yep i got the single leds from jaycar . They are the same type of leds that are in daytime running lights so 1 of these are equivalent to around 20 standard leds .They were about 20 bucks each and 30 bucks for the controller (driver) cutter electronics has them heaps cheaper but you have to order the led and then the circuit board to match
|
|||
| Top | |
|||
